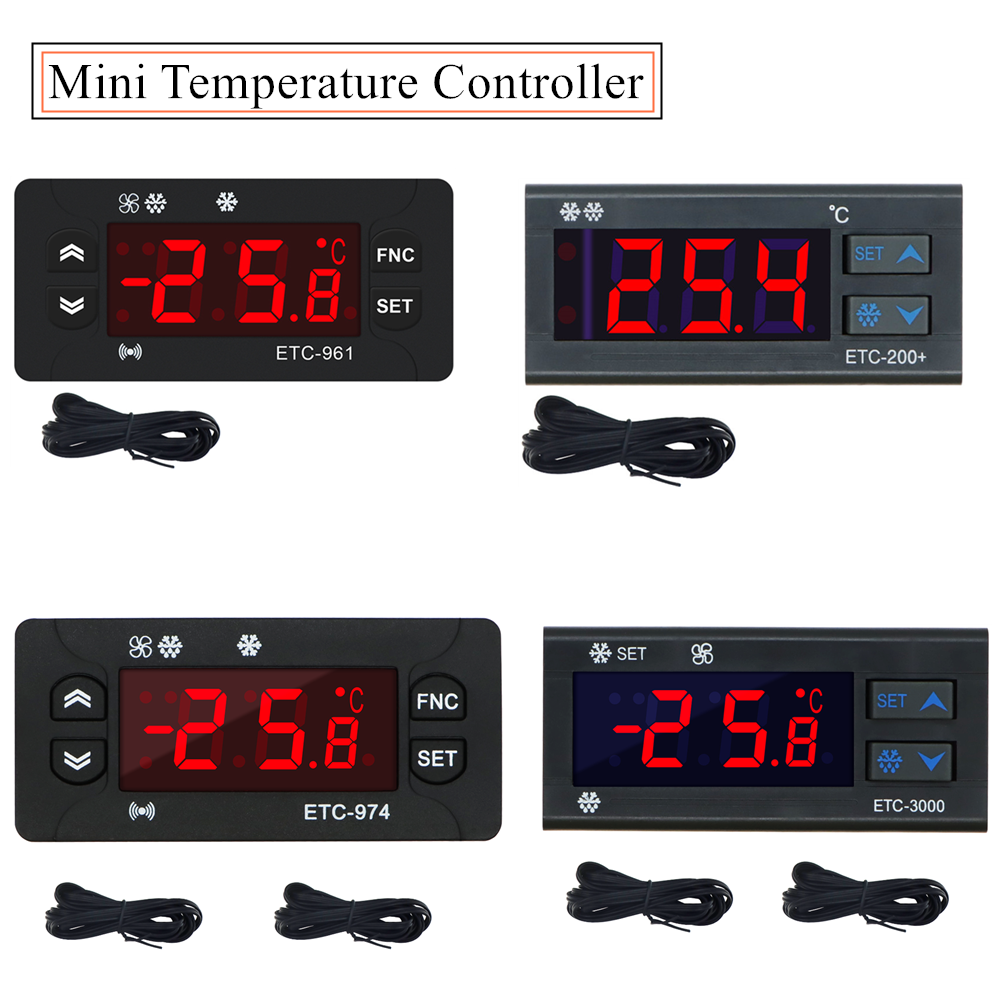

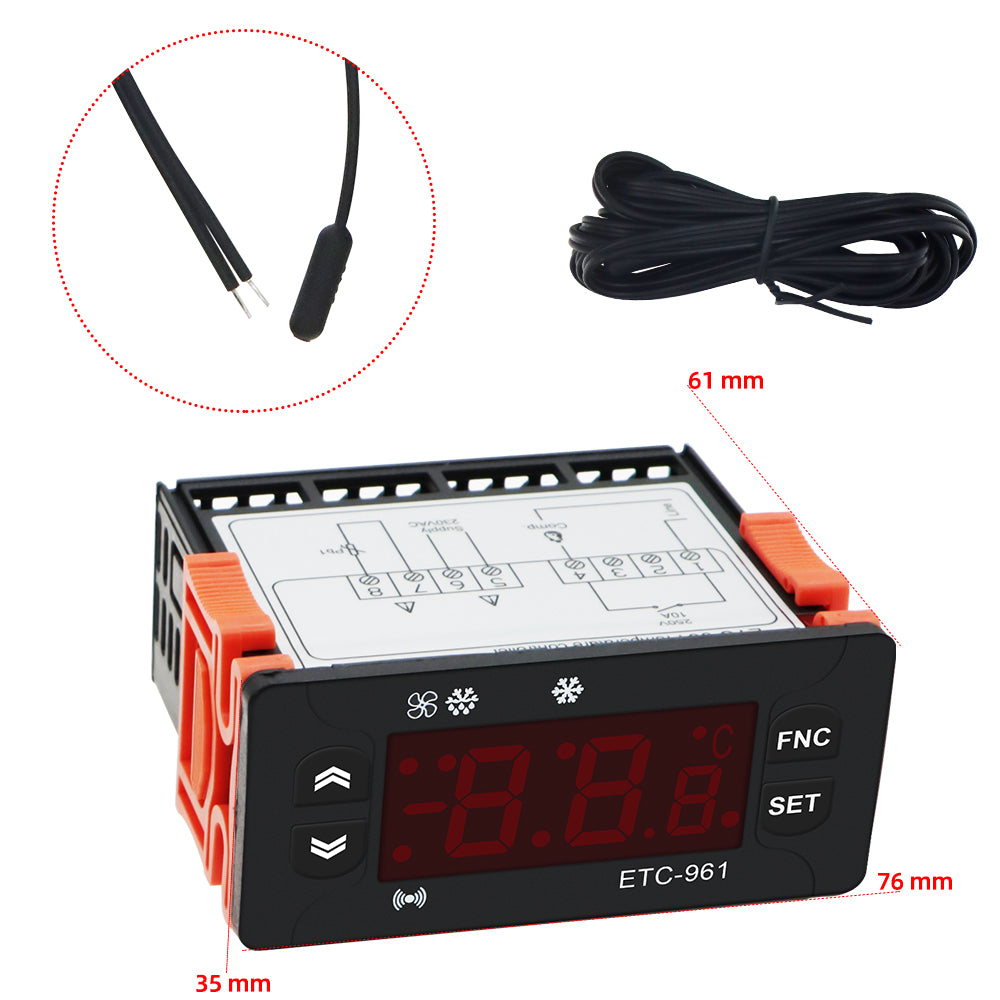

ETC-961 Mini Temperature Controller Microcomputer thermostats Digital Thermostat Refrigeration Alarm 220V NTC sensor

               Working conditions:

       Power supply:230VAC±10% 50/60Hz

       Rated current of the relays(refrigeration):10/220VAC

       Use temperature:-5℃~55℃Relative humidity:10%-90%RH(not condensing)

       Storage temperature:-30℃~85℃

               Specification:

       Product；Length 77x Width 34.5xDepth 58(mm)

       Mounting size:Length 71× Width 29(mm)

       Probe wire length:2M(including the probe)

               Technical Parameters:

       Temperature controlling range:

       NTC probe:-50..,110℃(-58..230"F)

       PTC probe:-55...140℃(-67..284F)

       Display resolution:1℃/0.1℃（with the switch mode between integer and decimal）

       Accuracy:NTC:±0.5℃（-30℃-50℃），other,±1℃

       PPT:±1℃（-30℃-50℃），other，±2℃

       Probe type:NTC(-50℃-120℃)  PTC(-50℃-150℃）

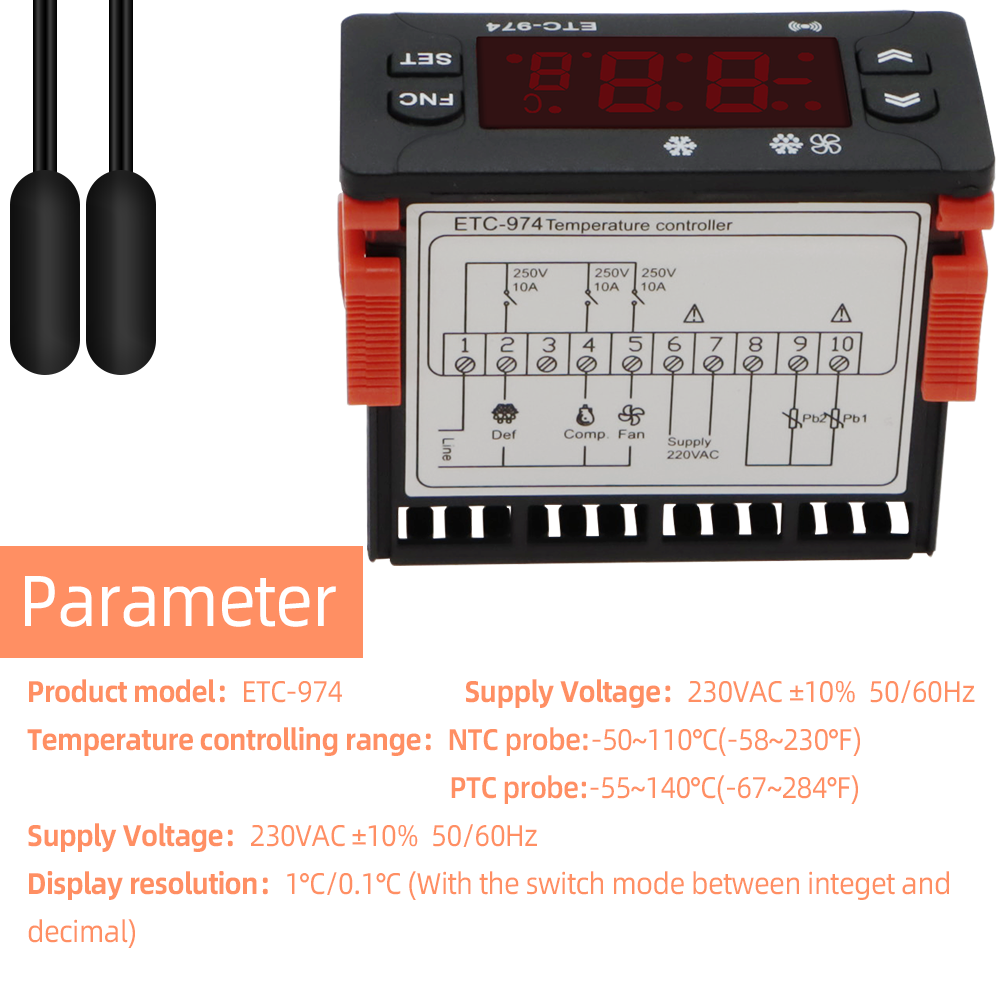

       ETC-974 Mini Temperature Controller Refrigerator Thermostat Regulator Thermoregulator Thermocouple NTC Dual sensor 220V

       Specifications:

       Model:ETC-974

       Temperature measure range: NTC probe :-50~110°C(-58~230°F)

       PTC probe:-55~140°C(-67~284°F)

       Display resolution:1°C/0.1°C(with the swithch mode between integer and decimal)

       Accuracy:NTC:±0.5°C(-30°C~50°C)；other±1°C

       PTC:±1°C(-30°C~50°C); other±2°C

       Probe type :NTC(-50°C~120°C)  ;PTC(-50°C~150°C)

       Power supply:230VAC±10% ;50/60Hz

       Rated current of the relays(refrigeration ,defrost and fan):8A/220VAC

       Use temperature:-5°C~55°C

       Relative humidity:10%-90%RH (not condensing)

       Storage temperature:-30°C~85°C

       Input: 2 NTC sensor

       Sensor lenth:2M(include the probe)

       Product length:77*34.5*58mm

       Mounting size:71*29

     ETC-3000 Mini Temperature Controller Refrigerator Thermostat Regulator Thermoregulator Thermocouple NTC Dual sensor 220V

           Specifications:

     Model:ETC-3000

     Temperature measure range: -45.5~120°C

     Temperature controlling range: -45.5~110°C

     Power supply:220VAC±10%

     Relay capacity of compressor:8A/220VAC

     Relay capacity of fan and defrost:8A/220VAC

     Input: 2 NTC sensor

     Sensor lenth:2M(include the probe)

     Digital display:Three-digit LED + Minus digit + Status indicator light (Set;Refrigeration;Defrost;Fan)

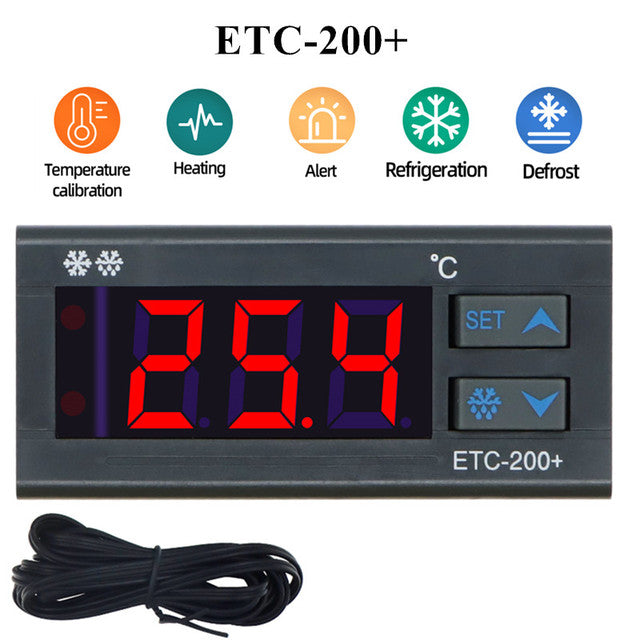

     ETC-200+ Mini Temperature Controller Microcomputer thermostats Digital Thermostat Refrigeration Defrosting Alarm  220V

           Main functions:

           Temperature measurement and control

      Defrost control

      Temperature calibration

      Start-up delay protection

      Alarm when exceeding temp.limit

      Switch between refrigeration and heating

      Input password to adjust parameter

           Specification:

     Condition: 100% Brand New

     Item Type: Temperature Controller

     Material: ABS

     Working Voltage: 220V

     Power: <3W

     Measuring and Controlling Temperature Range: -40-120°C

     Resolution: 0.1 °C at (-40°C--99.9°C);1°C in other range

     Accuracy: ±1 °C at (-40°C--70°C);less thsn ±2°C at other range

     Power Supply Voltage: 220VAC ± 10%; 50Hz / 60Hz

     Temperature controlling range :-40°C--120°C

     Relay contact capacity:

     1)Refrigeration:10A/220VAC,the max load it can driving is 0.5HP/220VAC

     2)Defrost:10A/220VAC

     Sensor type:NTC sensor(10KΩ/25℃,B value 3435K)

     Ambient temperature:0℃~60℃

     Storage temperature:-30℃~75℃

     Relative humidity:20%~85%(No condensate)

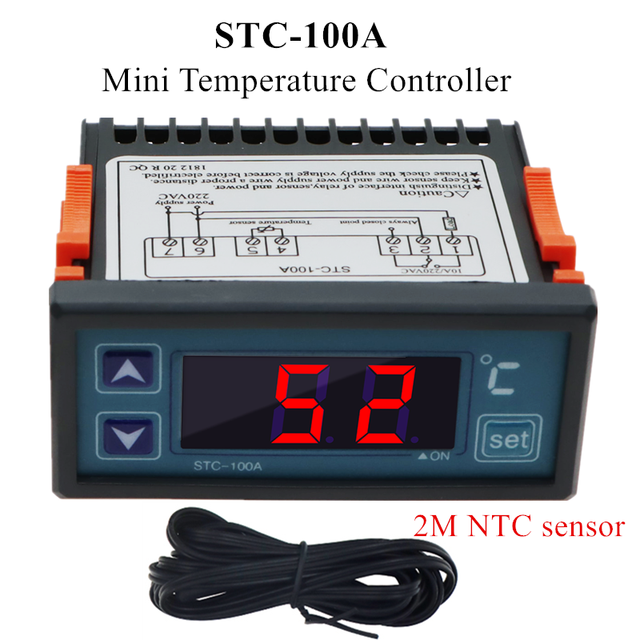

     STC-100A Mini Temperature Controller Cool Heat Refrigerator Thermostat Regulator Thermoregulator Thermocouple 2M NTC sensor 220V

     Specifications:

           Model:STC-100A

      Color:Gray

      Relay capacity:10A(0.5HP)/220VAC

      Temperature measure range: -40~99°C

      Temperature controlling range: -40~99°C

      Resolution: 1°C

      Accuracy: ±1 °C±0.5digit

      Ambient requirements: temperature: 0-60°C humidity: 20%-85%(No condensate)

      Consumption:≤3W

      Input: 1 NTC sensor

      Sensor lenth:2M(include the probe)

      Delay time when sensor error:1 min

      Safe level of the front panel:IP54

      Storage temperature:-30°C - 75°C

      Front Panel Size:77(L)x34.5(W)mm/3x1.35in

      Installing hole Size:71(L)x29(W)mm

      Item size:77(L)x34.5(W)x62mm(D)/3x1.35x2.42in
