Introductions：

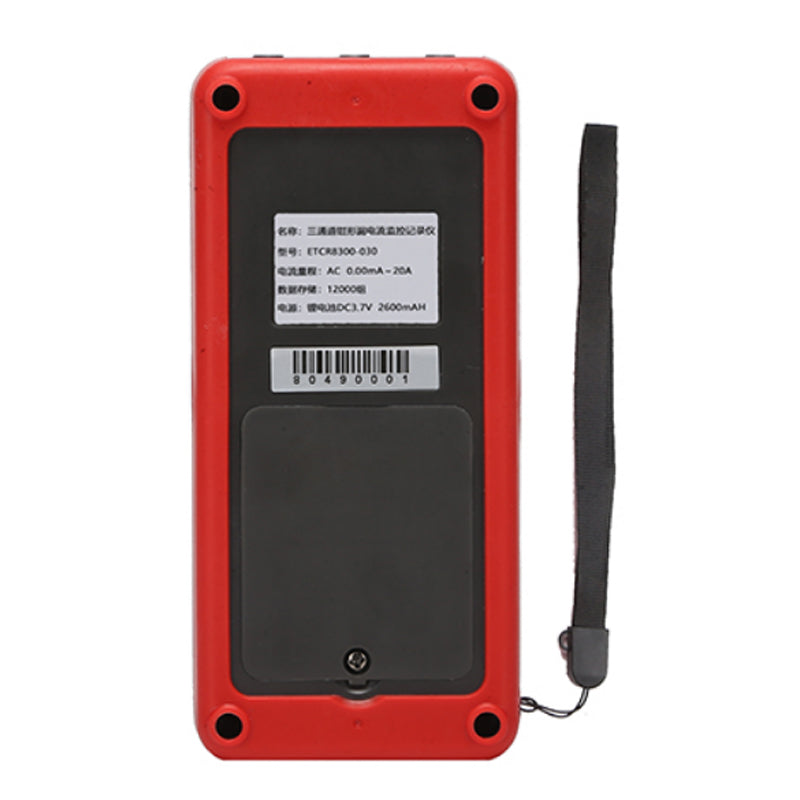

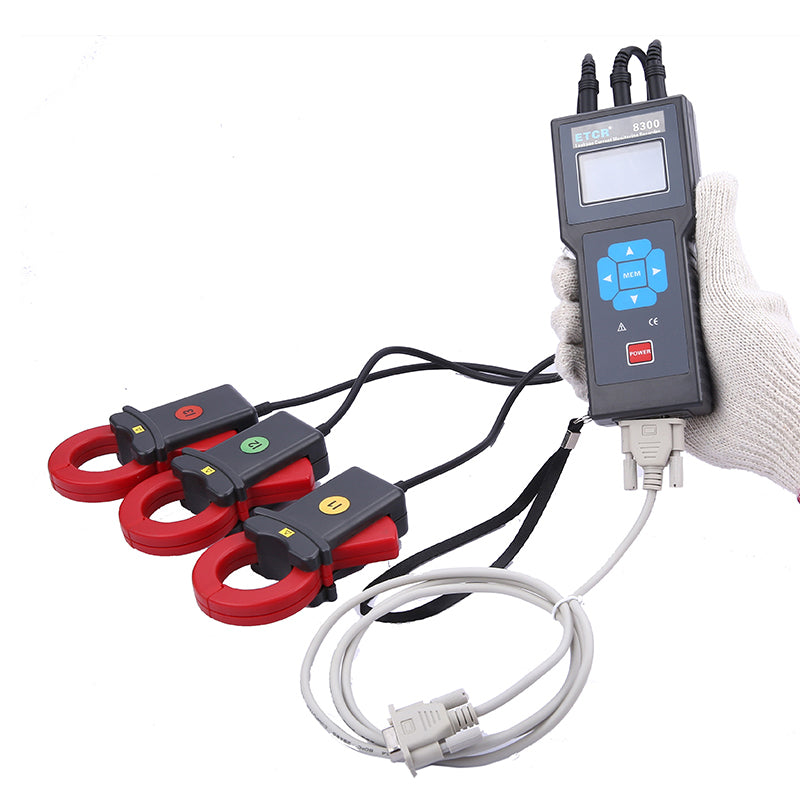

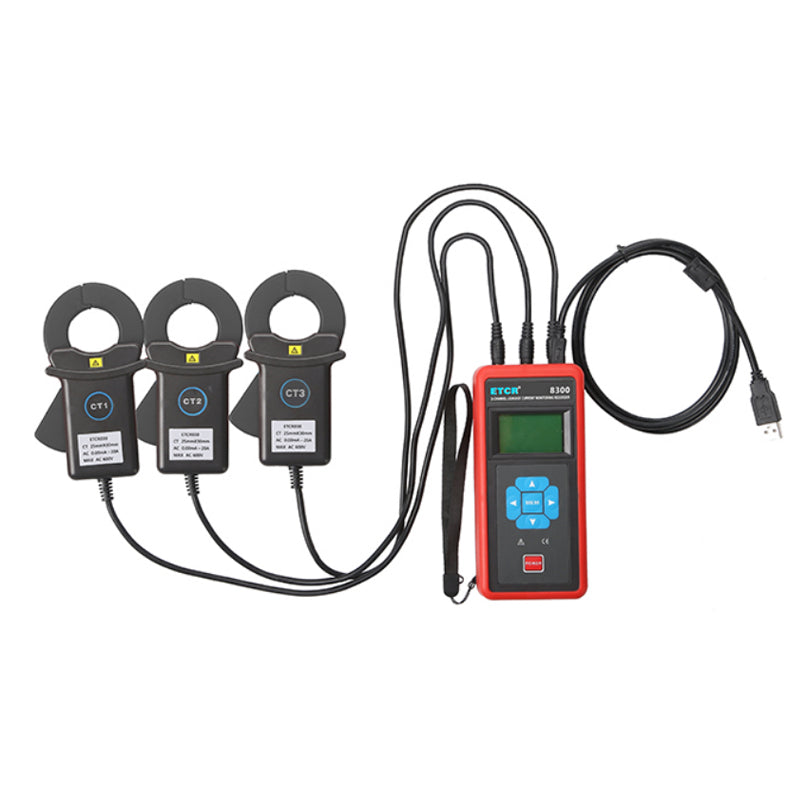

     ETCR8300 series Three-Channel Current/Leakage Monitoring Recorder is well designed and manufactured for online measurement, monitoring and recording of Three-Channel AC leakage / current at the same time. It is composed of a tester, monitoring software, current clamp and communication cable, etc. This instrumenthas been widely applied the 380/220 Power system. It can provide a safety and convenience measurement with accurate results.

          The instrument has a large LCD display with blue background and a large storage space. 3900 sets of data can be stored in the instrument. Three- channel current value can be display on the screen. In addition, the instrument can automatically store data at a interval, which is adjustable from 1 to 99 min.

     Monitoring software provides online and real-time monitoring and historical data inquiry. With the software developed by our technical department, the users can read, inquire, store, generate and print a fitting curve and report.

          The current clamp is made of a special alloy, adopts the latest CT technique and magnetic shielding technique and is not almost interfered by external magnetic field. This ensures high accuracy, high stability and high reliability of the values which are measured continuously

      Technical Specification：

                           Functions

     Measuring AC leakage current and AC current of three channel, monitoring current in real-time manner, locating insulation faults and repairing electrical lines.

                          Power source

     DC6V, alkaline battery LR03 1.5V×4

                          Testing Method

     Split core type CT, true RMS

                          Range

     0mA-200A

                          Resolution

     1mA

                          Accuracy

     ±2%±5dgt

                          Clamp size

     35mm×40mm

                          Instrument Dimension

                  Tester(L×W×H): 75mm ×170mm ×30mm

             Current clamp(L×W×H): 122mm ×70mm ×33mm

                          Mass

                  Tester: 750g (battery included)

             Current clamp: 170g × 3 PCS

                          LCD Dimension

     Display field: 44mm×27mm

                          Shield Type

     Type B: Double shielding

                          Sampling Rate

     2 samples/s

                          Data storage

     3900 sets (data loss does not occur after power failure or replacing the battery)

                          Time Setting

     Recording internal adjustable from 1 to 60 min, If set to 0 min, the auto-store function is turned off

                          Recording Time

     Continuously operate for about 10 days at the power-saving mode

                          Line Voltage

     Line with a voltage up to AC600V

                          Overflow Display

     The “OL” symbol is displayed when a measured value is beyond the measurement range

                          Battery. Voltage

     A Low-Battery symbol is displayed and the user should replace the battery with a new one when the battery voltage drops to 4.6V to 4.8V. In this case, the measured values are still accurate.

                          Rated Power

     about 5mA at the power-saving mode, maximum current consumption: 20mA

                          Lead Length

     2 m

                          Temperature and Humidity

     Working: -20C-50;below 80%rh

             Storage: -20c-50C;below 70%rh

                          Insulation Resistance

     Higher than 100MΩ, 1000V

                          Safety Codes

     IEC1010-1, IEC1010-2-032, Pollution Class 2, CAT 3(600V), IEC61326(EMC standard)

                          Accessories

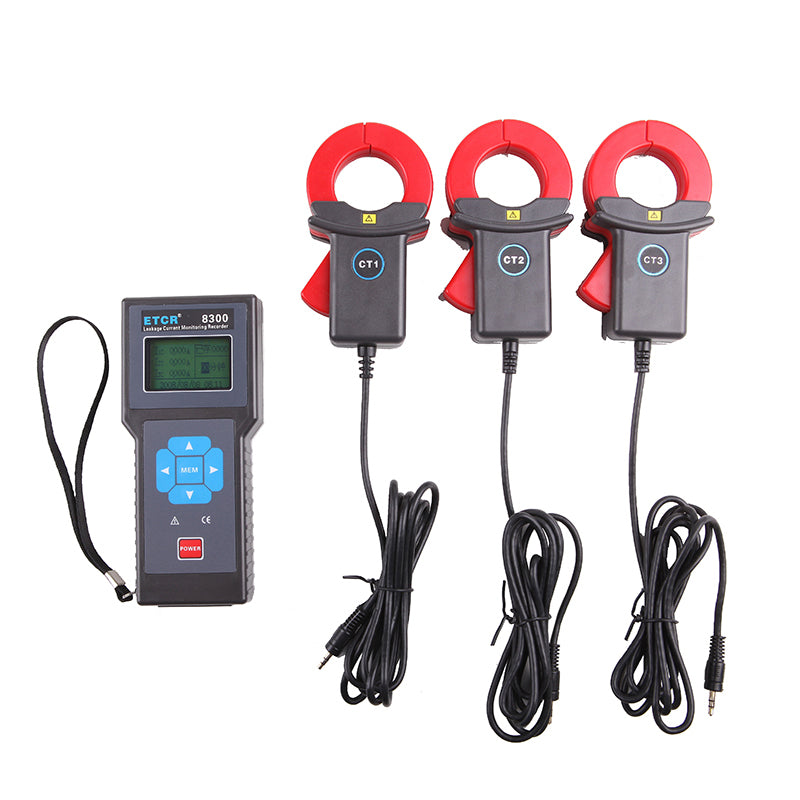

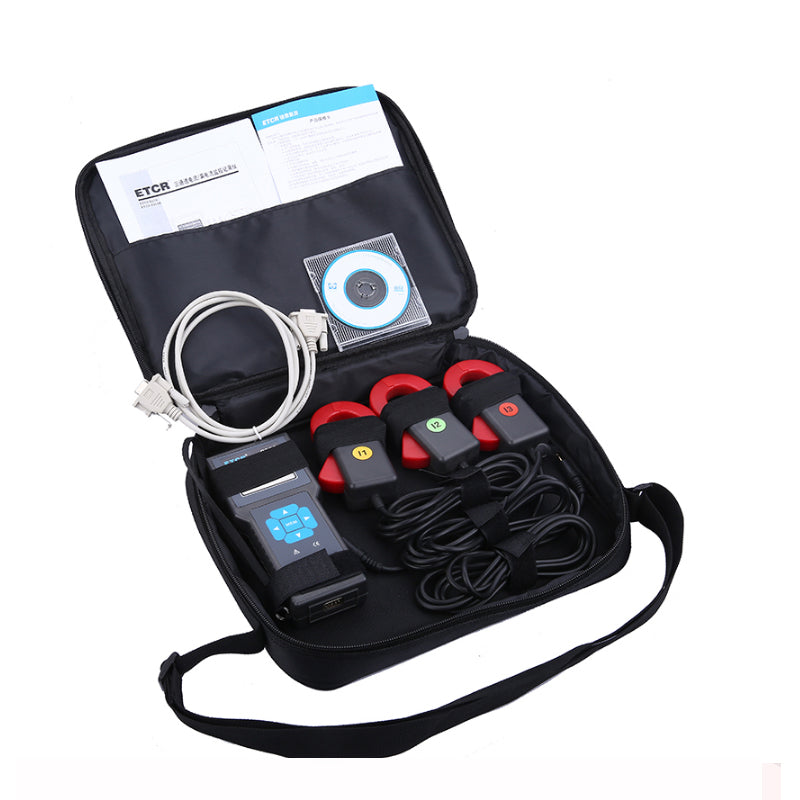

     Tester: 1 PCS, Current clamp: 3PCS, Instrument bag: 1 PCS, RS232 Com-cable:1 PCS; Software Disk: 1 PCS
