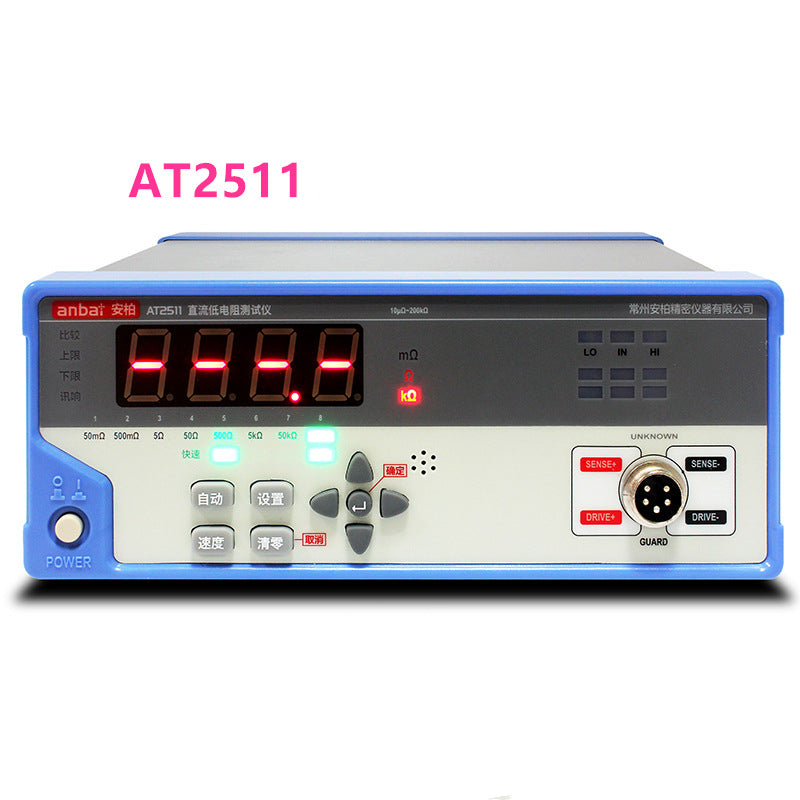

Fast Arrival Applent AT2511 Digital Mega Meter with Chrome Nickel Wire Resistance for Low Digital Micro Ohm Meter
Features:
0.8 inches big font, highlight LED display
Automatic test and provide manual range function
Comparator function
Short-circuit Zero-Adjust for each range
Accuracy: 0.2%
Max Reading: 5000
Automatic and manual with 8 ranges
Fast:10 times/second, Slow:3 times/second
Specifications:
Parameter
DC resistance
Accuracy
0.20%
Measurement Range
10μΩ~200kΩ
Measurement current
I - Max: < 100mA (micro current test, compatible HIOKI 3540)
Range
Automatic and manual with 7 ranges
Speed
Slow: 3 times/second Fast: 10 times/second
Display
show
Display Max
5000
Adjustment
Short-circuit Zero-Adjust for each range
Comparator
OFF, PASS, HI, LO
Trigger
Internal trigger
Interface
None
Temperature compensation
None
Method
4 terminal shielding(2 check terminal and 2 driving terminal) and external shielding ground section
Voltage: 198V AC - 240V AC Frequency: 50Hz Power: Max 15VA
220mm (Width)x85mm (Height)x259mm (Depth) 2kg

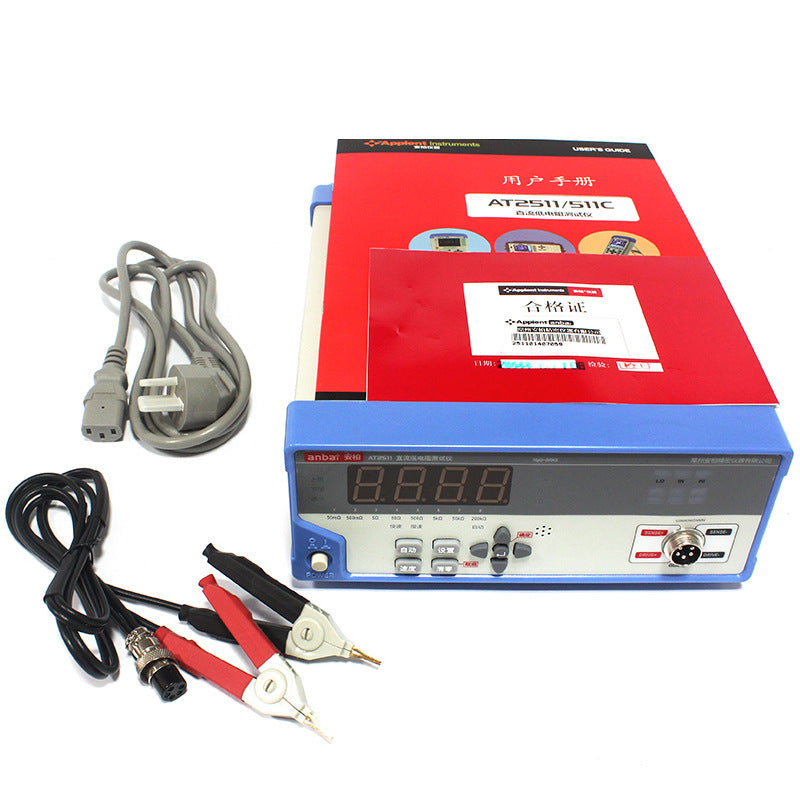

ATL503: Kelvin test clip
ATL620: meter resistance 4-terminal clamp fixture

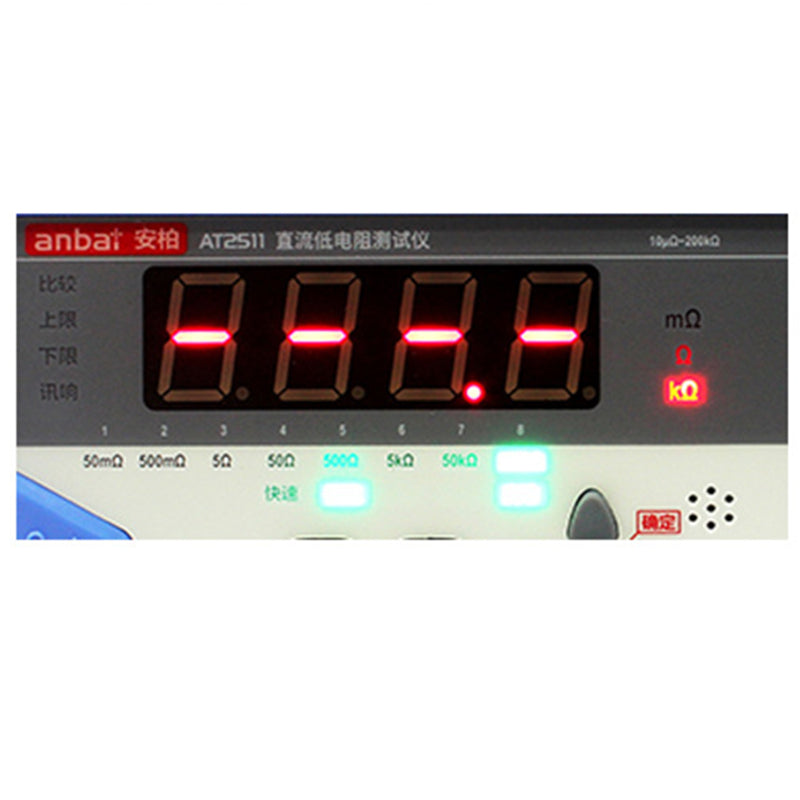

0.8 inches LED display
Application:
Measure string cable diameter coil resistance (such as earphone coil) Measure sensors resistance.
Measure protectors resistance.
Measure resistance of transformer, inductor, motor, deflection coil winding.
Measure all kinds of contact resistance.welding contact resistance and metal defect detection.
