Features:
[Versatile Functionality] With 98 groups of functions/any waveforms, including preset and custom options, this generator meets diverse waveform requirements.

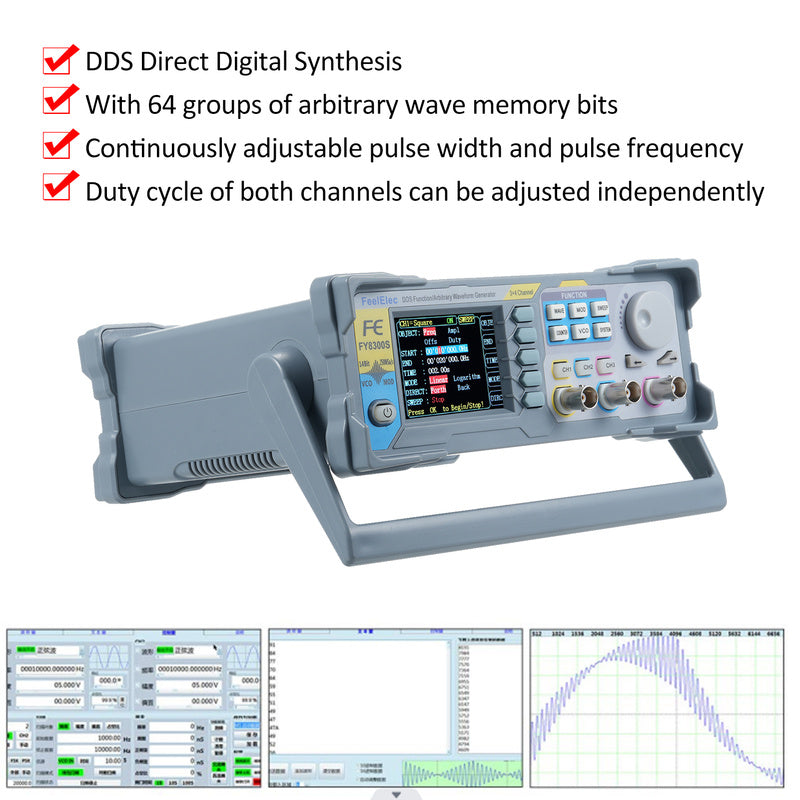

[Accurate Output Signals] Using direct digital synthesis technology DDS, this generator ensures stable output signals with low distortion for precise measurements.
[Improved operability] With keyboard shortcuts and software control, the instrument simplifies the operating processes and improves the user experience.
[All-in-one Generator] The FY8300S series offers a wide range of functions, including function generator, arbitrary waveform generator, VCO and more.
[Advanced Measurement] The generator has a 100M frequency meter function with multiple measurement methods for comprehensive analysis.

Specifications:
Plug: EU / US / UK / AU (Optional)

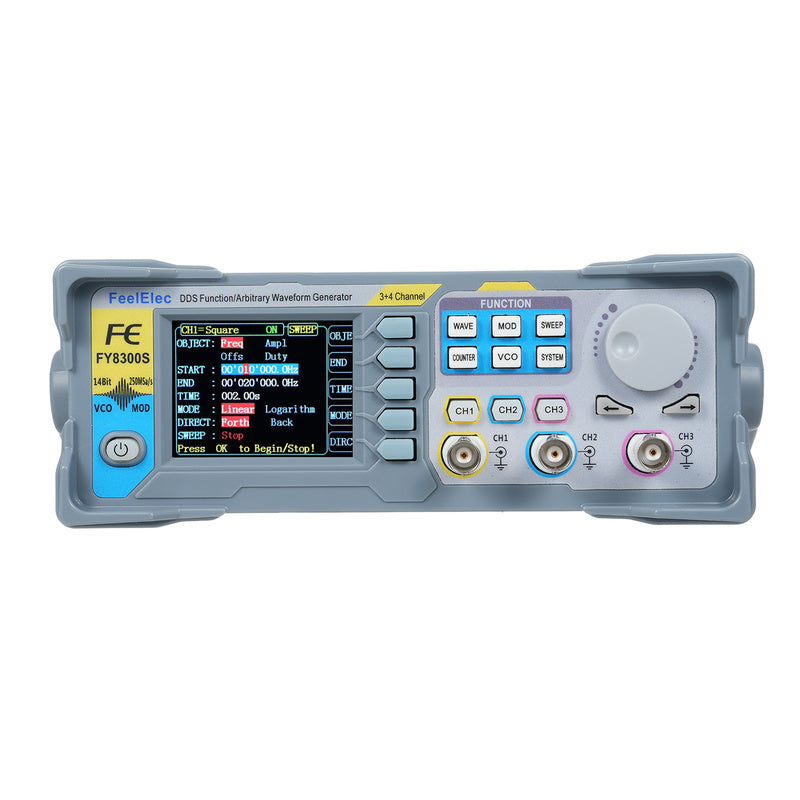

Model: FY8300S-60M
Material: ABS
Sine: 0~60MHz
Square: 0~25MHz
Ramp, Triangle: 0~10MHz
Pulse: 0~10MHz
TTL/CMOS: 0~10MHz
Arbitrary Waveform: 0~10MHz
Minimum Pulse Width: 20ns (All models of pulse wave minimum width can reach 20ns)
Min. Resolution on All Frequency Range: 1μHz (Min. resolution can reach 1μHz on all frequency range to ensure adjusting accuracy under high frequency. For example, it can output 10.000000000001MHz signal).
Accuracy: ±20ppm
Stability: ±1ppm/3 hours
Waveform Characteristics

Non-Volatile Storage: Can storage 64 user-defined arbitrary waveforms, (8K 14 bits) * 64
Waveform Length: 8192 points * 14bits

Vertical Resolution: 14 bits
Sine: Harmonic Suppression: ≥50dBc (<1MHz); ≥45dBc (1MHz~20MHz)
Total Harmonic Distortion: <0.5% (20Hz~20kHz, 0dBm)
Rectangle: Rise/Fall Time: ≤15ns (VPP<5V)
Overshoot: ≤5%
Duty Cycle: 0.01%~99.99% (Resolution 0.01%)
Sawtooth Wave: Linearity: >995 (0.01Hz~10kHz)
Display: Type: 2.4 inch, TFT Color Display
Save Load: Amount: 12
Position: 01 to 12 (01 for start default value)

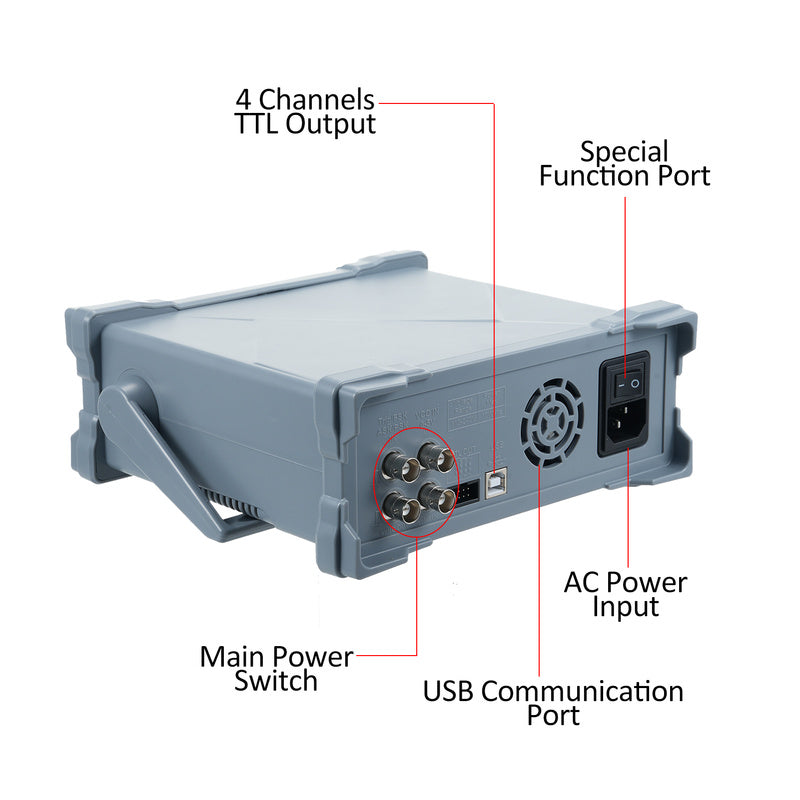

Interface: Type: USB to Serial interface

Communicating Speed: 115200bps (Industrial standard)
Power: Voltage Range: AC 100V~240V
Technic: SMD, LSI, Reliable and durable
Buzzer: Can be turned on/off by setting
Operation: Buttons and knob continuously
Environment: Temp: 0~40℃, Humidity: <80%

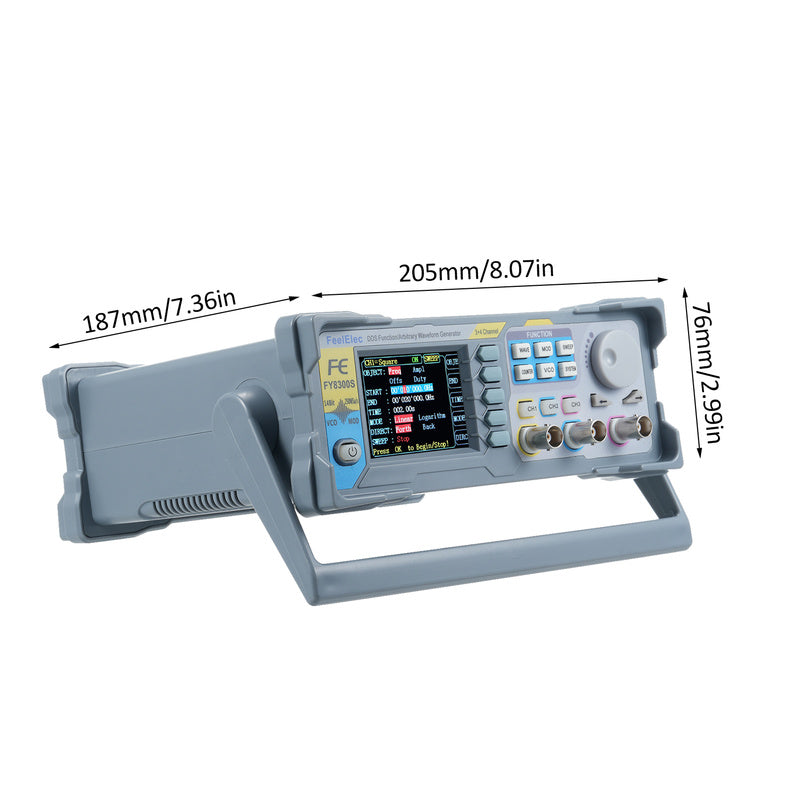

Item Size: 205 * 187 * 76mm / 8.07 * 7.36 * 2.99in
Item Weight: 621g / 1.37lb
Package Weight: 1207g / 2.66lb
Package Size: 27.5 * 21 * 9.5cm / 10.83 * 8.26 * 3.74in

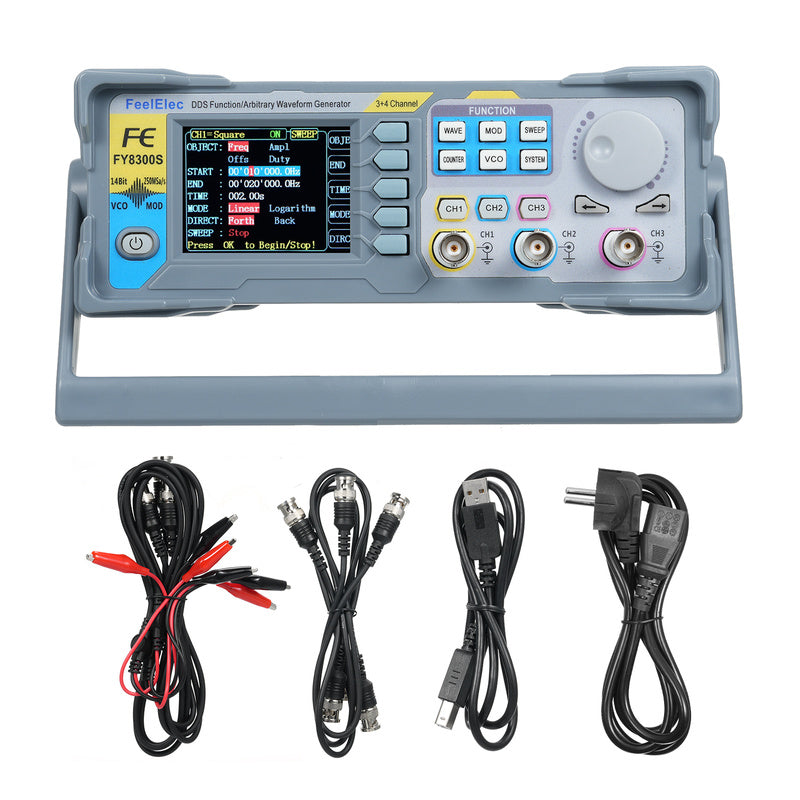

Package List:
1 * Signal Generator
1 * Power Cord
1 * USB Data Cable
1 * BNC-BNC Cable
3 * Q9 Clip Cables
