Features:

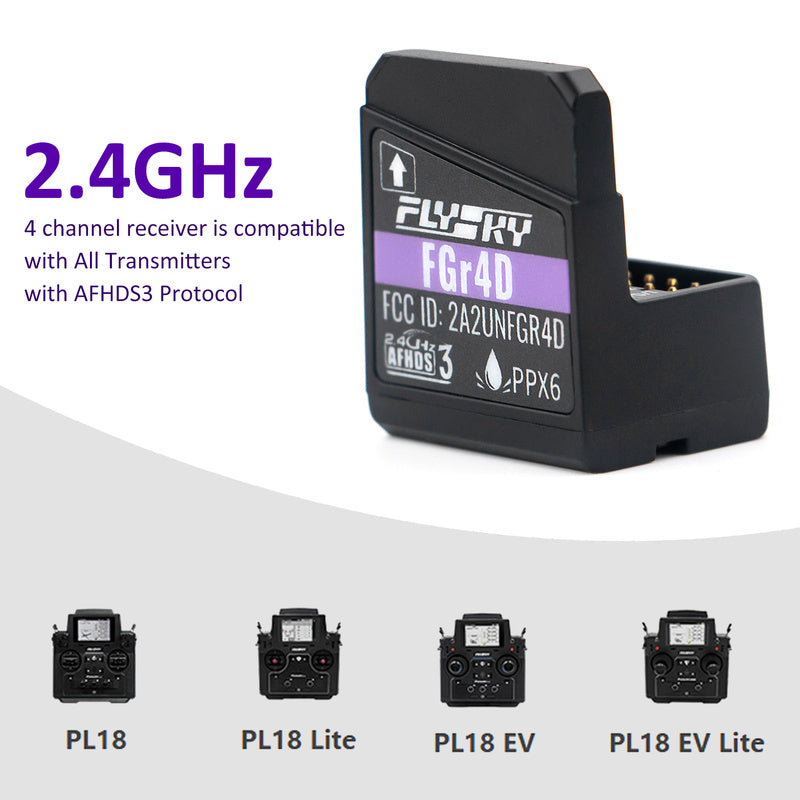

2.4GHz 4 channel receiver is compatible with All Transmitters with AFHDS3 Protocol, good for remote control Car and remote control Boat.
The FGr4D is a 4-channel two-way receiver based on AFHDS3(Third GenerationAutomatic FrequencyHoppingDigitalSystem) protocol.
This receiver features dual antennas, PPX6nanowaterproof.
It supports 4 New port function interfaces(Newport canbe customizedwithinputoroutput signaltypes: i-BUS2/S.BUS/i-BUS/PPM).
Ultra-small size and ultra-lightweight, effectively save space and reduce item's weight-bearing.
Specification:
Product Model: FGr4D
Adaptive Transmitter: All Transmitters with AFHDS3 Protocol
Model Type: Carsor Boats, ect.
PWM Channels: 4
RF: 2.4GHz ISM
2.4G Protocol: AFHDS3
Maximum Power: 20dBm (e.i.r.p.) (EU)
Antenna: Bulit-in Dual Antennas
Input Power: 3.5~9V/DC
Working Current: ≤ 50mA/5V
Data Output: PWM/PPM/i-BUS2/S.BUS/i-BUS
Temperature Range:-10℃ ~ +60℃
Humidity Range: 20%~ 95%
Water Proof: PPX6

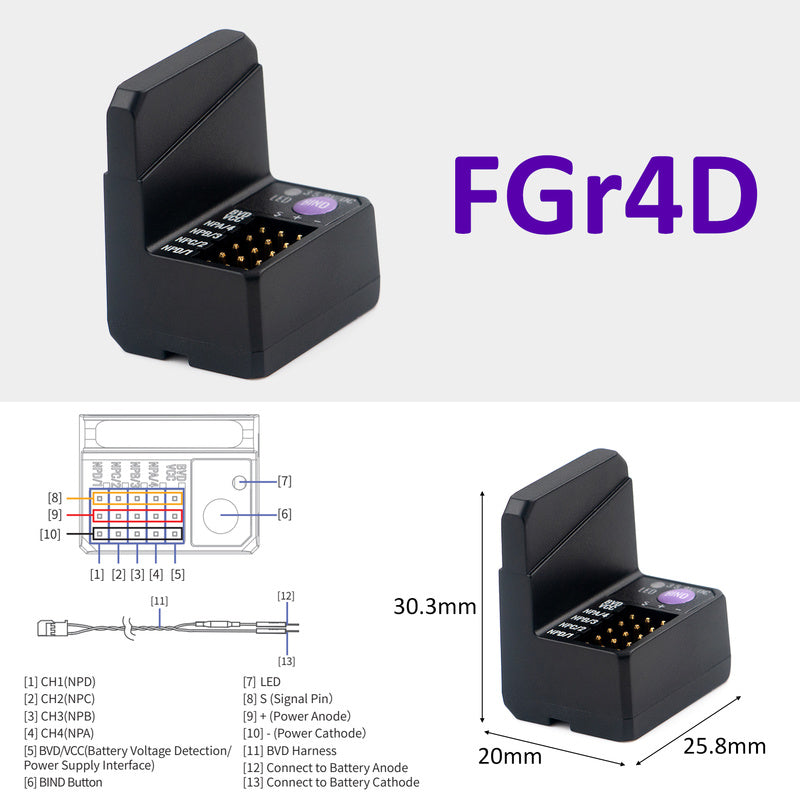

Size: 30.3*25.8*20mm
Weight: 7.2g
**Title**: Flysky FGr4D Receiver - Built-in Dual-Antenna, PWM/PPM/i-BUS2/S.BUS/i-BUS Output for All AFHDS 3 Transmitter **Keywords**: Flysky FGr4D, built-in dual-antenna, receiver, PWM/PPM/i-BUS2/S.BUS/i-BUS output, AFHDS 3 transmitter **Description**: The Flysky FGr4D is a receiver with a built-in dual-antenna. It offers PWM/PPM/i-BUS2/S.BUS/i-BUS output and is compatible with all AFHDS 3 transmitters.
Package information:
Package size: 8 * 5 * 3cm
Package Weight: 13g

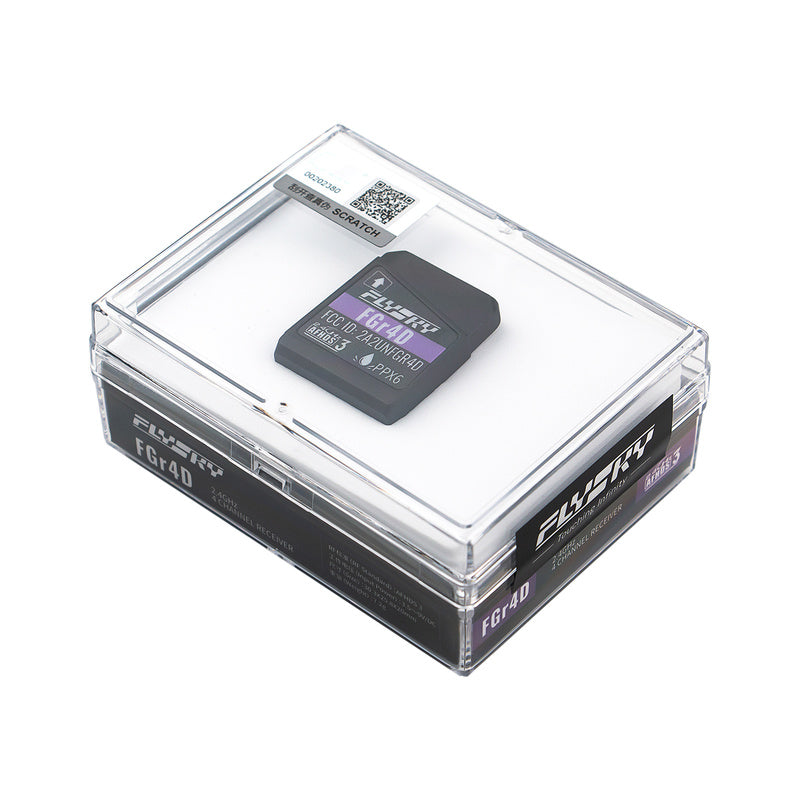

Package List:
1 * FGr4D receiver
1* Cable
1* User Manual
1* Stickers
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
