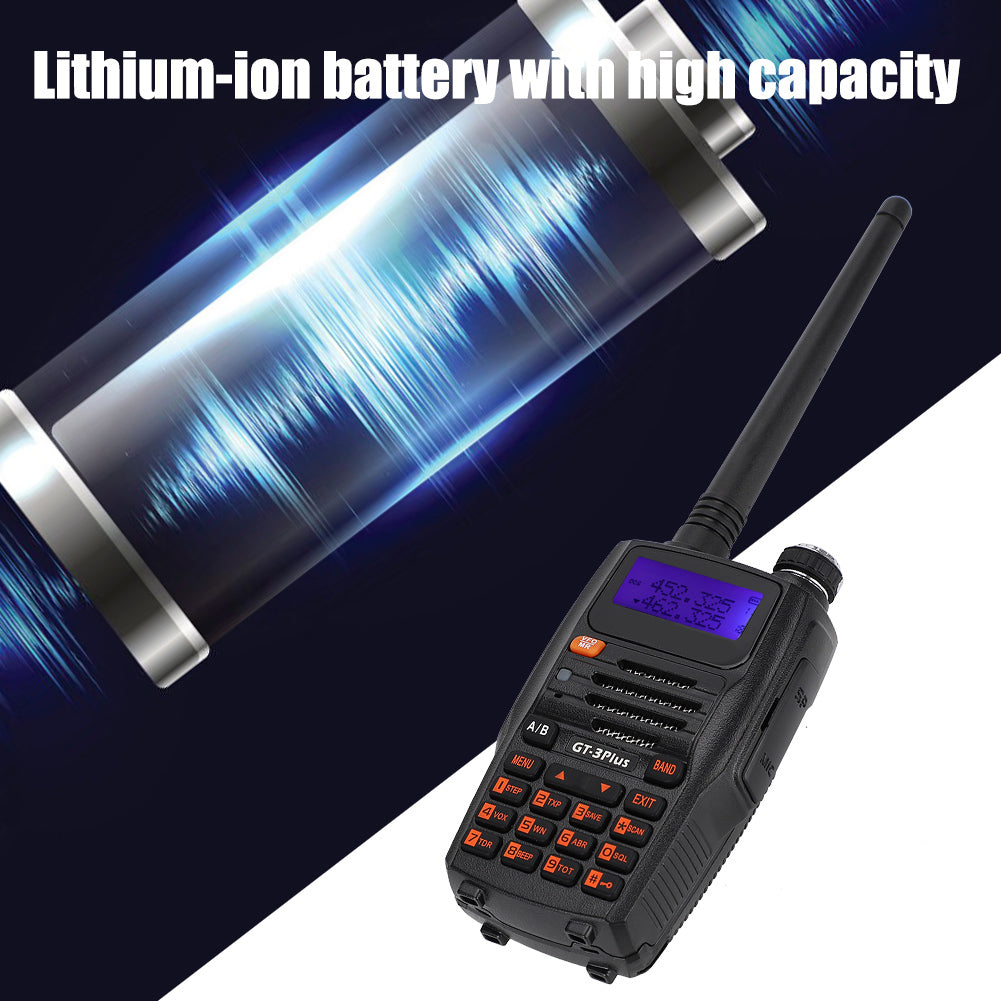

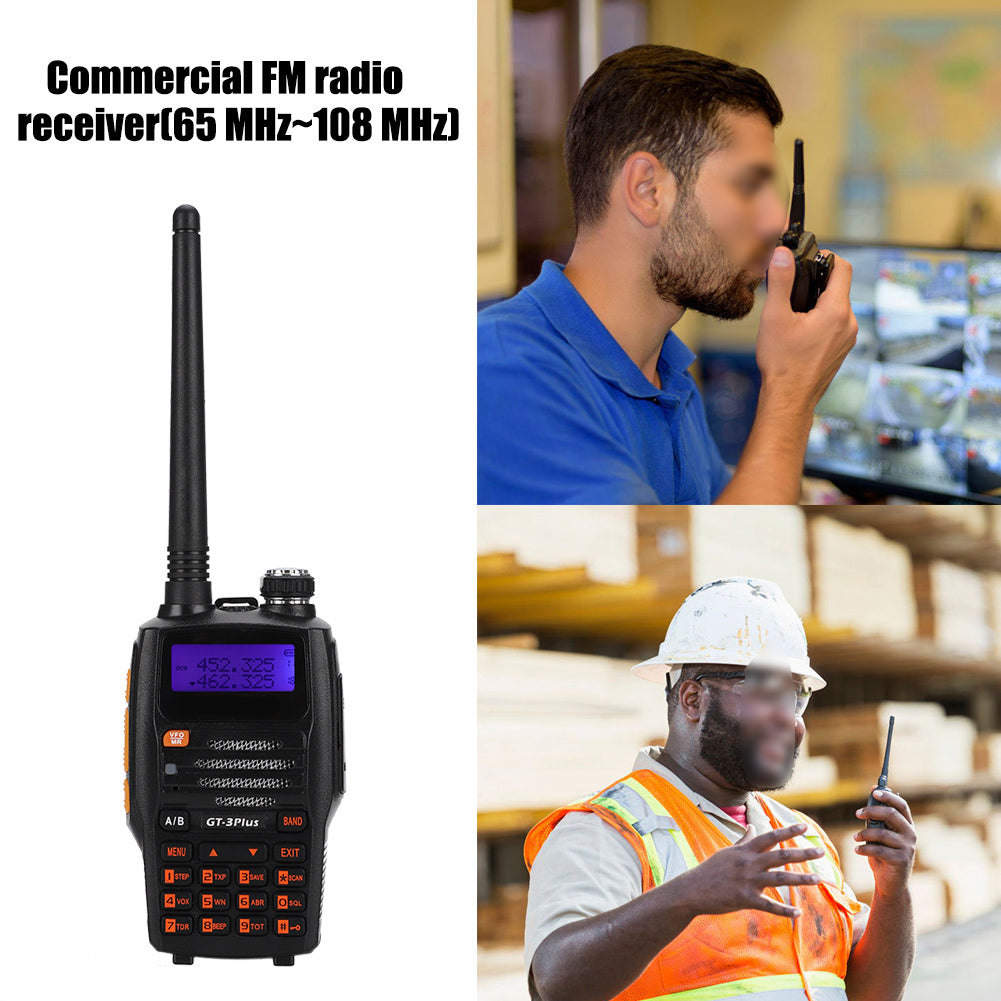

Features:       Dual-band handheld transceiver with display function menu on the display "LCD".    DTMF encoded. Lithium-ion battery with high capacity.    Commercial FM radio receiver(65 MHz~108 MHz).    Incorporates 105 codes "DCS" and 50 privacy codes "CTCSS" programmable.    Function "for VOx"(voice operated transmission). Function "beep" on the keyboard.    Alarm function. Up to 128 memory channels.    Broadband(Wide)/Narrowband(Narrow), selectable.    High power/low(5 WW1 W) selectable. Dual Watch/dual reception.    Display illumination and programmable keyboard.    Support selectable Frequency step 2.5/5/6.25/10/12.5/25 kHz.    Support function OFFSET, frequency offset for repeater access.    Support battery saving function "SAVE". Timer transmission "TOT" programmable.    Support selecting the Scan Mode. Function Busy Channel Lock "BCLO"    Built-in RX CTCSS/DCS scan. Built-in LED flashlight.    Programmable by PC. Level Threshold "Squelch"adjustable from 0 to 9.    Support Crossband reception. Support Tone end of transmission. Built-in key lock.

   Specifications:

 Technical Parameters:

 Frequency range: 65-108Mhz(only for FM)

 VHF: 136-174Mhz(Rx/Tx)

 UHF: 400-480(Rx/Tx)

 Memory channels: Up to 128 channels

 Frequency stability: 2.5ppm

 Frequency step: 2.5kHz/5kHz/6.25kHz/10kHz/12.5kHz/25kHz

 Antenna impedance: 50Ω

 Operating temperature: -20°C to +60°C

 Supply voltage: Rechargeable Lithium-Ion mAh 7.4V/1800

 Consumption in standby: ≤75mA

 Consumption in reception: 380mA

 Consumption in transmission: ≤1.4A

 Mode of operation: for Simplex or semi-duplex

 Duty cycle: 03/03/54 min.(Rx/Tx/Standby)

 TRANSMITTER

 RF power: 4W/1W

 Type of modulation: FM

 Emission class: 16K&F3E/11K&F3E(W/N)

 Maximum deviation: ≤±5kHz/≤±2.5kHz(W/N)

 Spurious emissions: <-60dB

 RECEIVER

 Receiver sensitivity: 0.2μV(at 12dB SINAD)

 Intermodulation: 60dB

 Audio output: 1000mW

 Adjacent channel selectivity: 65/60dB

 Applicable models: For BF-GT-3Plus For Baofeng

 Size: Approx. 11*5.8*3.2cm/4.33*2.28*1.26inch

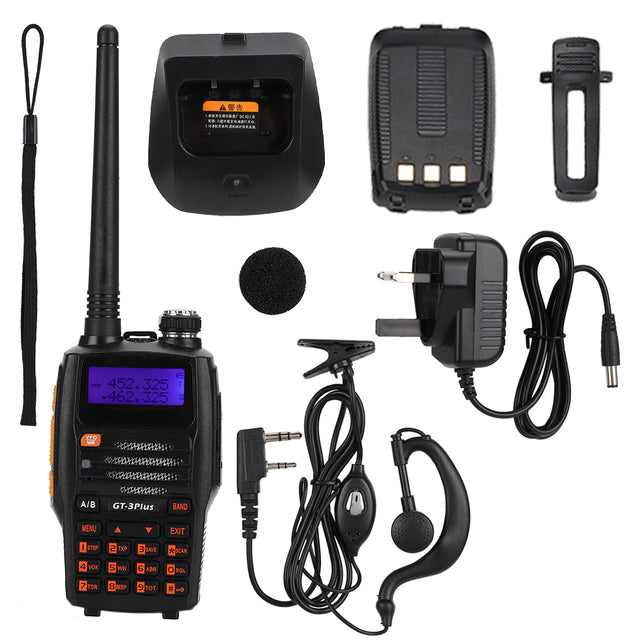

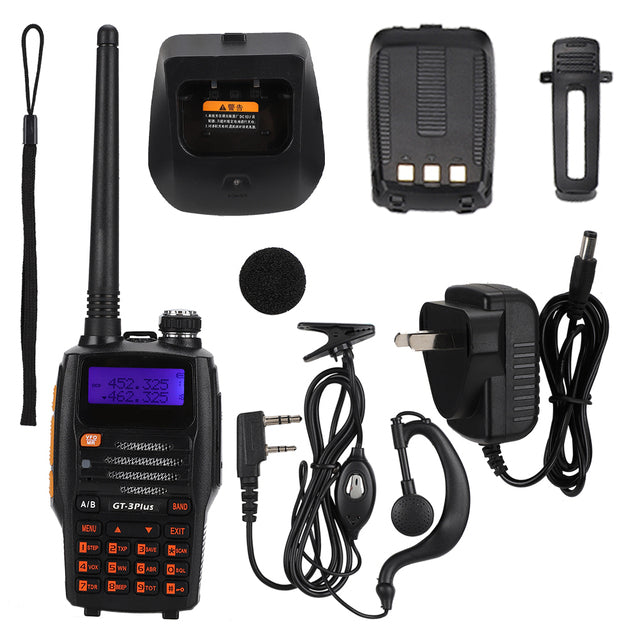

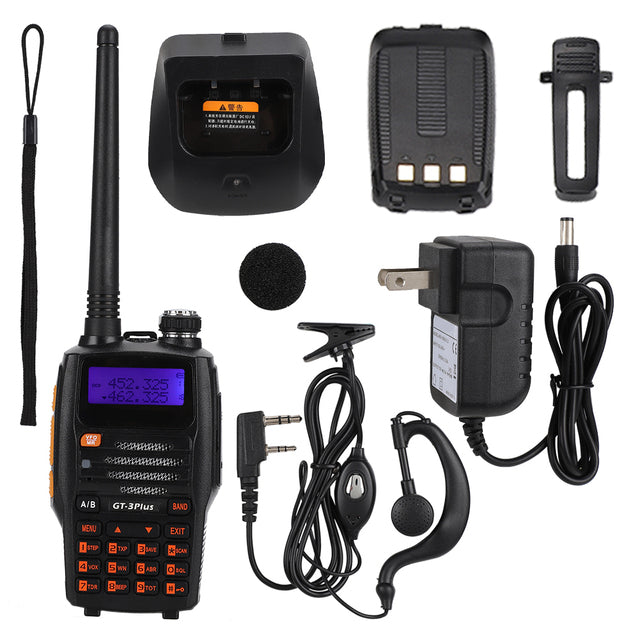

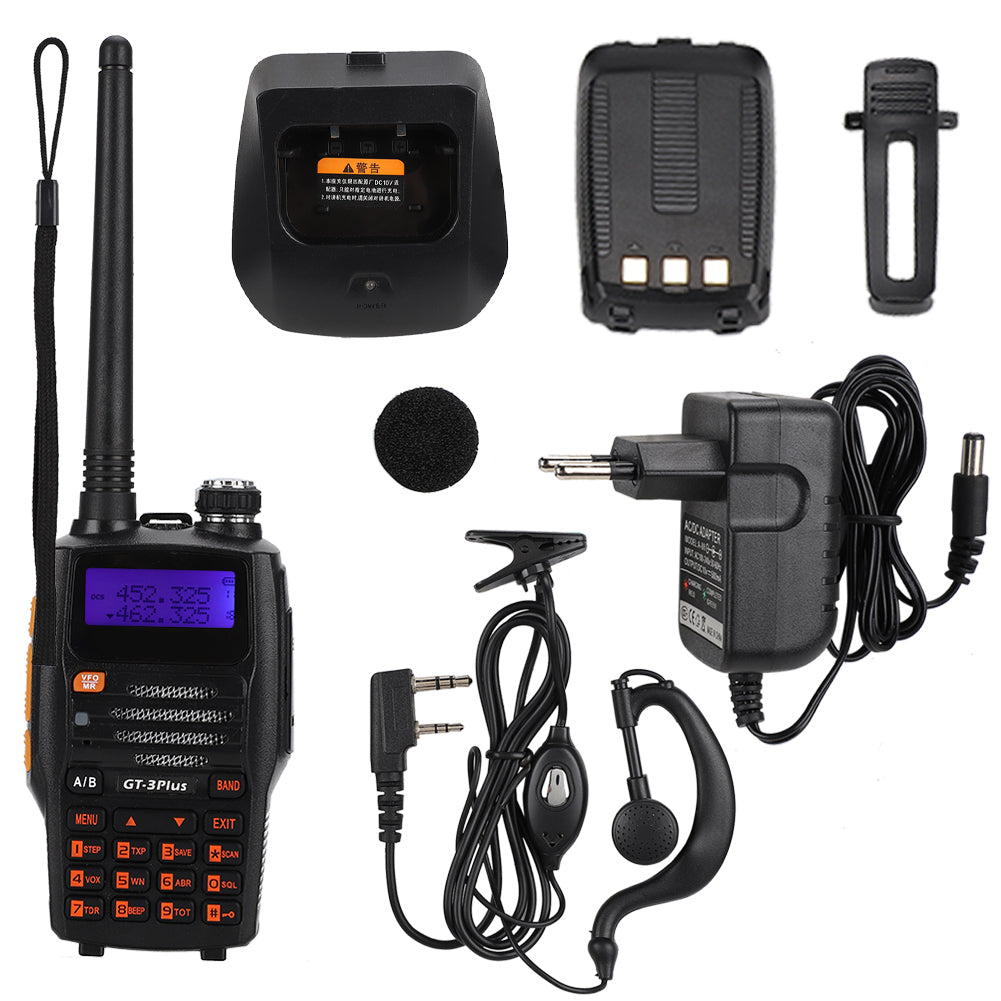

   Package List:

 1 * Walkie talkie

 1 * Headset

 1 * User manual

 1 * Lithium battery

 1 * Power Adapter

 1 * Antenna

 1 * Lanyard

 1 * Back clip

 1 * Charging base
