Model: -005 (3-wire potentiometer throttle, working with 1204M-4201 Series Motor Controller, 1268-5403 SepEx Motor Controller and other controllers)
Signal output: 0-5KΩ ± 0.1KΩ (BI potentiometer P270-033B)
Switch on/off signal: 0V - power supply voltage
Operation temperature range: -55 Celsius -120 Celsius
Storage temperature range: -40 Celsius - 80 Celsius
Ingress protection: IP55
Mechnical lifespan: 1,000,000 times
Product Description: 54793

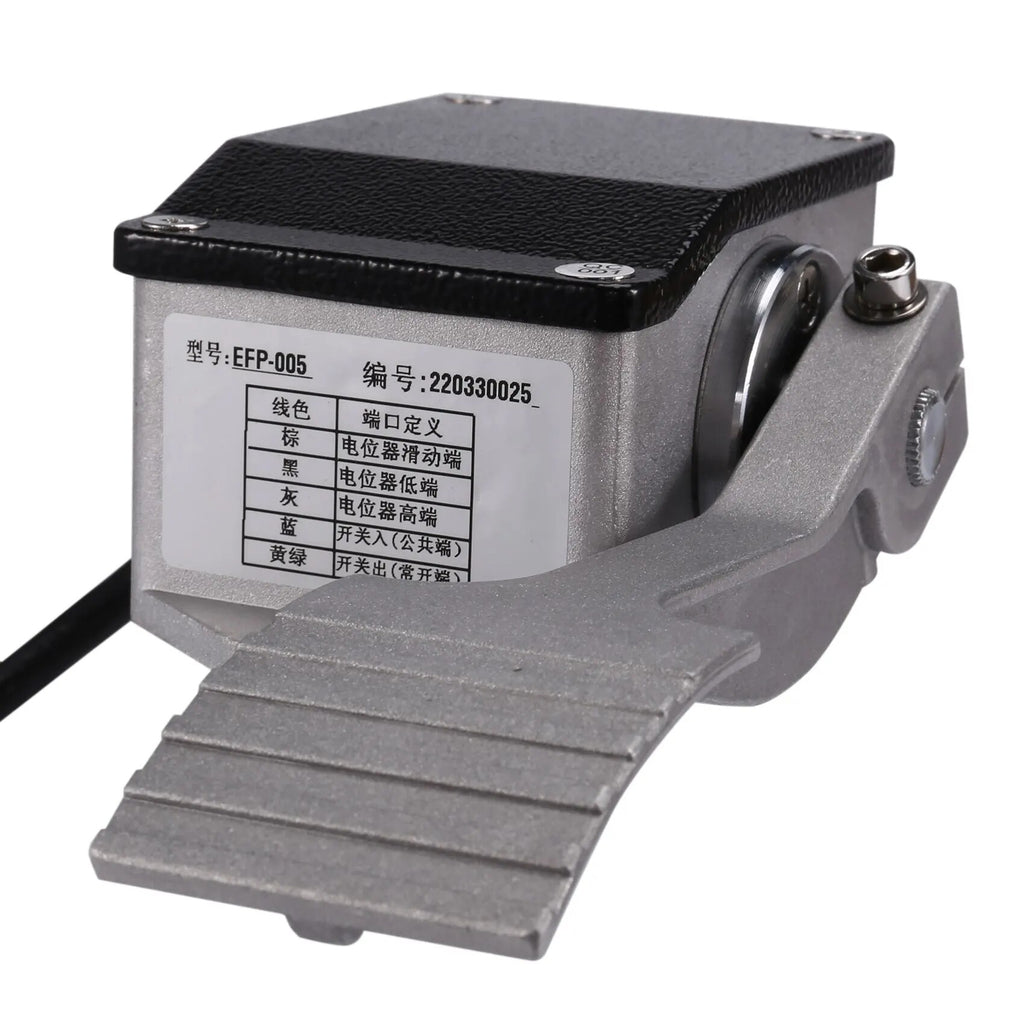

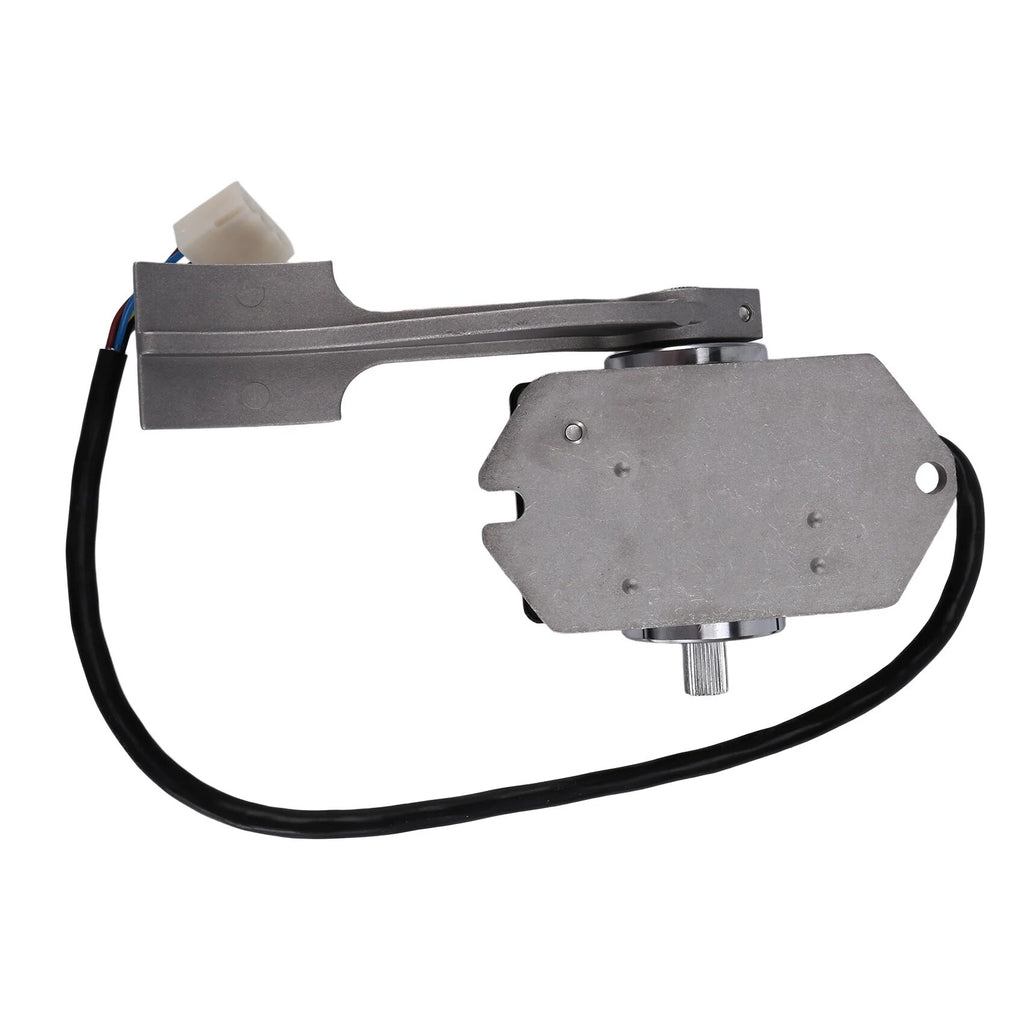

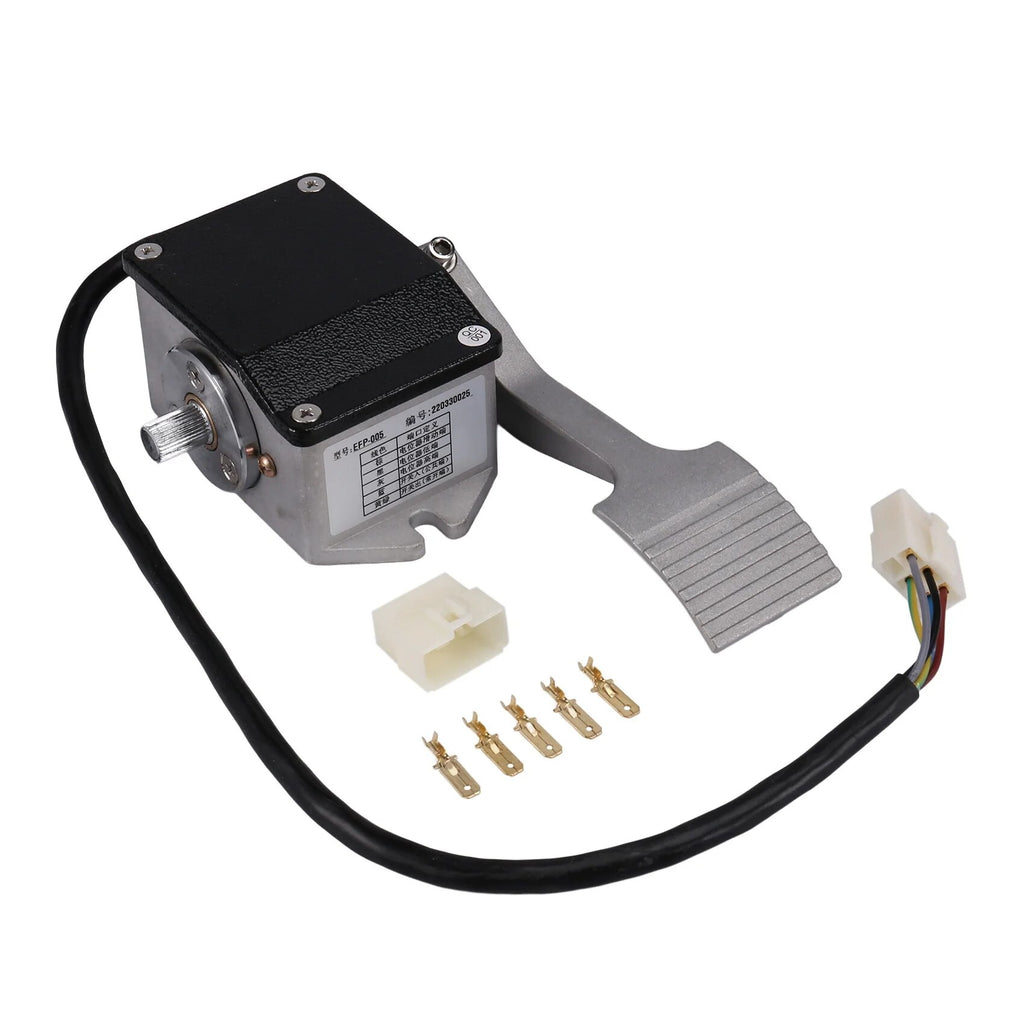

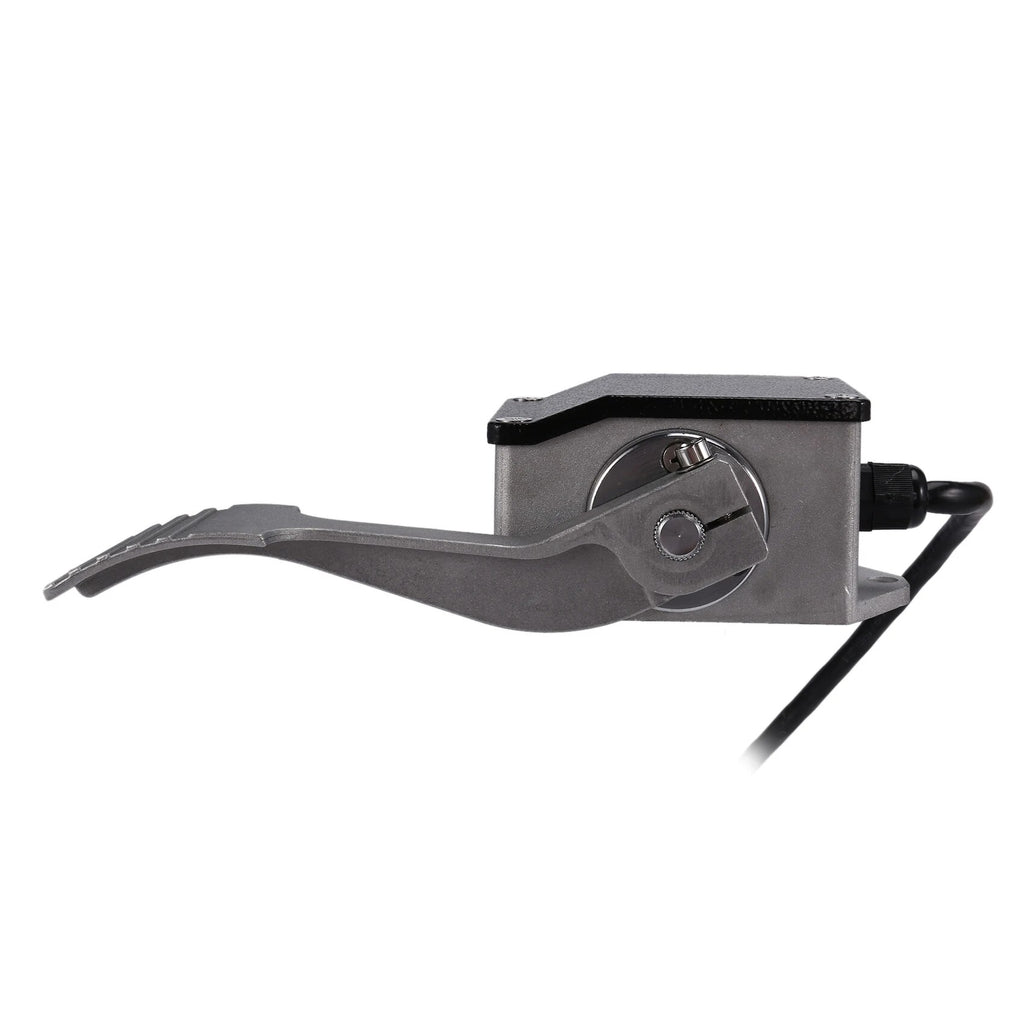

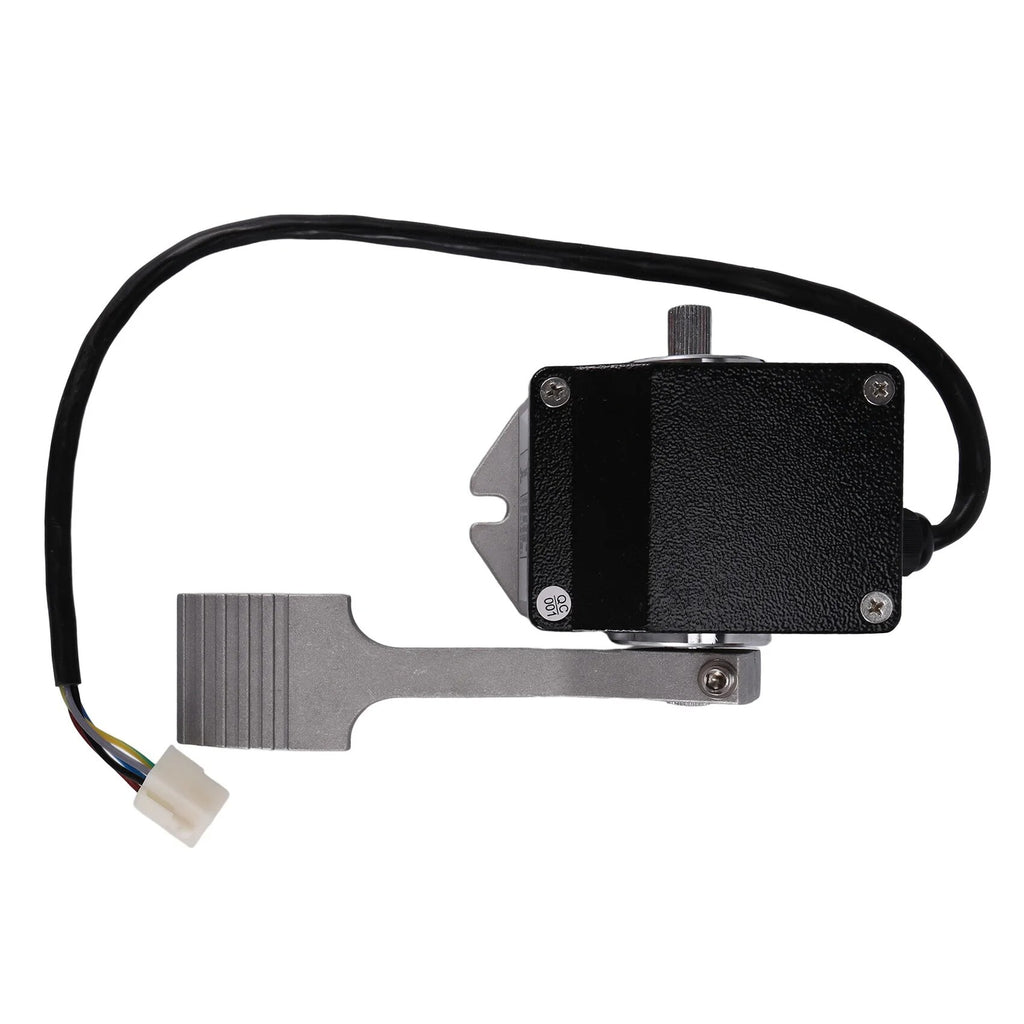

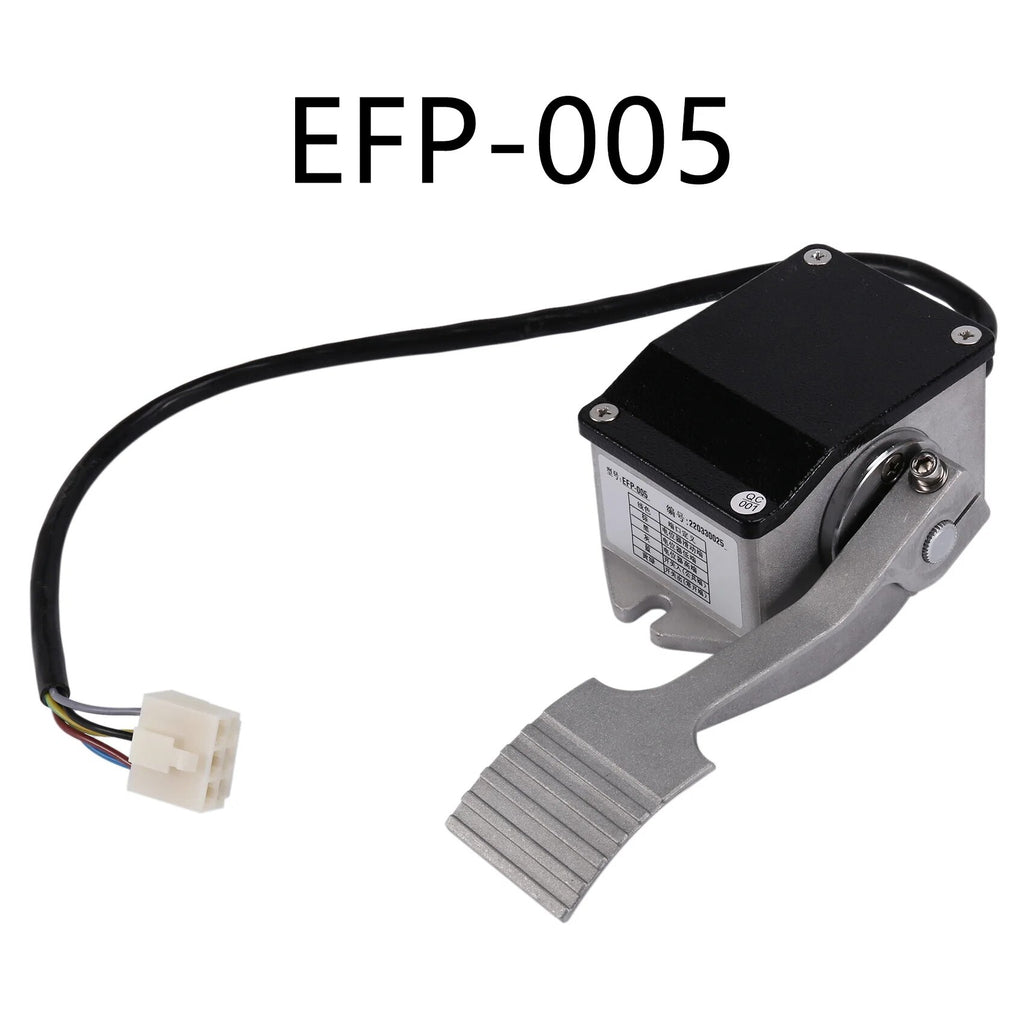

Potentiometer Throttle (Foot Pedal)
0-5KΩ Speed Signal Device (3-Wire Pot Throttle)
Model: -005
Specifications:
The foot pedal could be installed at both ends of rotating shaft
Signal output: 0-5KΩ ± 0.1KΩ (BI potentiometer P270-033B)
Solid metal case, ingress protection: IP55
Attention:
Wires: There are 5 wires, 3 of them are potentiometer wires, and another 2 is switch wires.
Brown: Potentiometer Wiper
Black: Potentiometer Low
Red: Potentiometer High
Blue: Switch Input (common)
Yellow & Green: Switch Output (normally open)
Colour:black + silver
Material:Metal
Package Contents:
1 * Forklift Throttle Foot
Notice: This is replacement, not parts.
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
