Free Shipping 1PC

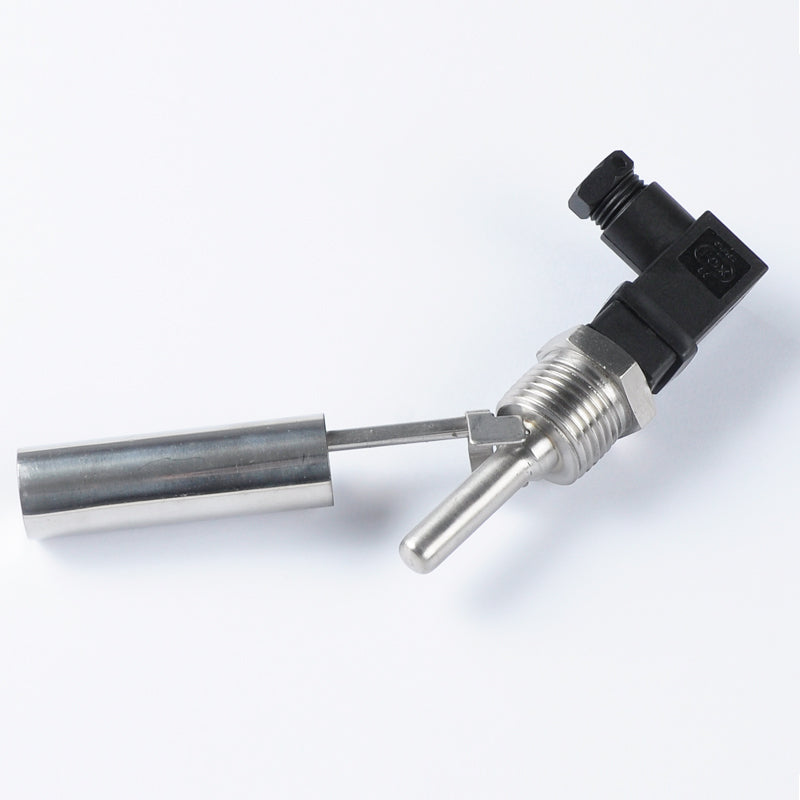

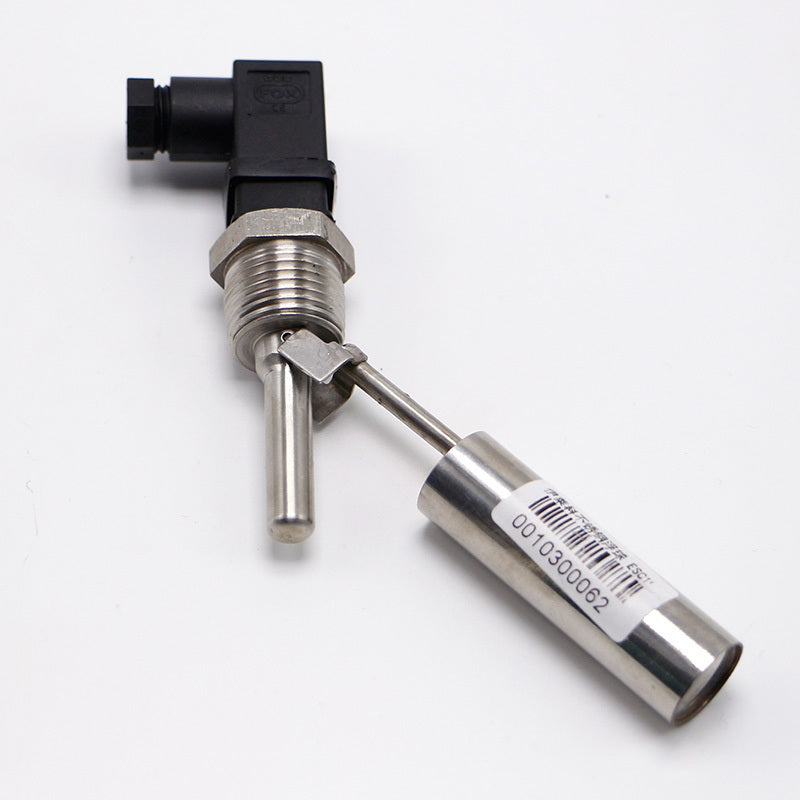

ZSC19 Liquid Float Water Level Sensor Side Mount Float Switch Safe Stainless Steel
Under 220V
ZSC11 / ZSC12 / ZSC14 / ZSC19 are 110V/220V general.
- Others have 2 voltage types:110V / 220V
- ZFC6 is Anti-Corrosion Type.
- ZS55 is the smallest side-mounted float Switch,need to be customized.
|
Date Scan | 1A1 | 2A1 | ||
| Max Contact Rating | 10W | 50W | |||
| Max Switching Voltage | 100VDC | 220VDC | |||
| Max Switching Current | 0.5A | 1.5A | |||
| Max Breakdown Voltage | 220VDC | 300VDC | |||
| Max Carry Resistance | 1.0A | 3.0A | |||
| Max Contact Resistance | 100mΩ |
||||
| Temperature Rating | -10~+85°c |
||||
| Float Ball Material | P.P |
||||
| Flat Body Material | P.P+GF |
||||
 |
 |
|
1.Normal Close(NC) 2.Normal Open(NO) |
|
|
1A:100V 10W 2A:200V 50W |
|
| The center of the distance between two float balls | |
|
2:2 balls,2 points 1-2:1 ball, 2 switch points |
|
| Thread Diameter | |
| The length of the installed in the tank | |
 |
|
|
S:Whole Stainless Steel:SL:Stainless Stell Pipe Bending Sid Mount P:Whole PP Plastic;PC:Plastic Side Mounted SC:Stainless Steel Side Mounted SP:Pipe "Stainless Steel","Float Ball":PP PS:Pipe "PP";Float Ball "Stainless Steel" |
2 Way To Install
 |
Install Way 1: 1.when the water raise,the spring is connected; 2.power on. |
 |
Install Way 2: 1.when the water raise,the spring is disconnected; 2.power off. |
Wire Connect Way
 |
|
|
|
|
|
|
Single Contact Single Line |
Double Contact Three Lines |
Double COntact Four Lines |
Three Contact Four Lines |
Three Contact Six Lines |
|
