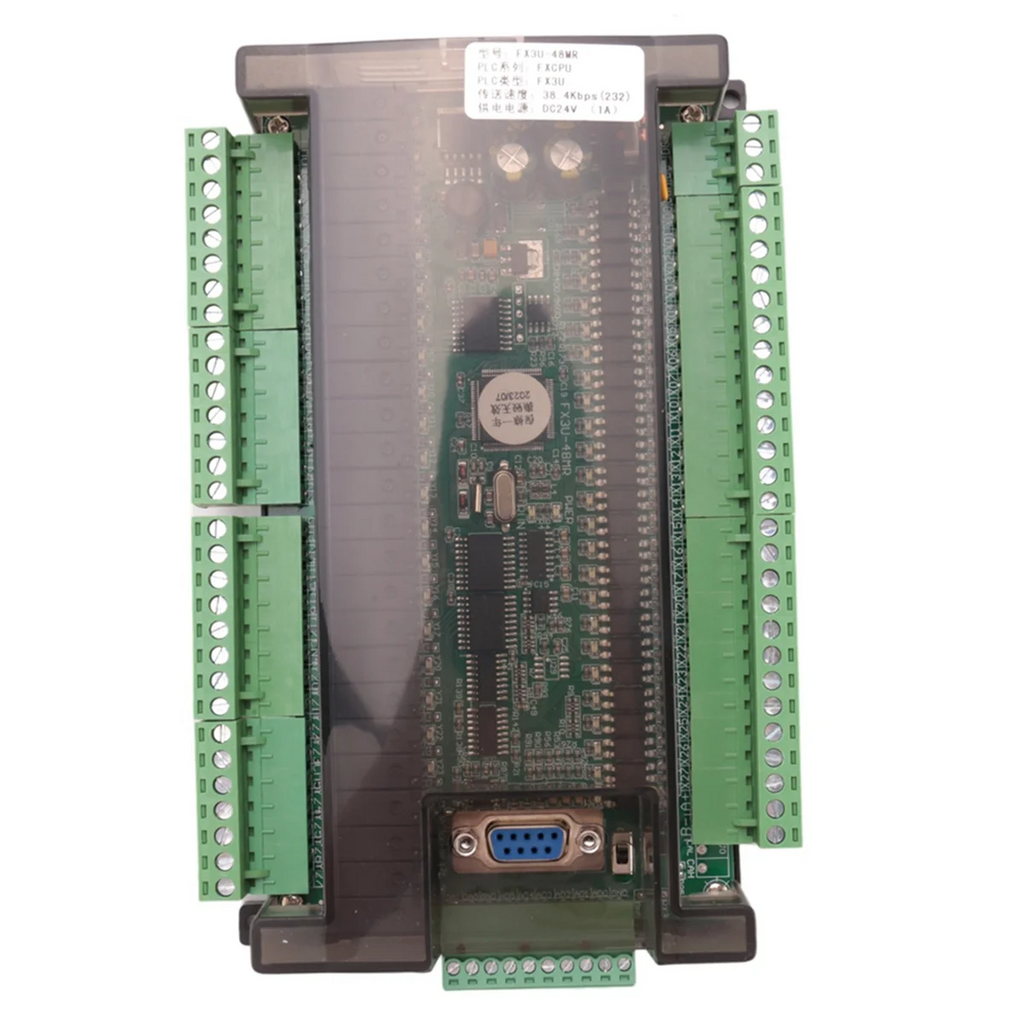

This programmable logic controller uses industrial-grade 32-bit MCU with strong anti-interference and faster speed.
Program is written in ladder logic programming language, supports for GX-, GX-work2, supports HMI connection.
Support ladder logic programming language programming, downloading and monitoring.
Programming port is the port for program upload, download and HMI communication.
Widely used for fields of printing, metallurgy, food, textile, packaging, home, building materials, plastics, chemicals.
Specifications:
Input Voltage:DC24V
Output Point Y component: Y0-Y17 are transistor output. Y0~Y7 can output 8-channel 100K pulse or 6-channel PWM pulse signal. Maximum current is 3A. Y0-3 are high-speed output port (max. 100k). PWM period is 0-32767US. High-speed port maximum current is 3A. External load common end connects to +24, the other end connects to PLC output port Y.
Analog Input: 6 channels analog input, 12-bit accuracy; 3-channel 0~10V+3-channel 0~20mA, read with RD3A
Analog Output:2 channels analog output, 12-bit accuracy, output voltage:0-10V. Output analog voltage with WR3A
Intermediate Relay M:M0-M3071, power-off save range can be set
Stepping Point S:S0-1023, power-off save range can be set S0-S1023
100Ms Timer:T0-T199, accumulative power-off save T184-T199
10Ms Timer:T200-T249, accumulative power-off save T246-T249
1Ms Timer:T250-T383, T250-255 is accumulated type
16-bit Counter:C0-C199, power-off save C100-199
32-bit Counter:C200-C219, power-off save C220-C234
32-bit High-speed Counter:C235-255; C235-240 is single-phase counter, no frequency
Colour:green
Material:plastic
Package Contents:
1 * plc industrial control board
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
