Feature:

 1. Highest Power Point: Optimize the output power of each solar panel, so that the solar panel can get the highest power point tracing and reduce the shading effect caused by obstacles.

 2. Reduce Electrocution Possibility: The input voltage and start up voltage are low, usually within DC18 to 60V, which can better defend the use and security of the inverter and system, and reduce the possibility of electrocution.

 3. Multiple Protection: This micro inverter has over voltage protection, under voltage protection, over frequency protection, under frequency protection, over current protection, etc.

 4. Expanding Installed Capacity: Using micro inverter can expand the installed capacity of the system based on the origin solar system without replacing the inverter.

 5. Cooling Method: Our micro inverter adopts natural heat dissipation, which can support indoor and outdoor work, and is applicable to a wide range of applications.

     Specification:

     Item Type: MPPT Solar Inverter

 Material: Aluminum alloy, red copper

 Output Voltage: 90-130V

 DC Input

 Recommended Solar Panel Input Power: 200-300W x 2

 Number of DC Input Connection Groups: 2

 Maximum DC Input Voltage: 52V

 Operating Voltage Range: 20-50V

 Starting Voltage: 18V

 MPPT Tracing Range: 22-48V

 MPPT Tracing Accuracy: >99.5%

 Maximum DC Input Current: 12A x 2

 AC Output

 Maximum Output Power: 600W

 Rated Output Voltage: 120V

 Output Voltage Range: 90-130V

 Rated AC Current(at 120V): 5A

 Rated Output Frequency: 50Hz

 Output Frequency Range: 47.5 to 50.5Hz

 Total Harmonic Distortion Power Factor: <5%

 Maximum Number of Branches Connected: 120V, 5

 Maximum Conversion Efficiency: 95%

 CEC Efficiency: 92%

 Nighttime Loss: ＜80MW

 Overvoltage or Undervoltage Protection: Yes

 Over or Under Frequency Protection: Yes

 Antislanding Protection: Yes

 Overcurrent Protection: Yes

 Overload Protection: Yes

 Overtemperature Protection: Yes

 Protection Grade: IP65

 Operating Ambient Temperature: -40°C to +65°C

 Number of Indicator Lights: 1 working status LED and 1 Wifi signal light

 Communication Connection: WiFi 2.4G

 Cooling Method: Natural cooling (no fan)

 Working Environment: Indoor and outdoor

 Certification Standards: For ENG1000 3 2, for EN61000 3 3. For EN62109 2, for ENS5032, for EN55035, for EN50438

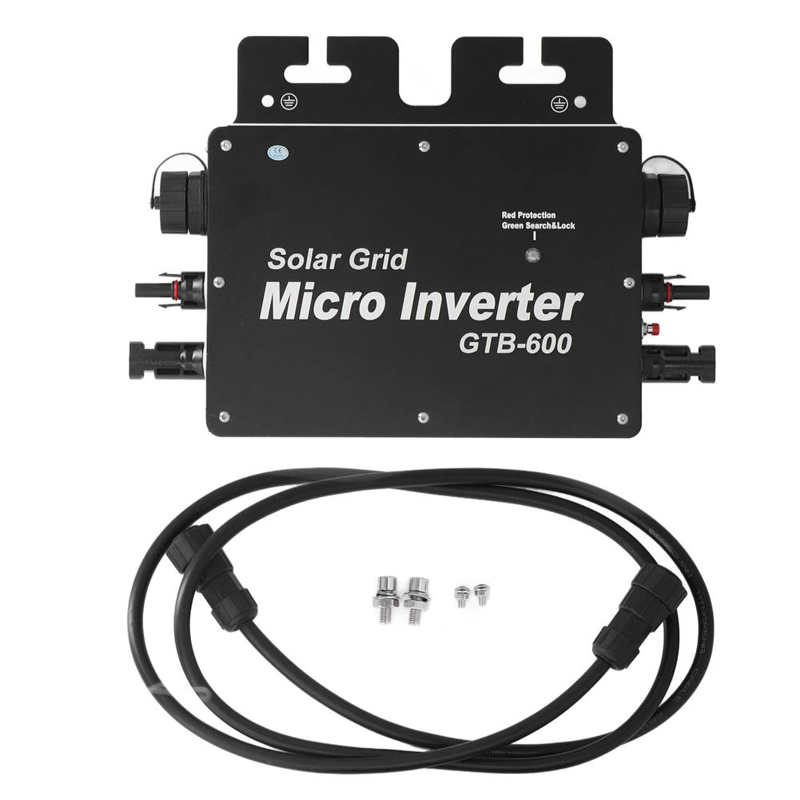

     Package List:

 1 x Solar Micro Inverter     1 x Use Manual

     1 x Connecting Line

     4 x Screw
