Features:

 The New SharpIR Composite Image Enhancement Technology: based on advanced and deep learning technology, SharpIR performs various optimization processes such as defogging, sharpening, contrast enhancement, and lossless magnification on low-resolution images to enhance the clarity of infrared images.

 All Palettes Can Display The Temperature: with IR/Visible Light/ MIF/ PIP 4 image modes, all can check the temperatures data intuitive of the target, including the full screen max & min & center spot temperature.

 Support PC Projection To Get Large Screen Display: pictures in the machine can be transmitted to the computer in real time by using the type-C to USB cables.

 Tracking / Alarm: Full screen maximum/minimum temperature tracking; The maximum or minimum temperature tracking of analyzed target; full screen temperature threshold alarm (image and flash).

 16-hour Battery Life: the large capacity battery can last up to 16 hours, USB type-C interface for high power quick charge in 2.5 hours, easy to cope with two days of work.

 Wide Temperature Measurement Range: -20°C~550°C measuring range, automatic switch; Turn on in 1 second and use, full-frame temperature measurement.

 Rugged and Durable: resistant to 2 meters drop, IP54 protection rating.

 Specifications:

 Imaging and Optics:

 Detector Type: VOx

 Infrared Resolution: 256 × 192@12μm

 Wavelength Range: 7.5~14μm

 Focal Length: 3.2mm

 Field of View: 56° × 48°

 Minimum Object Distance: 0.3 meter

 D:S: 130:1

 NETD: ≤45mK

 Infrared Frame Rate: 25Hz / 9Hz

 Focusing Mode: Focus-free

 Measurement and Analysis:

 Measurement Range: Support auto-switching: -20~150°C, 100~550°C

 Measurement Accuracy: ±2°C or ±2%, whichever is greater

 Analyzed Target: Center spot and 3 areas

 Temperature Measuring Parameters: Emissivity, reflected temperature, target distance

 Image Display:

 Display Screen: 2.4" LCD

 Digital Camera: 2MP

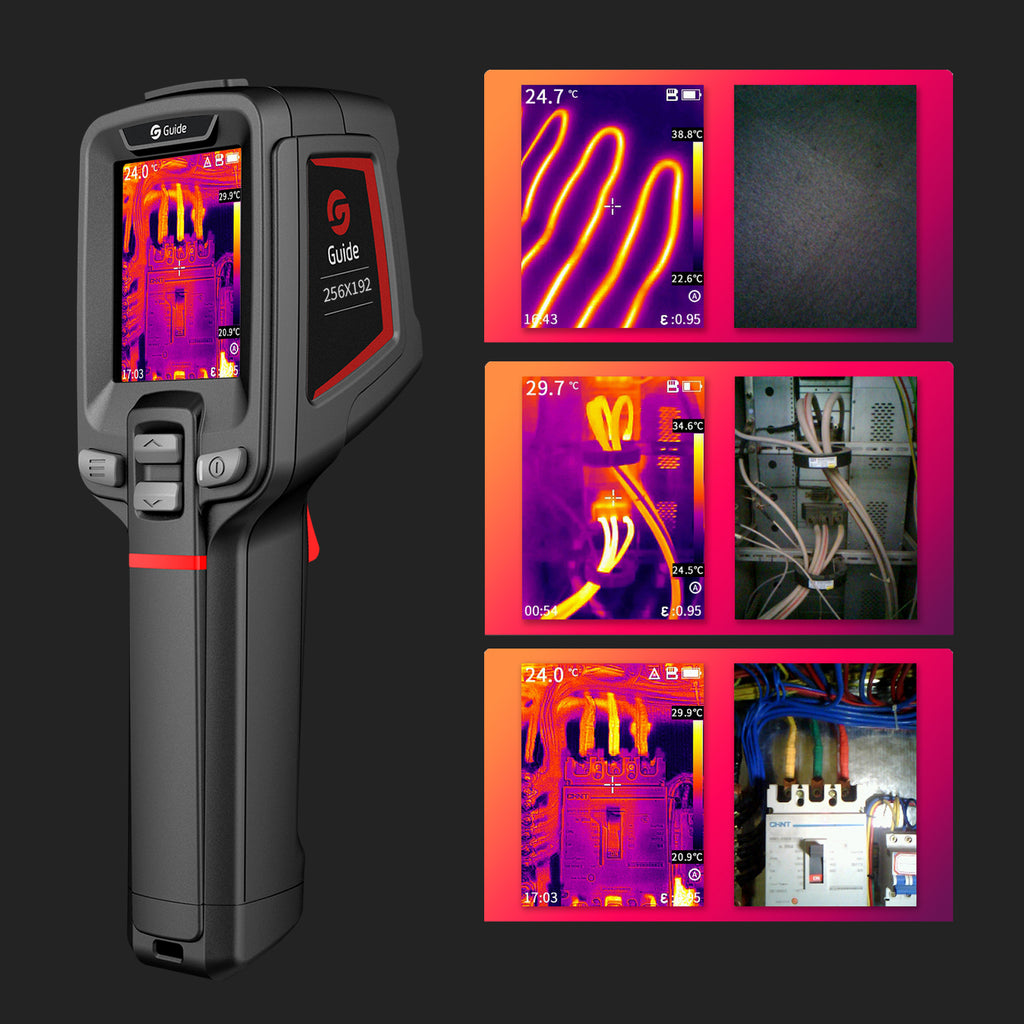

 Image Mode: IR, VIS, MIF and PIP

 Image Adjustment: Automatic, semi-automatic, manual

 Color Palettes: Iron Red, White Hot, Arctic, Rainbow 2, Hot Iron, Rainbow 1

 Storage and Transmission:

 Storage Media: TF card (up to 32GB)

 Image Storage Format: JPG with temp. info

 External Interface: TYPE-C, TF card slot, UNC 1/4"-20 (tripod mounting)

 Laser: 645~655nm, Class 2 laser, ＜1mW, only indicating the measured target

 Power System:

 Battery Type: 3.6V/2000mAh rechargeable lithium-ion battery, non-removable

 Battery Working Time: ≥16 hours

 Power Management: Timed shutdown and sleep mode

 Charging Mode: TYPE-C charging; PC/portable charger; Capable of charging while using

 Charging Time: 90% of full charge in 2.5 hours

 Environmental Parameters:

 Working Temperature: -15~50℃

 Storage Temperature: -40~70℃

 IP Rating: IP54

 Drop: 2m drop test

 Material: ABS

 Item Size: 194 * 76 * 61.5mm / 7.64 * 2.99 * 2.42in

 Item Weight: 380g / 13.41oz

 Package Weight: 830g / 29.30oz

 Package Size: 24.2 * 14.7 * 9.7cm / 9.53 * 5.79 * 3.82in

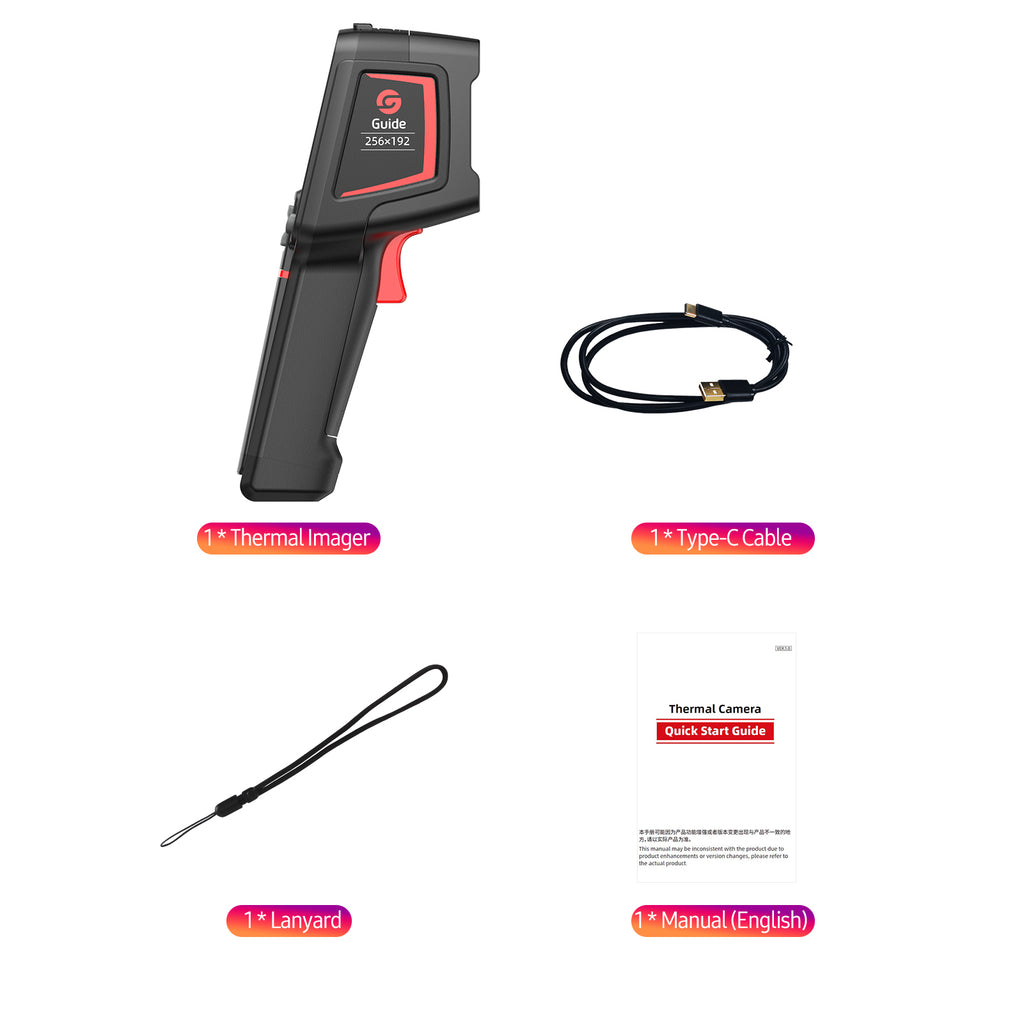

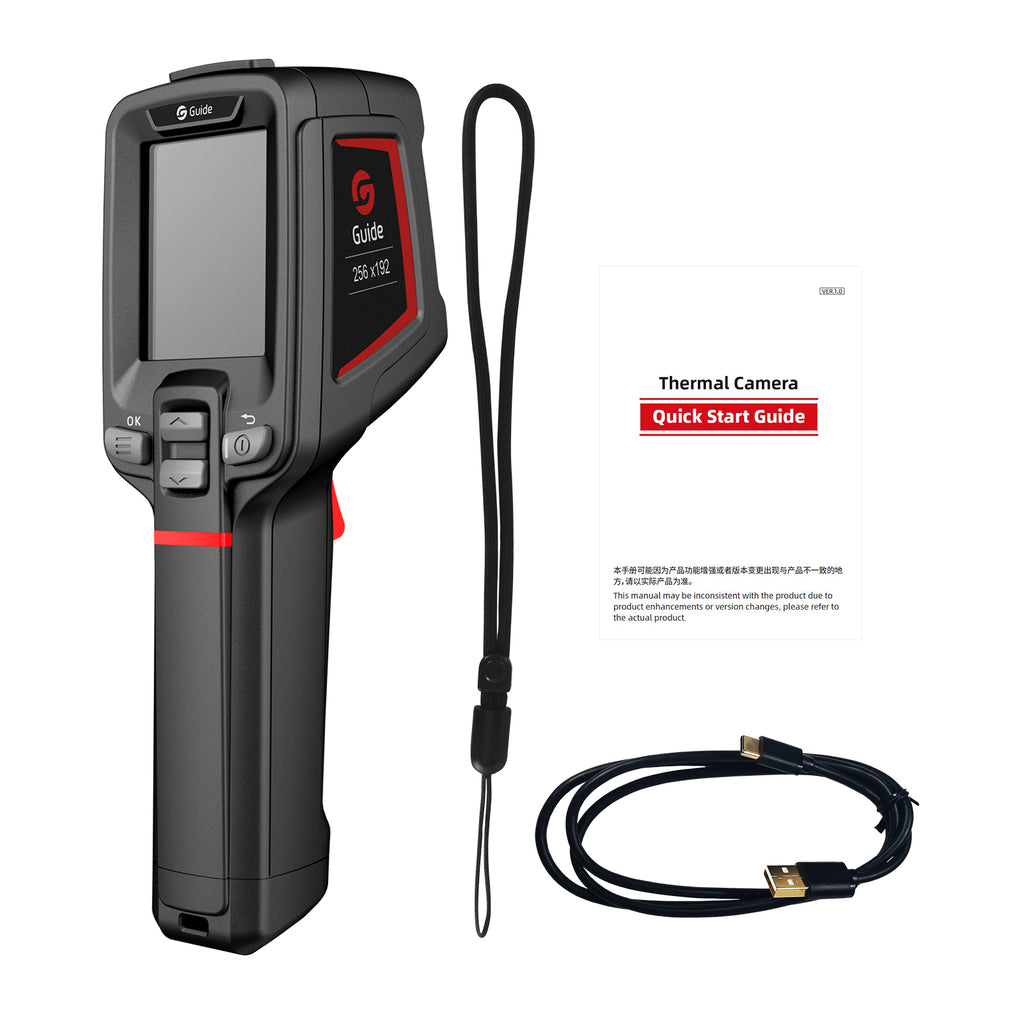

 Packing List:

 1 * Thermal Imager

 1 * Type-C Cable

 1 * Lanyard

 1 * Manual (English)
