2. The onboard antenna can reach a transmission distance of 50 meters in an open environment, without external antenna. If it is installed in a metal shell, in order to avoid signal shielding, you can purchase an external antenna by yourself, and reserve the IPEX1 generation antenna seat for installation.

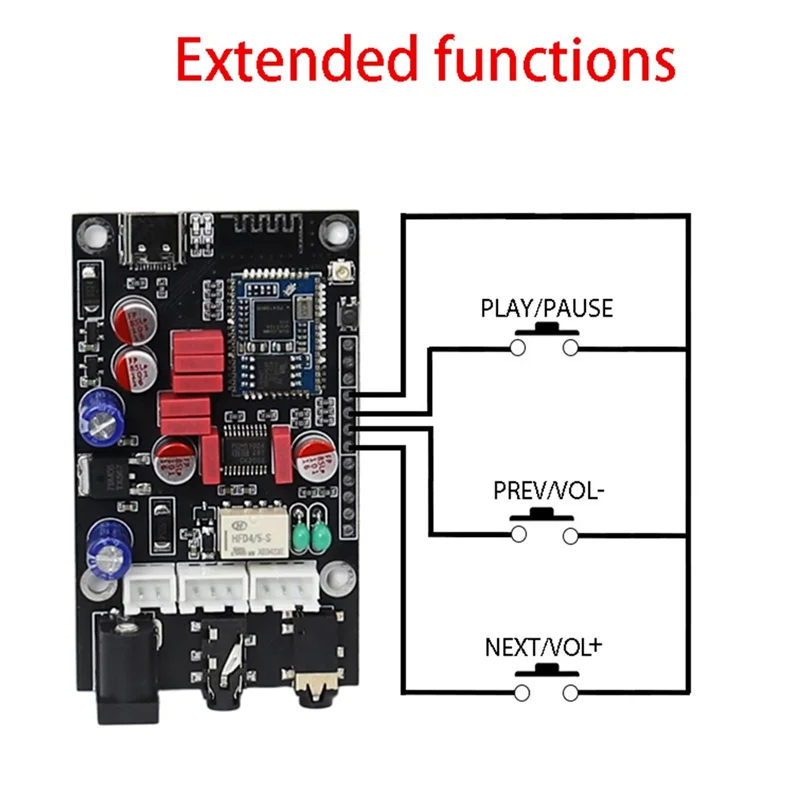

3. The device is equipped with an I2S output interface,which can be connected to an amplifier with I2S input function.At the same time,a key expansion interface is reserved to realize the functions of switching between up and down songs,volume adjustment/playing,pausing,etc.which is highly extensible.Design a "cancel Bluetooth connection button".When an unknown Bluetooth device is maliciously connected,long press the button for 3 seconds to cancel the connection of the unknown Bluetooth device.

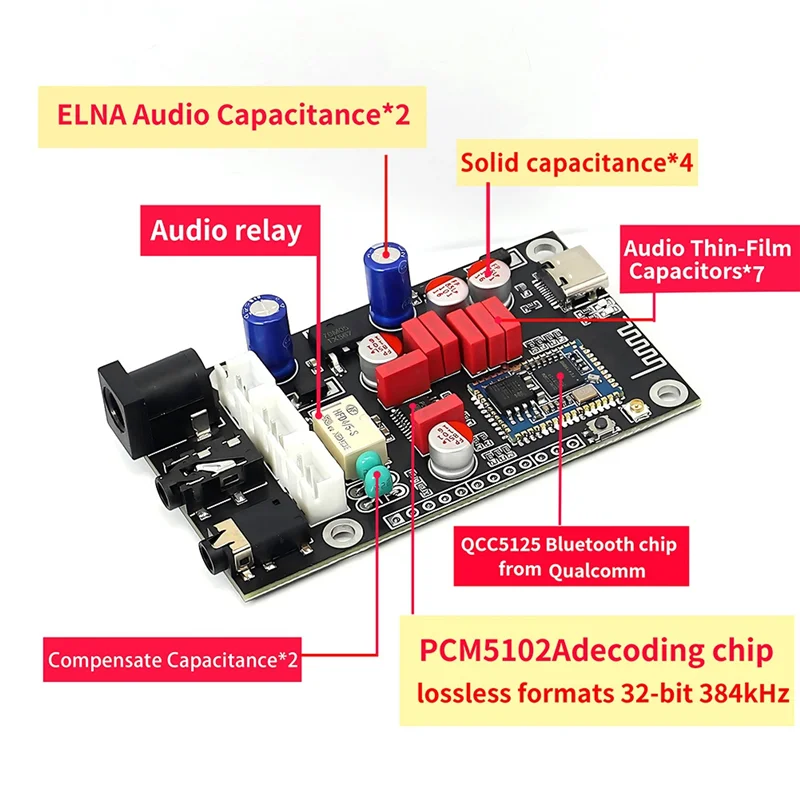

4. QCC5125+PCM5102A chipset realizes lossless transmission and decoding, perfectly showing the dynamics and details of the sound. The high frequency is delicate and burr-free, the mid-range is round, and the low frequency is powerful and elastic.Its excellent parameter performance includes:dynamic range 112dB, signal-to-noise ratio 112dB, distortion -93dB. Demonstrates unparalleled sound quality performance. Such excellent performance allows you to deeply feel the improvement in sound quality.

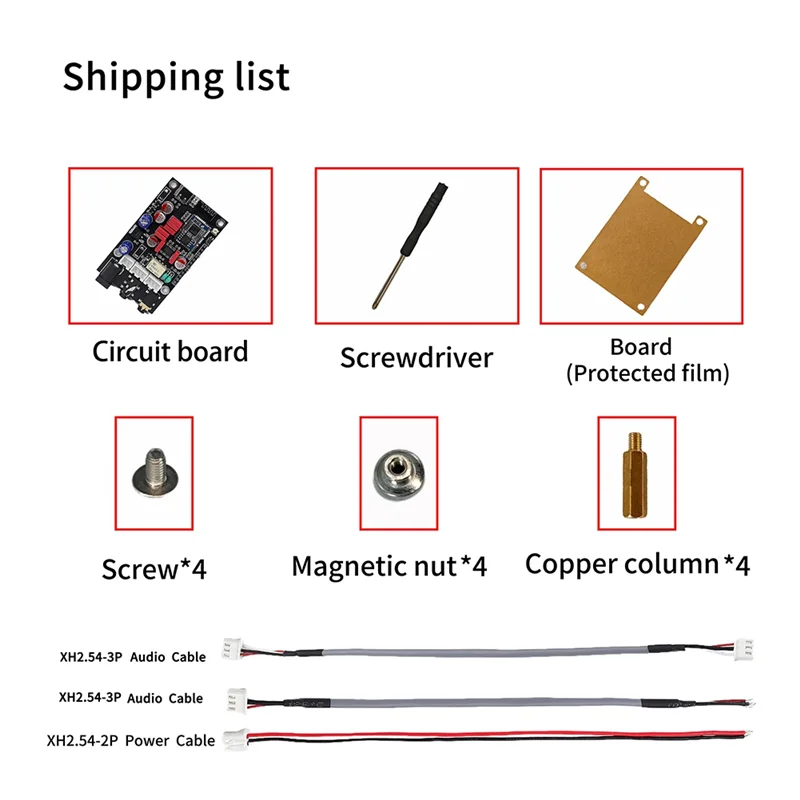

5. Assembly instructions: The shell needs to be assembled by yourself, and theUSB cable and audio cable are not included in the delivery package, but the following accessories will be included:One XH2.54-2P power cable, One XH2.54-3P double-headed shielded cable, One XH2.54-3P single-headed shielded cable
The key parts use high-quality fever capacitors, which perform well in parameters such as dissipation factor, leakage current, ripple current and ESR, significantly improving the speed, dynamics, texture and density of the sound, and the overall quality improvement of high, medium and low frequencies is particularly obvious. The excellent dissipation factor of the capacitor can effectively reduce the impact of temperature, voltage and frequency on sound quality. Capacitors with low leakage current not only reduce the aging speed and extend the service life, but also significantly reduce noise. Low ESR capacitors can reduce high-frequency impedance, improve dynamic response speed, and make the sound performance more outstanding.
Notes:
1. Power supply requirements: This device does not support AC power supply. Please be sure to use DC voltage with a power supply range of DC: 8-24V, or use a 5V Type-C interface for power supply.
2. Input switching: AUX and Bluetooth inputs are automatically switched through a signal relay, with Bluetooth connection taking priority and sound card taking second place. When Bluetooth and sound card are not connected, it automatically switches to AUX mode. The name of the Bluetooth device is: XinYi, search and click to connect.
Colour:Black
Material:Plastic
Package Contents:
1 * Audio Decorder Board
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
