Model: SM1313T
Power: 1.6W
Frequency band: 1120-1360MHz
Channel customer: 16
Channel frequency: A: 1120/1120/1160/1200/1240/1280/1320/1360 (MHz), B: 1120/1120/1160/1200/1258/1280/1320/1360 (MHz)
Modulation type: FM
Frequency control: PLL
Frequency stability: ±100KHz (Typ.)
Frequency precision: ±200KHz (Typ.)
AN Ratio: -20±7dB
S/N(Fo±3MHz: Greater than 70dBc
Channel carrier error: 1dB
Antenna port resistance: 50 ohms
Input signal format: NTSC or PAL
Video input level range: 1V±0.2Vp-p type
Operating temperature: -10℃-+60℃
RF Output Characteristic: (25℃ There are heat dissipation measures)
(Note: The ANT port must be connected to an antenna, and the 1.2G antenna must match and have good contact with the ANT port, otherwise it will burn out the PA.)
1. Transmission power micro-power (Tx Power): -13 (Min.), -10dBm (Typ.), -8 (Max.). Test condition: 5V 25MA±30MA
2. Transmission power 25mW (Tx Power): 12 (Min.), 14dBr (Typ.), 17 (Max.). Test condition: 5V 610MA±30MA
3. Transmission power 200mW (Tx Power): 21 (Min.), 23dBm (Typ.), 26 (Max.). Test condition: 5V 640MA±30MA
4. Transmission power 1600mW (Tx Power): 31 (Min.), 32dBm (Typ.), 33 (Max.). Test condition: 5V 800MA±50MA
Colour:As Shown
Material:PC

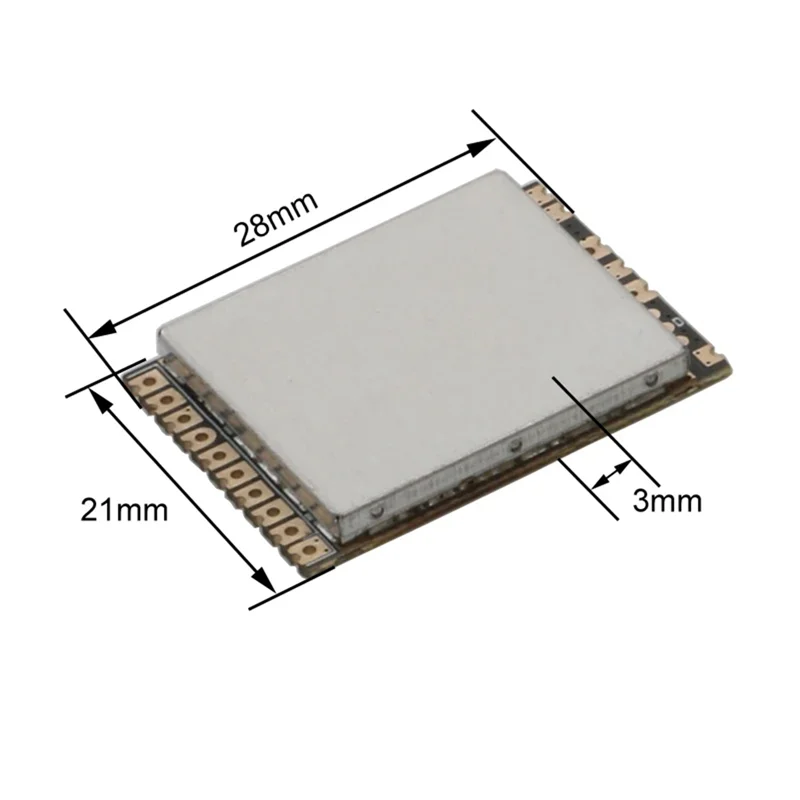

Size: 28x21x3mm
Package Contents:
1 x Module(Due to different product batches, the appearance may vary, which does not affect the use)
