2.TEF6686 System Support: With this high sensitivity radio, enjoy FM/LW/MW/SW bands and advanced noise reduction algorithms including CEQ, EMS, iMS, and PACS. Full RDS data display enhances your radio experience with high-fidelity reception.
3.SI4732 System Features: This multifunctional BT radio supports FM, LW, MW, SW, AIR 118-138MHz, and SSB bands, catering to amateur radio enthusiasts. Utilize ATT attenuation, AGC gain control, bandwidth adjustments, and precise SSB tuning.
4.Bluetooth Dual Mode: Connect via Bluetooth-compatible to enjoy broadcasts or transfer audio from the receiver to Bluetooth headphones or speakers. The bluetooth-compatible functionality adds versatility to your listening options.

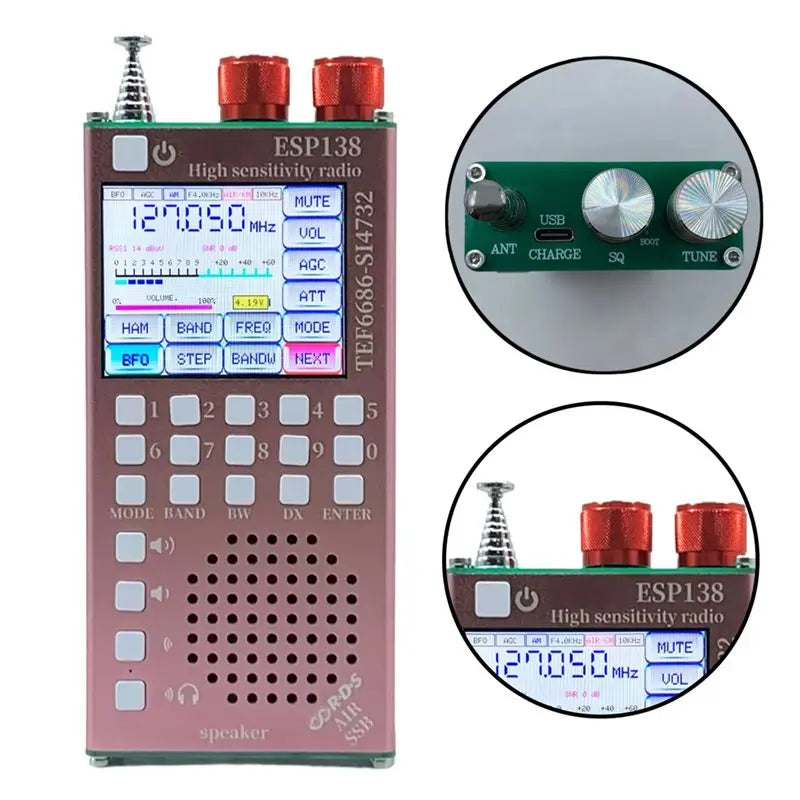

5.Solid Configuration: Equipped with a 40MM full-range speaker for deep bass and clear treble, this hand-held radio receiver boasts an 820mm telescopic antenna and a 3.5mm external antenna jack for enhanced reception.
Specification:
Product Overview:

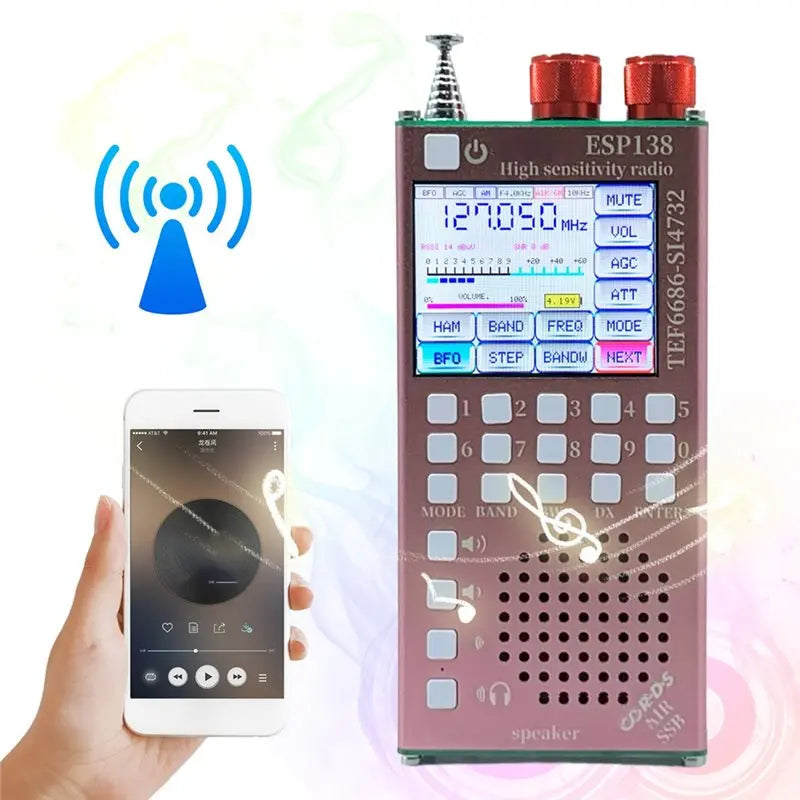

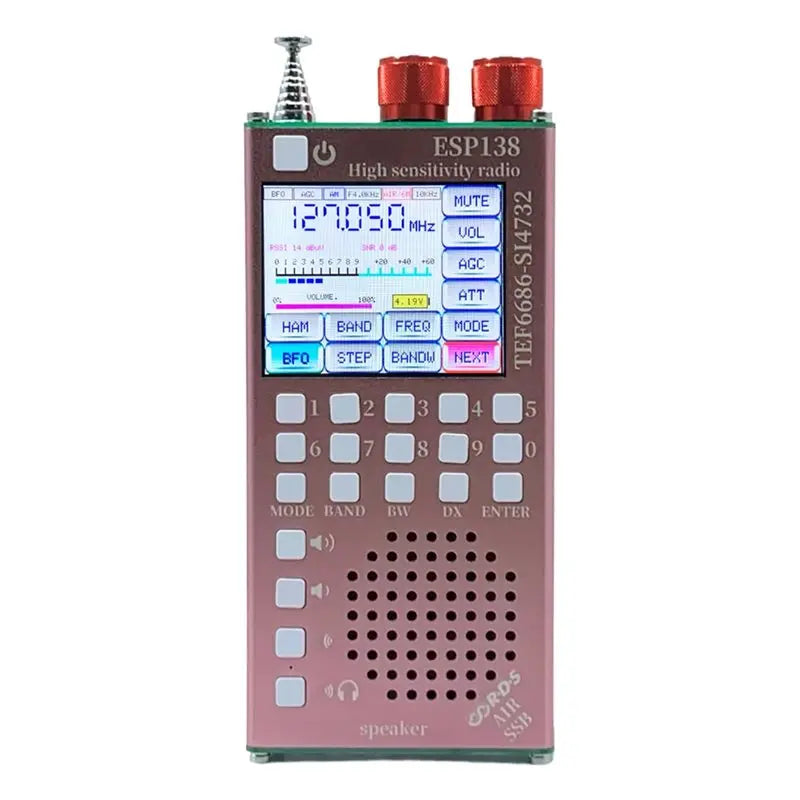

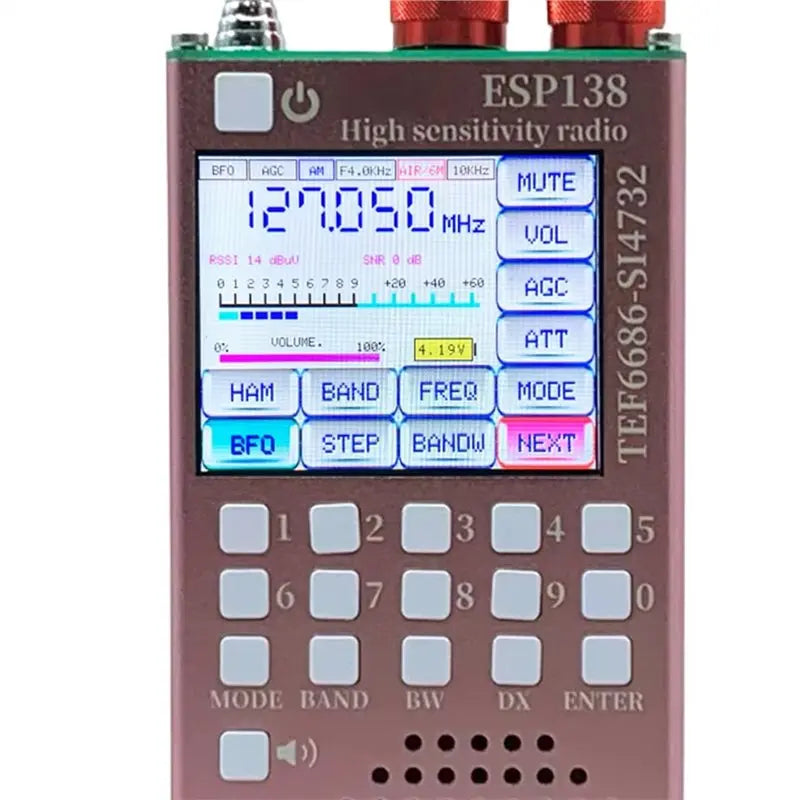

The ESP138 is a dual-system radio, utilizing the open-source TEF6686 system and the ESP32-SI4732 system architecture. It integrates the TEF6686 chip with high-fidelity Bluetooth functionality, offering exceptional selectivity and sensitivity. The SI4732 supports both Air Band (AIR) and Single Sideband (SSB), as well as Bluetooth 5.0 dual-mode. Equipped with a 2.4-inch touchscreen, numeric keypad, a large-capacity battery, and an aluminum alloy body, it offers both professional reception and portability. Frequency:
In TEF6686 mode:
Coverage: FM (65-108MHz) / LW (144-513kHz) / MW (520-1720kHz) / SW (1700-27000kHz). Air Band and SSB are not supported.
In SI4732 mode:
Coverage: LW (153-500kHz) / MW (520-1710kHz) / SW (1730-30000kHz) / FM (64-108MHz) / SSB (1730-30000kHz) / Air Band (50-200MHz, native support for 118-138MHz).
Supports Air Band (AIR) and Single Sideband (SSB) without the need for additional equipment.
Color: As Shown
Material: Aluminum Alloy
