Features:
Internal LNA amplifier and optional attenuator can handle other power ranges.
50KHz low frequency support, covering LF, MF, HF, VHF and UHF
High frequency support covers all ranges up to 4GHz with no gaps.
New "Help" and "Settings" buttons to improve user interface and preset configuration choices with just two clicks
Ideal for all available HAM bands.
Lightweight pocket
Rugged metal casing
Spectrum analyzer mode with "peak maximum and hold", "normal", "overlay" and "average" modes
High-capacity built-in lithium battery, can run continuously for more than 10 hours, can be charged via USB
Multi-platform Windows/Linux/MacOS open source software and API library
Product Parameters:

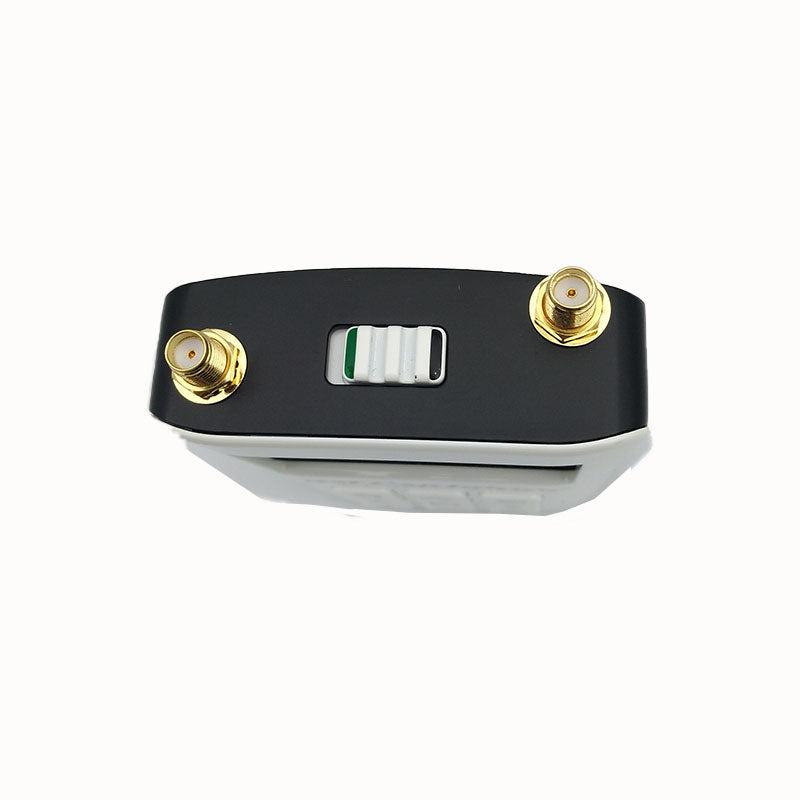

Left connector: 0.05 – 960MHz
Right connector: 240 – 4000MHz
Single scan frequency span: 2 – 960MHz
Internal selectable LNA 25dB gain
Internal selectable attenuator 30dB and 60dB
Wifi analyzer for 2.4GHz band
Graphic LCD 128x64 pixels, high outdoor visibility
Backlight, high indoor visibility
Built-in 1800mA/h lithium ion rechargeable battery
Standard SMA 50 ohm connector
Included broadband 144/433MHz dual-band telescopic antenna
Comes with UHF 400-900MHz rubber duck articulated antenna
Comes with 2.4GHz whip antenna
Amplitude resolution: 0.5dBm
Dynamic range: -125dBm to 10dBm
Absolute maximum input power: + 30dBm
Average noise level (typical LNA): -125dBm
Frequency stability and accuracy (typical value): + -1.0ppm
Amplitude stability and accuracy (typical value): + -3dBm
Frequency resolution: 1Khz
Resolution bandwidth (RBW): Automatic 2.6Khz to 600K
Includes support for Windows, Linux and MacOS X
Application Field:
RF spectrum analysis of FM, TV and DTV, ISM, RFID, GSM, 4G/5G, IoT, GPS, Bluetooth
WiFi analysis and fine-tuning
Interfere with search
EMC pre-test
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
