Hantek 6022BE Handheld Portable Laptop PC USB Digital Measurements  Storage Virtual Oscilloscope 2 Channels 20Mhz Oscilloscope

            Cost-effectiveness; Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.

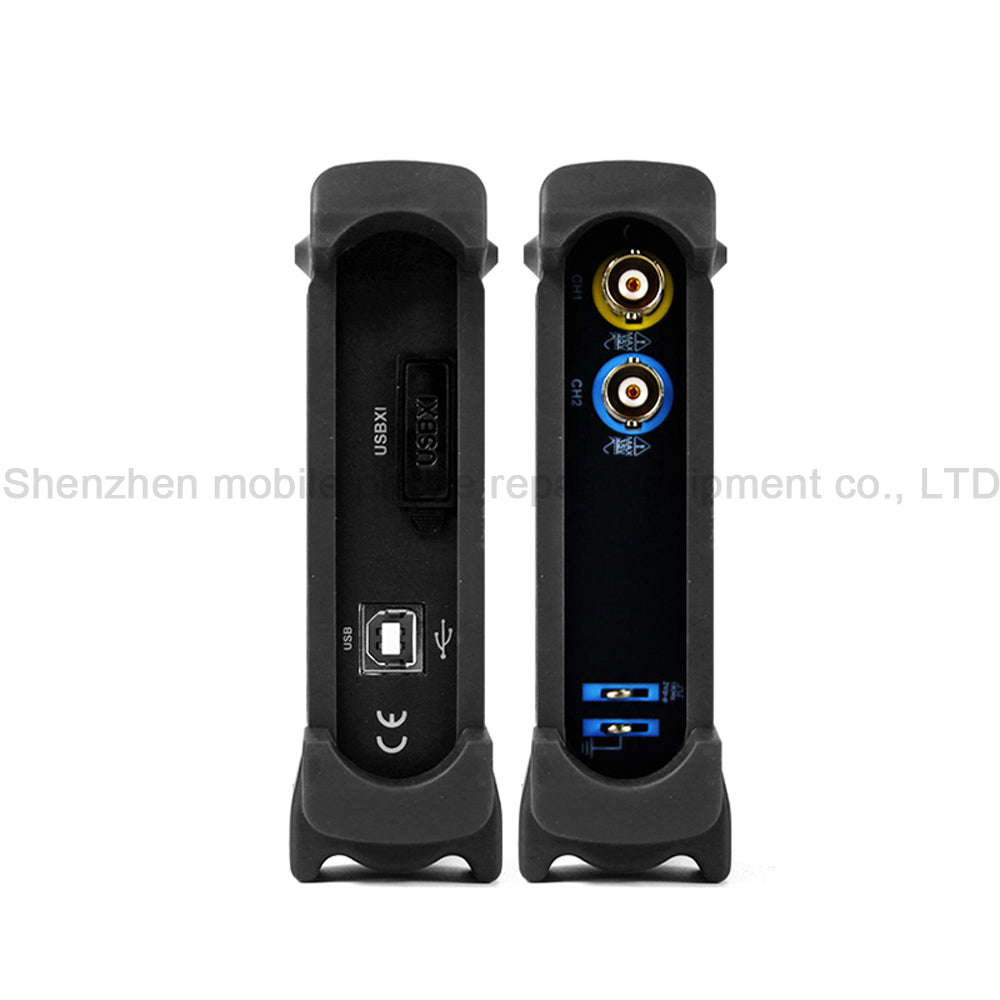

             Standard USBXITM interface, easyly inserts into USBXITM housing to make up a combination instrument.

             USB2.0 interface, no external power source required, easy to use.

             Be suitable for notebook computer, product line maintenance,be used easily on business.

             Dimensions (mm):205(L) x120(W) x35(H), be carried easily.

             High performance, 48MS/s real-time sampling, 20MHz Bandwidth,

             Operating System: Windows 7, Windows 8,Windows 10,

  Windows NT, Windows 2000, Windows XP,VISTA.

             23 measurement functions, PASS/FAIL Check, be suitable for technical application>

             Waveform average, persistence, intensity,invert,addition, subtraction, multiplication, division,X-Y plot.

             Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.

             FFT

             One computer can connect many DSO, extend channel easily.

             Labview\VB\VC\Delphi\C++Builder Second Design instance.

            2. Hardware Specification

             Channel

       2 Channels

             Bandwidth

       20MHz

             Input Impandence

       1MΩ 25pF

             Max. Sample rate

       48MS/s

             Vertical resolution

       8Bit

             Gain range

       20mV-5V, 8Steps

             DC accuracy

       ±3%

             Timebase range

       1ns-9000s, 39 Steps

             Vertical adjustable

       Yes

             Input protection

       Diode clamping

             X-Y

       Yes

             Trigger Mode

       Auto, Normal and Single

             Trigger Slope

       +/-

             Trigger level adjustable

       Yes

             Trigger Type

       Rising edge, falling edge

             Trigger Source

       CH1, CH2

             Pre/Post trigger

       0-100%

             Sampling selection

       Yes

             Waveform Display

       port/line, waveform average, persistence, intensity

             Network

       Open/Close

             Vertical mode

       CH1, CH2, Dual, ADD

             Cursor measurement

       Yes

             Math

       FFT, addition, subtraction, multiplication, division.

             Cursor

       Frequency, Voltage

             Accessories

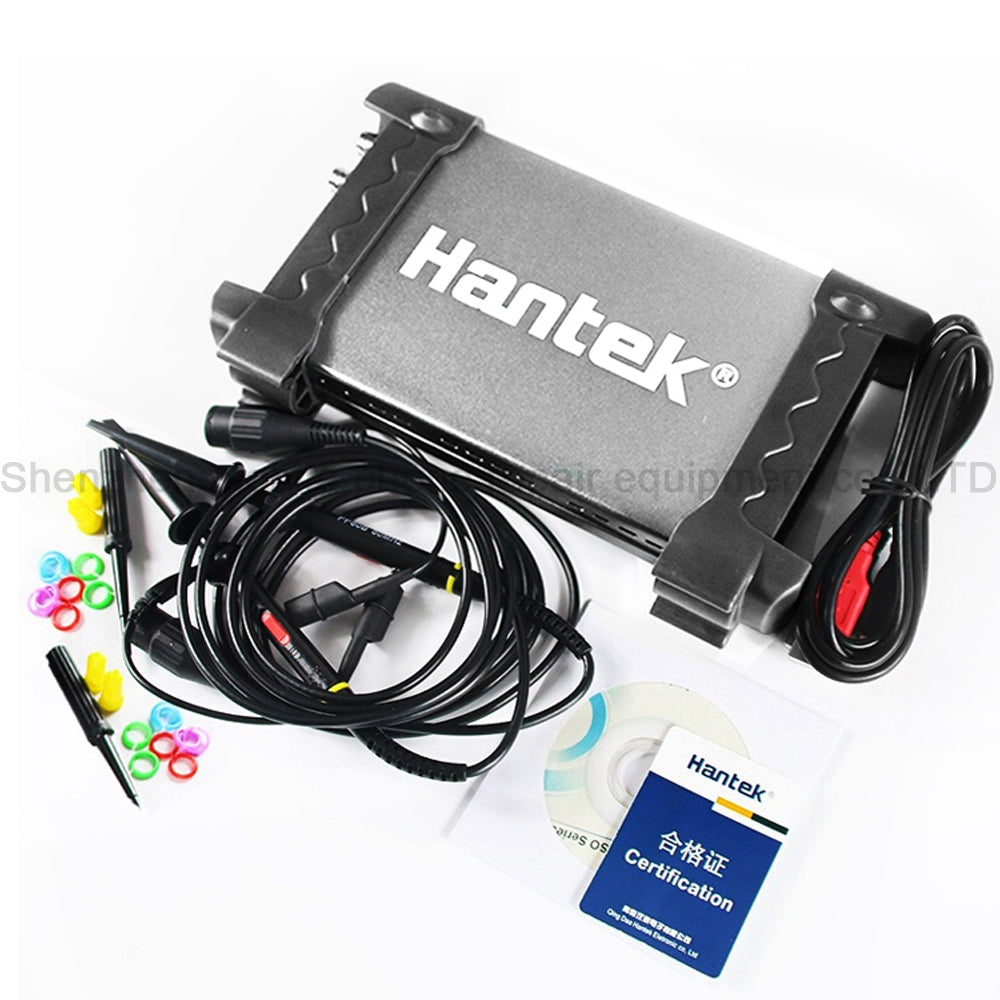

       S/W CD, probes, manual, USB cord

            3.Software

             Operating system: Windows 7, Windows NT, Windows 2000,Windows XP, VISTA

            4.Second Design

             Supply DEMO code(VC,CVI,VB,LABVIEW) and technical support.
