Features:

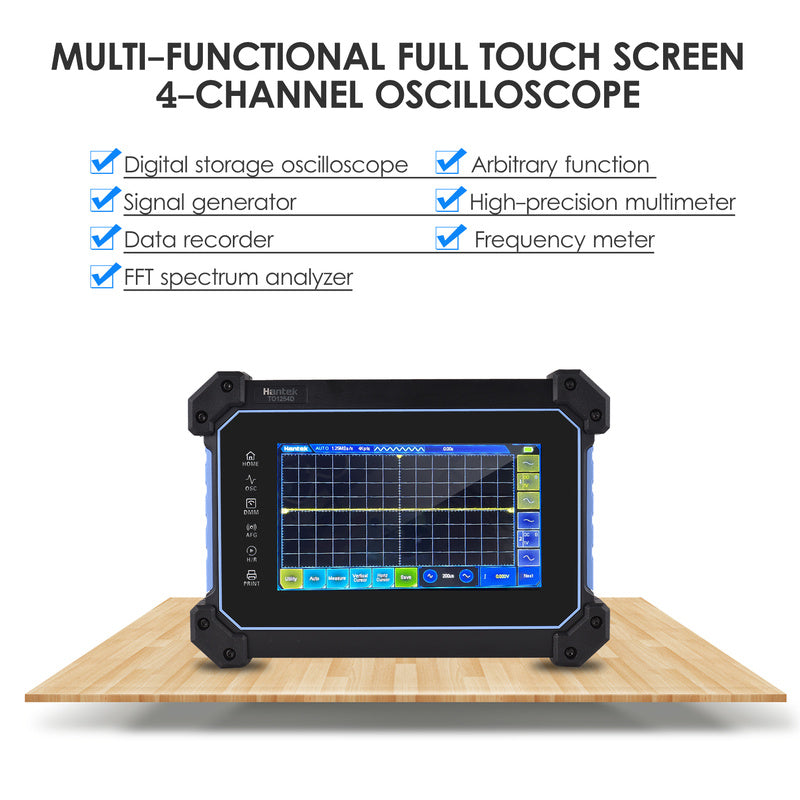

Integrates Multiple Functions: digital storage oscilloscope, arbitrary function signal generator, high-precision multimeter, data recorder, frequency meter, FFT spectrum analyzer.
Digital Multimeter Function: AC and DC voltage, current, resistance, capacitance, diode, on-off measurement. The multimeter has its own data recording function, which can monitor and record the changes of voltage, current, resistance and other data for a long time and generate a trend chart.
High Power and Long Endurance: built in high capacity detachable lithium battery, full power, which has long endurance and standby time.
Support Multiple Fast Charging Protocols: standard 18W charger for fast charging; The type-C interface is compatible with mobile phones and can share a set of charging equipment.
7 TFT LCD Large Screen: super large touch screen, resolution up to 800*480, friendly and easy-to-use UI, good interaction experience.
Specifications:
Plug Type: EU / US (Optional)

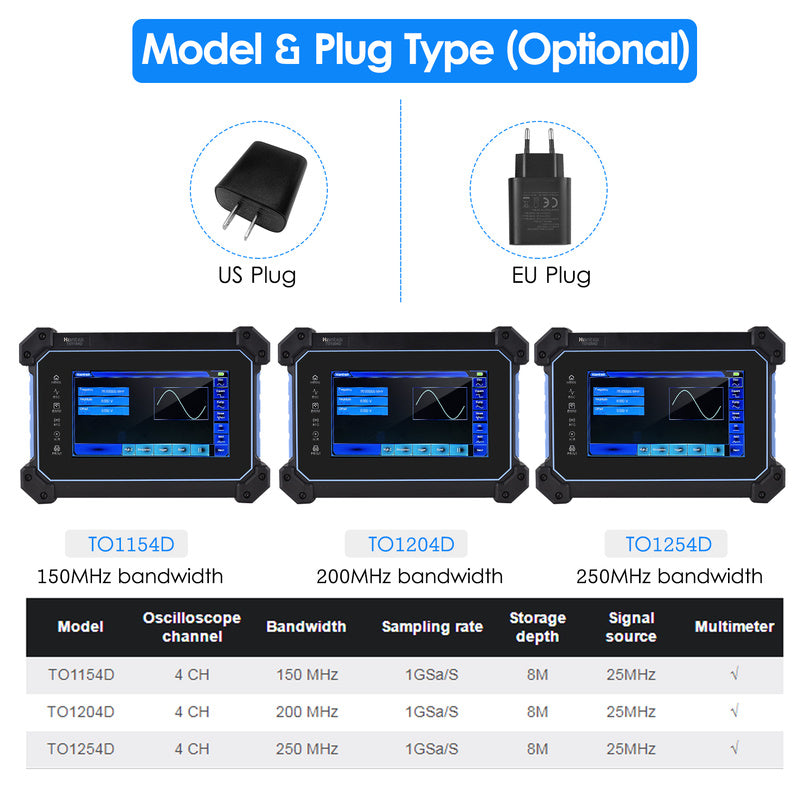

Model: TO1154D / TO1204D / TO1254D (Optional)
TO1154D: 150MHz bandwidth
TO1204D: 200MHz bandwidth
TO1254D: 250MHz bandwidth
OSCILLOSCOPE:

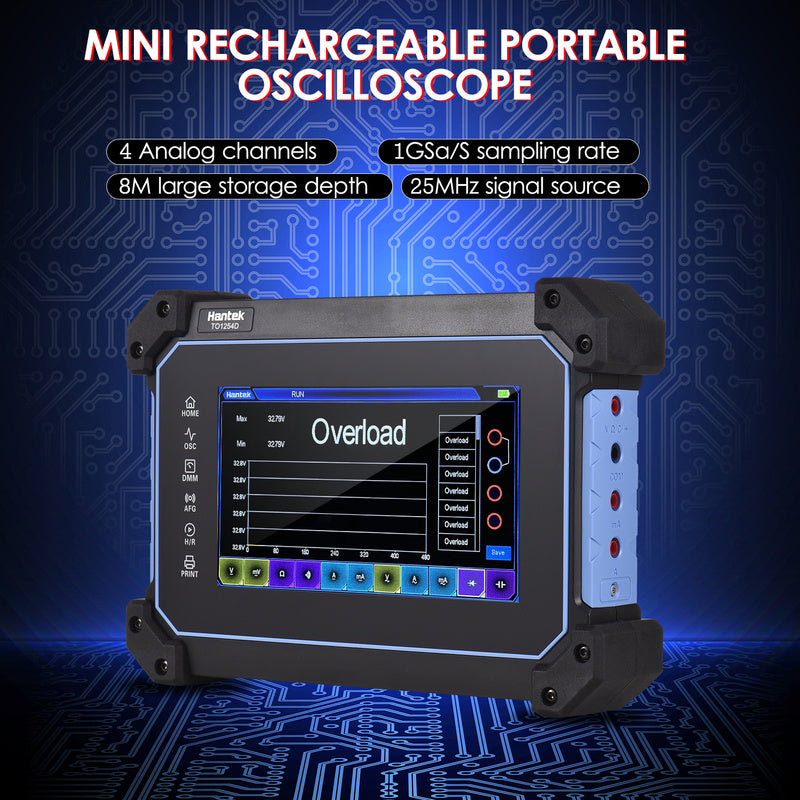

Channel: 4 Analog channels
Storage Depth: 8Mpts
Signal Source: 25MHz
ARBITRARY WAVEFORM GENERATOR:
Channel Number: 1
Vertical Resolution: 12bit
The Highest Frequency: 25MHz
Standard Waveform: Sine wave, Square wave, Triangle wave, Noise, DC
Amplitude: 50Ω+2%
Wavelength: 4KSa
MULTIMETER:
Maximum Resolution: 4000 points
Measuring Method: Voltage, Current, resistance, capacitance, diode, on-off measurement
Maximum Input Voltage: AC: 600V; DC: 600V
Maximum Input Current: AC: 10A; DC: 10A
Input Impedance: 10MΩ
DC Voltage: 400mV/4V/40V/400V/600V
AC Voltage: 4V/40V/400V/600V
DC Current: 40mA/200mA/4A/10A
AC Current: 40mA/400mA/4A/10A
Resistance: 400Ω/4KΩ/60KΩ/400KΩ/4MΩ/40MΩ
Capacitance: 40nF/400nF/4μF/40μF/100μF
Diode: 0~1V
On off Measurement: 50Ω
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
