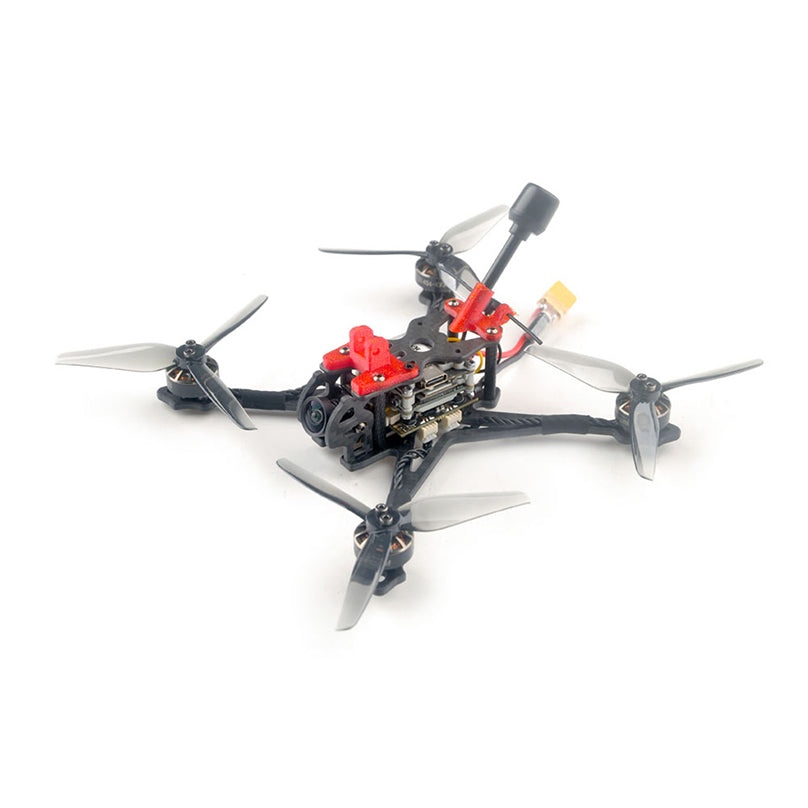

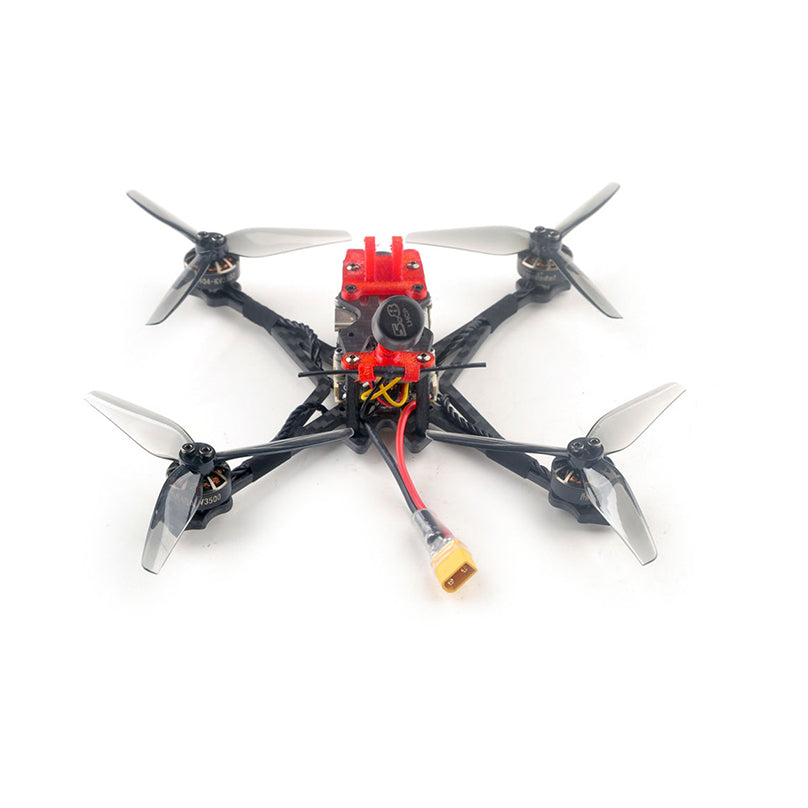

CRUX35 HD is an ultra-lightweight 3.5Inch FPV Freestyle FPV Racing Drone, the

weight of the whole drone is only 108g for the digital HD version. The

Crux35 serials drone use Happymodel EX1404 high-efficiency motor and

HQPROP 3.5-inch three-blade propeller to ensure the largest

thrust-to-weight ratio under the most efficient premise, which can bring

you a smooth Freestyle flying experience.

     The HD version is equipped with CADDXFPV Nebula and Vista HD image transmission system.

     The receiver version can be SPI ExpressLRS and SPI Frsky (S-FHSS compatible) for choose.

     ExpressLRS is the most popular RC link system by now , it could performance very well with Crux35 HD.

     Features:

     Ultra-lightweight 3.5-inch BNF FPV Freestyle Drone

     HD video transmission

     Integrated ExpressLRS SPI receiver or Frsky SPI D8/D16 receiver

     High efficiency EX1404 power system

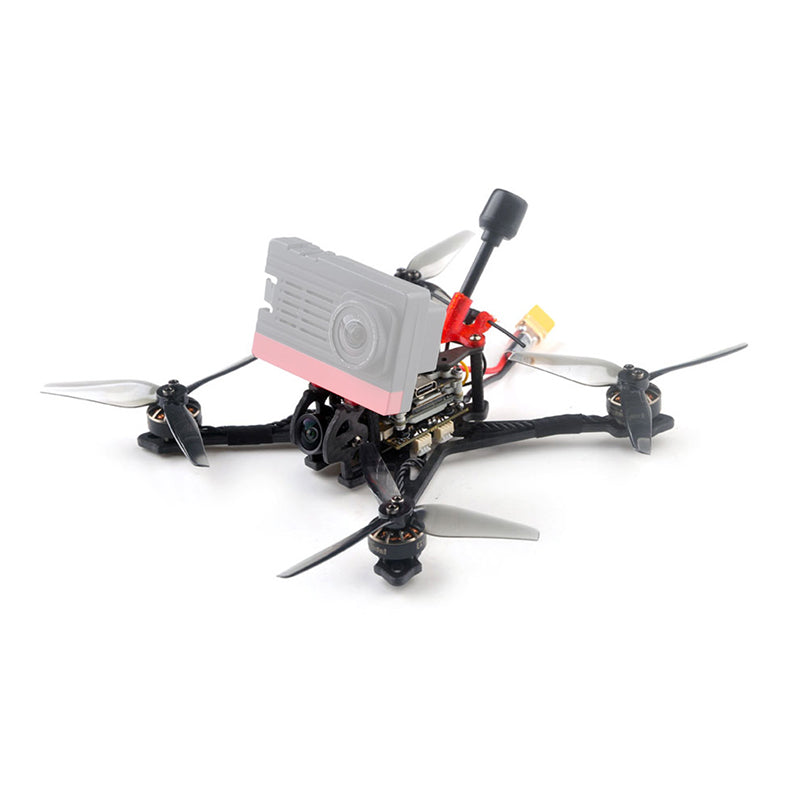

     Can be equipped with Naked Gopro or SMO4K

     Support 3-4S battery 4S 750mah battery is recommended, maximum support 4S 1100mah

     Specifications:

     Brand: Happymodel

     Product name: Crux35 HD

     Wheelbase: 150mm

     Weight: Crux35 HD 108gram

     Size: 130mmx130mmx45mm(without propellers)

     Receiver option: SPI ExpressLRS 2.4GHz

                    SPI Frsky D8/D16 (S-FHSS compatible)

     Camera option: HD version Nebula+Vista

     Flying time: 9min~15min 4s 750mah battery

     Package includes:

                          Item Name

        Crux35 HD

                      Crux35 Frame

        1

                      Option1: ELRS X1 flight controller

        1

                      Option2: CrazyF411 flight controller

                      CaddxFPV Digital HD Camera Nebula Nano Kit

        1

                      Happymodel EX1404 KV3500 brushless motor

        4

                      HQProp T3.5X2X3Grey (4cw+4ccw)

        1

                      Screw Driver

        1

                      Buckle Velcro for battery

        1

                          Motor

        Mode: EX1404

KV options: KV3500

Configu-ration:9N12P

Stator Diamter:14mm

Stator Length:4mm

Shaft Diameter: Φ1.5mm

Motor Dimension(Dia.*Len):Φ15mm*15mm

Weight(g):9g

                      Propellers

        Propeller Diameter: 3.5 inch

Pitch : 2

Blades : 3

Material : Poly Carbonate

Weight : 1.5g

Hub Diameter : 10mm

Hub Thickness:4.7mm

Shaft :1.9/1.5/1.9mm

Adaptor Rings : NO

                      Flight controller

(ELRS Version)

        MCU:STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000(SPI connection)

Mount pattern: 20x20 M2

Size:32*28*9mm

Power supply: 2-4S Lipo battery

Built-in 12A Blheli_s ESC each

Built-in Betaflight OSD(SPI Control)

Built-in SPI ExpressLRS 2.4GHz receiver

Built-in 5V 1A BEC

Flight controller firmware target: CRAZYBEEF4SX1280

                      Flight controller

(Frsky version)

        MCU:STM32F411CEU6 (100MHZ, 512K FLASH)

Sensor: MPU-6000(SPI connection)

Board size: 28.5 * 28.5MM

Power supply: 2-4S battery input (DC 8V-17V)

Built-in 20A(each) Blheli_S 4in1 ESC Dshot600 ready

Built-in Frsky D8/D16 SPI receiver

Built-in 2.4G Power Amplification

Built-in Betaflight OSD(SPI Control)

Built-in Current meter

Built-in 5V 1.5A BEC

Built-in voltage detection

Firmware target: MATEKF411RX

                      Onboard 4in1 ESC

        MCU upgraded to EFM8BB21

Power supply: 1S LiPo/LiPo HV

Current: 5A continuous peak 6A (3 seconds)

Support BLHeliSuite programmable

Factory firmware: O_H_5_REV16_8.HEX

Default protocol: DSHOT300

                      Onboard SPI ExpressLRS 2.4GHz Receiver

(ELRS version)

        Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz

RF Frequency: 2.4GHz

Antenna : SMD antenna

Telemetry output Power: <12dBm

Receiver protocol to flight controller:  CRSF

Could bind with Happymodel ES24TX , ES24TX Lite, ES24TX Slim and DIY 2.4GHz ELRS TX module

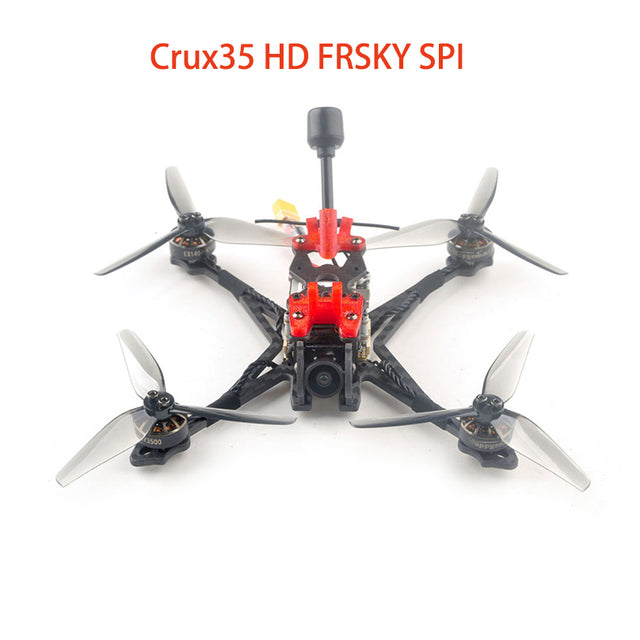

                      Onboard SPI Frsky 2.4GHz receiver (Frsky Version)

        SPI BUS receiver

Frsky D8/D16/EU-LBT/, Futaba S-FHSS switchable on Betaflight

Channels: 8ch/16ch

Dual antenna

Failsafe support

No ground interference ( Transmitter and receiver 1 m from the ground): 400m

                      CaddxFPV Digital HD Camera Nebula Nano Kit

(Digital HD version)

        Weight(camera included]: 24g

Antenna: 2.3g

Dimensions: Vista Kit 30×29×13mm

                    Camera 14×14×21mm

Operating Frequency: 5.725-5.850GHz

Transmitter Power[EIRP]: FCC/SRRC/MIC:<30dBm

                       CE:<14dBm

Min.latencylend-to-end) 720p 60fps:32ms

Max.Transmission Distance FcC/SRRC: 4km

                         CE:0.7km

lnput Power: 7.4-26.4V

Power Output: 25mW/200mW/500mW/700mw

Goggles : Work with DJl goggles

Camera

Sensor: 1/3"CMOS

Lens:2.1mm,f/2.1

Shutter:Rolling

shutterFOV:142°(D);122°(H);75°(V)

LHCP antenna
