HBS860H High Precision Servo Motor Kit with Encoder, Closed Loop Stepper Motor, 8.5N.m, High Speed and Constant Torque Driver

HBS860H High Precision Servo Motor Kit with Encoder, Closed Loop Stepper Motor, 8.5N.m, High Speed and Constant Torque Driver

Regular price $366.00 USD
Regular price Sale price $366.00 USD
Sale Sold out
Shipping calculated at checkout.
Color

   HBS860H High Precision Servo Motor Kit with Encoder, Closed Loop Stepper Motor, 8.5N.m, High Speed and Constant Torque Driver



Driver parameters

Name: Two-phase closed-loop hybrid stepper motor driver

Alarm, signal in place: support

Pulse voltage: 5V-24V signal compatible

Model.HBS860H

Maximum response frequency: 200KHz

Voltage: AC20-80V or DC24-100V

Pulse mode: single pulse (default)

Phase current: 8A/Pha (peak current)

Cooling method: forced air cooling (fan cooling)

Subdivision 2-256 subdivision, maximum 51200 steps/circle

Processor: 32-bit DSP digital

Dimensions: 151*97. 5*52 (mm)



Name.86 series two-phase closed-loop hybrid stepper motor

Step angle 1.8''

Step angle accuracy ±5%

Model 86HBS85

Phase current 5.6A/Pha

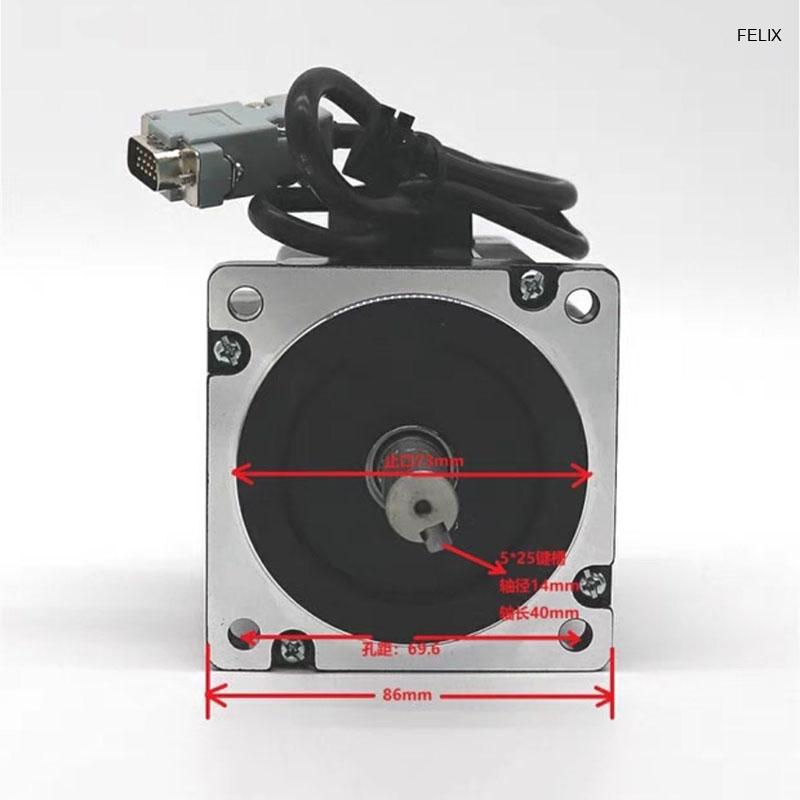

Shaft diameter 14mm, 5*25 flat key, shaft length 40m

Holding torque 8.5N.m

Motor cable 3 meters (default gift)

Dimensions 86*86*138 (mm)

Encoder cable 3 meters (default gift)
