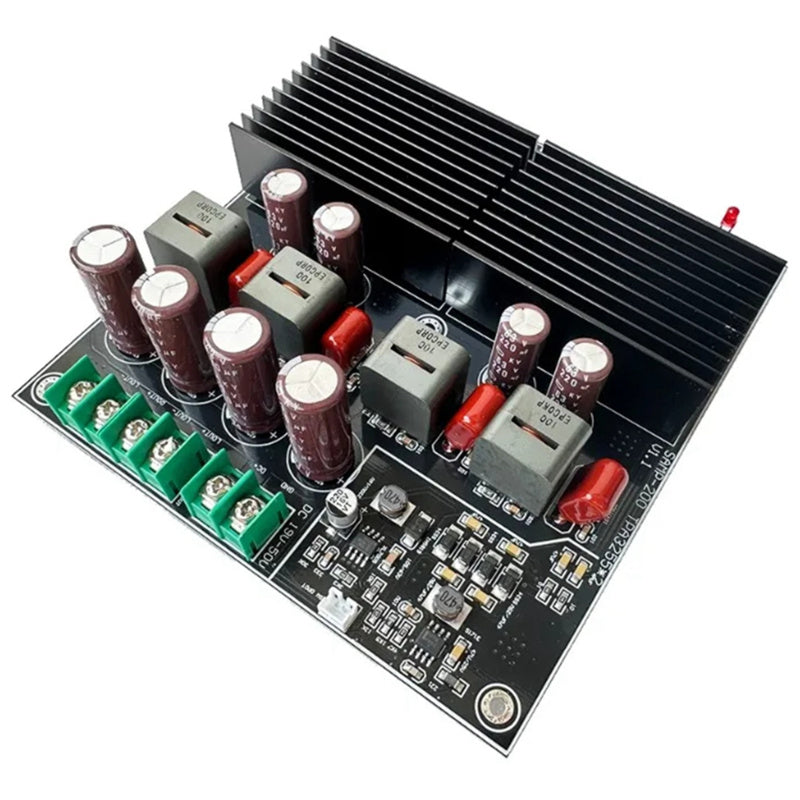

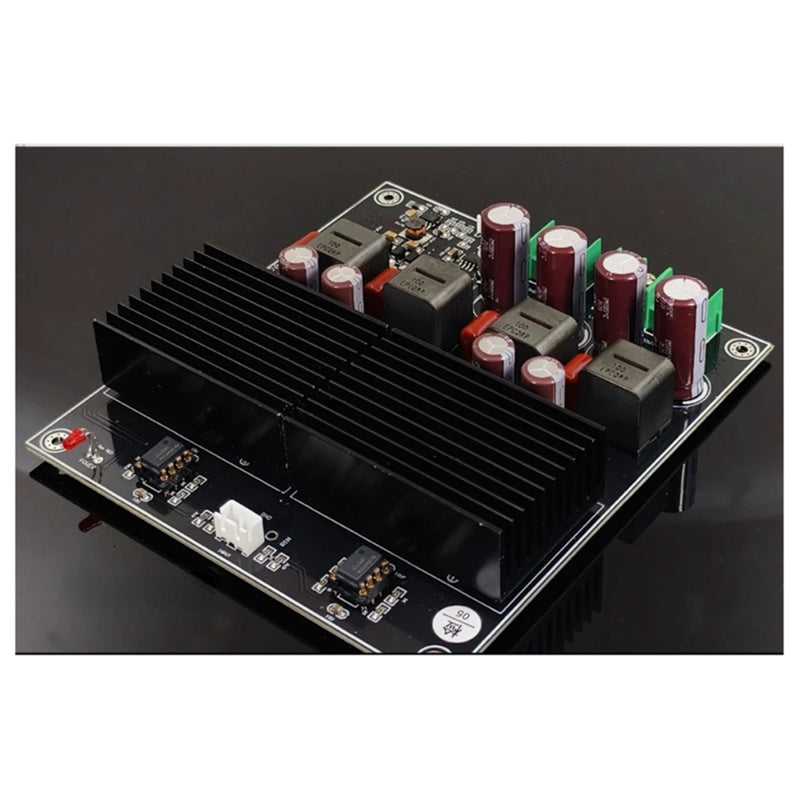

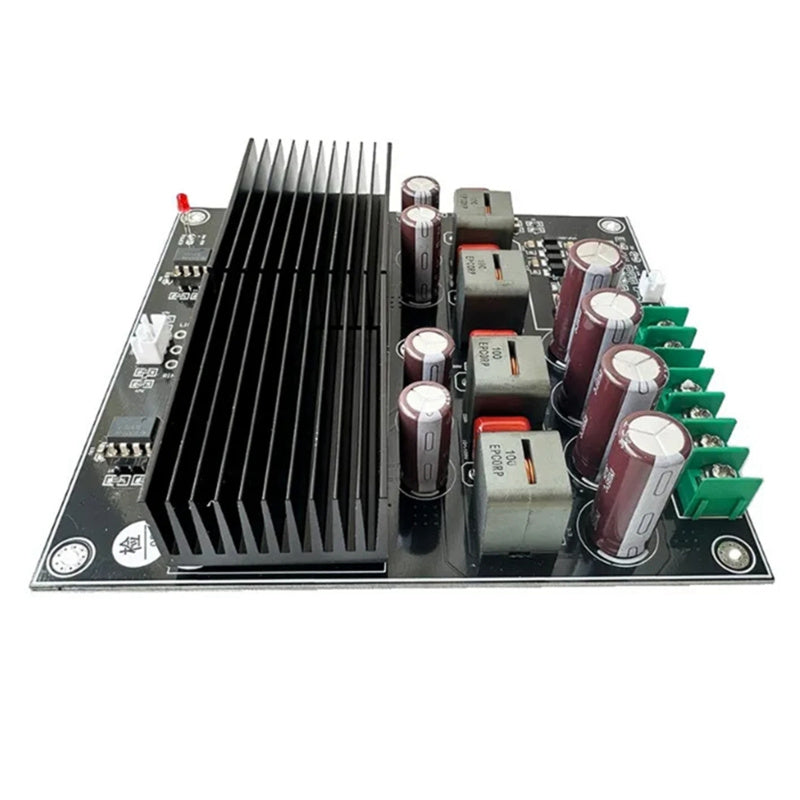

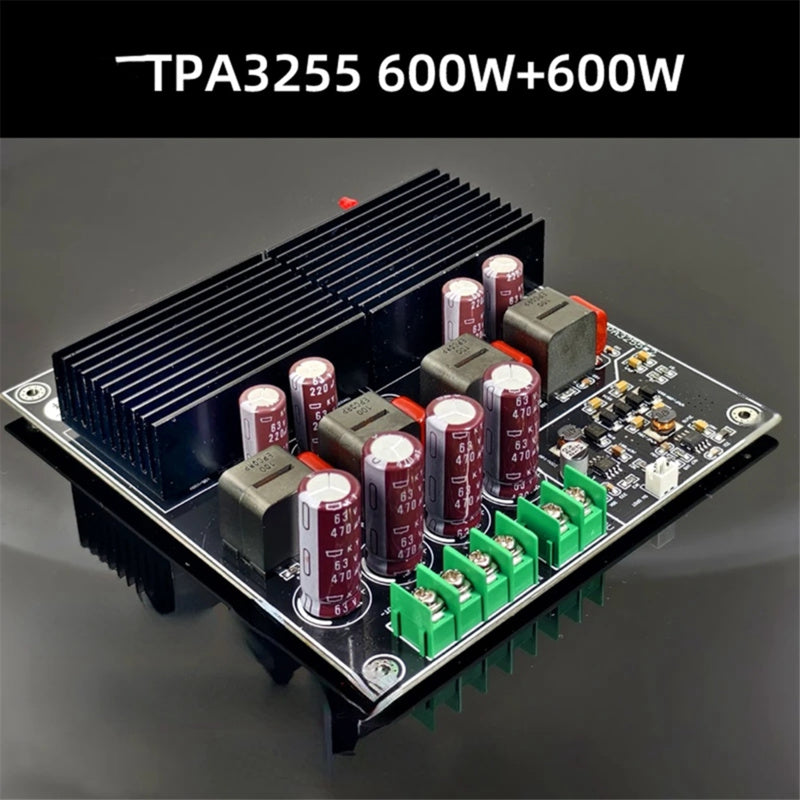

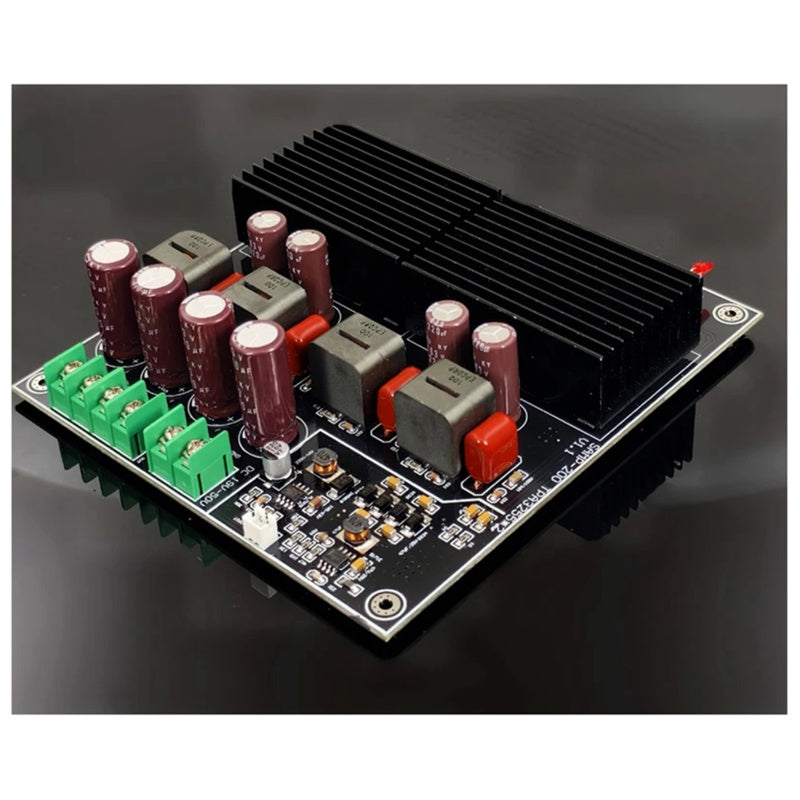

Enhance your audio experience with the SAMP-200 HIFI Dual Core Stereo Board. This 2 channel amplifier delivers 600W+600W of power, making it perfect for audio enthusiasts. The TPA3255 Class D digital power amplifier ensures clear and powerful sound reproduction, while the TL072 OP AMP enhances signal processing for a more detailed and immersive listening experience.
The TPA3255 is a high-performance Class D power amplifier with Class D efficiency and true high-end sound quality. The device features an advanced integrated feedback design and proprietary high-speed gate driver error correction (PurePath Ultra HD). This technology allows the device to maintain ultra-low distortion across the entire audio frequency band while delivering perfect sound quality.
The device operates in AD mode with a maximum output of 600WX2/2R or 300WX2/4 ohm and 200WX2/8 ohm load and has a unique 2 VRMS analog input interface that supports seamless connection with high-performance DACs (such as TI's PCM5242).
3. Fully shielded, low-loss sealed inductors, imported filter capacitors, no pressure at 55V
Output power: 600W+600W/2 ohms 315W+315W/4 ohms 200W+200W/8 ohms Frequency response: 20HZ-30KHZ
THD+N: 0.006% at 1W/4; Less than 0.01% at clipping Power supply voltage: positive 19V to positive 52V
Note:The higher the input power supply, the greater the power supply current and the greater the output. The power test is measured at 50V power supply. If you switch to a 24V 36 low voltage power supply, the output power will be reduced accordingly.
Colour:As Shown
Material:abs
Size:PCB Size:138x128MM
Package Contents:
1 * Digital power amplifier
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
