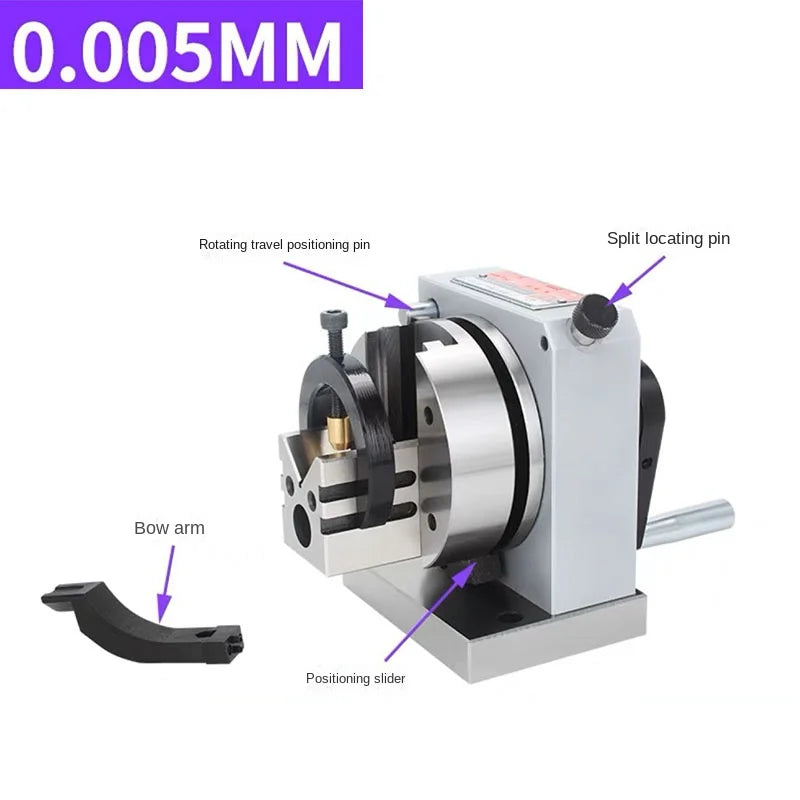

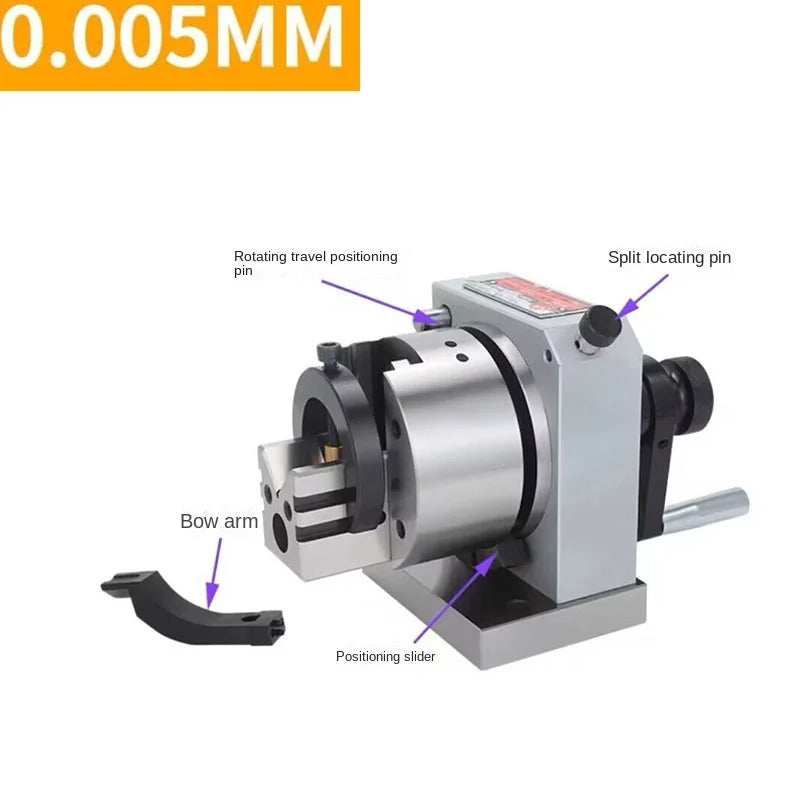

One-way punch former-0.005
Center height 80-81mm
V-type clamping diameter 3-30mm
The V-shaped block adjusts the diameter to 25mm.
Number of teeth on the indexing plate, accuracy 24.
Dressing wheel maximum diameter 200mm
The maximum convex arc radius of dressing wheel R arc is R48mm
The maximum concave arc radius of the dressing wheel R arc is R100mm.
Clamping and grinding accuracy 0.005mm
Bidirectional punch former-0.005
Center height 80-81mm
V-shaped support diameter 3-30mm
V-shaped block adjustment diameter 25mm
Indexing plate tooth number, accuracy 24,
Maximum diameter of dressing wheel 200mm
The maximum convex arc radius of dressing wheel R arc is R48mm
The maximum concave arc radius of the dressing wheel R arc is R100mm.
The lateral movement of the sliding plate is 12.5mm
