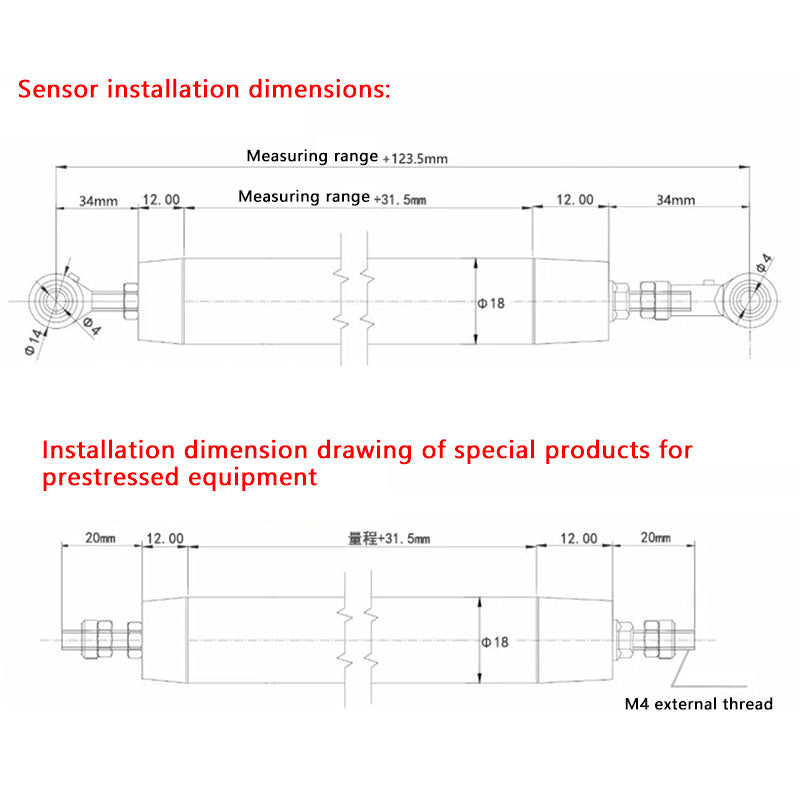

Mechanical stroke: range +3mm
Resolution: infinite segmentless resolution
Maximum allowable operating voltage: 24V DC
Recommended current: ≤10mA
Output signal: 0-100% given input working voltage (changes with displacement)
Maximum working speed: 10m/s
Operating temperature range: -60℃~150℃
Service life: greater than 100*106 (or greater than 25*106m)
Temperature drift coefficient: 1.5PPM/℃
Impact coefficient: IEC68-2-29:1968 50g
Vibration coefficient: IEC68-2-6:1982 20g
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
