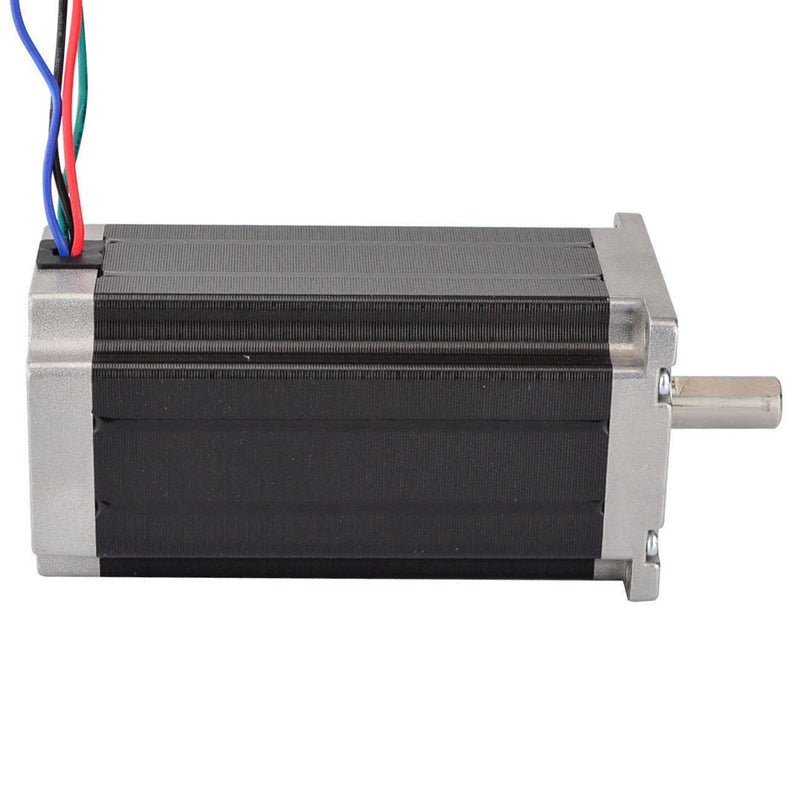

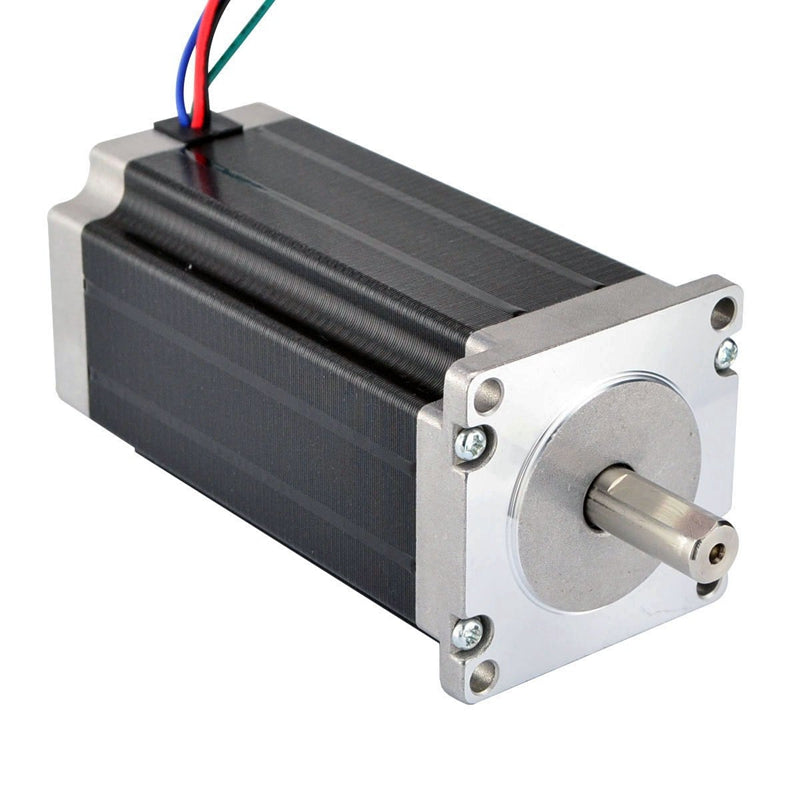

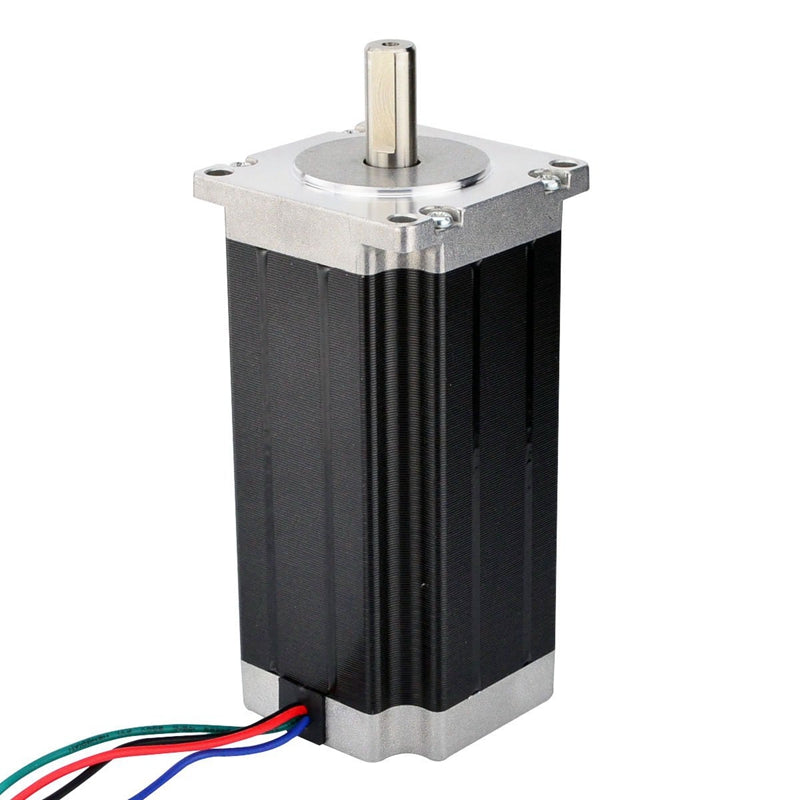

High Torque Nema 23 CNC STEPPER MOTOR 114 mm 425Oz.In/3Nm CNC Milling Lathe Router

2 sold in last 8 hours
mickcara
Z02562-1
In stock
$88.00
Size Guide
Color *
Black
$88.00
customers are viewing this product
Tags:



     NEMA 23 two poles 5.7 x 5.7 x 11.3 cm 4-wire

This is the strongest model for NEMA 23 1.8 deg.

Stepper motor, angle cm (200 steps / industry).

Each stage absorbs 4.2 A and one carries 3.0 nm of torque (425 oz. in.).

Manufacturer Part Number: 23hs45 - 4204s

Motor Type: bipolar Stepper

Step Angle: 1.8 degrees.

Hold torque: 3.0 nm ( 425 oz. inch)

Current rating / Stage: 4.2 A

Stage: 0.9 ohms

inductance : 3.8 MH + / - 20 % (1 kHz)

X Shaft diameter: 10 MM

Shaft length: 24 MM

d-cut Length: 20 MM

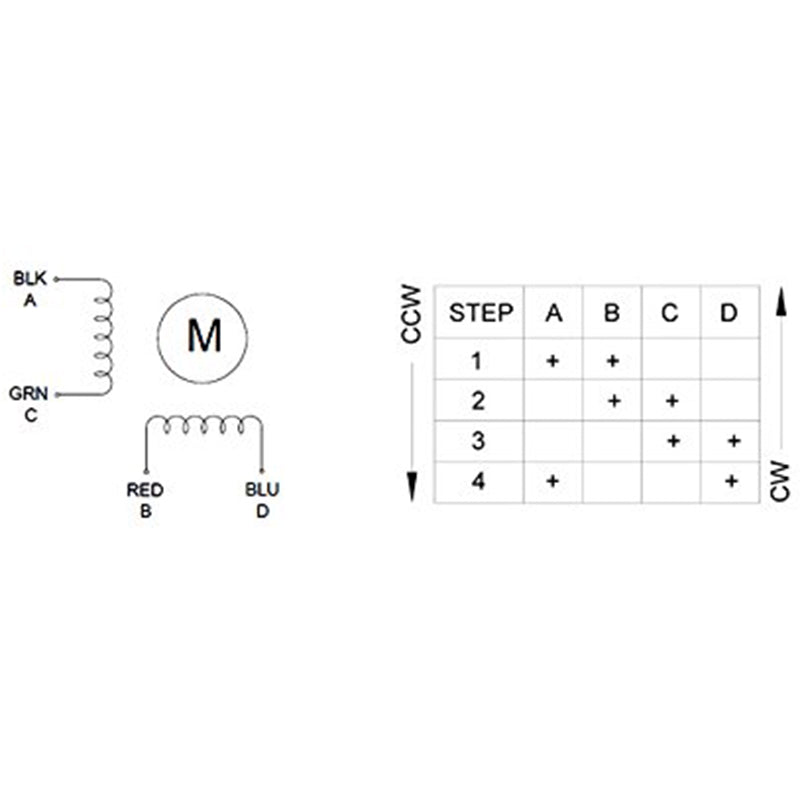

Number of leads: 4

Wire length: 400 MM

Size:5.7 x 5.7 x 11.3 cm

Material:metal

Colour:black

Package Contents:

1 * MOTOR

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
