Control System: +Pulse Width Control 1500usec Neutral
Required Pulse: 3-5 Volt Peak to Peak Square Wave
Operating Voltage: 4.8-6.0 Volts
Operating Temperature Range: -20 to +60 Degree C
Operating Speed (4.8V): 0.12sec/60° at no load
Operating Speed (6.0V): 0.10sec/60° at no load
Stall Torque (4.8V): 38.8 oz/in. (2.8kg.cm)
Stall Torque (6.0V): 47.2 oz/in. (3.4kg.cm)
Operating Angle: 40 Deg. one side pulse traveling 400usec
360 Modifiable: No
Direction: Clockwise/Pulse Traveling 1500 to 1900usec
Current Drain (4.8V): 8.8mA/idle and 220mA no load operating
Current Drain (6.0V): 9.1mA/idle and 280mA no load operating
Dead Band Width: 8usec
Motor Type: 3 Pole Ferrite
Potentiometer Drive: Direct Drive
Bearing Type: None, outer case serves as bearing
Gear Type: 4 Metal and 1 Nylon
Connector Wire Length: 6.29" (160mm)
Dimensions: 1.17" x 0.47"x 1.16" (29.8 x 12 x 29.6mm)
Weight: 0.66oz (19g)
packing content:
100% Brand New

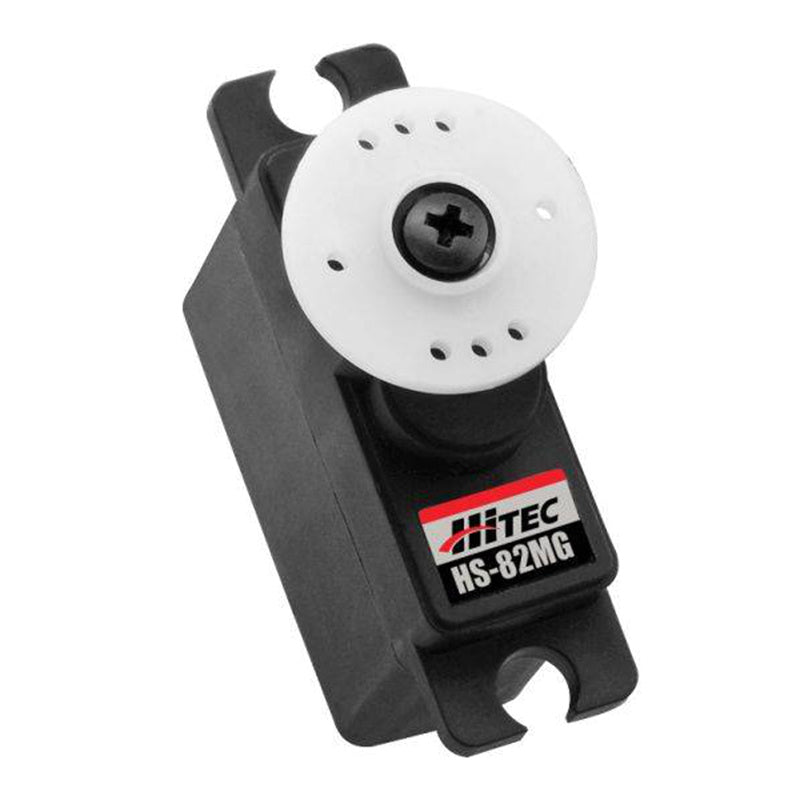

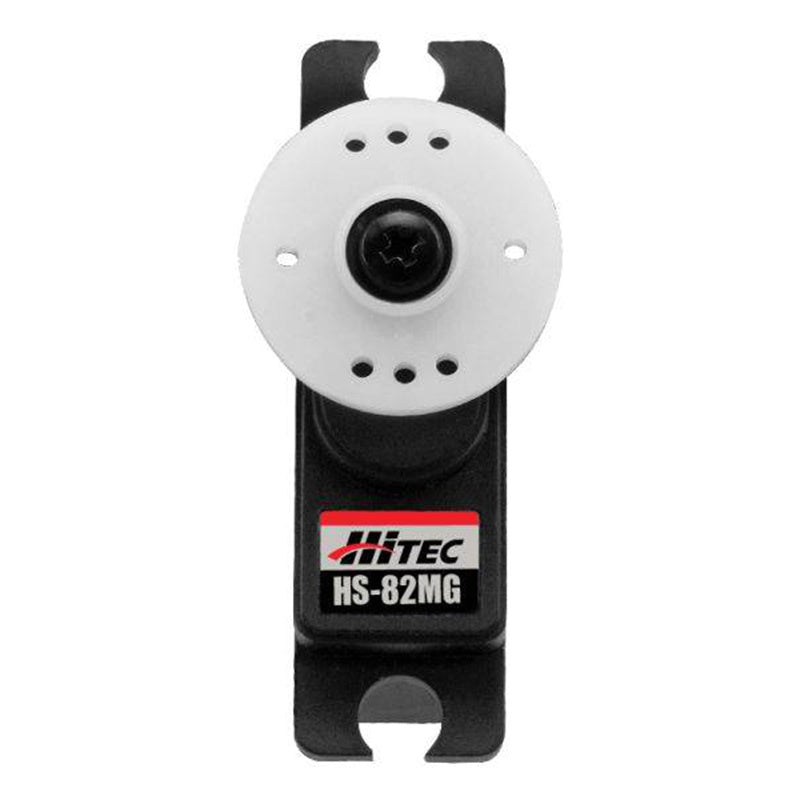

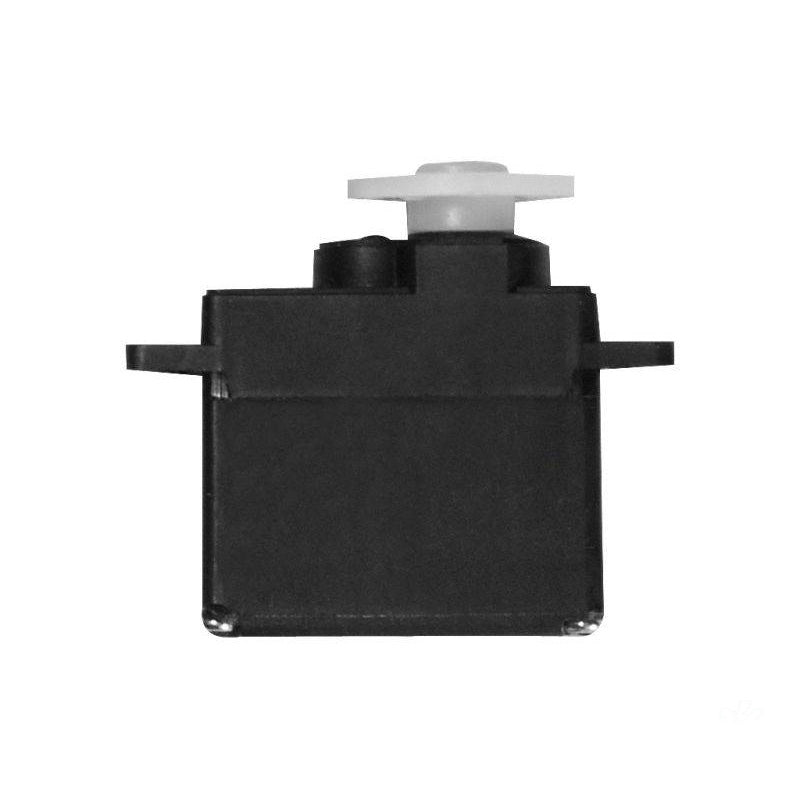

1x Hitec HS-82MG Universal Micro Servo HRC32082S
