Description:

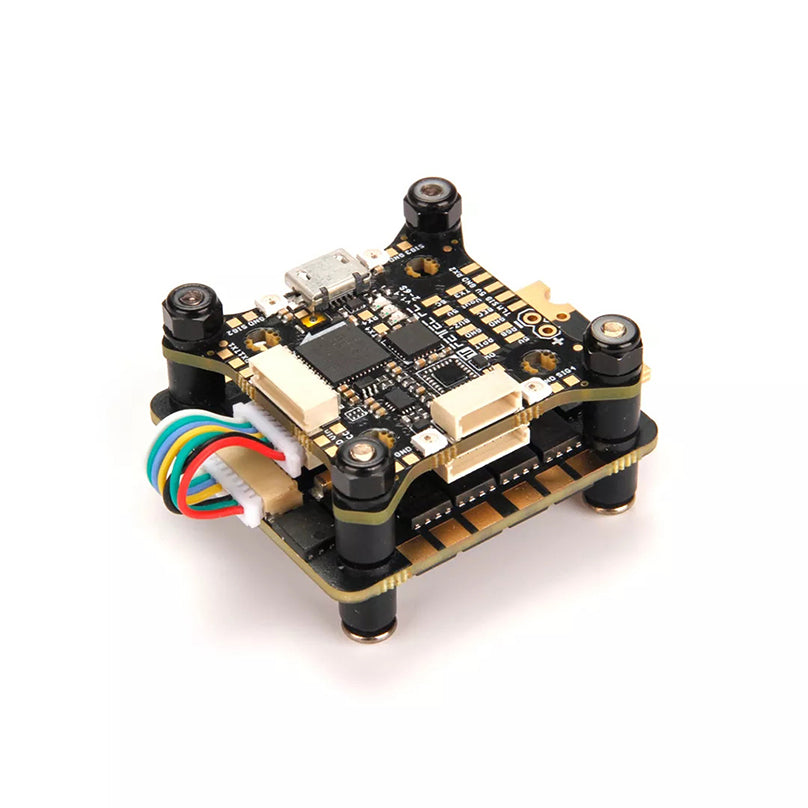

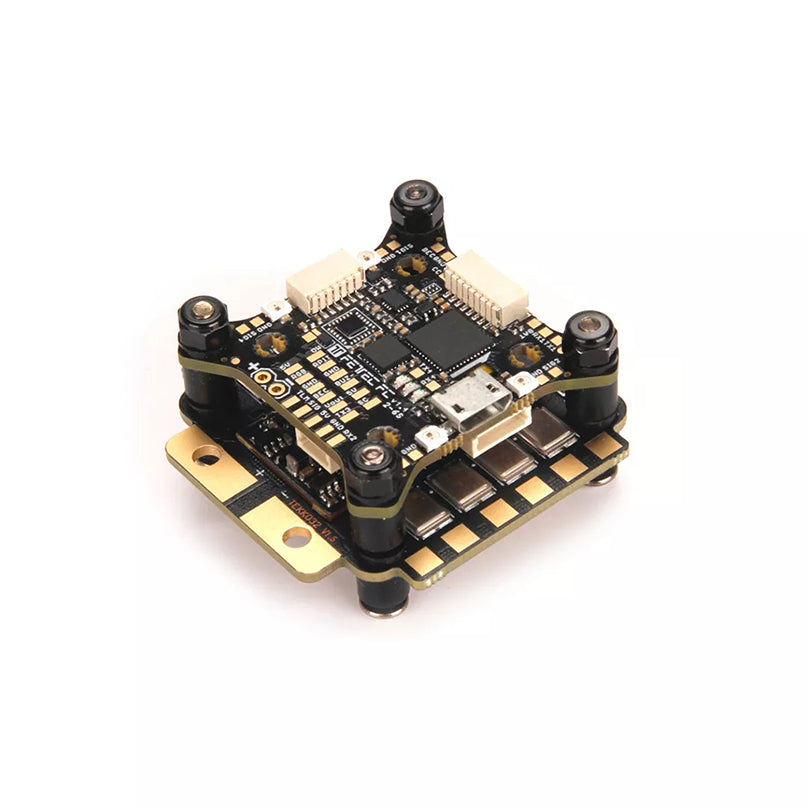

The Holybro FETtec FC G4 features the latest STM32 G4 MCU with math accelerator for the ultimate in-flight performance, onboard OSD for KISS flight tuning, 2 dedicated BECs for 5V and 16V switchable power, DSHOT2400 outputs for support of up to 8 motors, and dual 20x20 and 30x30 mounting holes.

Note:

Currently, the Holybro Fettec FC G4 does not support BLHeli_32 ESC Configuration via FC Passthrough and BLHeli_32 ESC telemetry/current reading. An Betaflight Flight Controller is needed to configure BLHeli32 ESC Setting.

Specification

    Latest STM32G4 Processor

    170Mhz + Math accelerator

    MPU6000

    Supply voltage 6-27V (2S-6S Lipo)

    2x dedicated onboard BEC (max. 600mA each)

    5V BEC for RX

    5V/16V BEC for VTX (switchable and real Pit*)

    2x 8 pin connector for solder free ESC connection

    Connector 1: ESC signal 1-4, telemetry, VCC, GND

    Connector 2: ESC signal 5-8 (depending on UAV type 1-4), telemetry, VCC, GND

    1x 8 pin connector for solder free VTX, cam connection and OSD or digital systems

    real Pit* VCC, GND, Video in, Video out, BEC 5V/16V, VCS/TX3, RX3

    2x 6 pin connectors for serials

    RX1, TX1, 3.3V, VCC, 5V, GND

    RX3, VCS/TX3, RGB LED, VCC, 5V, GND

    1x 4 pin connector for receiver

    Signal, TLM, 5V, GND

    5 UART serials

    UART 1 free

    UART 2 used for Receiver

    UART 3 free

    UART 4 used for onboard OSD, can be set free

    UART 5 used for ESCs / TLM / Onewire

    4 ESC solder pads (Signal/GND) in each corner

    Buzzer pads

    4 tiny RGB LEDs (selectable color)

    Supported ESC protocols

    PWM, Oneshot125, Oneshot42, Dshot150/300/600/1200/2400, FETtec Onewire

    FETtec KISS firmware

    Onboard OSD

    Graphic OSD (STM32)

    Full KISS Tuning

    Filter (PIDs, Rates, Settings)

    LED control (RGB LED, Racewire)

    VTX

    Live data graphs (Voltage, motor rpm, current, motor temp, gyro values, link quality)

    KISS GPS support + live map

    Custom graphic pilot logo

    Stick overlay

    Custom layout

    can be deactivated for usage of digital systems

    Connector type: JST-SH-1mm

    PINMAP

    Tekko32 F4 4in1 50A ESC

    F4 MCU @150Mhz / PWM output up to 96K / 4~6S / BLHeli32 / 30x30 The all new Tekko32 is the first 4in1 ESC in market to adapt the fast F4 MCU 150Mhz, providing a smooth control operation and quick response.

    Features:

    New & faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz) PWM output up to 96K (default 48K)Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.

    Specification:

    Continuous Current: 50A x4

    Burst Current: 60A x4

    Supports 4-6S battery

    Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.

    ESC telemetry Supported

    Onboard analog current sensor

    No output BEC

    BLHeli_32 firmware

    1000uf 35v capacitor included (highly recommended for 6s setup)

     Amperage meter scale ratio: 168

         Dimensions: 45x37x6mm / Weight: 13.8g

     Mounting holes: M4 30.5×30.5mm (M3 grommets included)

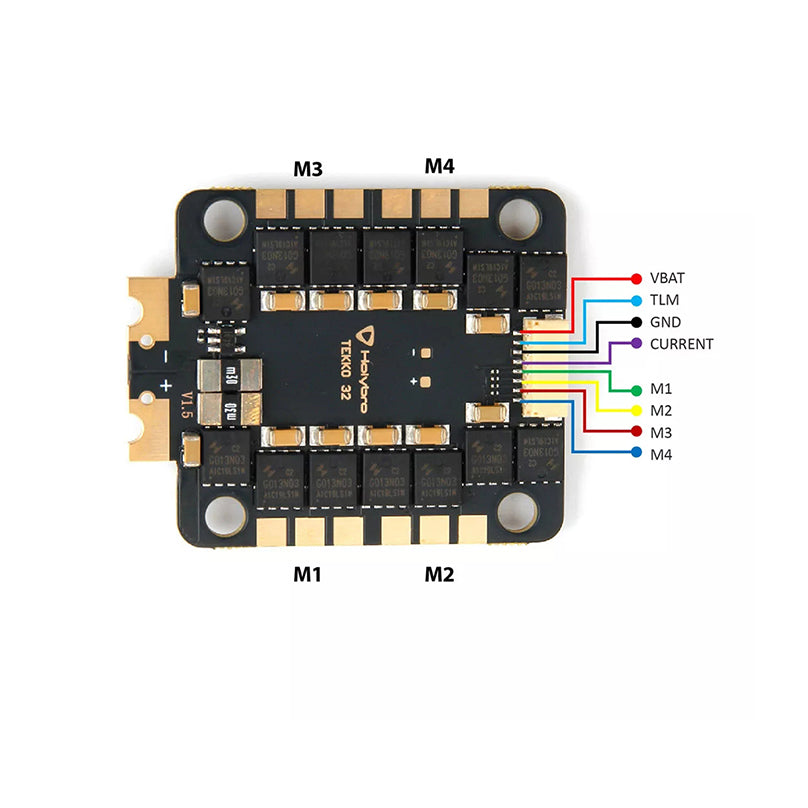

PIN MAP:

    Tekko32 F4 Metal 4in1 65A ESC

         F4 MCU @150Mhz / Metal-Cased MOSFET / PWM output up to 96K / 4~6S / BLHELI32

The all new Tekko32 Metal is the first 4in1 ESC in the market to adapt

the fast F4 MCU. Powerful & reliable metal-cased MOSFET 4in1 ESC

with smooth control and quick response.

    Features:

                      New & faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)

                  PWM output up to 96K (default 48K)

                  Metal-cased MOSFET for excellent heat dissipation

                  Massive on-board capacitance for noise filtering at 2068uf

                  3 oz copper PCB design to allow bigger current and better heat dissipation

                  Separate

 drive & control circuit, this broadens the current capability of

the drive circuit while reducing the electrical interference to the

control circuit.

    Specification:

                      Continuous Current: 65A x4

                  Burst Current: 75A x4

                  Supports 4-6S battery

                  Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.

                  ESC telemetry Supported

                  Onboard analog current sensor

                  No output BEC

                  BLHeli_32 firmware

                  1000uf 35v capacitor included (highly recommended for 6s setup)

                  Amperage meter scale ratio: 180

                  Dimensions: 43 x 44mm / Weight: 15.8g

                  Mounting holes: M4 30.5x30.5mm (M3 grommets included)

         Note:

         Air flow for the ESC is very important if you want to run this 4in1 in high current.

The battery wire (from Lipo to 4in1 ESC) should be at least 12AWG and well soldered.

    PIN MAP

    Package includes:

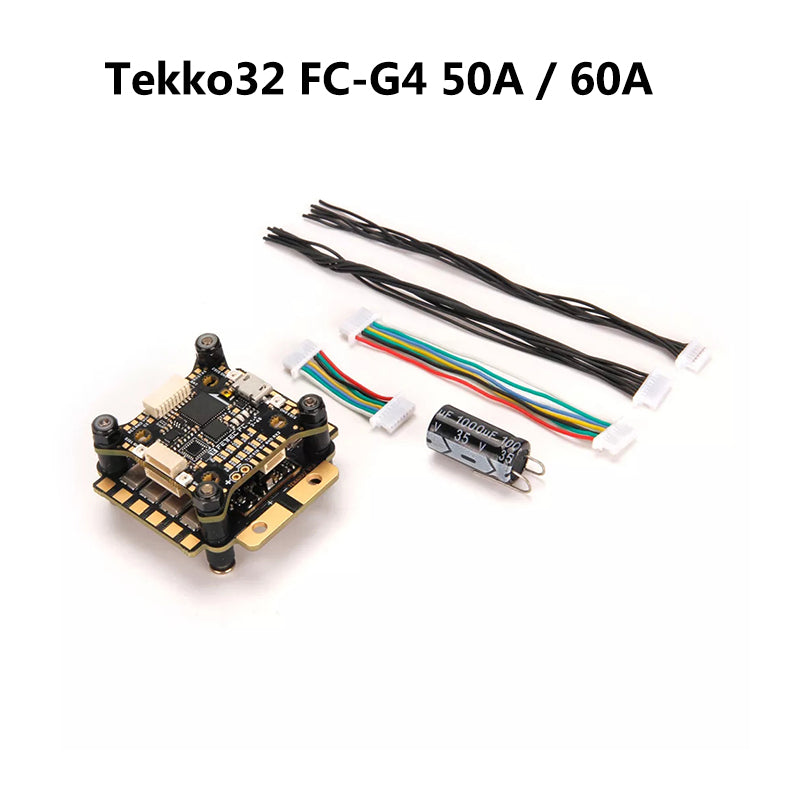

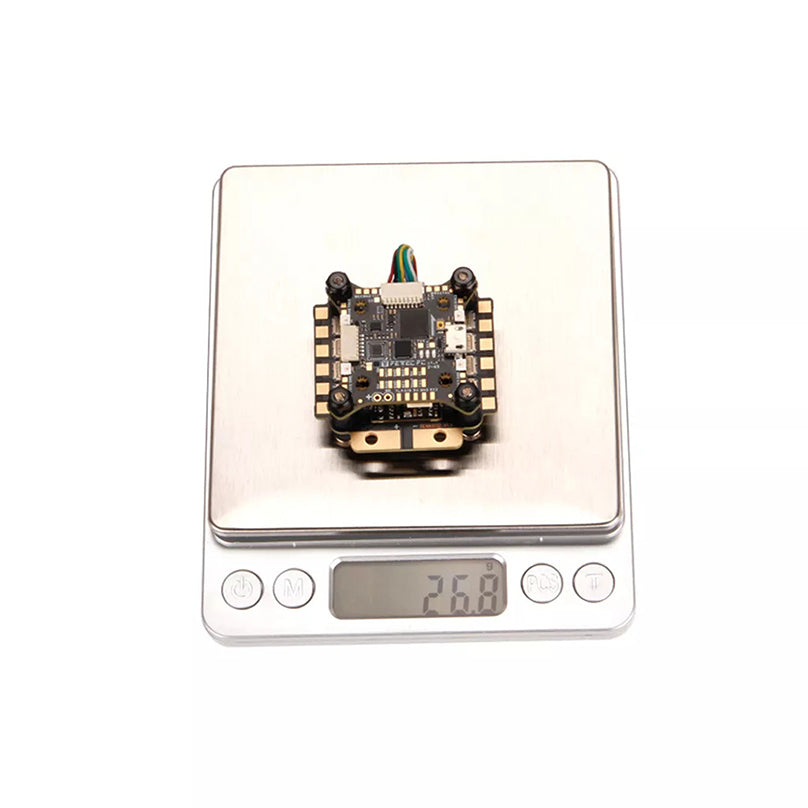

    1x FETTEC FC G4 STACK

1x Electrolytic capacitor: 1000uF 35v

1x JST SH1.0 8pin to 8pin 25mm cable

1x JST SH1.0 8pin to 8pin 65mm cable

1x JST SH1.0 8pin 100mm cable

1x JST SH1.0 6pin 100mm cable
