New Home Entertainment DJ Controller Commercial Lighting Mini 54 channels Dmx Controller Disco Stage Light Effect DMX512 Console
Features:
* you can use your mobile phone charger to power the console by USB 5V IN port on the side of the controller.
* Can control up to 9 smart lights of 6 channels each, making a total of 54 channels
* 6 faders in front for direct control
* Inputs and outputs DMX in 3 pin XLR
Specification:
Power supply : 90-240V AC 50/60Hz.
Number of channels: 54ch
Number of channels per page: 6ch
Standard control : DMX512
Operation temperature: -10 to 50 degree

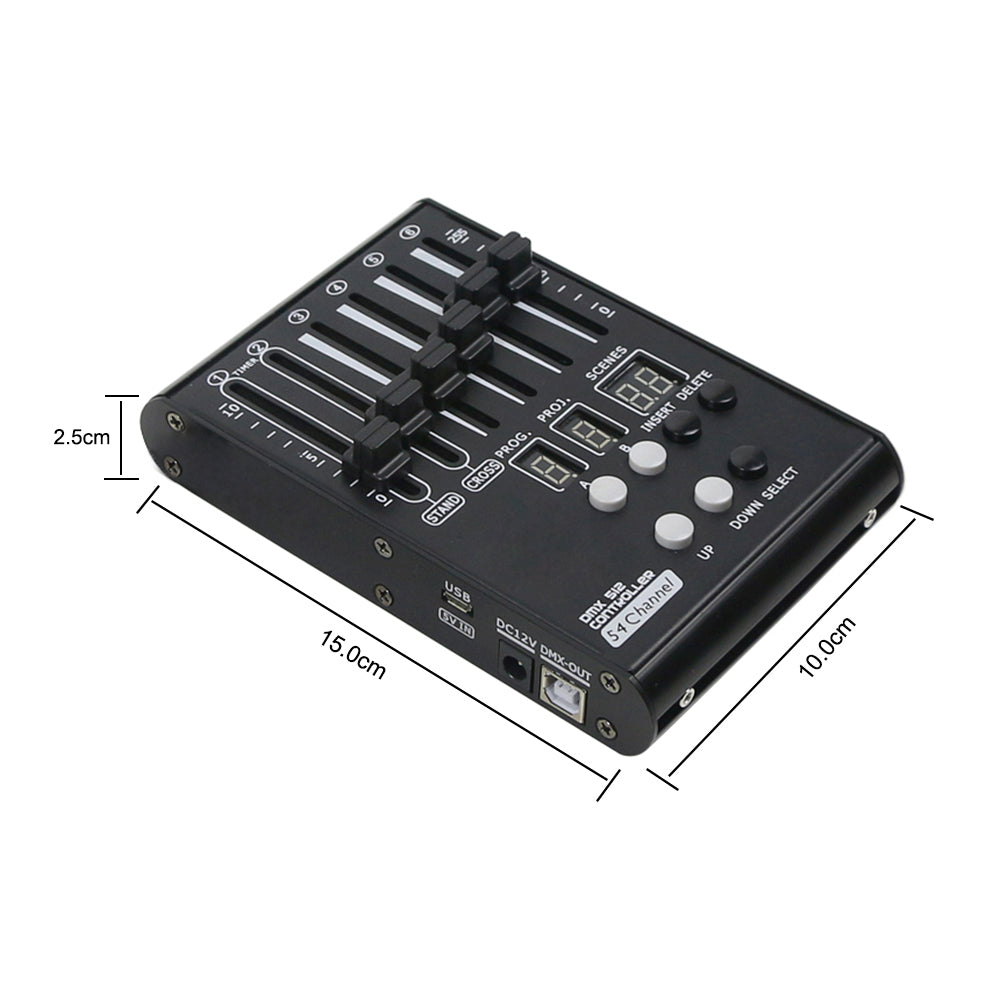

Dimensions : 150x100x25mm
Weight : 0.6KG
Installation Operation:
First, put the controller on the dest, connect the power adaptor.
Connect the controller to a line containing DMX512 compatible light projectors. Plug in the power adaptor.
1.Switch on via the power button on the side panel of the controller.
2.The controller will make a self-test
3.The power indictor lights up.
4.The DMX indicator will flash.
5.In the initial statur, the controller set on PAGE 1(CH1-CH6) and the page indicator lights up in Red.
6.If you want to control channels 7-12 press the page button until the page indicator lights up in Blue.
7.The master faders control the total dmx output of all channels.
Value 0 means all DMX outputs are closed.
Description:
1) INSERT BUTTON
See operation later
2)SELECT BUTTON
See operation later
3)BUTTON A
See operation later
4) BUTTON B
See operation later
5)UP BUTTON
See operation later
6)BUTTON DOWN
See operation later
7)DELETE BUTTON
See operation later
8) SCENE DISPLAY
This display tells you the number of the selected scene
9)PROGRAM DISPLAY
This display tells you the number of the selected program
10)PROJECTOR DISPLAY
This display shows the number of the selected DMX device.
11)CHANNEL FADERS
Use these faders for adjusting the different DMX channels ( 9 scanners of 6 DMX channels each one)

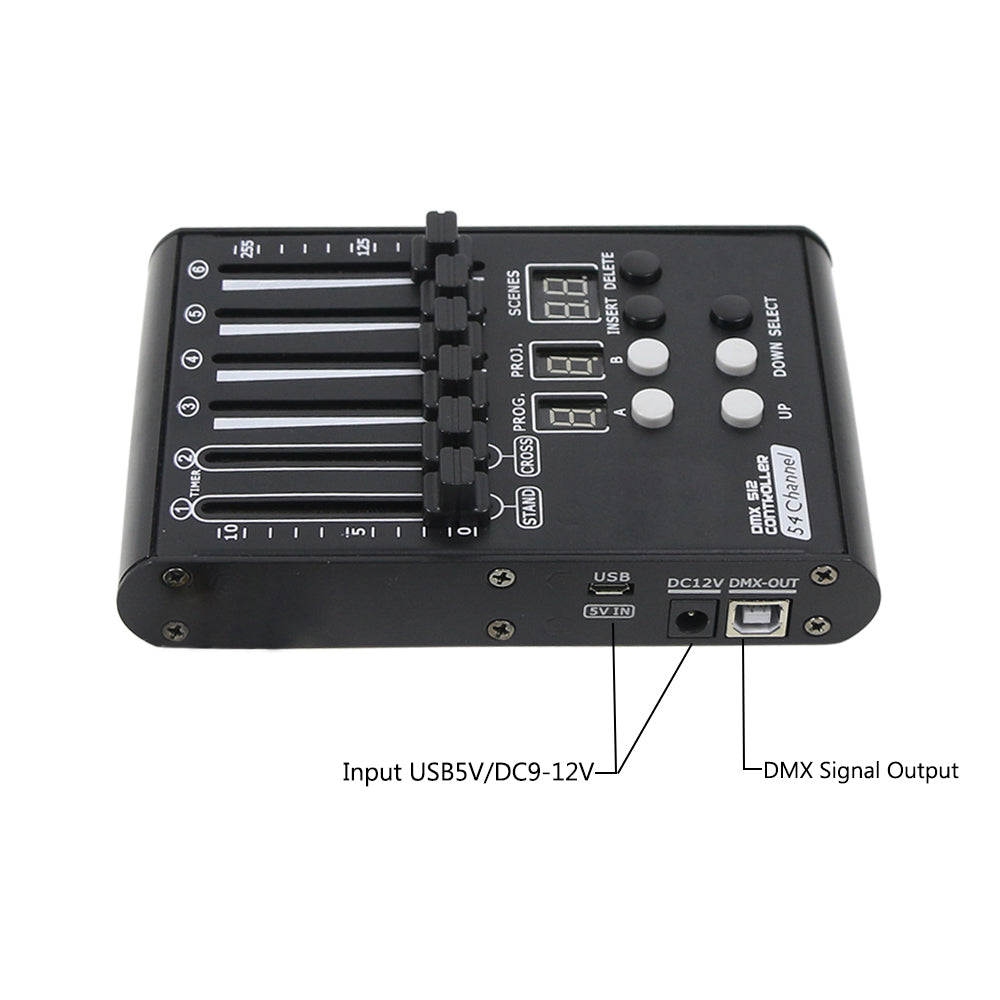

12) DMX OUTPUTS
13)POWER CONNECTOR
Connect the external transformer supplied with the 9V-12V DC console on this socket or 5V mobile phone charger by 5V USB port

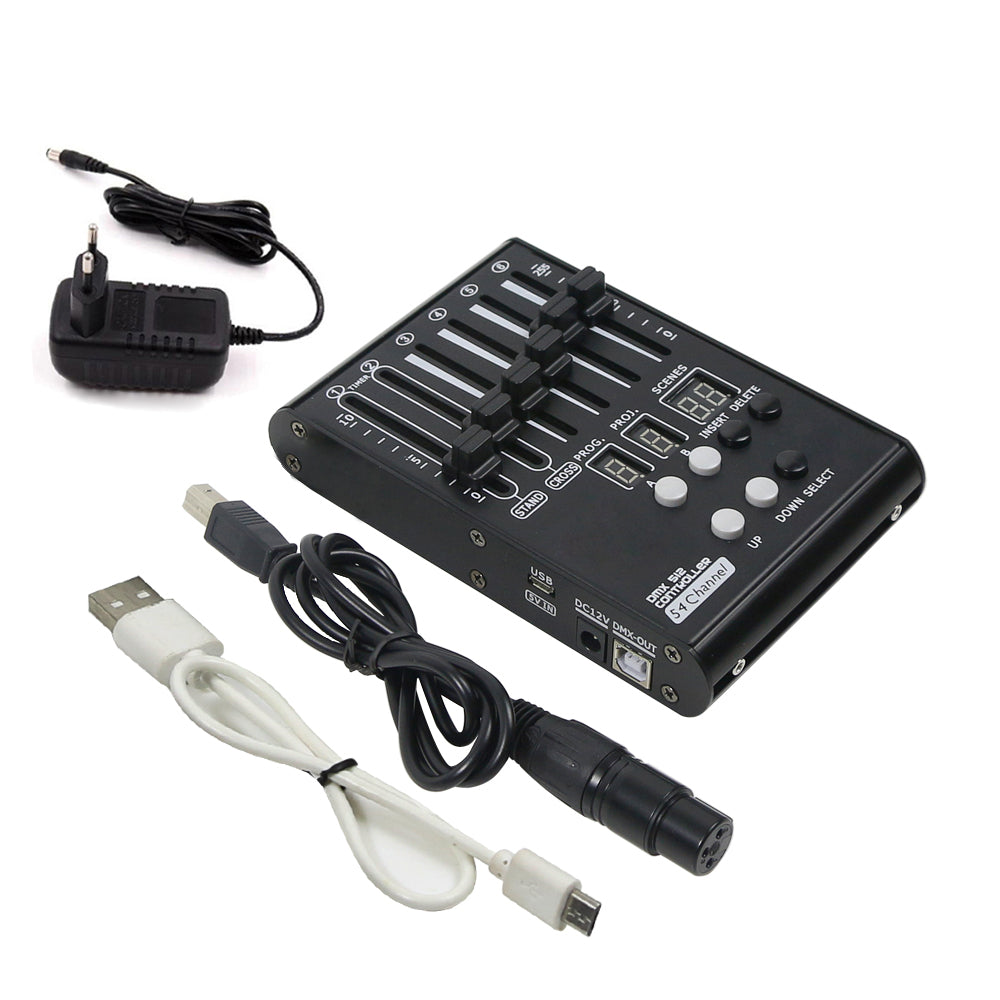

Package Including:
1x 54ch DMX Controller
1x Power Adapter
1x USB to 3pin Female cable
1x USB cable
1x Manual
(Power bank in the picture excluding)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
