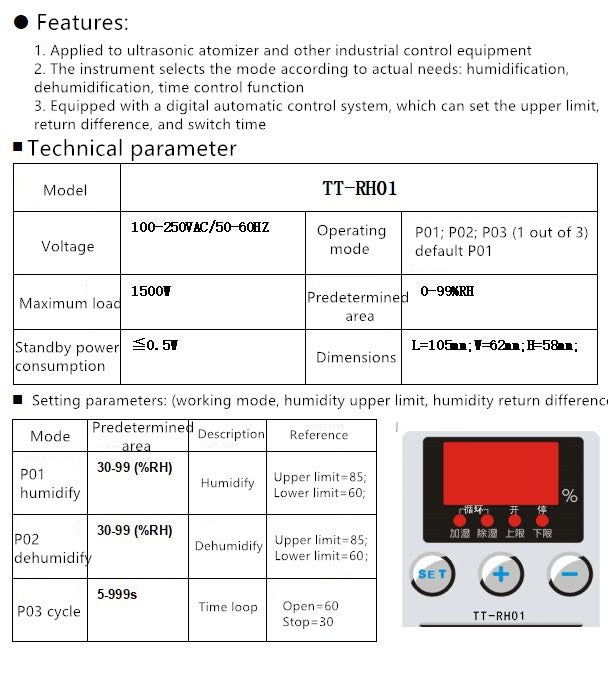

Features:
1. Applied to ultrasonic atomizer and other industrial control equipment
2. The instrument selects the mode according to actual needs: humidification, dehumidification, time control function
3. Equipped with a digital automatic control system, which can set the upper limit, return difference, and switch time
Mode selection
Humidification mode (P01)
Enter mode settings
Power on, long press the SET button, the controller enters the setting state, the nixie tube displays P01, press the SET button to save the data and enter the upper limit parameter setting
Upper limit parameter setting
The nixie tube displays the upper limit of humidity, press +-to modify the data, press SET to save the data and enter the lower limit parameter setting
Lower limit parameter setting
Dehumidification mode (P02)
Enter mode settings
Power on, long press the SET button, the controller enters the setting state, press +-to switch to P02, press the SET button to save the data and enter the upper limit parameter setting
Upper limit parameter setting
The nixie tube displays the upper limit of humidity, press +-to modify the data, press SET to save the data and enter the lower limit parameter setting
Lower limit parameter setting
The digital tube displays the lower limit of humidity. Press the +-key to modify the data, press the SET key to save the data and exit the setting state
Time cycle mode (P03)
Enter mode settings
Power on, long press the SET button, the controller enters the setting state, press +-to switch to P03, press the SET button to save the data and enter the "on" parameter setting
Boot time setting
The digital tube displays the "on" time parameter, press the +-button to modify the data, press the SET button to save the data and enter the "stop" time setting
Downtime setting
The digital tube displays the "stop" time parameter, press +-key to modify the data, press the SET key to save the data and exit the setting state
Controller job description
Add humidity control:
When the actual humidity is less than or equal to the lower limit of humidity, the humidifier starts to humidify
When the actual humidity ≥ the upper limit of humidity, the humidifier stops working
In addition to humidity control:
When the actual humidity is less than or equal to the lower limit of humidity, the dehumidifier starts to dehumidify
When the actual humidity ≥ the upper limit of humidity, the dehumidifier stops working
Time cycle mode control:
"On" time + "stop" time = cycle time
For example: work 60s+stop 30s=90s cycle once
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
