PRODUCT DESCRIPTION

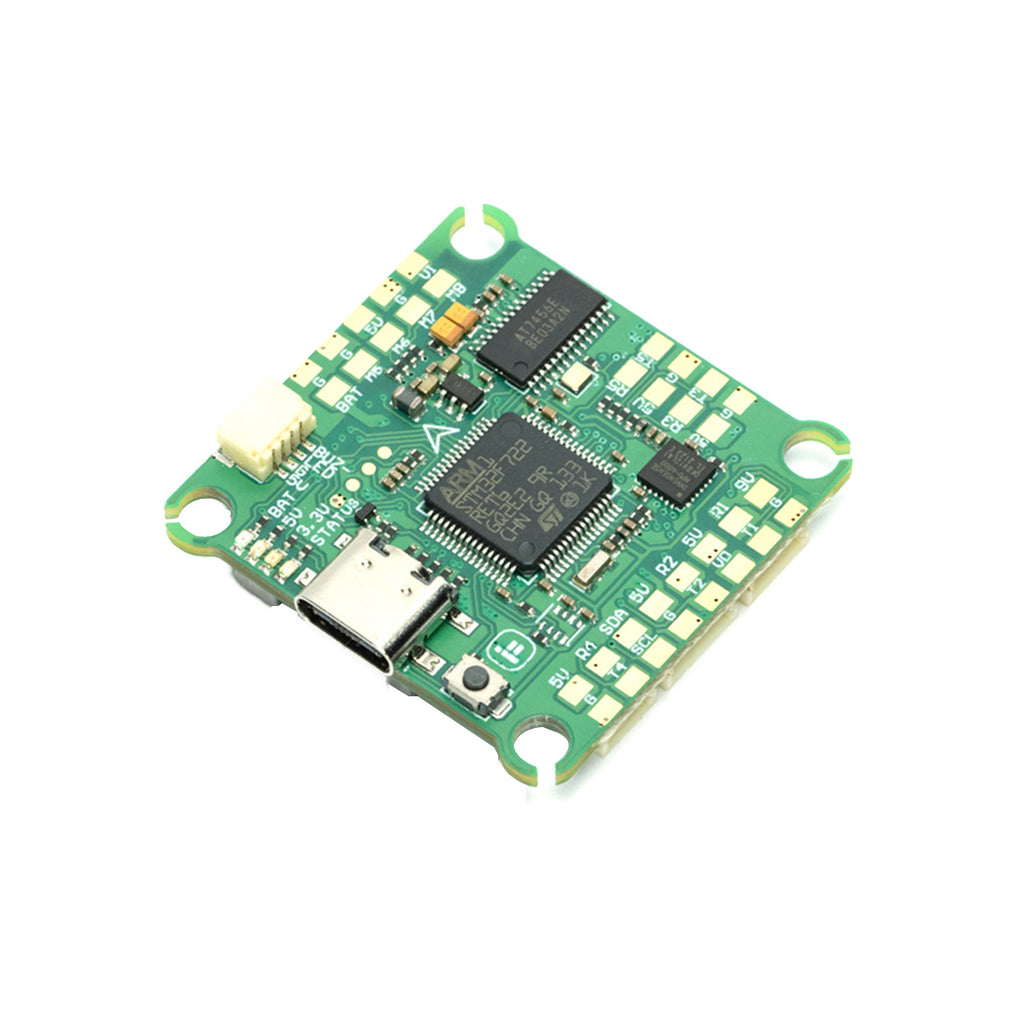

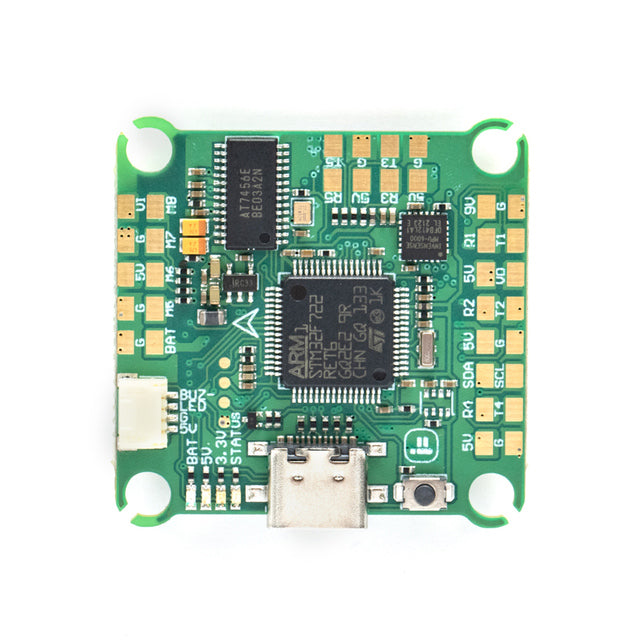

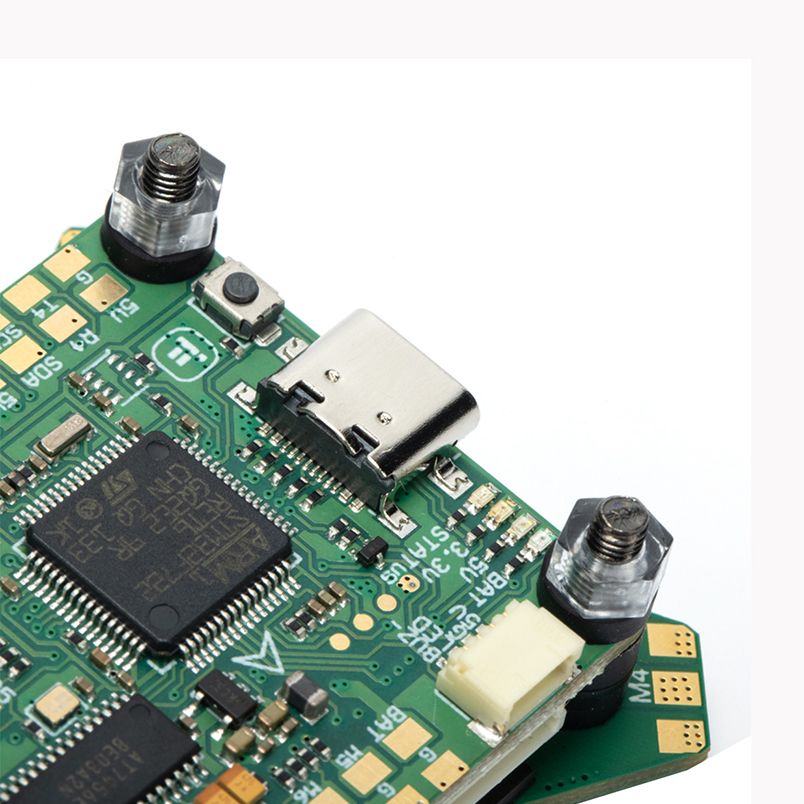

FC // BLITZ F7 Flight Controller
Top Features:
- Improved circuit design, better components and lower electrical noise!
- DJI HD VTX Connector (Plug-and-Play / No soldering required)
- FC indicator LEDs for visual debugging
- With LC filter
Specifications:
MCU: STM32 F722
Gyro: MPU6000
Barometer: No
OSD Chip: AT7456E
Flash: 32MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
Dimensions: 36.5*35 mm
Weight: 7.8g
Wiring suggestion:
- UART 1 for VTX HD / Analog
- UART 2 for a Receiver
- UART 3/4/5 for GPS or other sensors that require a serial port
- UART 6 for ESC Telemetry
Tips
1. F722 MCU has an inner inverter.
2. SBUS,CRSF,ELRS,IBUS,DSM ETC... can be connected to any unused UART_RX,we suggest you connect to Uart_RX2
3. Frsky SmartPort,Tramp & Smartaudio can be connected to any unused UART_TX,we suggest you connect to Uart_TX1
4. F.port can be connected to any unused UART_TX,we suggest you connect to Uart_TX2

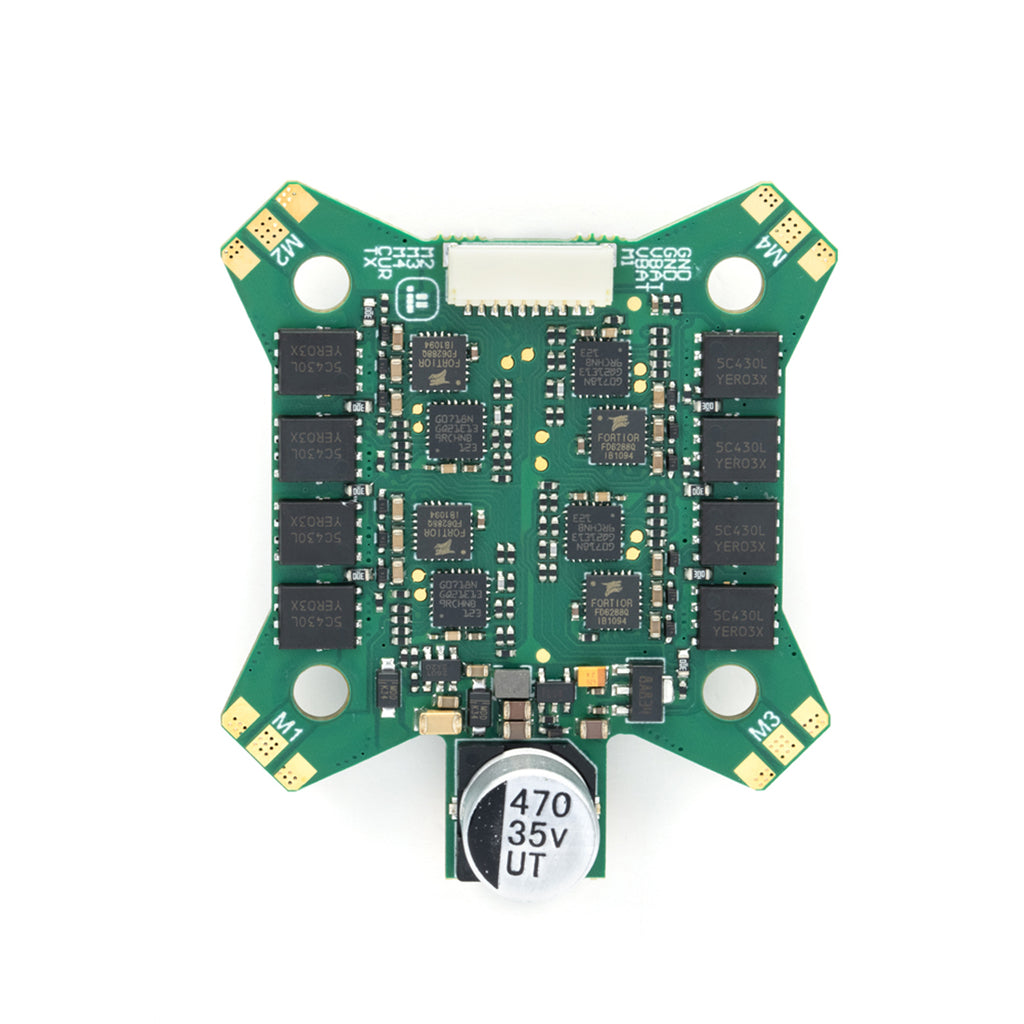

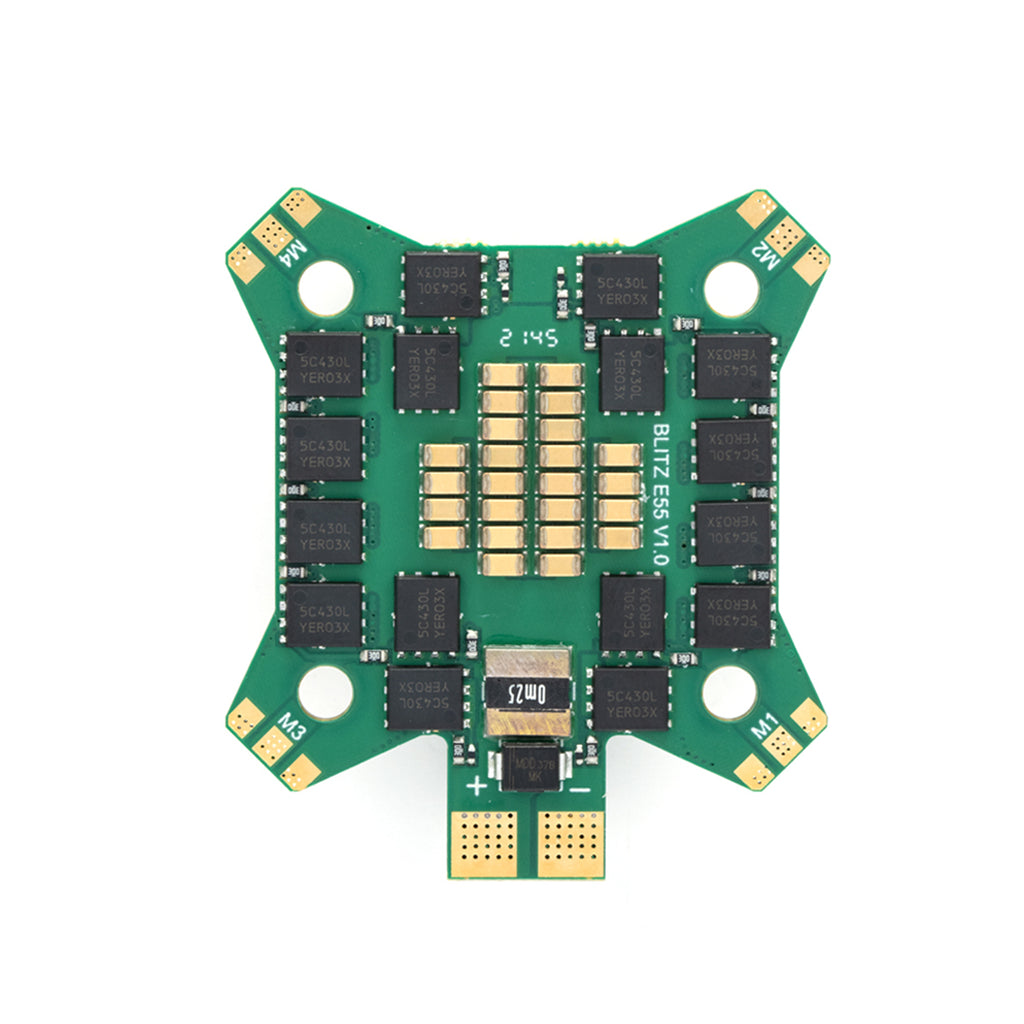

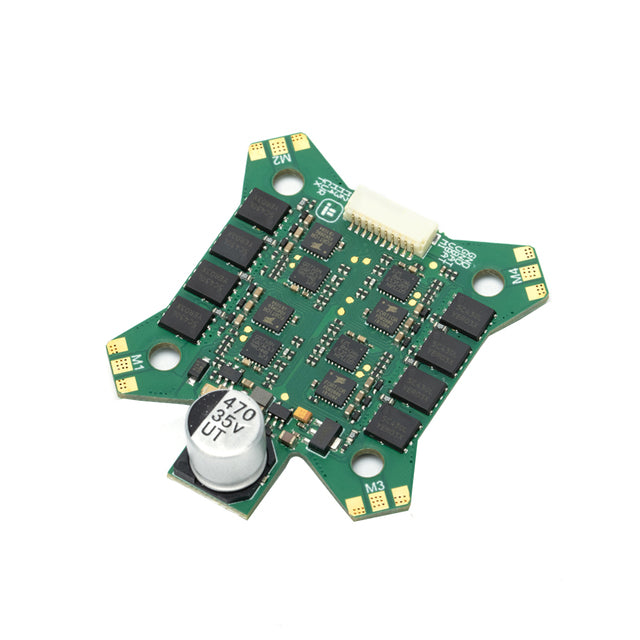

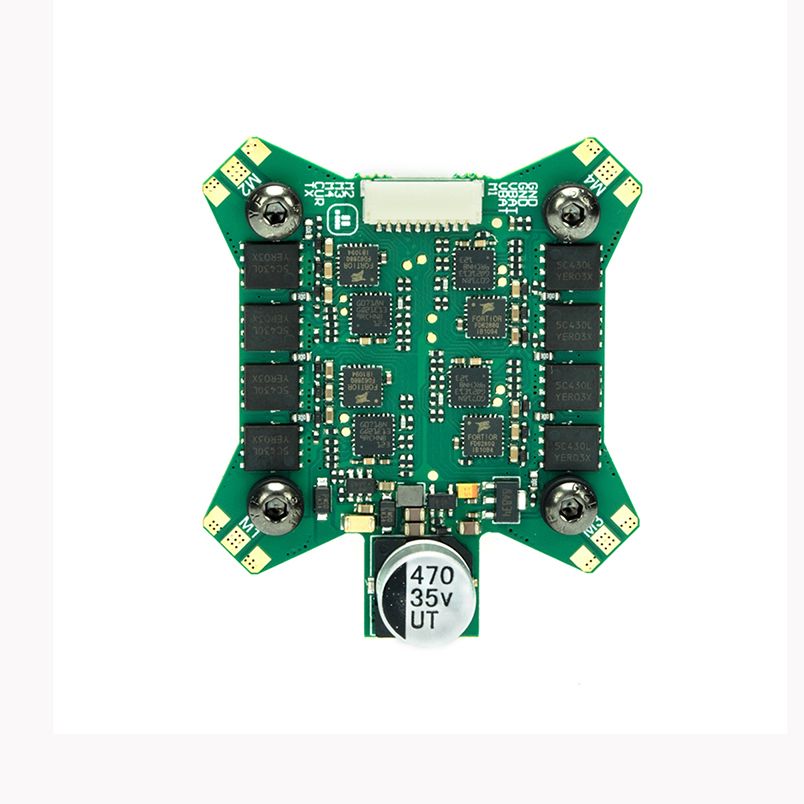

ESC // BLITZ E55S 4-IN-1 2-6S ESS
Specification:
- Mounting Holes: 30.5*30.5mm/Φ4mm
- Weight: 15.3g
- Supports 2-6S lipo input
- MCU:G071
- Constant: 55 Amps
- Burst: 65 Amps
- Current sensor: Yes
- BEC: No
- Current rate: 200
- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
- Target: IFLIGHT_BLITZ_G2
PACKAGE INCLUDED:
- 1PC X BLITZ F7 FLIGHT CONTROLLER
- 1PC X BLITZ E55S 4-IN-1 2-6S ESC
- 1SET X SILICON GROMMETS
- 1SET X WIRE HARNESS FOR F7 FLIGHT CONTROLLER
