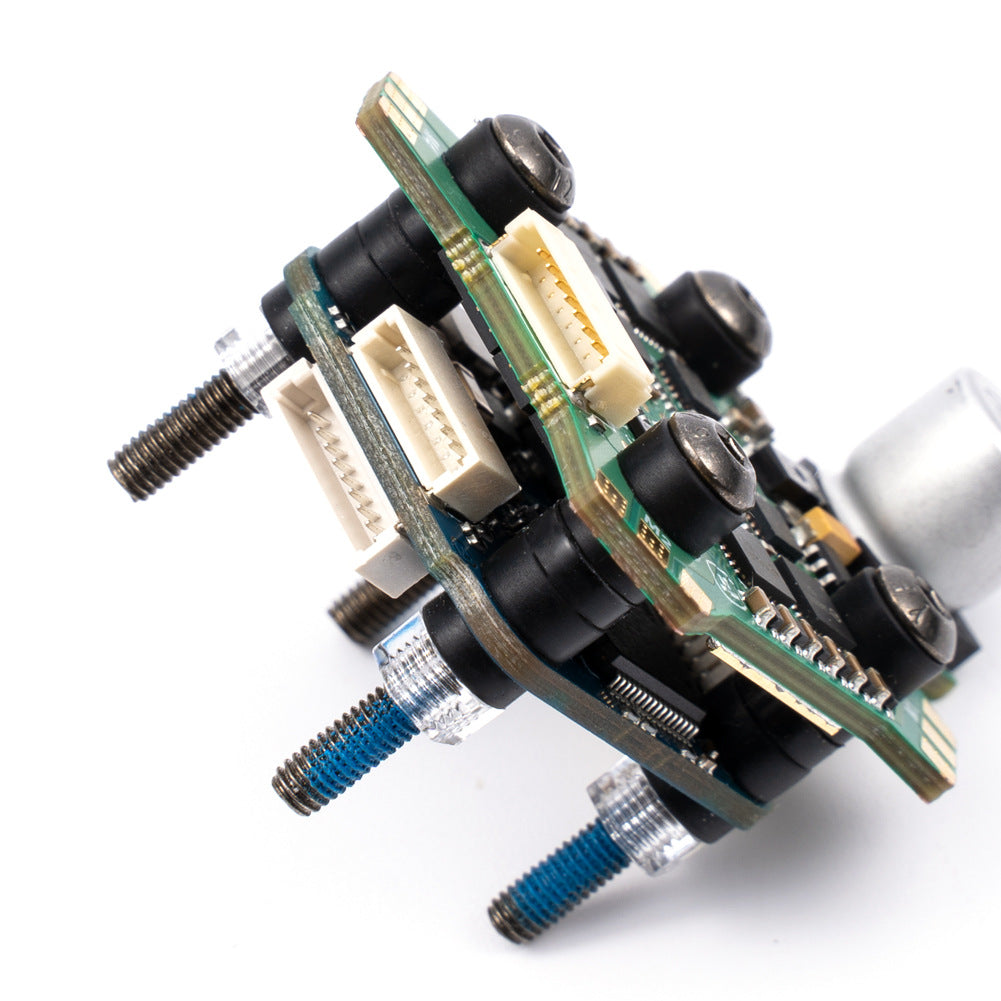

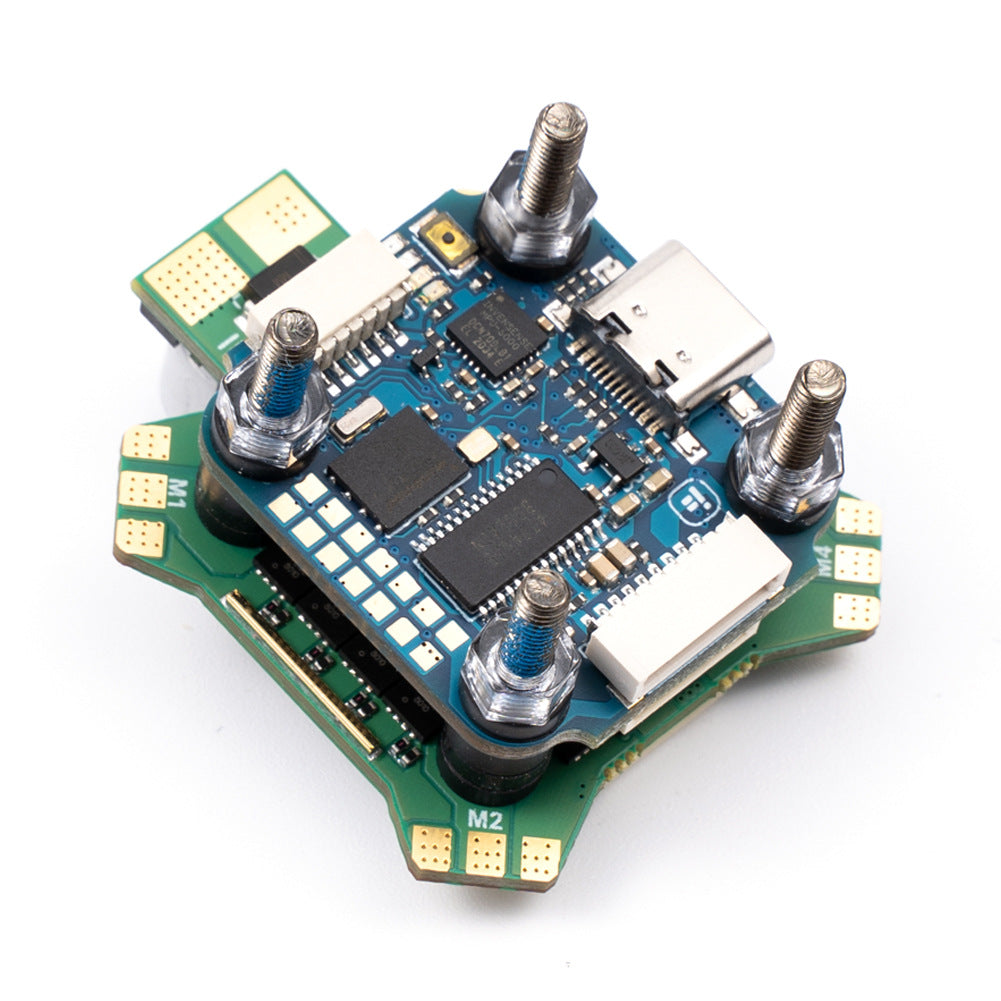

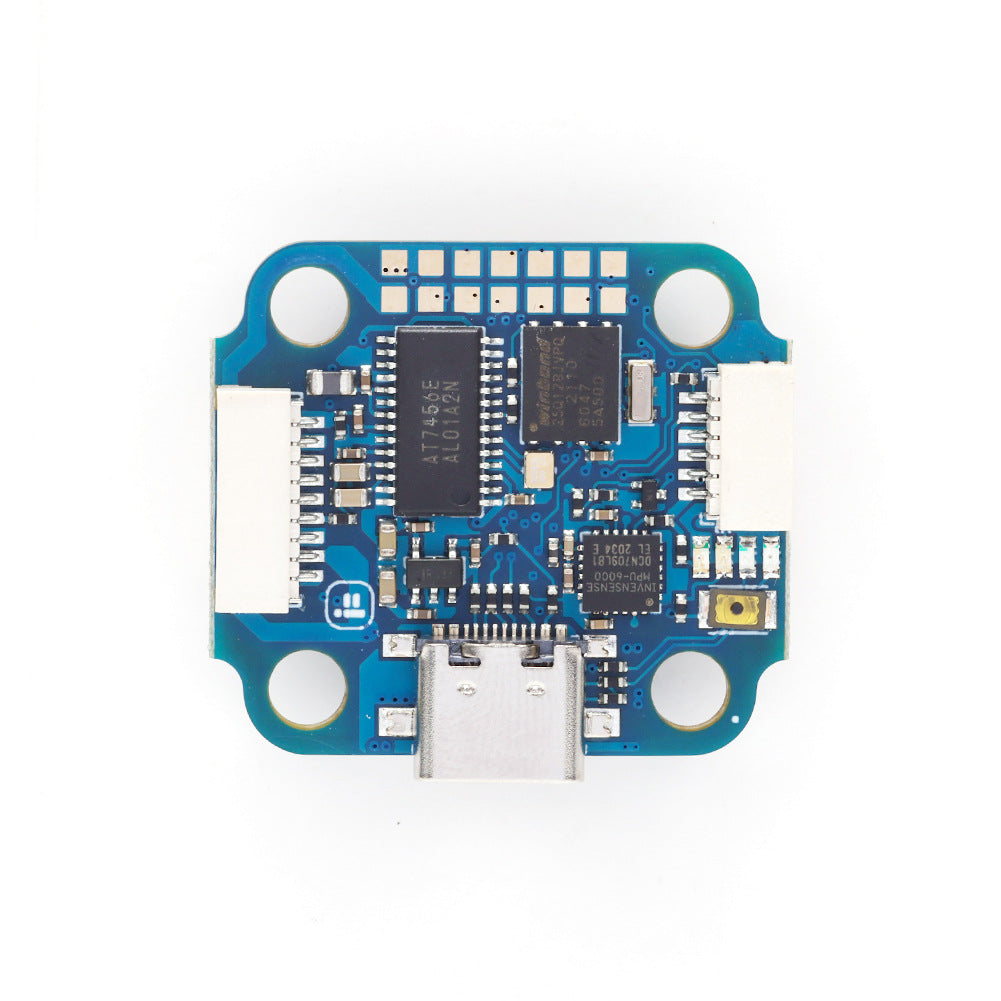

Product Name: Star Fox BLITZ Mini F4 Flight Controller (M4 hole)
Basic parameters:
MCU: STM32 F405
Gyro: MPU6000
Baro: BMP280
OSD:IFLIGHT OSD (AT7456E)
BEC: 5V 2.5A
BlackBox: 16MB
Uart: 5*UART: (UART1, UART2, UART3, UART4, UART6), (hardware interface 4 groups, UART6 only has RX)
UART1 for VTX HD/Analog
UART2 for Receiver
UART3, UART4 for GPS or other sensors that need serial port
UART6 for ESC Telemetry
4×Dshot/PWMoutputs
1×I2C
1xSH1.0 9pin connector for HD VTX/Analog VTX&CAM (5V/BAT/G/VO/T1/R1 /5V/G/VI)
1xSH1.0 8pin connector for ESC (R6/CUR/M4/M3/M2/M1/BAT/G)
1xSH1.0 6pin connector for Any Receiver or DJI (3V3/R2i/5V /G/R2/T2)
1xSH1.0 4Pin connector GPS (T4/R4/G/5V)
1xSH1.0 4Pin connector LED&Beeper (BUZ/LED/G/5V)
4×0402 LEDs for FC STATUS (3.3V Red) / (Start Blue) / (5V Green) / (BAT Orange)
Smartaudio&IRCTramp VTX protocol supported
WS2812ledStrip: Yes
Bepper: Yes
Firmware: IFRC-BASEF4 4.X.X
Outer size: MM: 30.5*27
Hole size: 20*20mm/φ4
Weight: 5.0g
Features:
1. When using DJI FPV image transmission, plug and play without soldering
2. With BAT, +5V, 3.3, Start indicators, it can display the current working status of the flight controller
3. With LC filter, fully filter power supply interference, continue the clean filter style
4. The black box has a capacity of 16MB

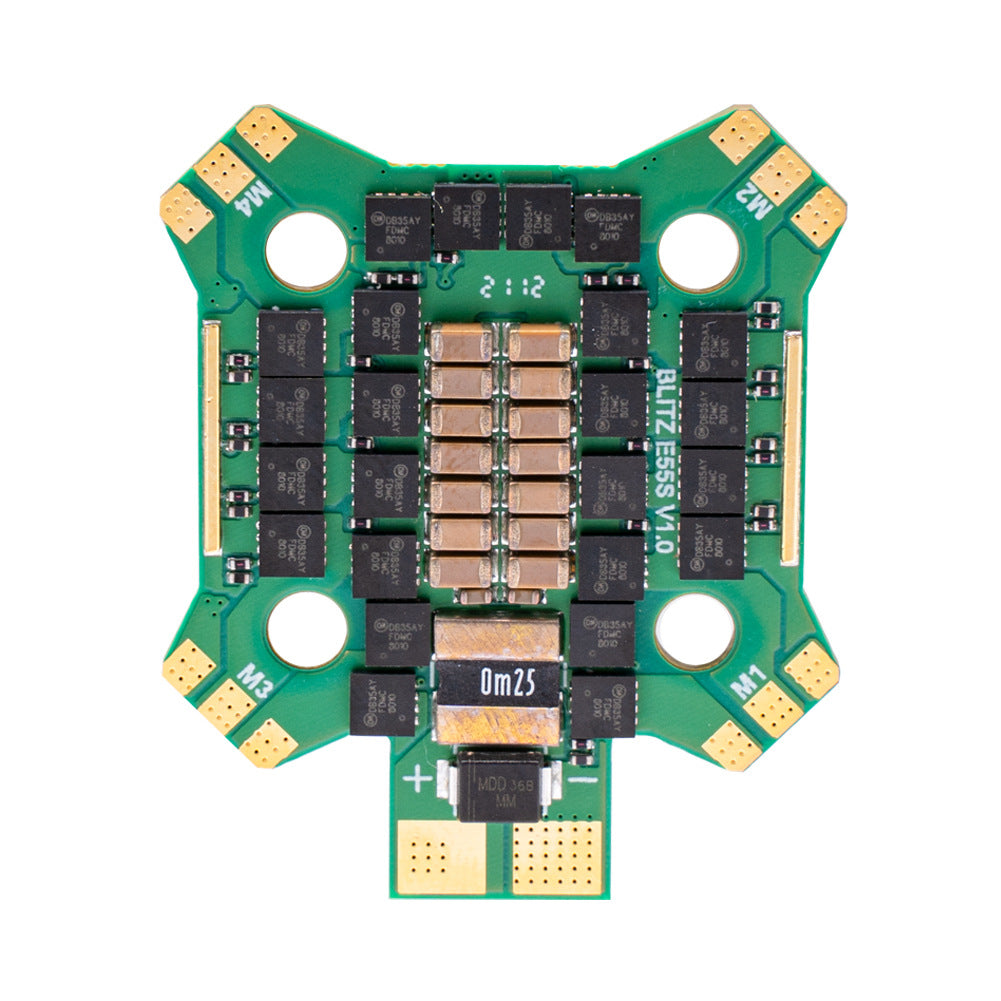

Technical parameters: Star Fox BLITZ Mini E55S 4-IN-1 ESC
55A 2-6S
MCU: BB21
Hole spacing: 20*20 φ4
Weight: 11.3g
Input voltage: 2-6S
BEC: NO
Firmware: QH-50 16.7
Continuous current: 55A
Instantaneous current: 60A
telemetry output: no
Current sensor: yes scale 200
Drive signal support: DShot150/300/600, MultiShot, OneShot drive signal
Target: Bluejay Q-H-50
