Feature:

  Pls note that we have sell 4s which the motor is 2207 2750KV.If you need 6s(2207 1800KV)  Pls contact us and leave the messages.If you have any questions pls contact us.

  4S Motor is  2207 2750KV

  6S Motor is  2207 1800KV

  4 Version are optional : no RX; with XM+ RX;with R-XSR RX; with TBS NANO RX

  Important:  no RX Version is Compatible with DJI Remote Controller and is recommended for beginners since you won't need to set up another receiver, but it is also optional in this BNF drone because it is NOT required in order to use the FPV system. If you don't choose to use that, you can choose a receiver option for your transmitter. and then bind to your own radio as usual.

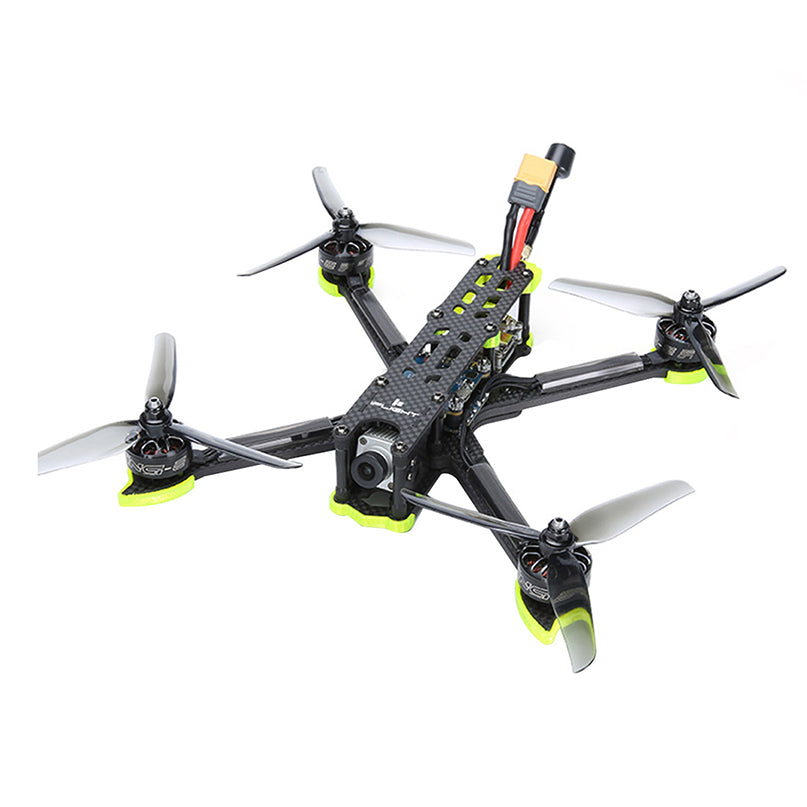

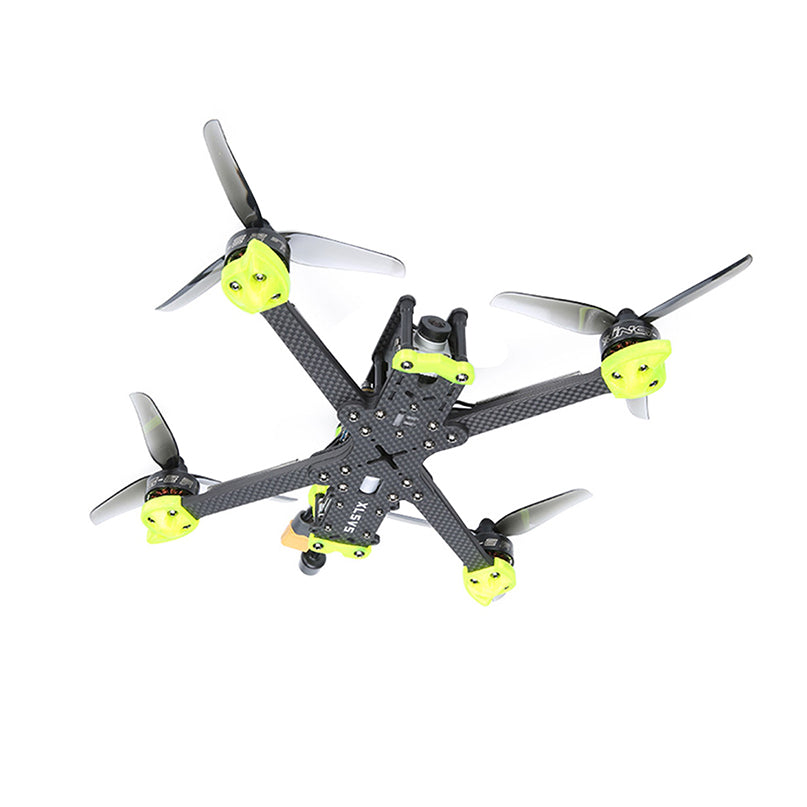

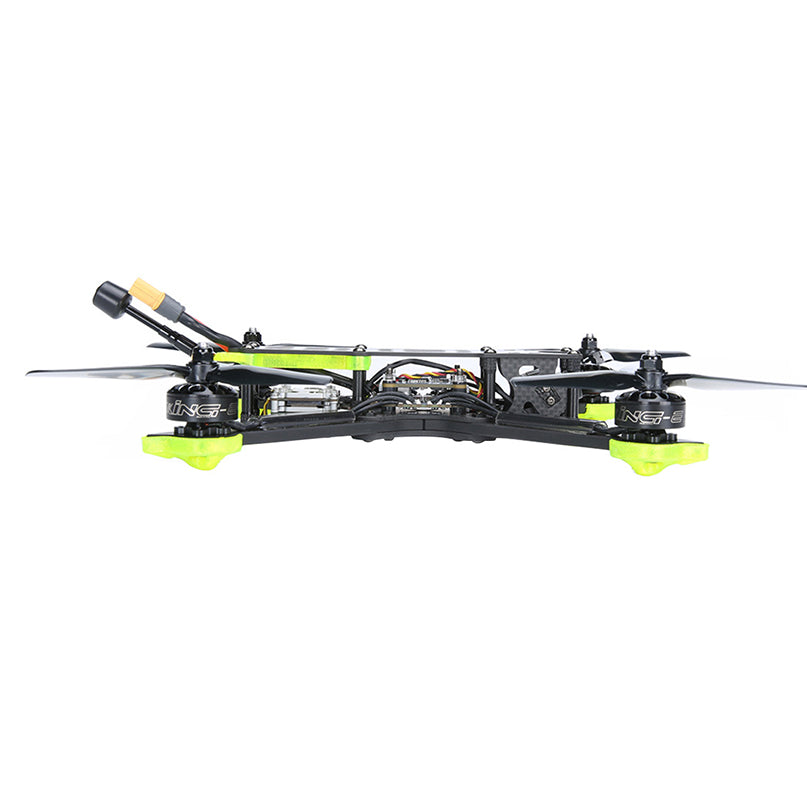

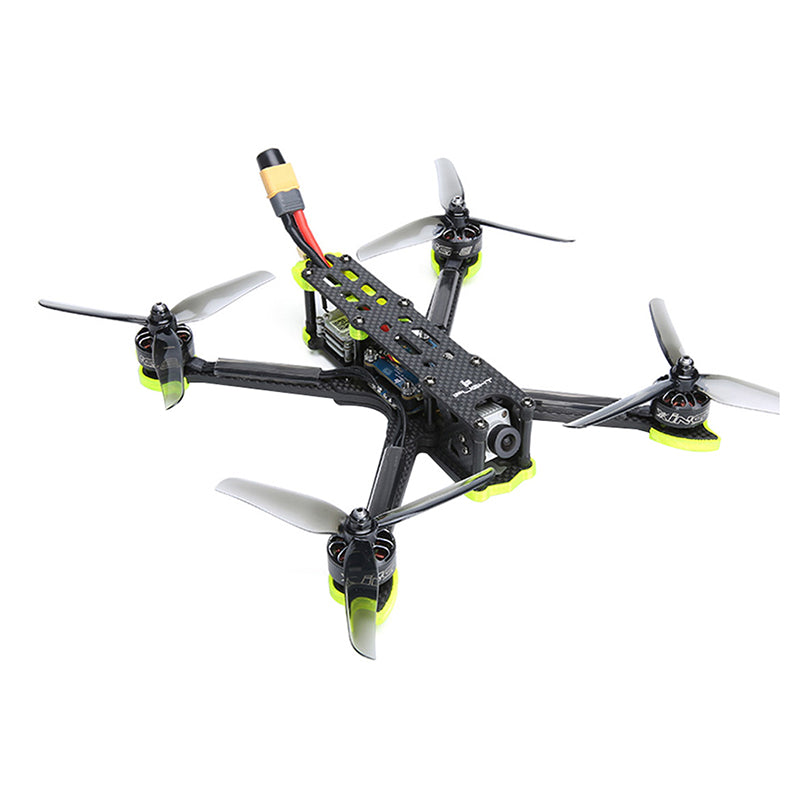

  Nazgul5 HD is a 5" size BNF (Bind-and-Fly) quadcopter with Caddx Nebula Pro Digital HD System on it. We sticked the lighter Caddx Nebula Pro on one of our new updated XL5 V5 FPV frames.

  Pre-tuned and setup, everything you need is just bind-and-fly! Loads of power and smooth flights guaranteed using our popular XING-E motors with long-lasting NSK bearings.

  FACTORY SETUP and WIRING DIAGRAM: This BNF comes pre-built and setup with all necessary parameters to bind-and-fly. We also added a basic filter and PID tuning as well as some more software tweaks enhance the flight experience.

  Specification:

  5mm arm design for more durability

  Easy-Swap arms

  LED illuminated Logo

  XING-E 2207 motors and NAZGUL 5140 props

  5" version also fits 5.1" style propellers

  Popular True-X configuration

  TPU crash-guards

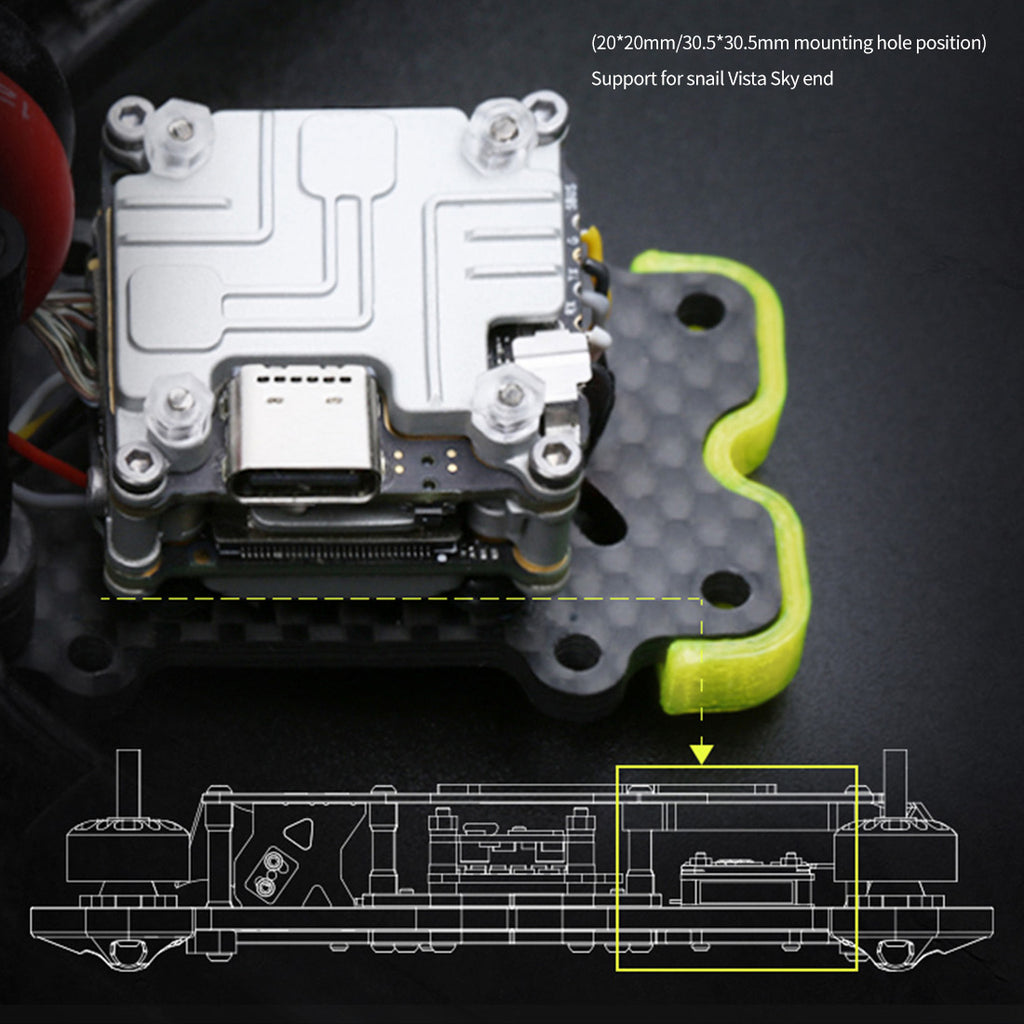

  Fits both 30.5x and 20x stacks

  XL5 V5 frame specs:

  SucceX-E F7 45A flight stack

  XING-E 2207 FPV Motor ?6S 1800kv/4S 2750kv)

  Wheelbase: 240mm

  Body size: 170*170mm

  Propeller size: 5 inch /5.1 inch

  FC pattern: 30.5*30.5/20*20 mm

  FPV cam spacing: 19mm

  Prebuilt and tested Quad

  1x XL5 V5 Frame

  1xCaddx Nebula Pro Digital HD System

  1xAlbatross LHCP RP-SMA 5.8g antenna

  2sets x Nazgul 5 inch 3-blades (Set of 4 - Color may vary)

  1set x 20*200mm + 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)

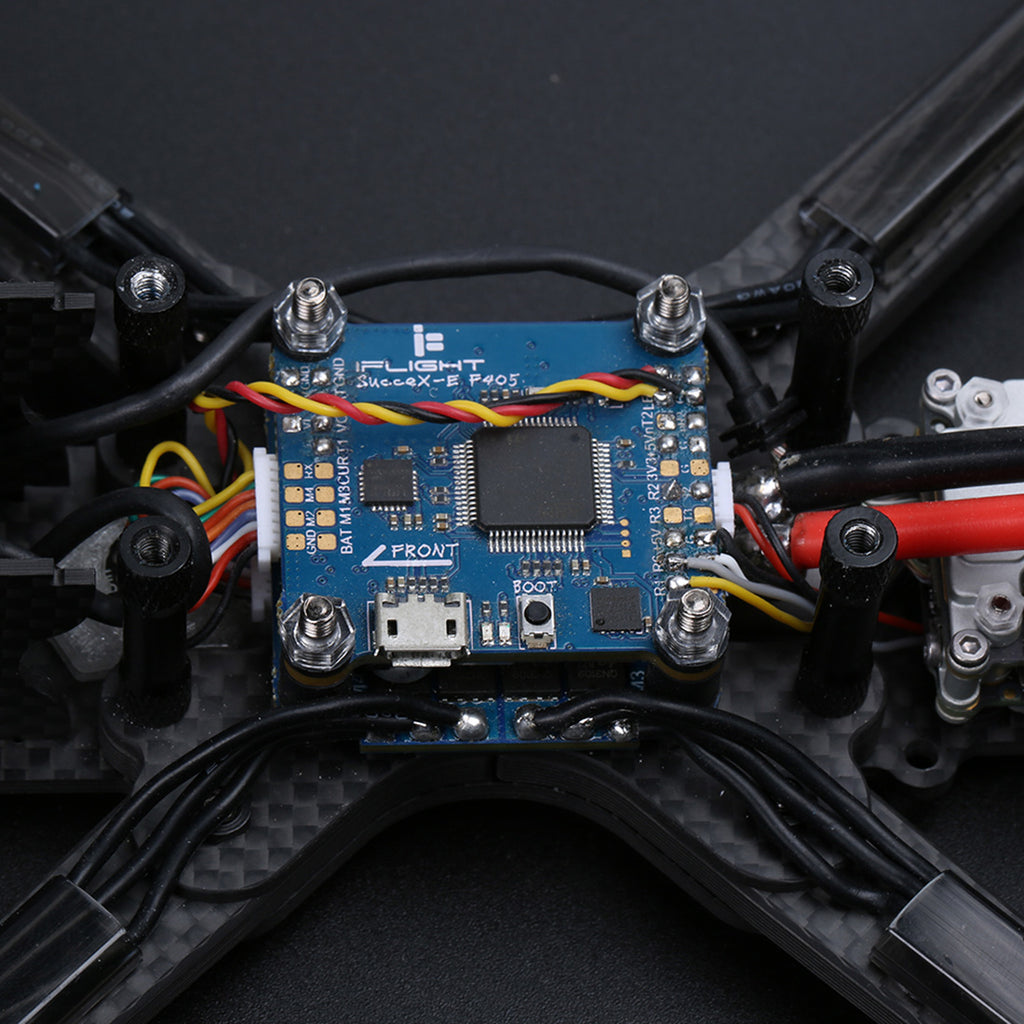

  SucceX-E F7 Flight controller

  MCU: STM32F405

  Gyro: MPU6000

  Betaflight OSD?YES

  Blackbox 8MB

  4X Uarts?1 2 3 6 )

  8 x Dshot/Proshot/Oneshot output

  8 x individual ESC power/ signal pads

  1 x Group of Gnd/Vbat/M1/M2/M3/M4/Cur/TX

  VTX telemetry: YES

  WS2812 led Strip: YES

  Beeper?YES

  Input?2-6S?Max 8S?

  BEC?5V/2.5A cont

  Firmware target : BETAFLIGHTF4

  Mounting?30.5*30.5mm??4mm with Grommets ?3mm

  Dimensions?36*36mm

  SucceX-E 45A 2-6S BLHeli_S 4-in-1 ESC

  Dimension: 40*43mm

  Mounting Holes: 30.5*30.5mm/?3mm

  Supports 2-6S Lipo input

  STM32F051 MCU, 48Mhz Runs BLHELI 16.X Firmware

  Current sensor: YES

  BEC: NO

  DShot150/300/600/1200/MultiShot/OneShot etc. Supported

  Target: G-H-30 BLS 16.7

  Additional Suggested Parts(not included)

  Competible with DJI HD FPV Goggles

  Radio Controller

  4S 1550mAh/ 6S 1300mAh Battery

  Camera Mounts Competible with GoPro
