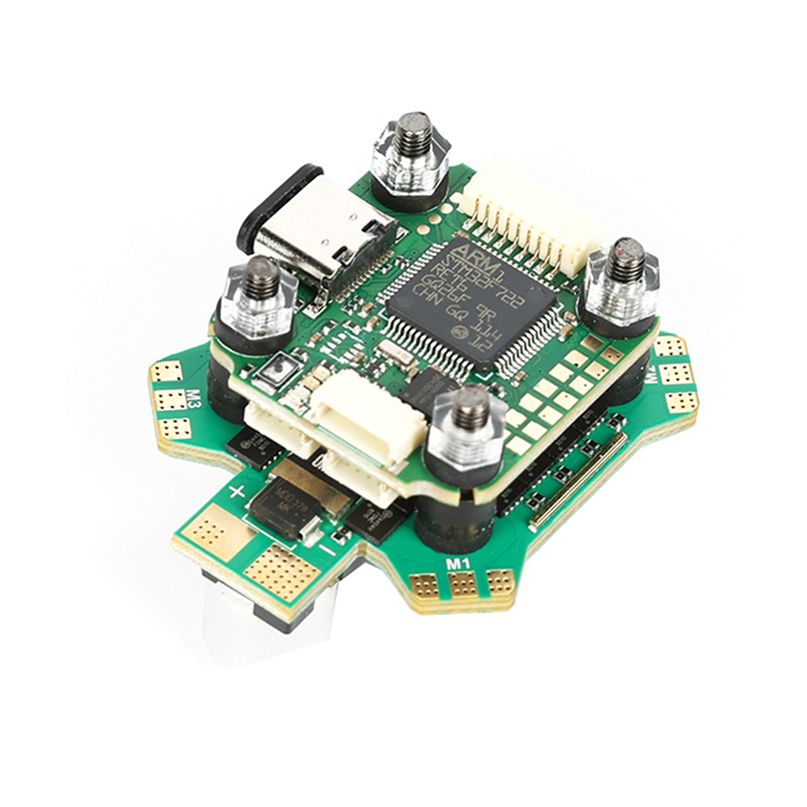

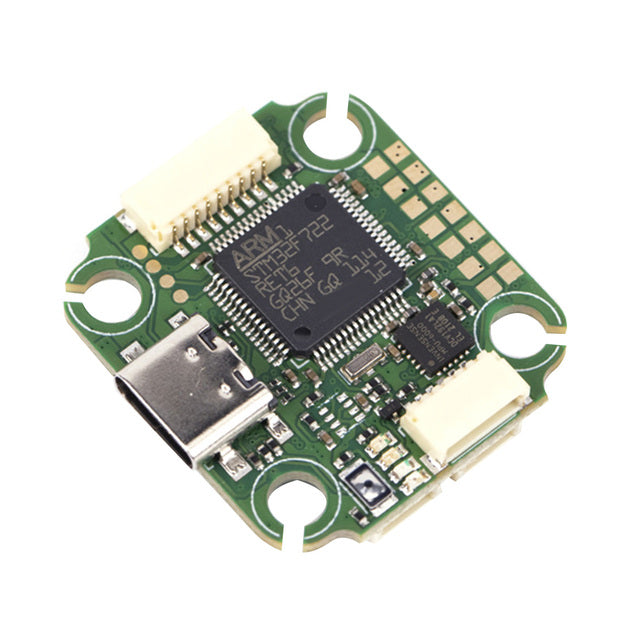

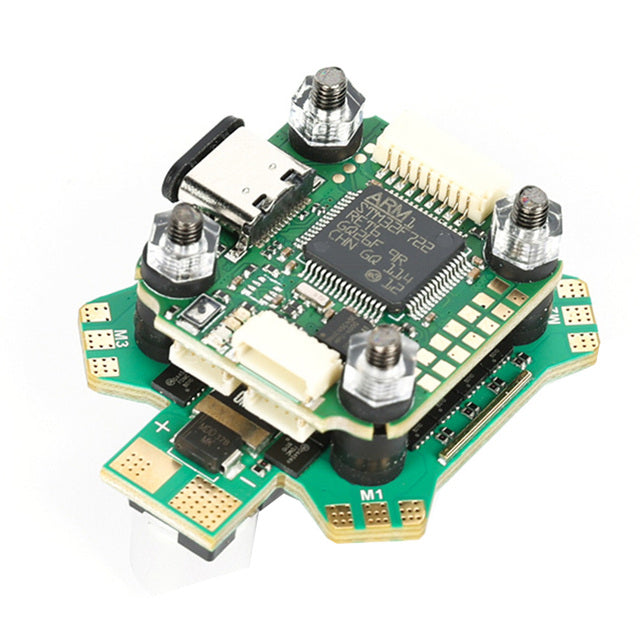

BLITZ Mini F7 Flight Controller
Top Features:
- BlackBox: 16MB
- DJI Air Unit Plug-and-Play. No need to solder tiny wires.
- BAT, +5V, 3.3, Start indicator
- With LC filter.
Specs:
- MCU:STM32 F722
- Gyro:MPU6000
- Baro: BMP280
- Betaflight OSD:IFLIGHT OSD (AT7456E)
- Blackbox:16MB
- 5 X Uarts
- UART1 for VTX HD/Analog
- UART2 for Receiver
- UART3,UART4 for GPS or 0ther sensors that require a serial port
- UART6 for ESC Telemetry
- 4×Dshot/PWMoutputs
- 1×I2C
-1 xSH1.0 9pin connector for HD VTX/Analog VTX&CAM (5V/BAT/G/VO/T1/R1 /5V/G/VI)
- 1 xSH1.0 8pin connector for ESC(R6/CUR/M4/M3/M2/M1/BAT/G)
- 1xSH1.0 6pin connector for Any Receiver or DJI(3V3/R2i/5V /G/R2/T2)
- 1xSH1.0 4Pin connector GPS (T4/R4/G/5V)
- 1xSH1.0 4Pin connector LED&Beeper (BUZ/LED/G/5V)
- Smartaudio&IRCTramp VTX protocol supported
- WS2812ledStrip:Yes
- Bepper:Yes
- Firmware: IFRC-BASEF4 4.X.X
- Mounting:20*20mm/φ4
- Dimensions:30.5*27mm
- Weight:5.0g
Package included:
1pc x BLITZ Mini F7 Flight Controller
1set x Wire harness

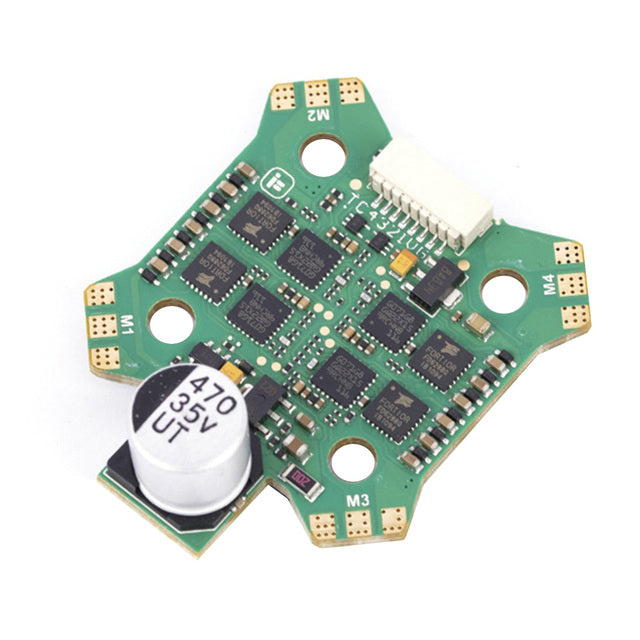

BLITZ Mini E55 4-IN-1 2-6S ESC
Specification:
- Dimension: 35*42mm
- Mounting Holes: 20*20mm/Φ4mm
- Weight: 11.3g
- Supports 2-6S lipo input
- MCU:G071
- Constant: 55 Amps
- Burst: 60 Amps
- Current sensor: Yes
- BEC: No
- Current rate: 100
- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
- Firmware: BLHeli 32
- Target: IFLIGHT_BLITZ_G1
Package Included:
- BLITZ Mini E55 4-IN-1 2-6S ESC * 1pc
- Power cables & ESC signal wires * 1set
PRODUCT DESCRIPTION
The SucceX-D Mini F7 is designed to work seamlessly with DJI’s new HD FPV system. To make things even simpler, the DJI Air unit can just be plugged into the FC with the included wire harness. In addition, we added the popular and reliable USB Type-C instead of Micro USB and therefore the same standard than your DJI module.
But the real magic of this flight controller lies in its TWIN GYRO configuration.
The TwinG uses two identical gyros oriented side by side with one offset 90 degrees from the other. Betaflight uses GYRO FUSION to blend and average the information from both gyros to send a much cleaner signal to the PID loop controller! Less noise and fewer oscillations across the throttle band without adding any delay! Betaflight software filters can be lowered in most cases as well, which brings a significant decrease in delay.
With plenty of processing power and UARTS, this is also the perfect flight controller for long-range GPS builds. And the TwinG configuration makes it the perfect FC for builds like macro quads, cinematic filming rigs and x-class racers that are a bit trickier to tune.

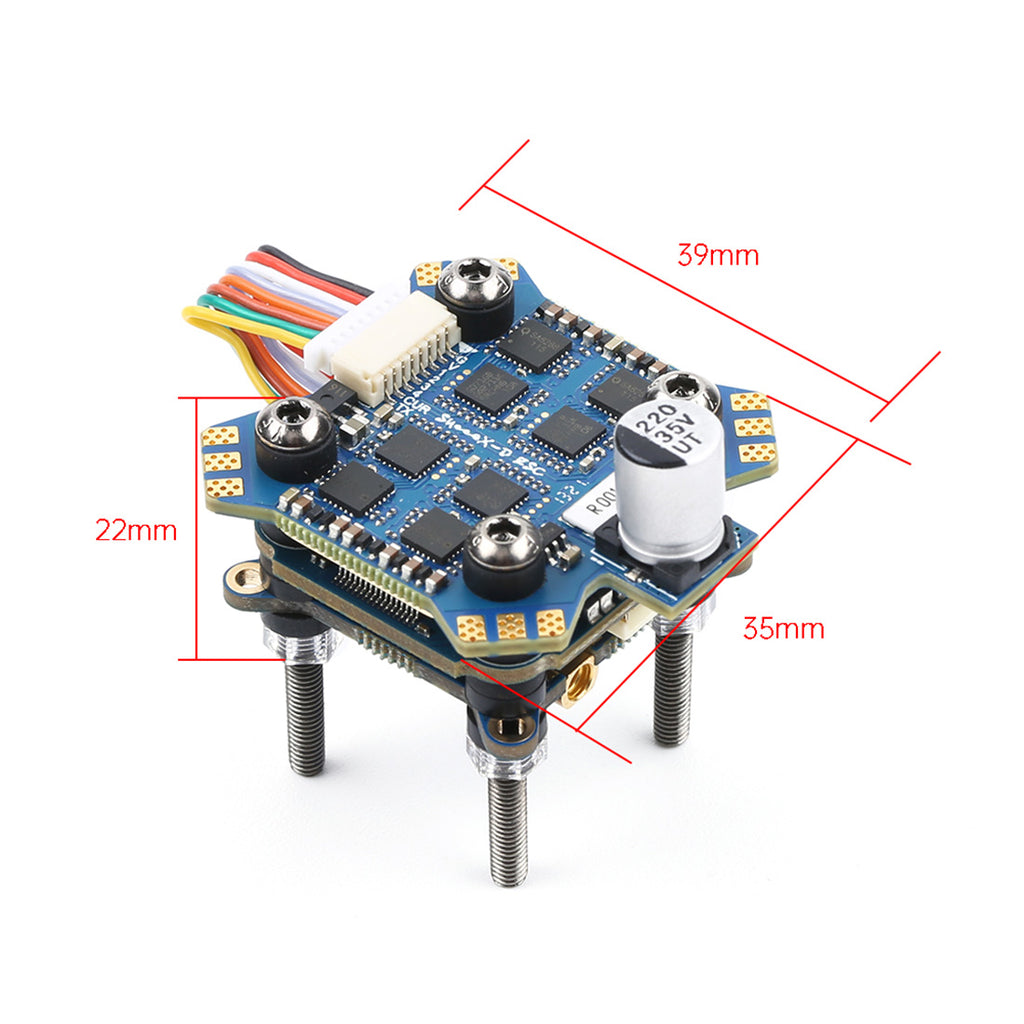

FC // SucceX-D Mini F7
MCU: 216MHz STM32F722
Gyro：2x ICM20689
Blackbox：32MB
Betaflight OSD: YES
BEC: 5V 2.5A / 9V 2.5A
Current sensor scale: 100
Inverter for SBUS input (UART2-RX)
Smartaudio & Tramp VTX protocol supported
Beeper pad : Yes
RSSI input pad: No
UARTs：5
Motor outputs: 4
8 pin 4in1 ESC port (GND, VBAT, M1, M2, M3, M4, CUR, R5)
6 pin DJI Air Unit port (R1, GND, R2, T2, GND, 9V)
BLHeli32 Telemetry：Yes
Input voltage：recommended 2-6S, MAX 6S
Firmware target: IFLIGHT_F722_TWING
Mounting pattern: 20*20mm φ3
Dimensions: 29*29mm
USB type-C
ESC // SucceX Mini 55A
DIMENSION: 31*29.5MM
MOUNTING HOLES: 20*20MM/Φ4MM
WEIGHT: 10.8G
SUPPORTS 2-6S LIPO INPUT
MCU：G071
CONSTANT: 55 AMPS
BURST: 60 AMPS
CURRENT SENSOR: YES
BEC: NO
CURRENT RATE: 100
SUPPORTS: DSHOT DSHOT150/300/600/MULTISHOT/ ONESHOT ETC.
FIRMWARE: BLHELI 32
TARGET: IFLIGHT-G071-4IN1

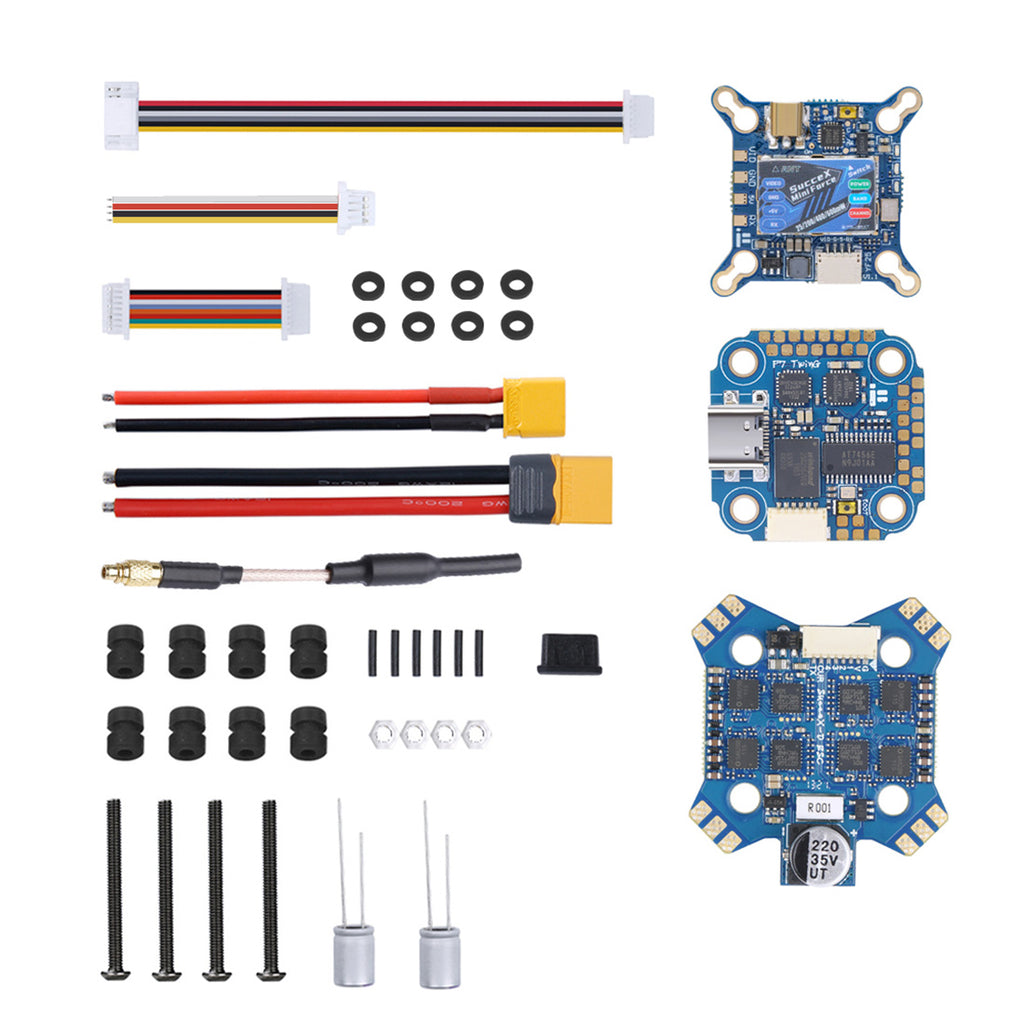

Package included:
1pc x SucceX-D F7 Mini TwinG Flight Controller
1pc x SucceX Mini 55A 4in1
