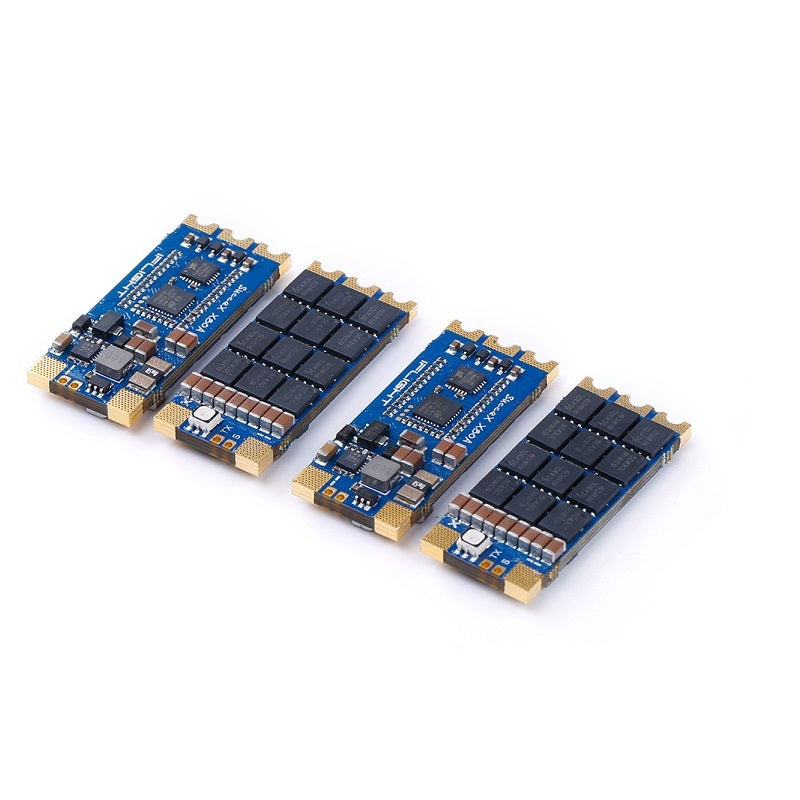

- SucceX X80A 32bit BLHeli Dshot1200 Single ESC was designed to give your motors smooth power
with great stability and durability.

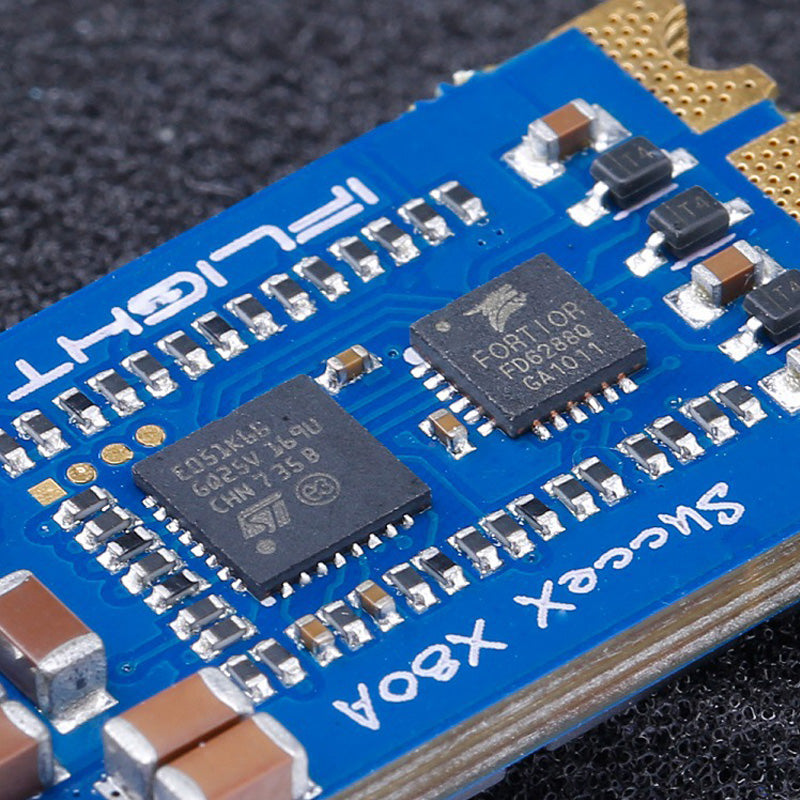

- The 32bit 48mHz STM32F051K66 MCU and total 240UF Low ESR capacitors
bring faster-responding speed and smoother flying experience.
- The optional heatsink effectively pulls heat away from the MOSFET, protecting the critical parts of your ESC.40*17mm size,
rational layout design with high extended solder pads ensured easy fixes or adjustments.
Specification:
Dimension: 40*17mm

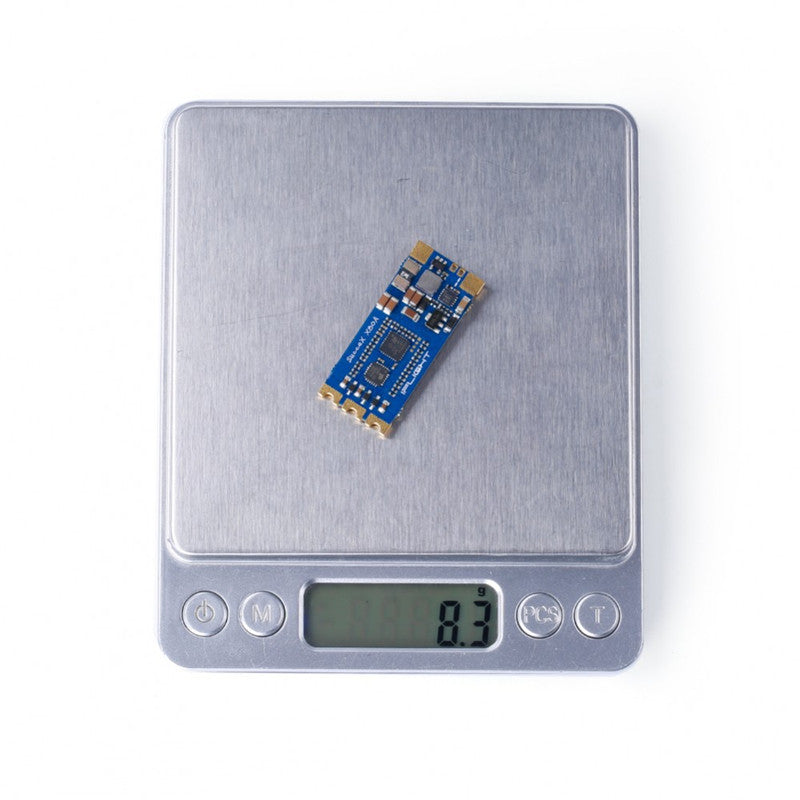

Weight:8.3g without wire
Supports 2-8S lipo input
STM32F051K66 MCU, 48Mhz Runs BLHELI 32.X Firmware
Capacitance: total 240UF Low ESR
Telemetry noutput
BEC: No
Supports: DShot DShot150/300/600/1200/MultiShot/OneShot PWM Drive
Target: iFlight-BL32-PRO
Support:
- Current Sensor
- Telemetry output
- Motor Timing
- Brake on Stop
Features:
- 2-8S input (max 10S 50V)
- 48mHz running speed integrated 3 in 1 STM32F051K66;
- 80A 8 layers 4OZ copper PCB, better operating load capacity;
- Total 420UF Low ESR capacitors, lower ripple and more stable;

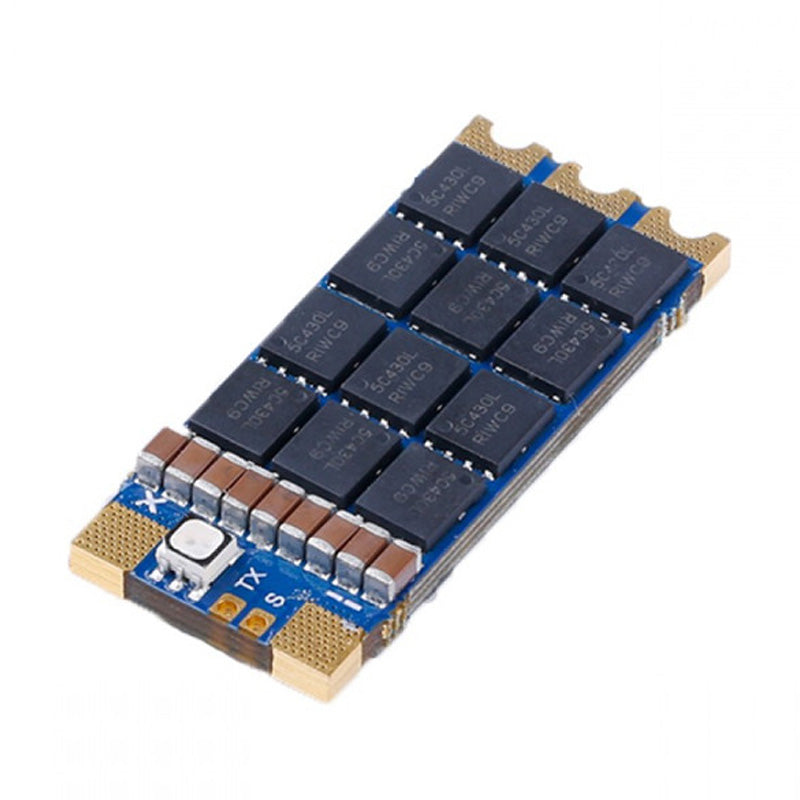

- Top grade NTMFS5C430NL MOSFET, stable and reliable;
- 1 * 3528 LED for power- on display;
- Rational layout, large soldering pad, countersinks and semicircle orifices enable each layer to be energized after power-on.
Package Included:
1x SucceX X80A ESC
1x 50V 470uf capacitor
1x Set of Power cables & ESC signal wires
