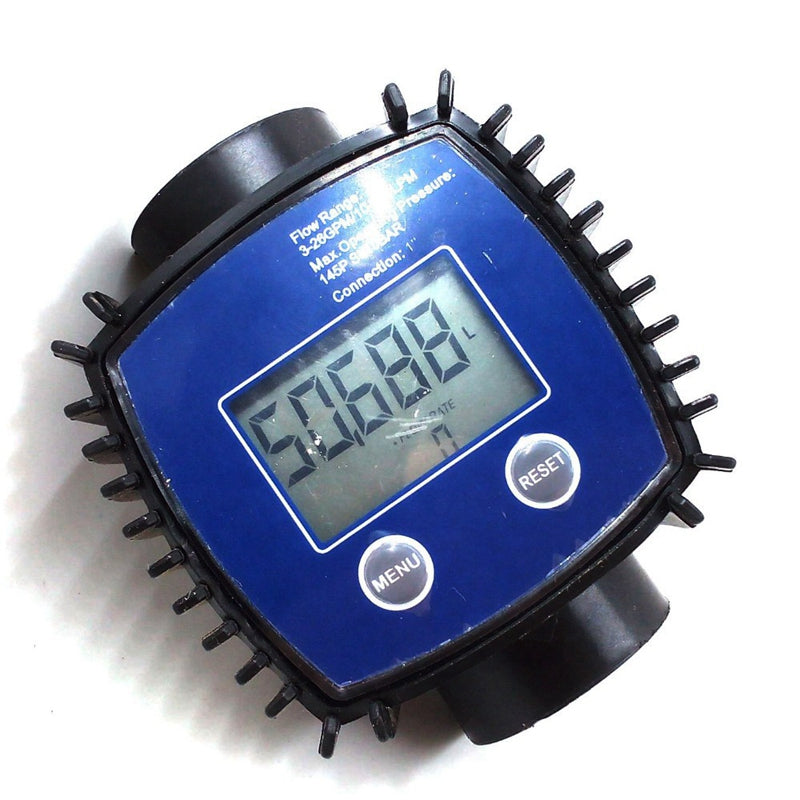

Model:K24 digital display turbine flowmeter

Suitable medium:methanol,alcohol,beverage,Crude Oil ,kerosene,gasoline,water,urea,chemical liquid

The control panel of this product adopts modular design and features complete functions,simple structure and convenient operation.Can be widely used in petroleum,chemical,pharmaceutical,transportation,food and industrial and commercial.

In the standby state or the current fill amount display state,press the MENU+RESET button simultaneously for 5 seconds.Enter the unit conversion setting,press the RESET key,and then press LTR→GAL→QTS→PTS→LTR to select the measurement unit.

At the same time,the accumulated filling amount is displayed according to the current measurement unit.Press the MENU button again for 3 seconds to exit the unit conversion setting.

Color:blue +black

material:plastic

Size:about 105*85*51mm

Measurement accuracy:+/-1%

Repeatability:+/-0.5%

Working pressure:145PSI/10BAR

Working voltage:2.3-3.3V

Flow range:10-100L/MIN

Single count:0.00-9999.9

Total cumulative number:0.00-999999.9

In the standby state or the current fill amount display state,press the MENU button for 3 seconds to enter the error coefficient calibration state.At the same time,the first digit flashes,press the MENU button,the digital shift,(flashing digital shift),press the RESET button to modify the current flashing digit value,from 0 to 9,and then to 0.When this coefficient is increased,the amount of oil is less,and the smaller the coefficient,the more oil is discharged.Press the MENU button for 3 seconds to end the error factor calibration.Return to display the current fill amount status,and the current fill amount display is cleared.After the error coefficient is calibrated,if there is a new metering pulse input,the new error coefficient is used for calibration.This flowmeter requires a battery that can operate for at least 9,000 hours (1 year)as a power source.Too short a battery life can cause damage to the flowmeter due to battery leakage during operation.If the LCD display of this flowmeter becomes dim or the prompt appears,the battery should be replaced in time.

Package Contents:

1*Flow meter

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
