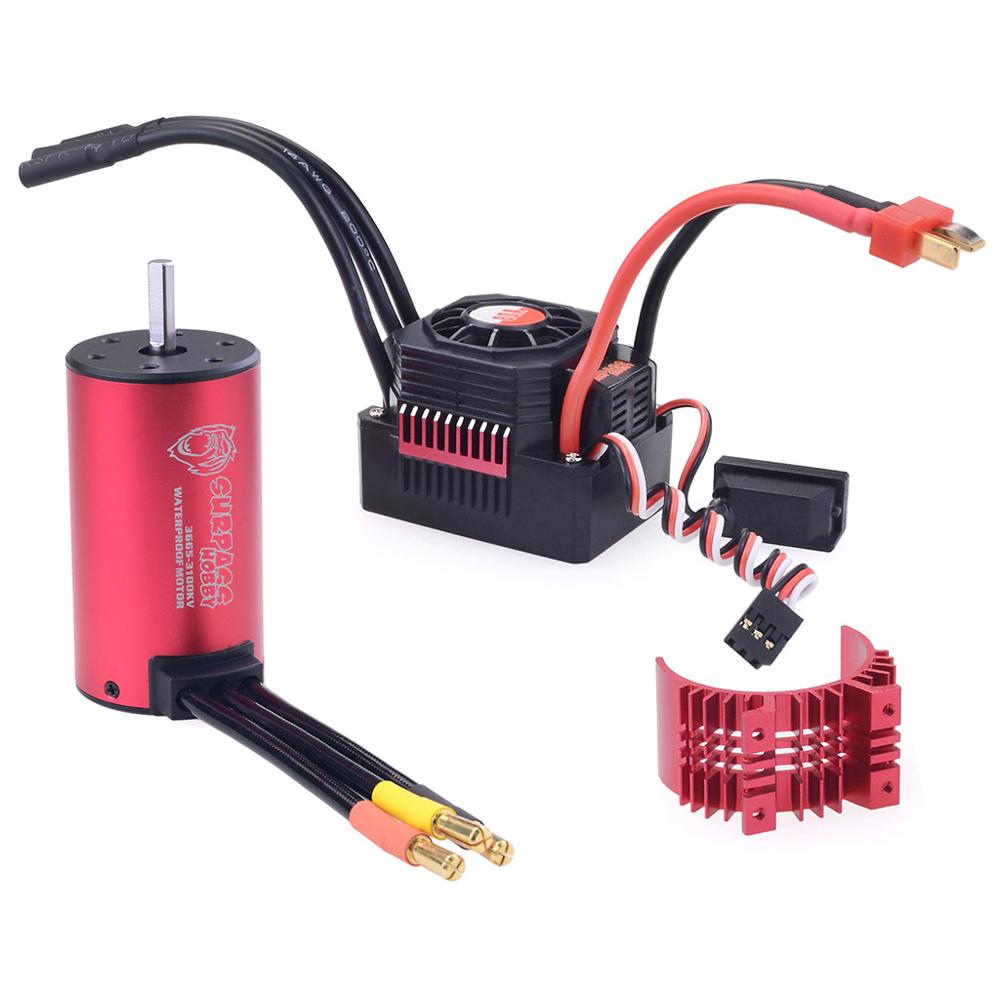

4 Pole 12 Slot Hi-torque Motor Design
High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings Maximizes Efficiency, High RPM ABEC5 Oversized Bearings
Universal fit, for 1:10 2S RC car , 3S RC racing, off-road car
Precision balanced rotor,smoothness for best reliability and maximum RPM
Stator - Super Thin (0.35mm) Laminations

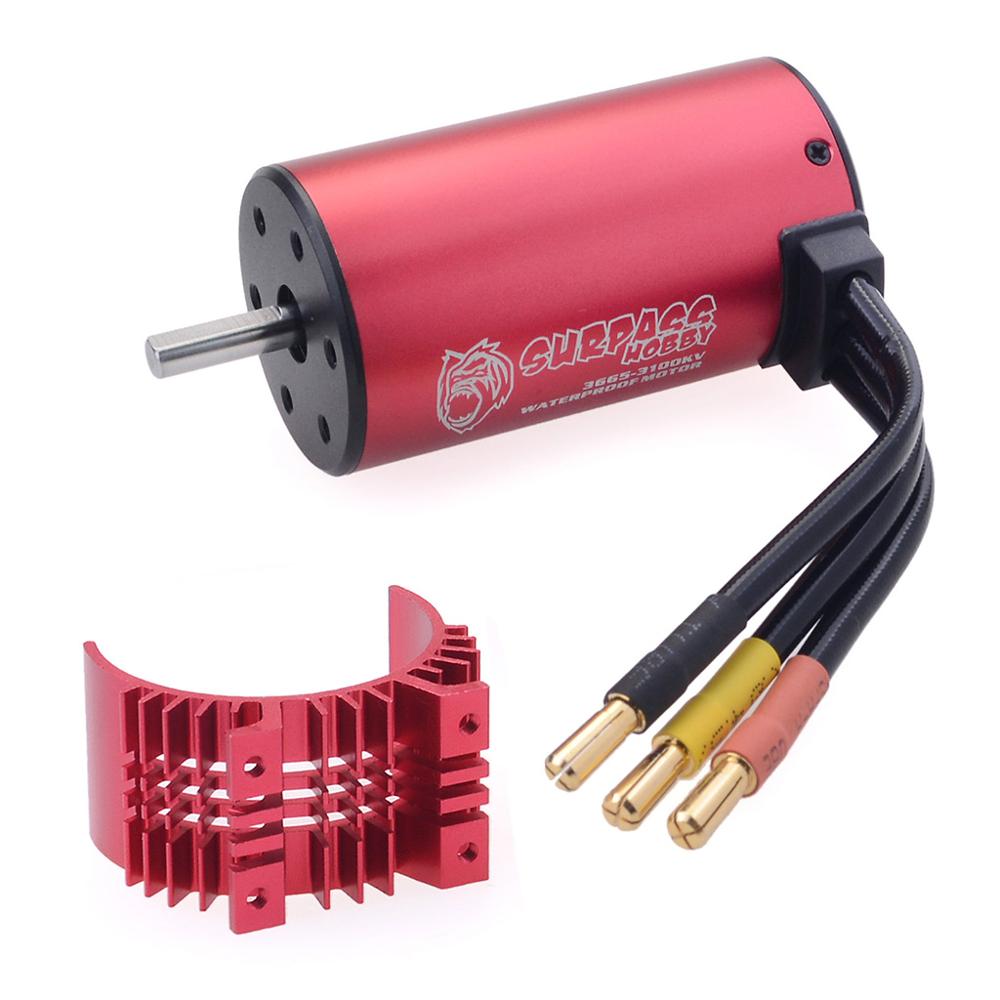

Motor Specifications:
Brand: SURPASSHOBBY
Series: KK
Name: 3665 RC Motor
KV(RPM/Volt): 2900KV
Watt:1400
Max RPM: 50000
Max voltage: <14.8V
Max amps: 95A
Rotor poles: 4
Diameter: 35.5mm
Length: 64.5mm
Shaft length: 17mm
Connector: 4.0mm gold
Weight:250g
ESC DECLARATION:
This is Electronic Speed Controller (ESC) for car. High power system for RC model is very dangerous, so please read this manual carefully.
Since we can't control over the correct use, installation, application, or maintenance of our products, we'veno liability shall be assumed nor accepted for any damages,
losses or costs resulting from the use of the product. Any claimsarising from the operating, failure of malfunctioning etc. will be denied.
We assume no liability for personal injury,consequential damages resulting from our product or our workmanship.

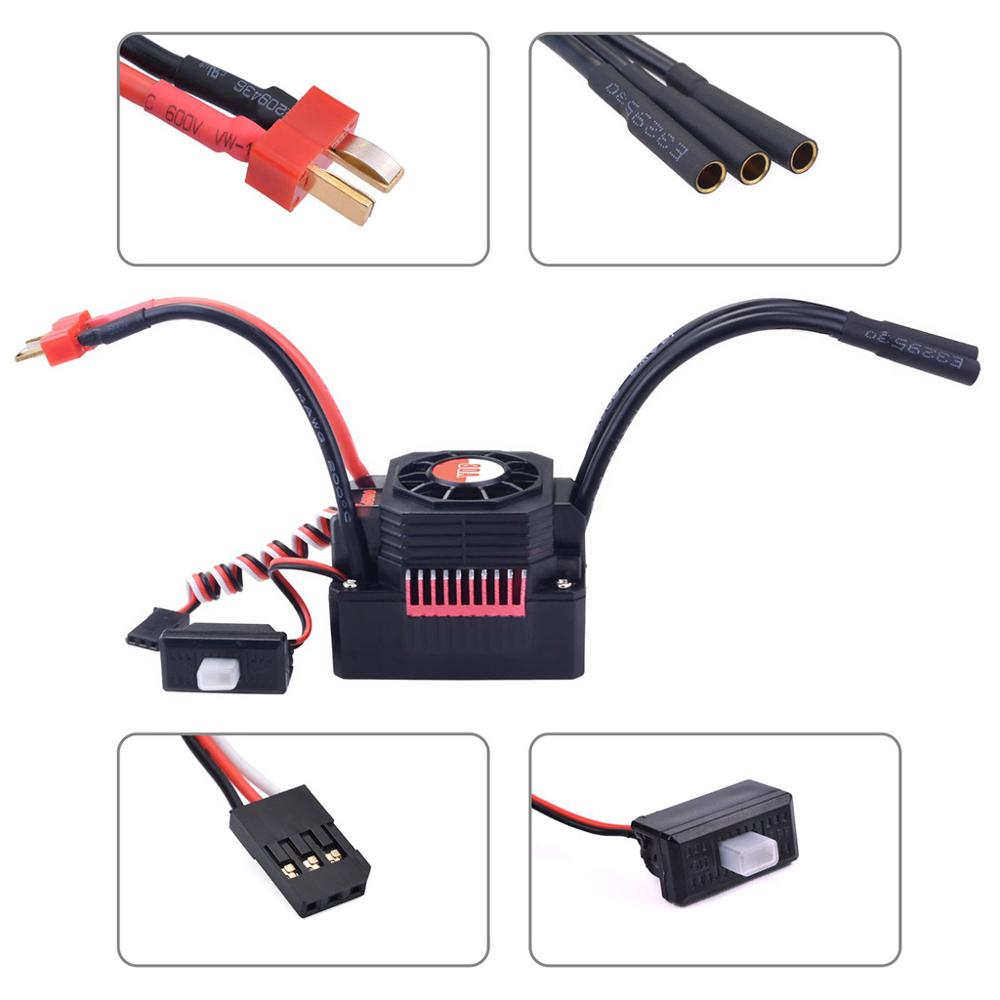

ESC Specification:
Brand: SURPASSHOBBY
Name: KK 80A ESC
Cont.Current/Burst Current: 80A/480A
Motor Type: Sensorless Brushless Motor
for 2S Lipo or 6 cells NiMH :
1. on-road: 3670-Size or smaller motor with the KV<3000KV
2. off-road/Buggy/Monster: 3670-size or smaller motor with the KV <3000KV
for 3S Lipo or 9 cells NiMH :
1. on-road: 3660-Size or smaller motor with the KV<3000KV
2. off-road/Buggy/Monster: 3660-size or smaller motor with the KV <2500KV
Resistance: 0.0005ohm
Battery: 2-4S Lipo/4-12Cells NiMH
BEC Output: 6.1V/3A (Switch mode)
Dimensions/Weight: 51.5x68.5x38.5mm/84g
9KG Metal Gear Digital Servo S0900M
Locked torque: 10kgf.cm at 4.8V; 14kgf.cm at 6V;
No-load speed: 0.21s/60° at 4.8V; 0.19s/60° at 6V;
Product weight: 55g (1.94oz);
Appearance size: 36.6*20.2*40.7mm (1.44*0.79*1.60 inch);
Operating voltage: 4.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
