Features:
Made of high quality aluminum alloy, features high durability and strength, long service life.
Convenient and practical for drilling 35mm hinge hole and 2mm screw holes.

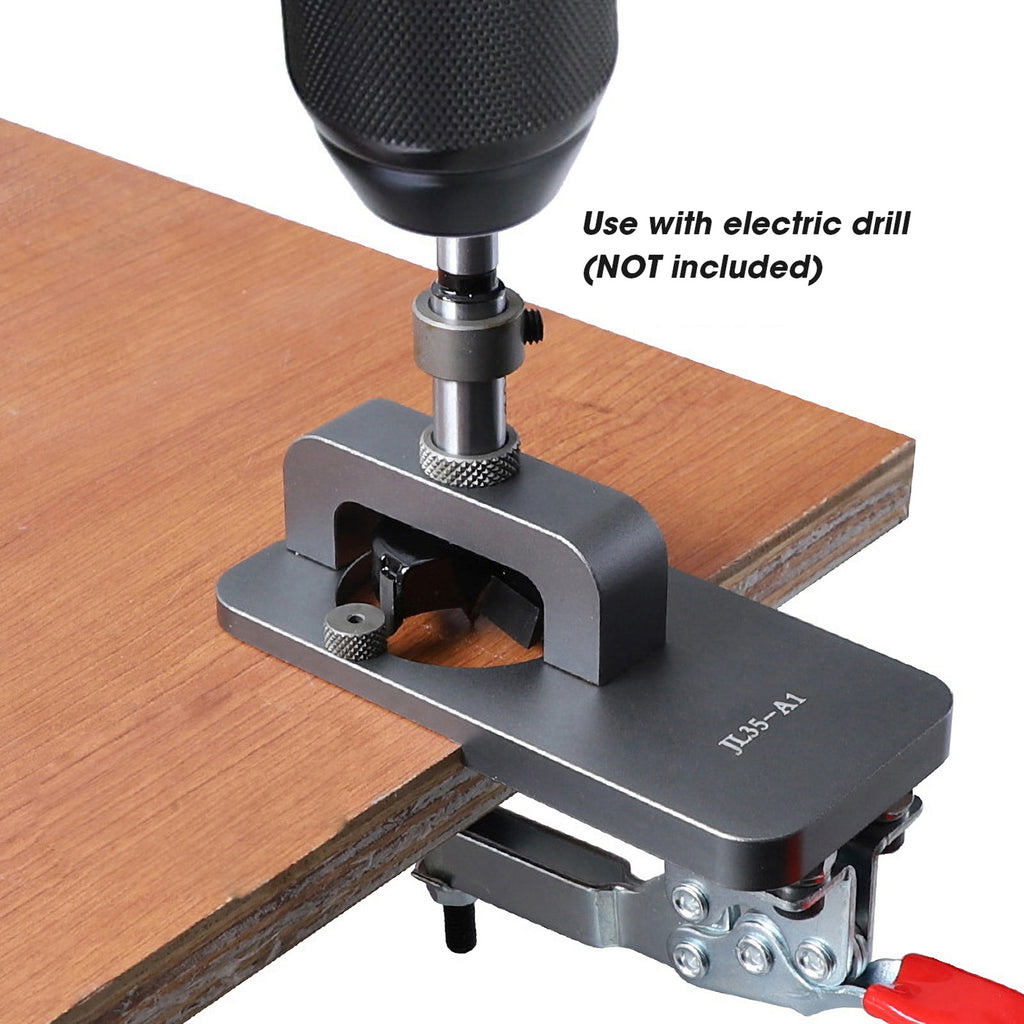

Just a few steps, easy to operate. Use with electric drill (not included).
Fits for installing most common hinges in kitchen caninets, doors, etc. Applicable wood board thickness: 15-25mm.
Perfect woodworking tool. Small size, lightweight and space-saving, easy to carry.
Using Steps:

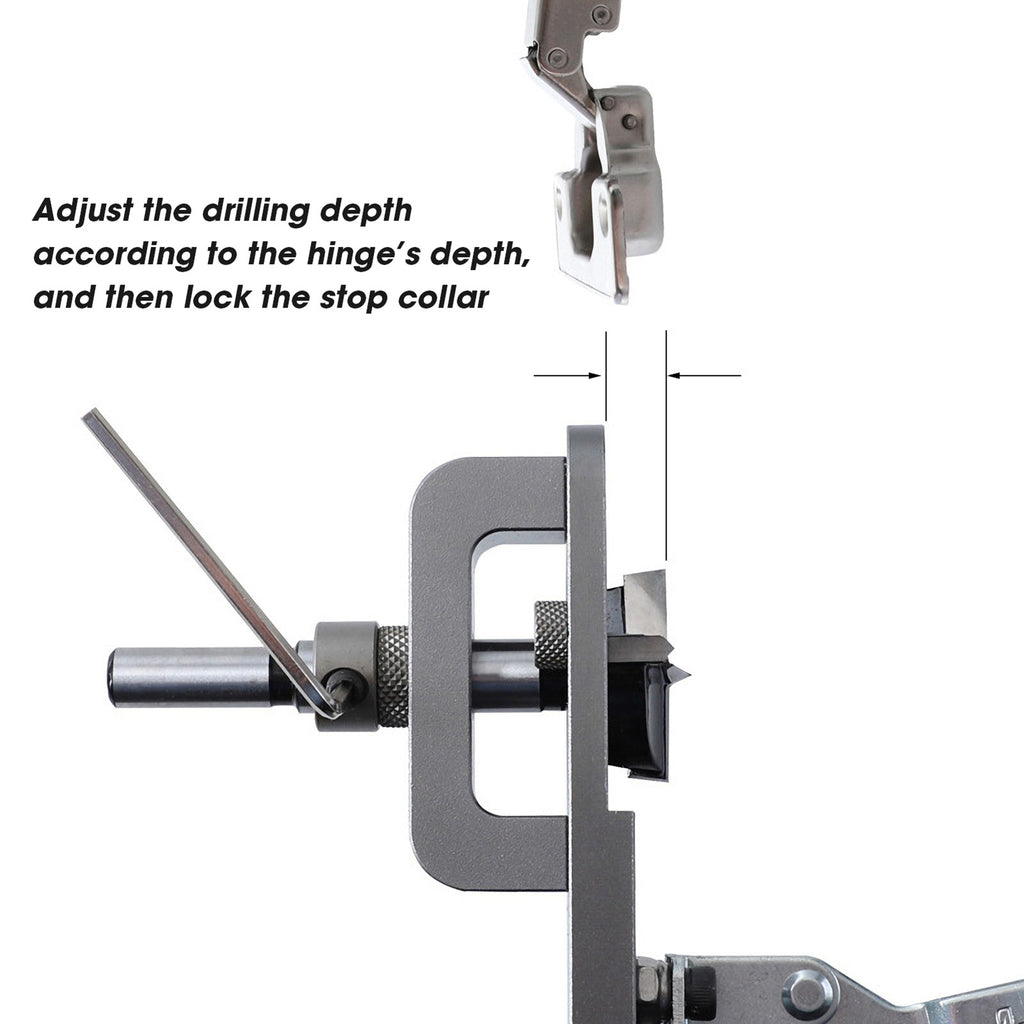

1. Install the 35mm hinge hole locator, adjust the drilling depth to 12-13mm, and then lock the stop collar.

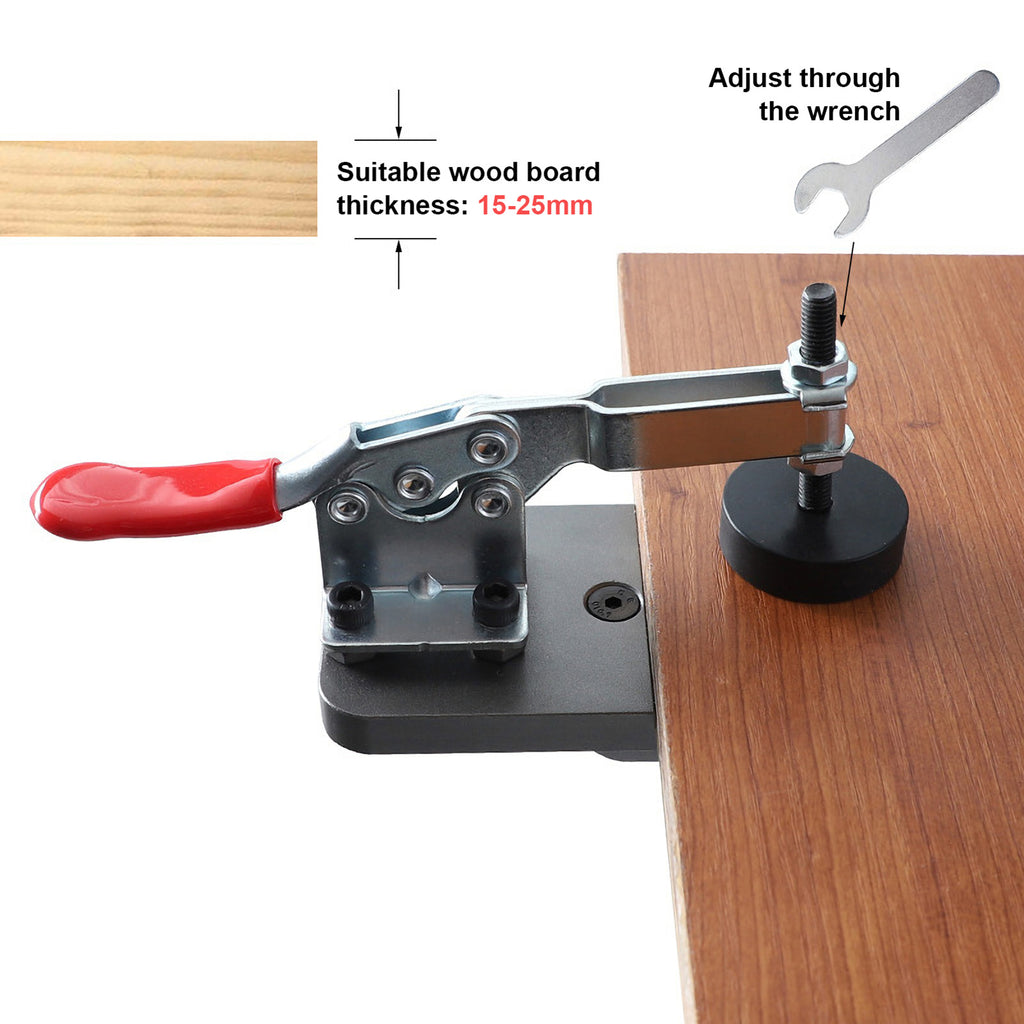

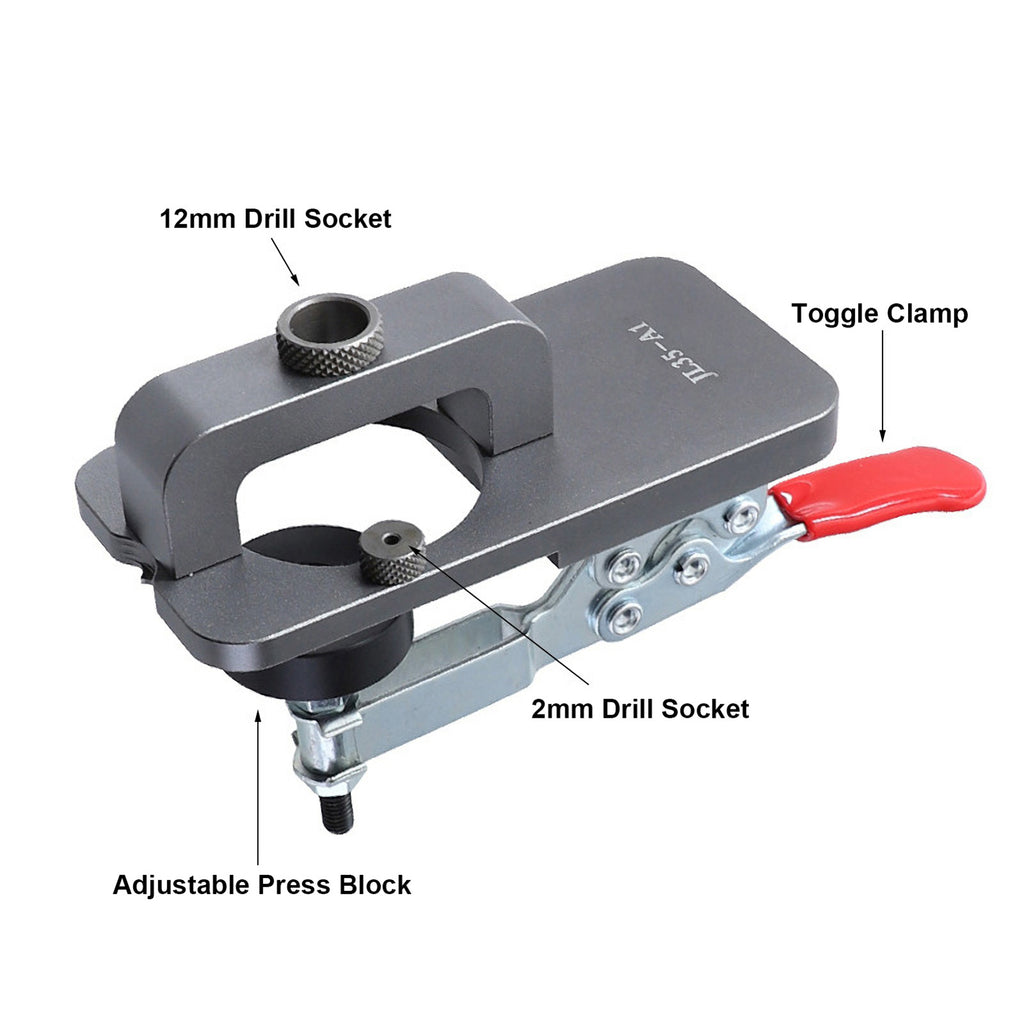

2. Adjust the black press block through wrench to fix the locator (suitable wood board thickness: 15-25mm).
3. Move the hinge hole locator to the drilling location, lock the toggle clamp. Use the electric drill, push down the hole at a constant speed to a depth of 12-13mm
4. Drill for left and right 2mm screw holes.
5. The distance between the hinge hole and the board's edge is 5mm, which is suitable for most common hinges.
6. Install the 35mm hinge.
Note: Size and color may be slightly different due to manual measurement and different lighting conditions. Thanks for understanding.
Specifications:
Color: Silver
Material: Aluminum Alloy
Suitable Wood Board Thickness: 15-25mm
Item Size: 120 * 58mm / 4.72 * 2.28in
Package Size: 21 * 12.5 * 9.5cm / 8.27 * 4.92 * 3.74in
Package Weight: 604g / 21.31oz

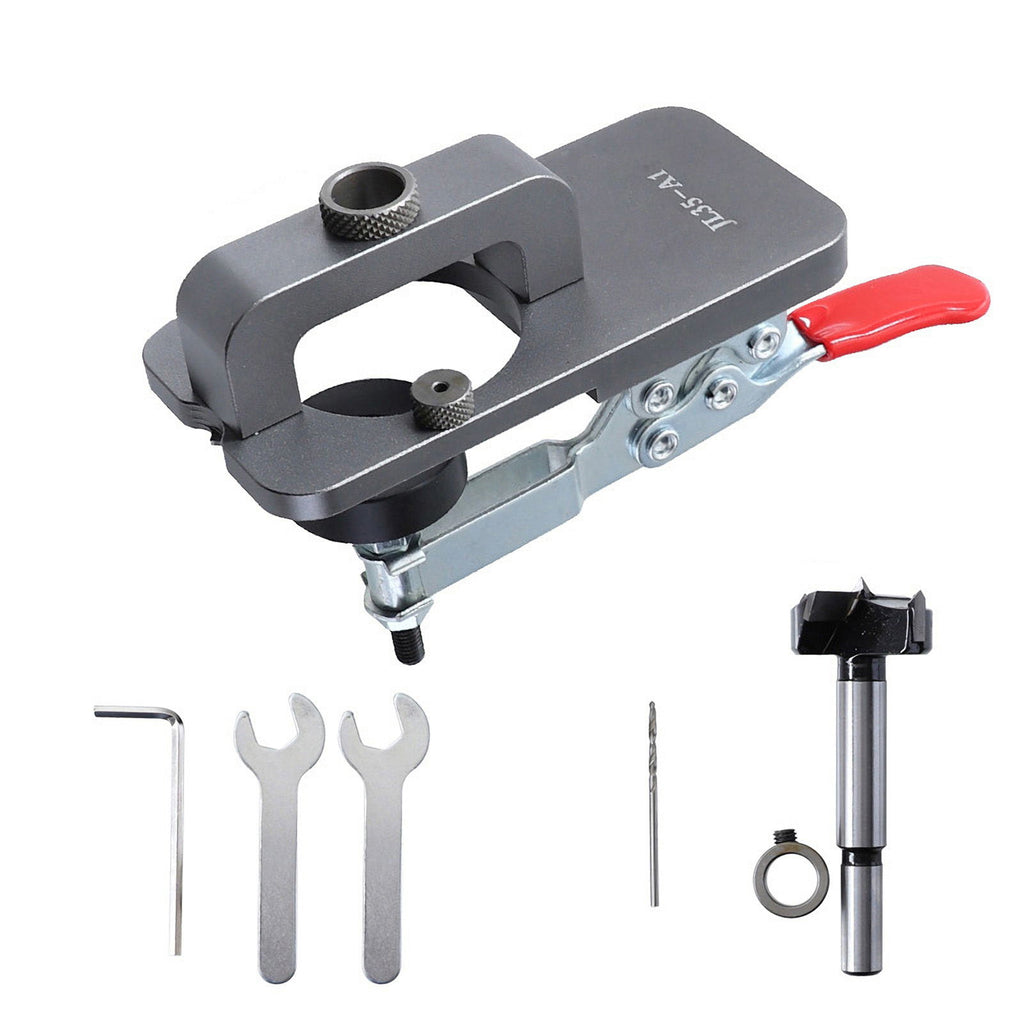

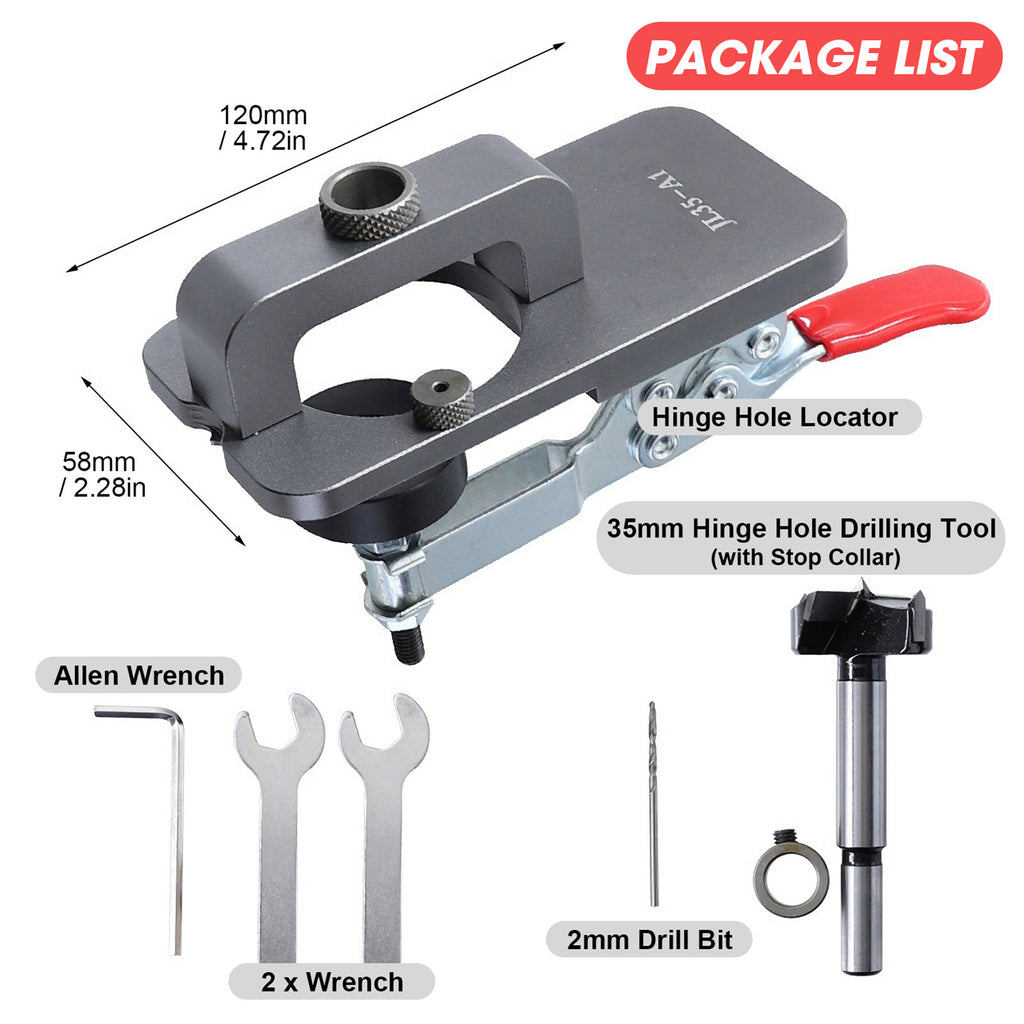

Package List:
1 * Hinge Hole Locator
1 * 35mm Hinge Hole Drilling Tool (with Stop Collar)
2 * Wrench
1 * 2mm Drill Bit
1 * Allen Wrench
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
