Specification:

      Index Type

   KL5100

   KL5101

   KL5102

   KL5104

   KL5105

       Input

   Input voltage

   AC 110V / 220V ± 10%, 50 ± 2Hz

       Power consumption

   Less than 20 W

       Load input

   Load voltage

   1-150V

   1-150V

   1-150V

   1-300V

   1-500V

       Load current (dual channel)

   0-30A

   0-40A

   0-60A

   0-30A

   0-30A

       Maximum load power

   200W

   300W

   400W

   400W

   500W

       measurement accuracy

   Main current

   ± 0.1% + 5Ma (24bit A / D, 15ppm / ℃ reference)

       Main voltage

   ± 0.1% + 5Mv (24bit A / D, 15ppm / ℃ reference, input impedance 400KΩ)

       control precision

   Main current

   ± 0.1% + 5Ma (16bit D / A, 15ppm / ℃ reference)

       Main voltage

   ± 0.1% + 5Mv (16bit D / A, 15ppm / ℃ reference)

       protection

   Overpressure

   155V

   310V

   520V

       Over temperature

   85 ℃

       Overpower

   220W

   320W

   420W

   420W

   520W

       Overcurrent

   30.5A

   40.5

   60.5A

   30.5A

   30.5A

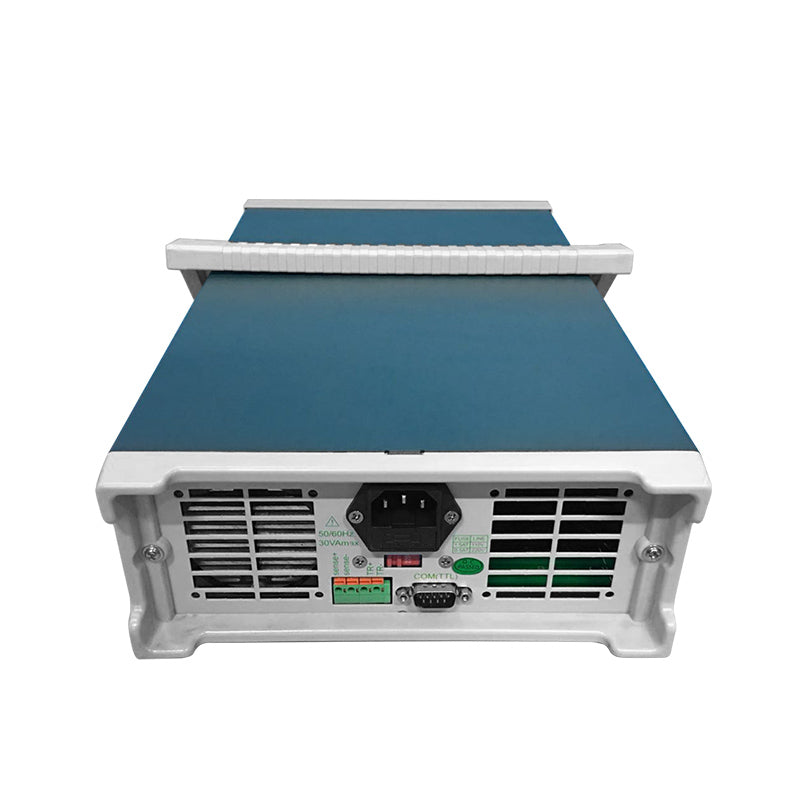

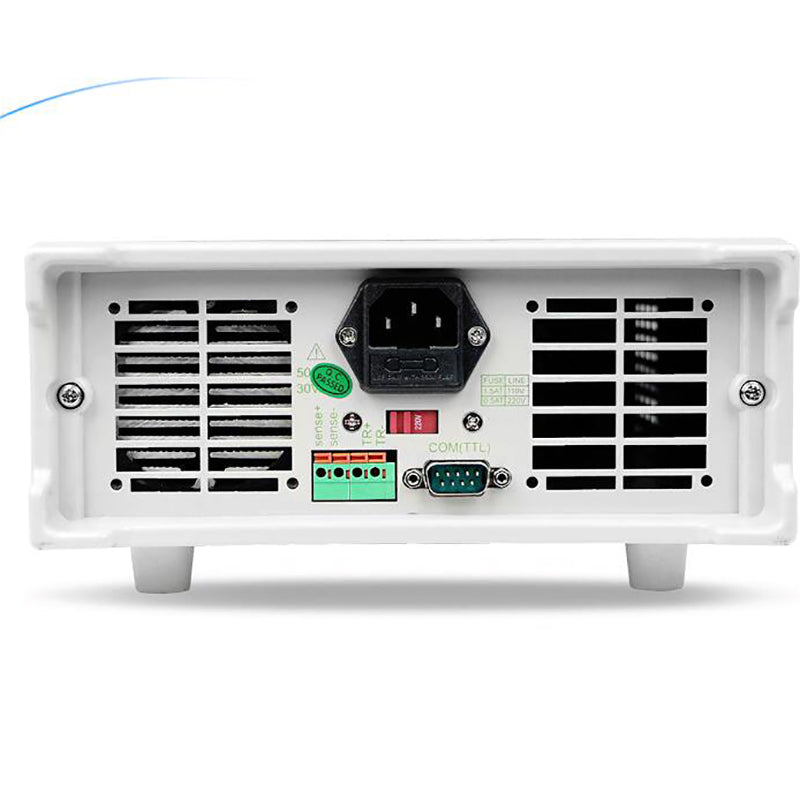

       Communication Interface

   Program control interface

   TTL level full-duplex serial interface (can be converted to 232 or 485 by converter)

       Features

   Operating mode

   CC , CV, CR, CW

       General functions

   Automatic test, dynamic test, battery test, OCP test, etc.

       List test function

   List test, trigger test, step loop test, automatic increase and decrease test, etc.

       extensions

   External trigger

   √

   √

   √

   √

   √

       Remote voltage measurement

   √

   √

   √

   √

   √

       Operating ambient temperature range

   0 ～ 50 0 C

       Operating environment humidity range

   10 ～ 90% RH

       DC input withstand voltage to chassis

   ± 250VDC

       Insulation resistance from DC input to chassis

   > 20M Ω at 500VDC

       Insulation resistance from AC input to chassis

   > 20M Ω at 500VDC

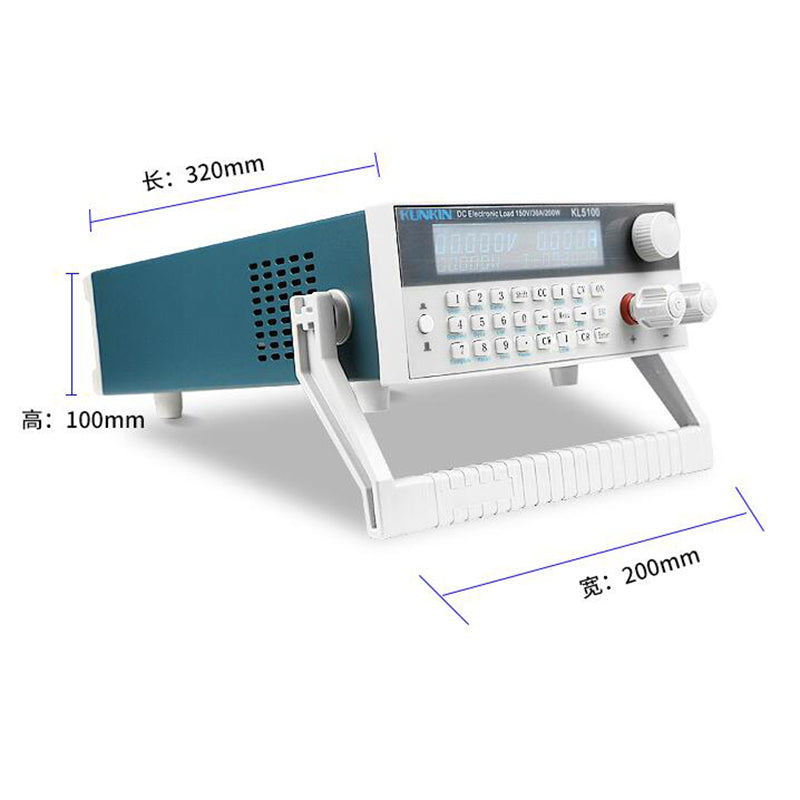

       Dimensions (mm) L × B × H

   About 400 × 260 × 110

       Weight (Kg)

   4.0

   5.0

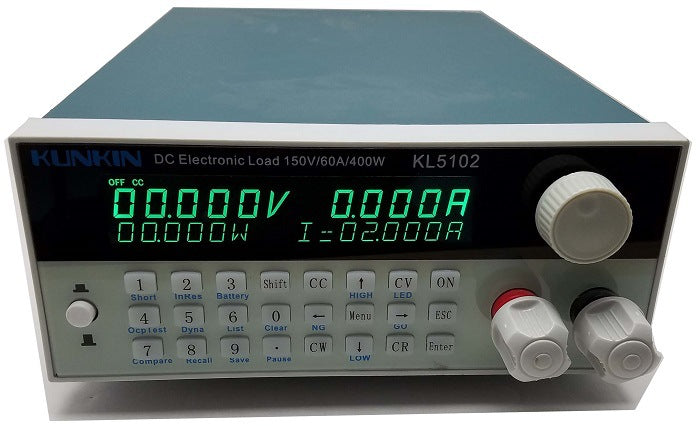

KL5100 series is programmable DC electronic load. This series of loads is equipped with a communication interface, has a variety of specific products or performance for testing functions, and can provide multi-purpose solutions according to your design and testing needs.

This series of products have special functions and advantages of international advanced level:

• Automotive-grade LCD liquid crystal display with adjustable brightness;

• Numeric keyboard operation;

• High-speed communication interface;

• The measurement has high resolution and high accuracy;

• Overvoltage / overcurrent / overpower / overheat / reverse polarity protection;

• Has four basic working modes of constant voltage, constant current, constant resistance and constant power;

• With rotary coding switch, the operation is fast and easy;

• Remote measurement function;

• Automatic test function;

• Battery test function;

• Internal resistance test function;

• Editable multi-step sequence test function;

• Short circuit test function;

• Dynamic test function;

• Short circuit protection test function;

• Using temperature-controlled, PWM-controlled high-speed fans;

• Has a built-in buzzer as a warning or prompt;

• Memory function to keep set value after power off;

• Software monitoring can be done by computer;

• The machine can be configured with 110V / 220V AC power supply options.
