NOTICE:

      1.Buyer is responsible for the customs duty and local import taxes etc. The price here not includes the destination fee in buyer's side.

   2.Important!!! Dear Brazil customer, please leave your CPF or CNPJ number after placing the order

    3.These countries, like Brazil, Mexico, E-packet and China Post delivery time maybe around 20-90 days

  Features:

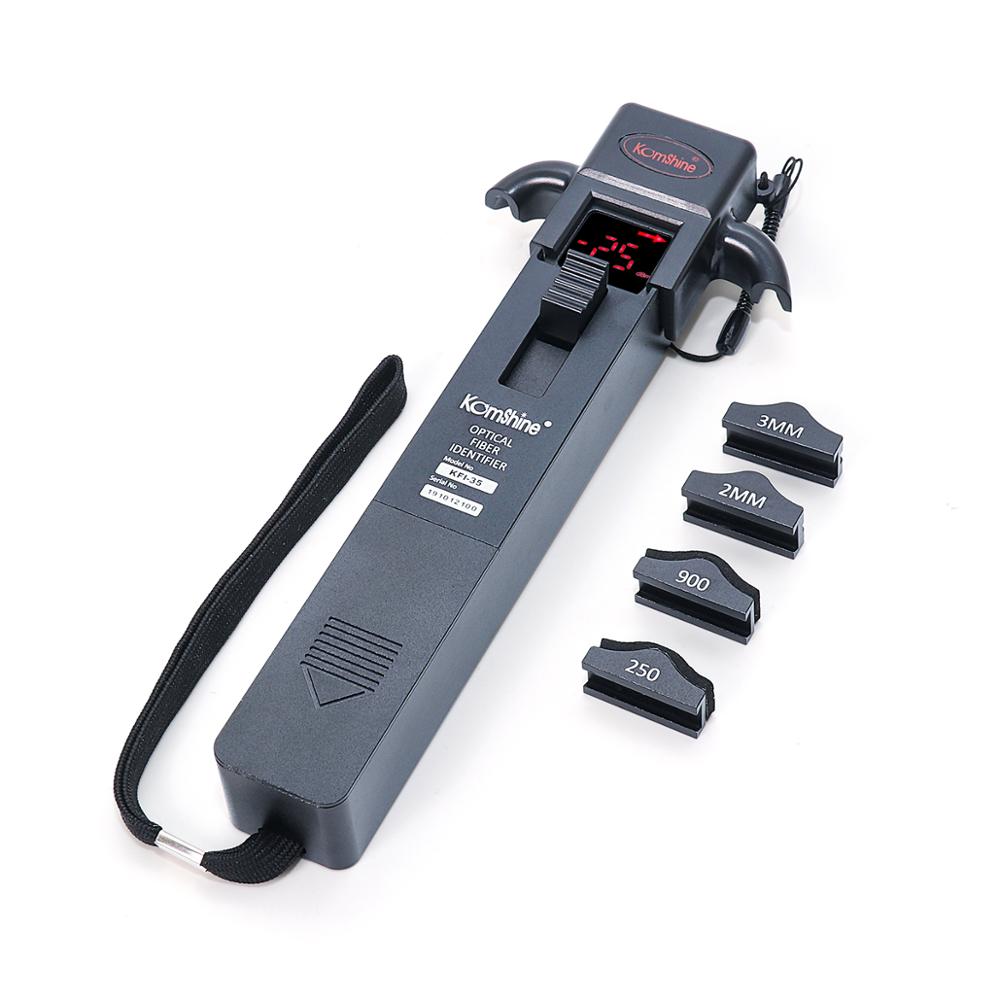

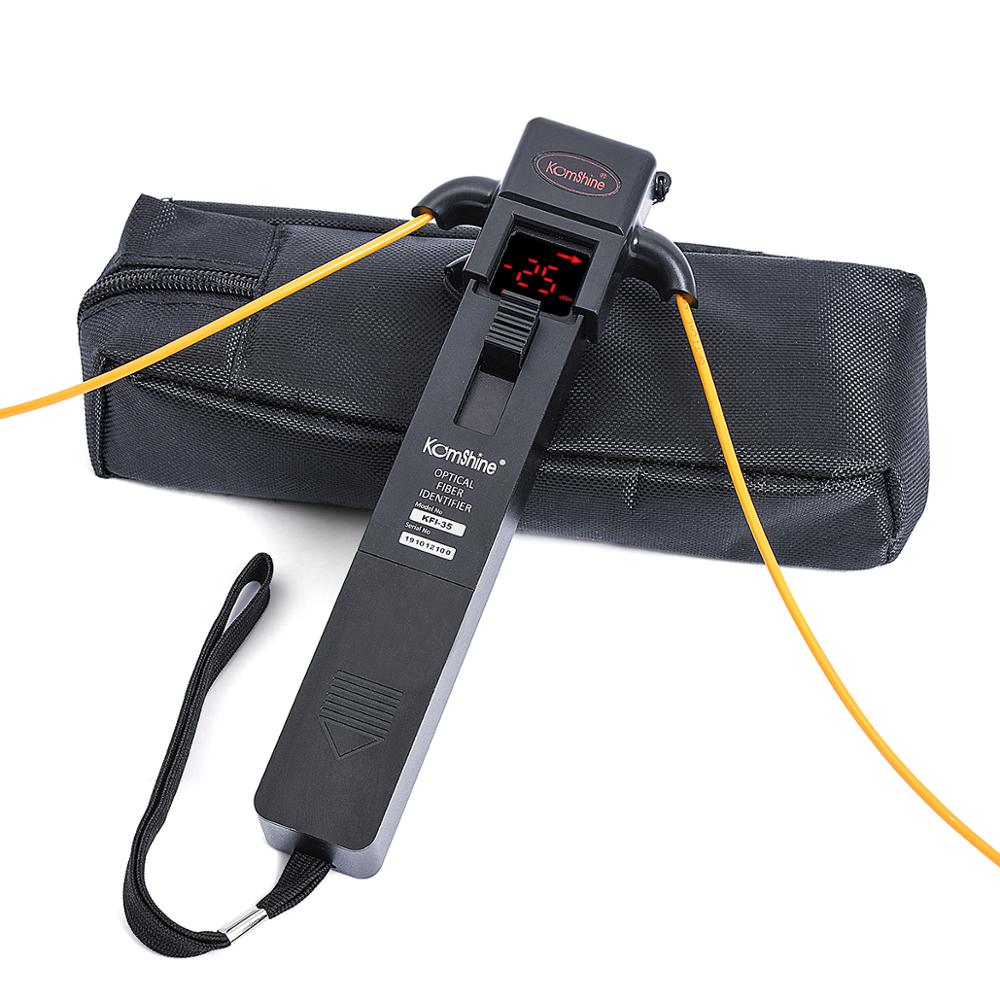

  KomShine KFI-35 Optical Fiber Identifier for 250um 900um 2mm 3mm Optical 270Hz 1KHz 2KHz 1310nm 1550nm

  Equal to JDSU FI60/Noyes OFI400C Fiber Identifier

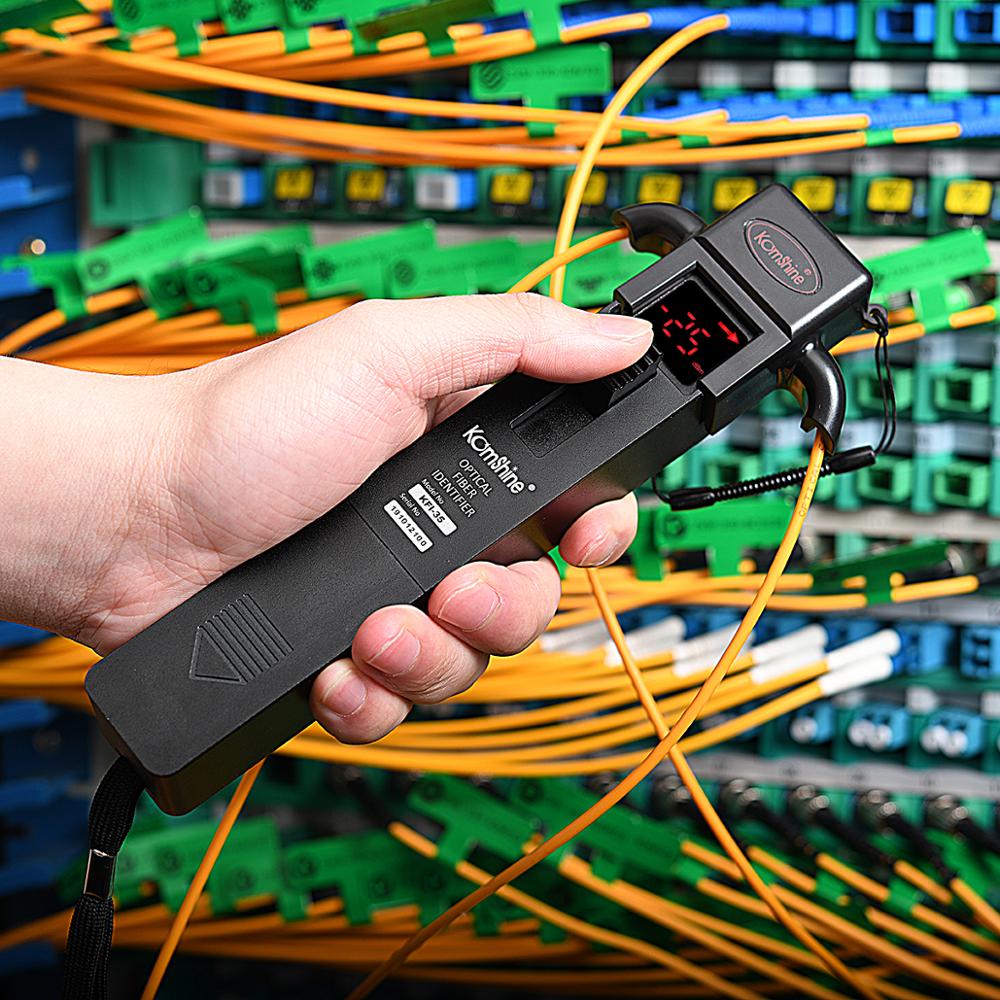

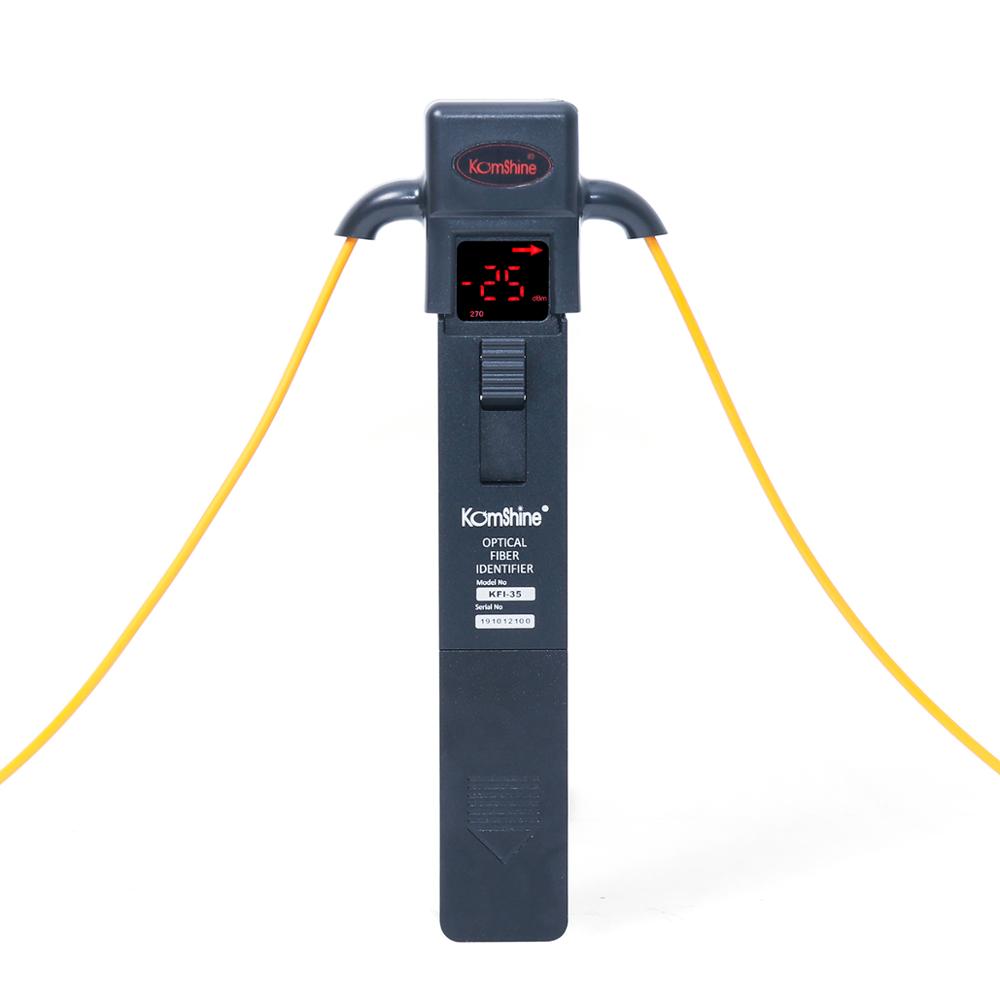

  The KomShine KFI-35 Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bended fiber. When the traffic is present, the intermittently audible tone is activated.

 The  KomShine KFI-35 optical fiber identifier also recognize the modulation like,270Hz,1kHz and 2kHz .When they are used to detect the frequency, the continuously audible tone is activated.

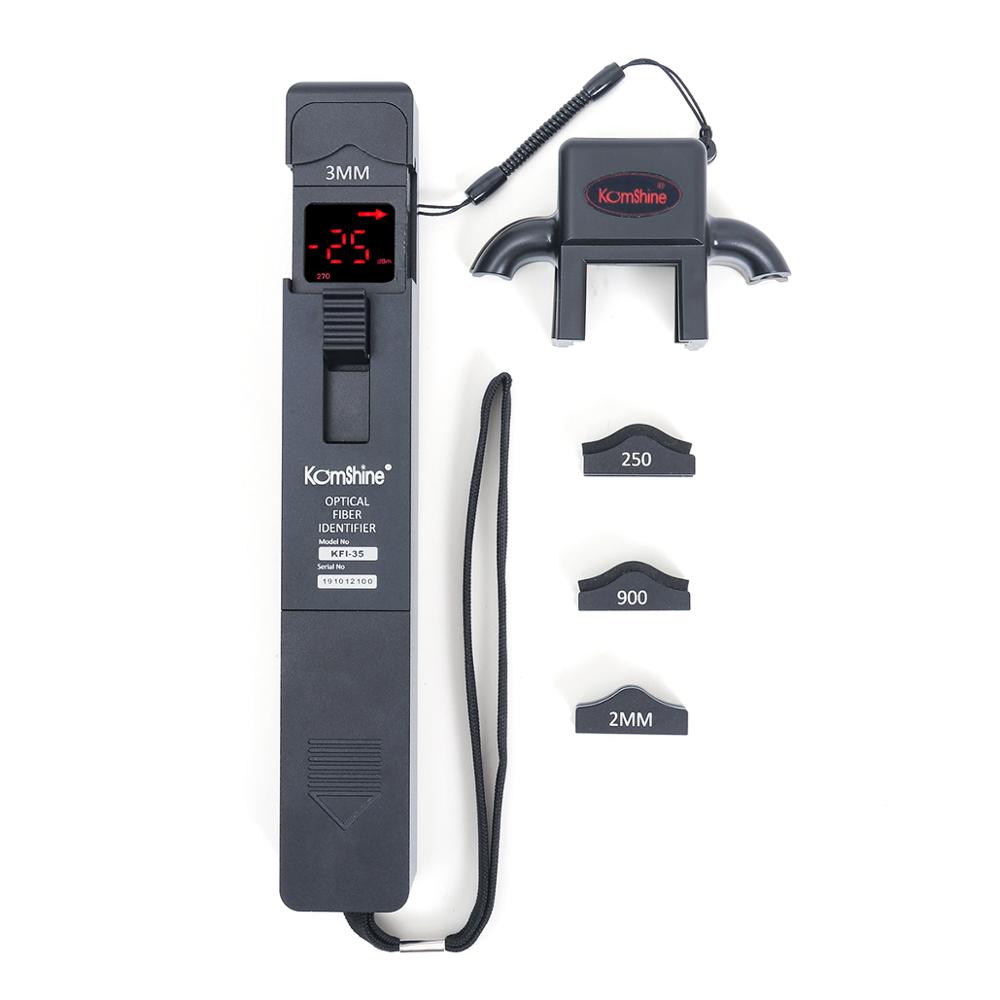

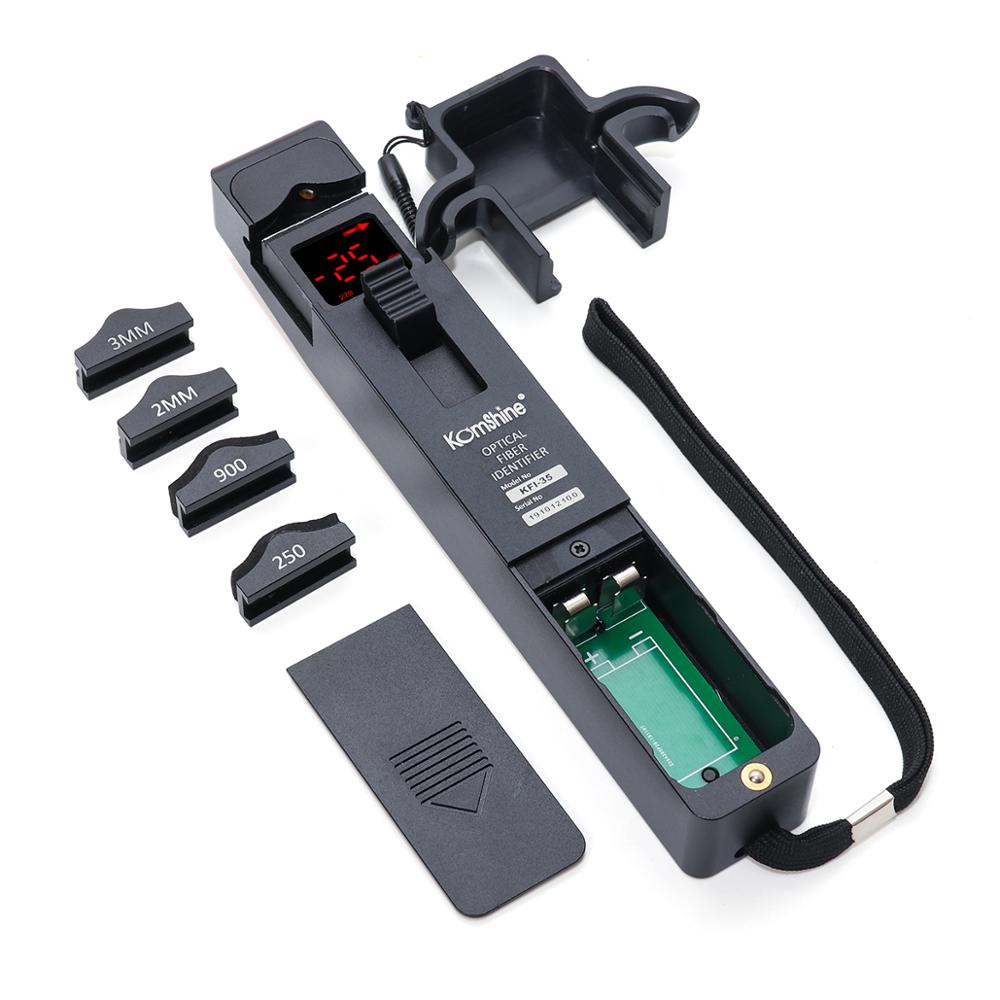

 There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0. The WF3306B optical fiber identifier is powered by a 9V alkaline battery.

   Features:

   -  Easy-to-use with “ONE KEY”operation.

 -  Efficiently identifies the traffic direction and frequency tonel (270Hz, 1KHz, 2KHz) with audible warning.

 -  Displays the relative core power.

  - More accurate test with Sunshade.

  - Easy-to-replace adaptors.

  - Durable metal housing and quality construction.

  - Lower power indication.

   Specifications:

                   Type

         KFI-35

                   Identified Wavelength Range

         800-1700 nm

                   Identified Signal Type

         CW, 270Hz±5%,1kHz±5%,2kHz±5%

                   Detector Type

         Ø1mm InGaAs 2pcs

                   Adapter Type

         Ø0.25 (Applicable for Bare Fiber),Ø0.9 (Applicable for Ø0.9 Cable )

                   Ø2.0 (Applicable for Ø2.0 Cable ), Ø3.0 (Applicable for Ø3.0 Jumper Cable )

                   Signal Direction

         Left & Right LED

                   Singe Direction Test Range

  (dBm, CW/0.9mm bare fiber)

         -46~10(1310nm)

                   -50~10(1550nm)

                   Signal Power Test Range

  (dBm, CW/0.9mm bare fiber)

         -50~+10

                   Signal Frequency Display (Hz)

         270, 1k, 2k

                   Frequency Test Range

  (dBm, Average Value)

         Ø0.9, Ø2.0, Ø3.0

         -30~0 (270Hz,1KHz)

                   -25~0 (2KHz)

  Ø0.25

         -25~0 (1KHz,2KHz)

                   -20~0 (2KHz)

                   Insertion Loss(dB, Typical Value)

         0.8 (1310nm)

                   2.5 (1550nm)

                   Alkaline Battery(V)

         9

                   Operating Temperature(°C)

         -10-+60

                   Storage Temperature(°C)

         -25-+70

                   Dimension (mm)

         196X30.5X27

                   Weight (g)

         200
