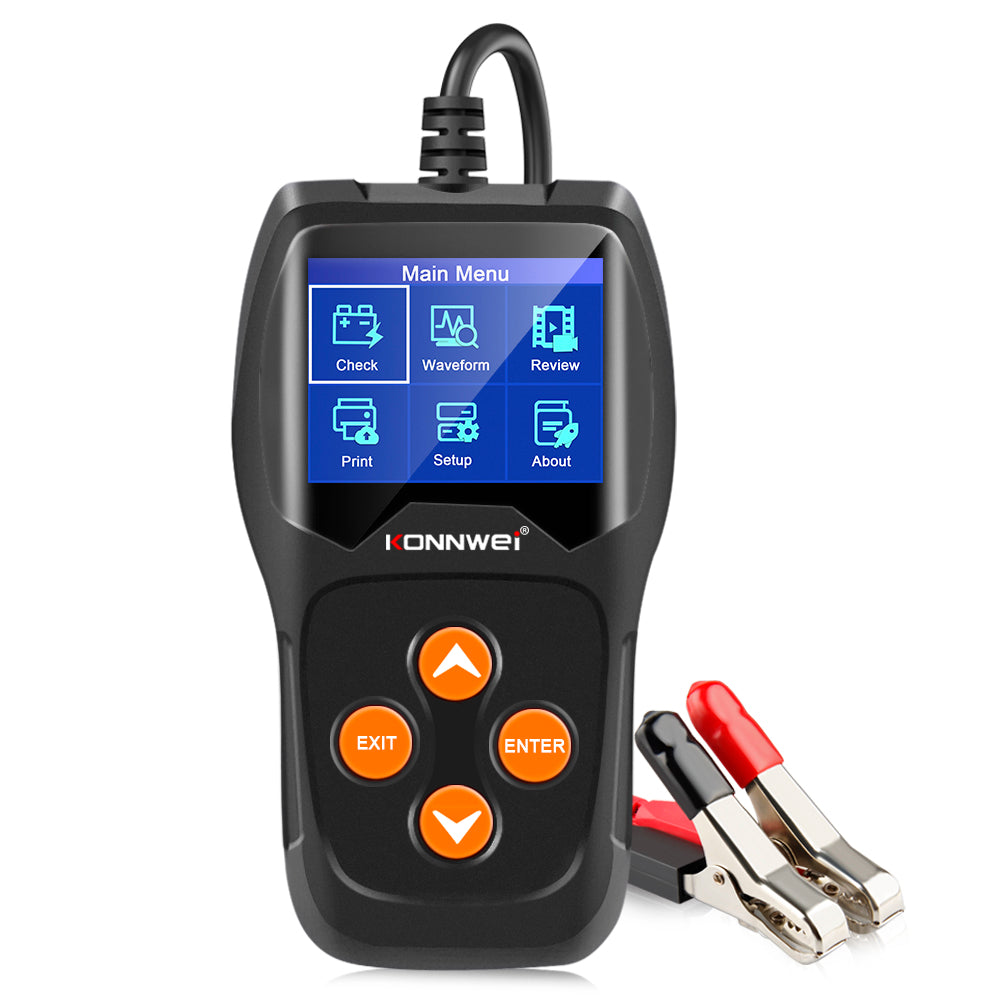

KONNWEI KW600 Car Battery Tester 12V Digital Color Screen Auto Battery Analyzer 100 to 2000CCA Cranking Charging Car Diagnostic

  KONNWEI KW600 is the newest battery tester upgraded from the old classic backlit tester in the market, aiming at check battery health fast and accurately, as well as check the alternator working status. It's a professional vehicle diagnostic tool for checking your battery system issues by using the graphing voltage monitoring tool, with its color screen and unique pattern design, life time free update service, the KONNWEI KW600 is a perfect battery testing tool for your job and the family.

  KONNWEI KW600 is mainly targeted to analyze the battery healthy status to calculate the actual cold cranking, capability of the battery and the aging extent, which provide reliable analysis evidence for the test and maintenance of the battery. KW600 notifies the users to replace battery in advance when the battery getting aged

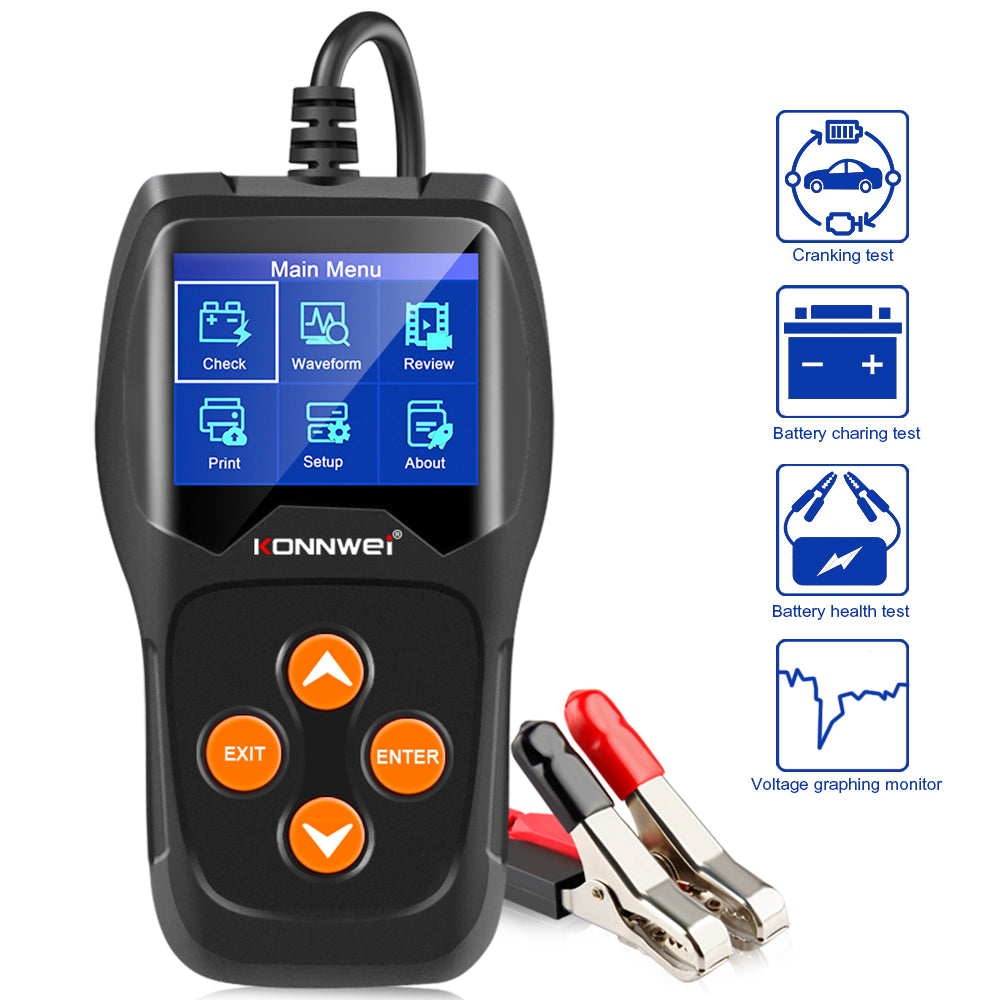

  KW600 Battery Tester Function:

  Identify battery status Good or Replace

  Check Battery Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.

  Check Internal resistance value (m)

  Display Life in percentage (%)

  Battery Cranking Test, load test

  Battery Charging Test, Ripple

  Test Graphing voltage real time monitoring

  Test results storage and review

  Print test results and battery report on PC

  Life time upgrade free

  KONNWEI KW600 Languages:

  Chinese,English, Japanese, French, German, Russian, Dutch, Spanish, Portuguese, Polish, Italian, Korean.Persian

     KW600 Battery Tester Features:

     Fast and smooth running speed with STM32 chip set hardware

     Accurate test results, using high precision amplifier and calibrated by professional battery testing tool

     Wide testing range cover from CCA 100- 2000 , 30- 220 AH, best in the market

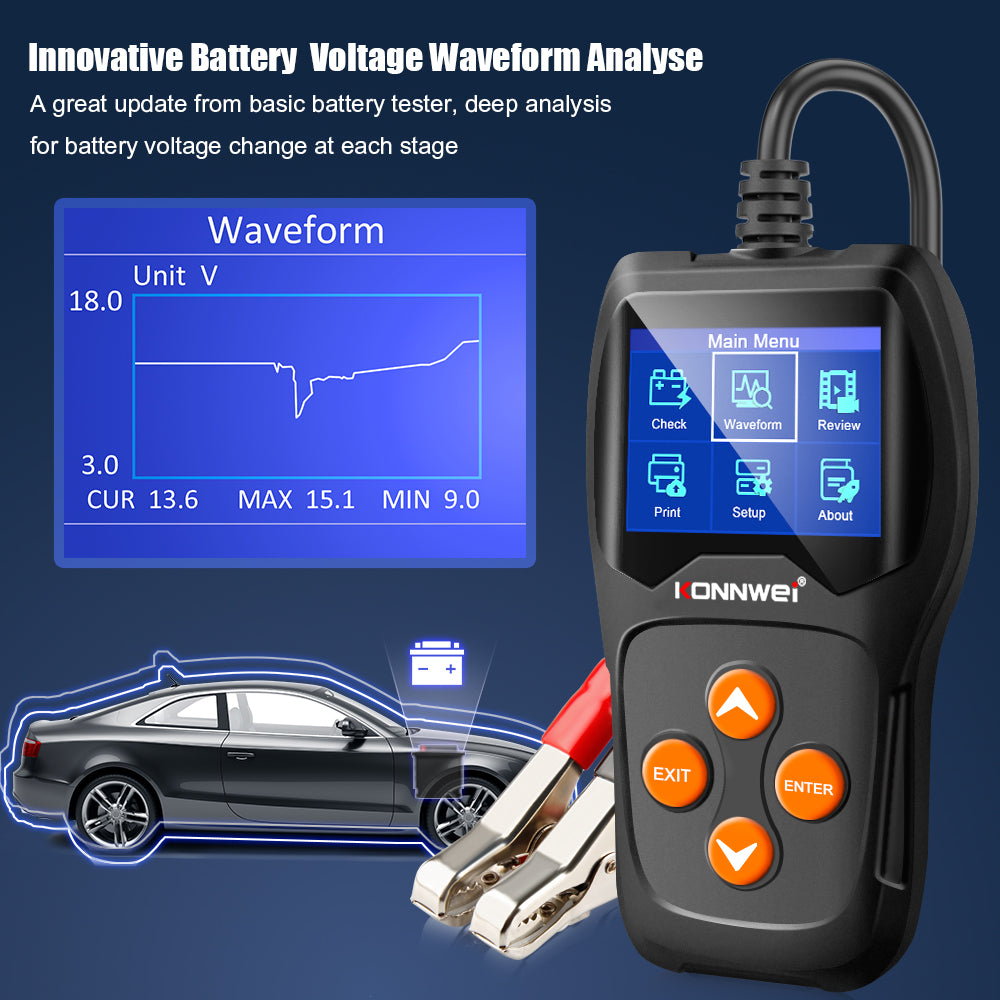

     Industry initiative graphical Battery Voltage real time monitoring

     Unique battery results display in percentage

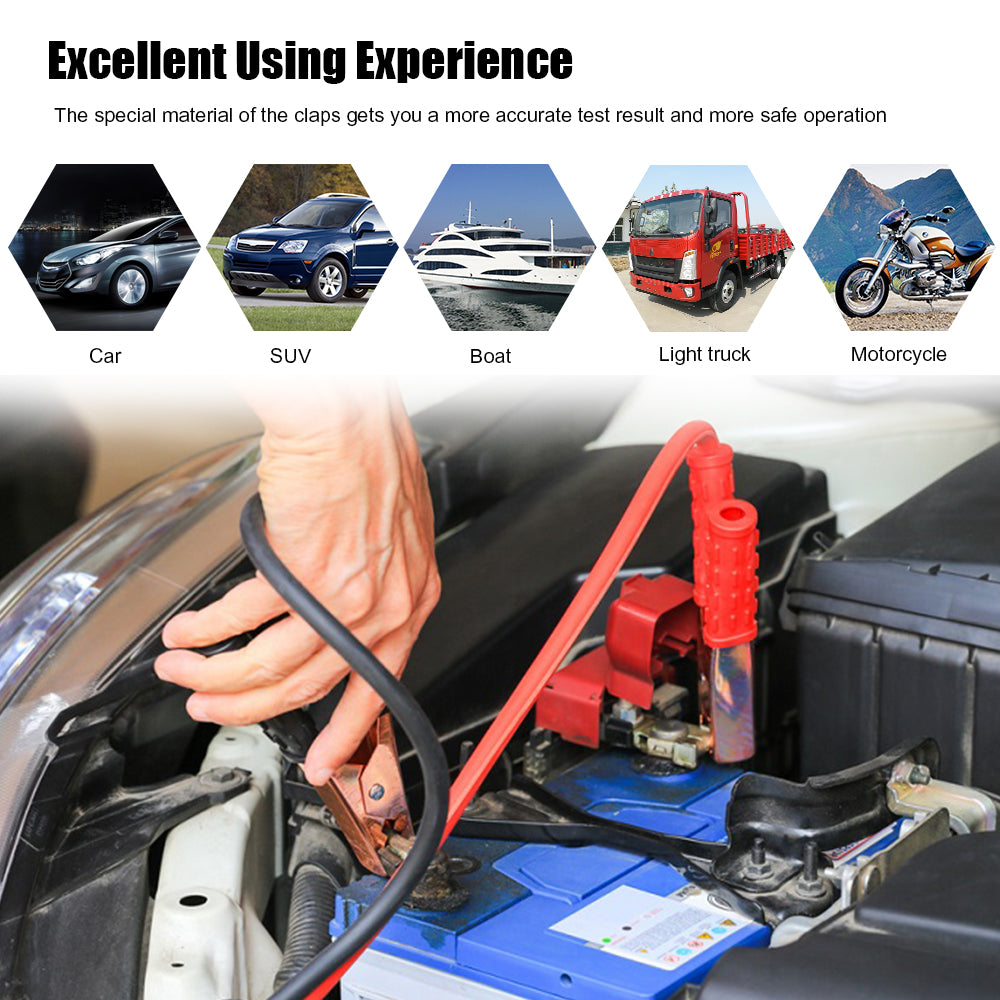

     Test all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, etc.

     Polarity reverse connection protection, reverse connection will not damage the tester or affect the vehicle and battery.

     Directly test the battery with loss of electricity, no need to full charge before testing.

     Testing standards include currently the world's majority of battery standards, CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.

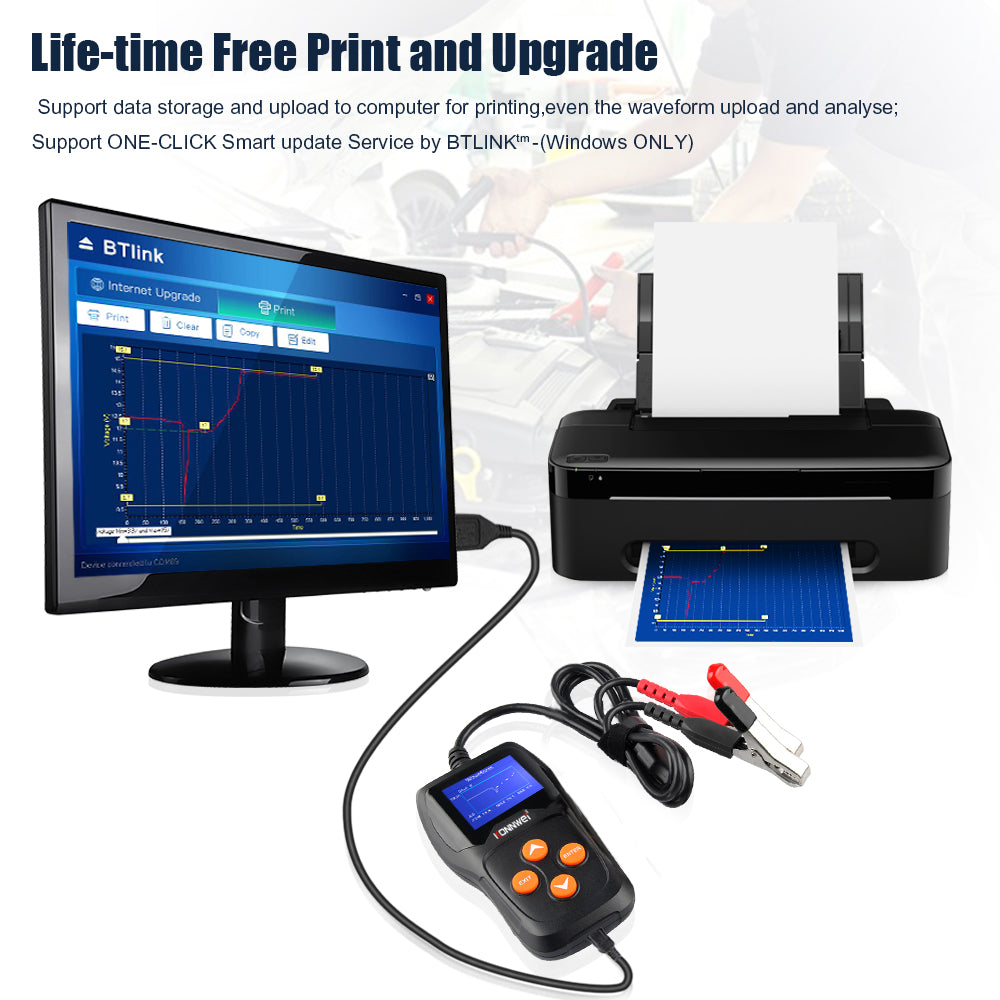

     Data Storage and upload to PC for printing

     Life time upgrade free by one-click smart cloud update

     Large color screen LCD display, pattern design

     KONNWEI KW600 Specification

     Display: 2.4'' Color TFT screen

     Operating Temperature : -20 to 70 ℃ (-4 to 158 ℉)

     Power: 9 to 16 V provided via vehicle

     Supported Battery type: CCA, ICE, EN, DIN, CA, BCI, MCA, SAE, GB, JIS

     Device Dimensions: 16.5cm x 6cm x 2.5cm

     Weight: 450 g

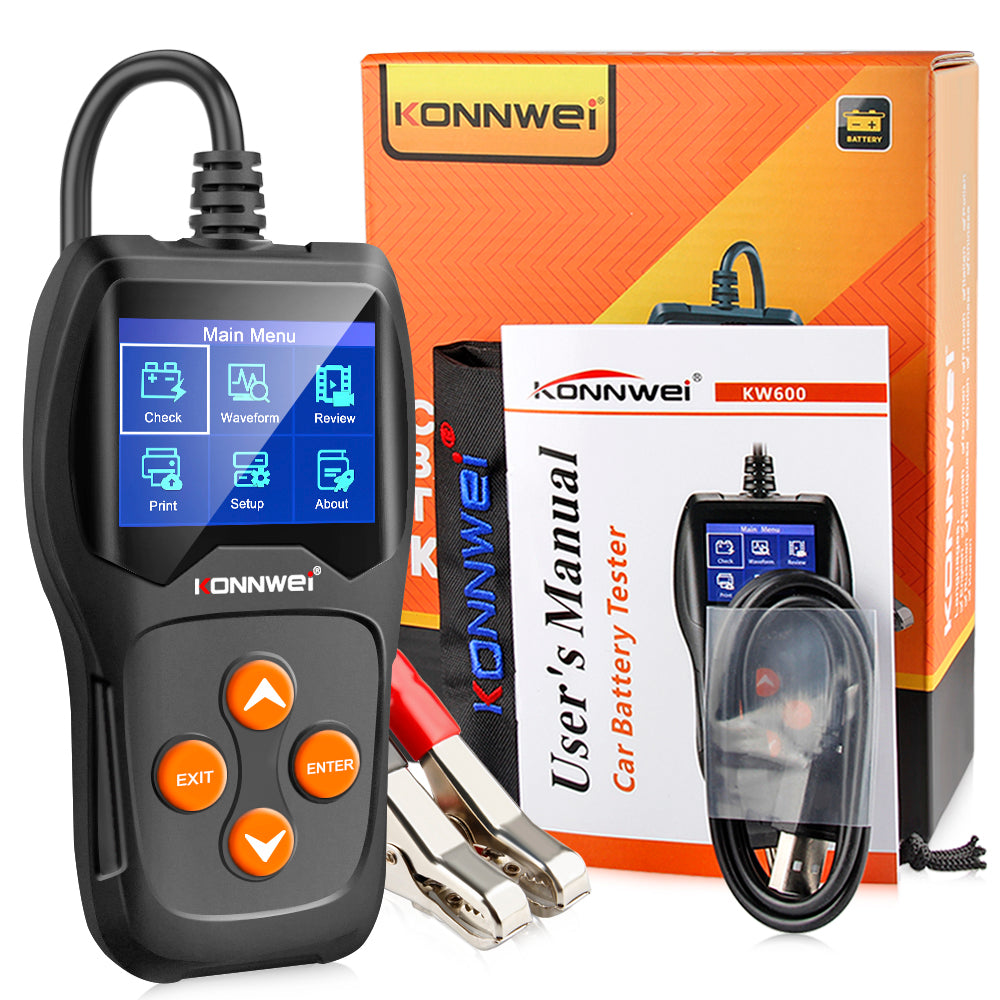

       1* KONNWEI KW600 Battery Tester Unit

     1* User's Manual

     1* USB Cable for upgrade and print

     1* Safe packing box (plastic protection inside)
