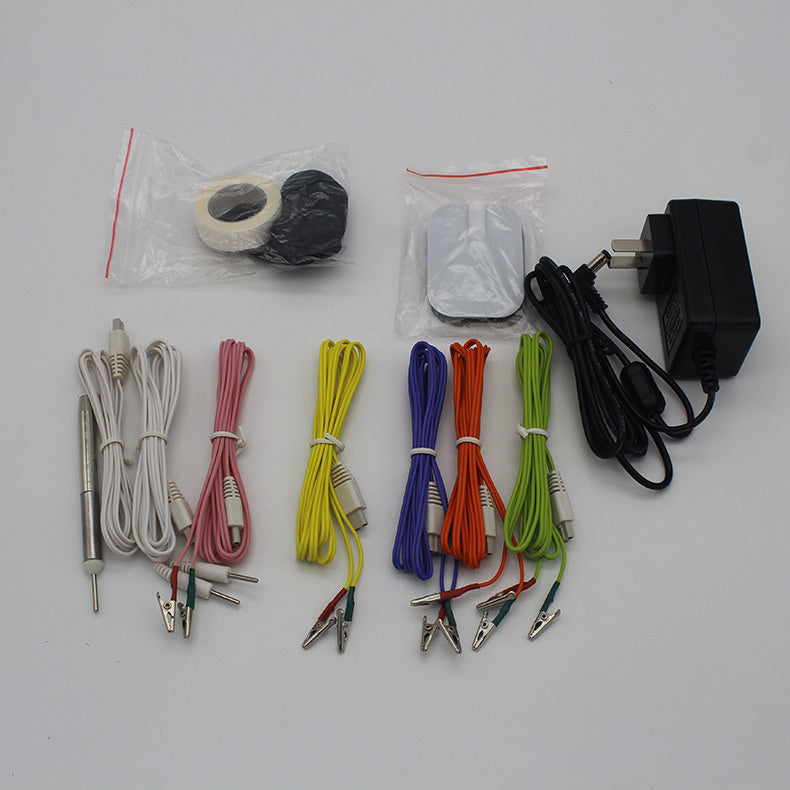

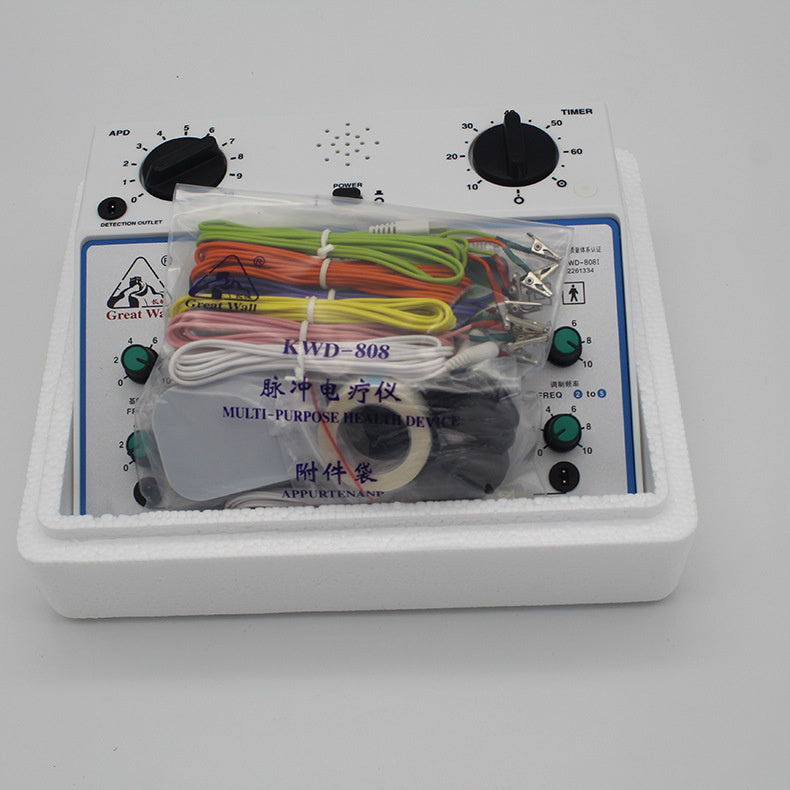

Package included:
- 1x Main Unit
- 1x Acupoint Detecting Pen
- 5x Output Electrode Wires
- 1x Inserting Output Electrode Wires
- 10x Small Electrode sticker
- 2x Big Electrode sticker
- 1x Fixed tape
- 1x English Instruction manual
- 1x Acupoint figure
- 1x Warranty Card
- 1x AC adaptor (110V-220V)
Description:

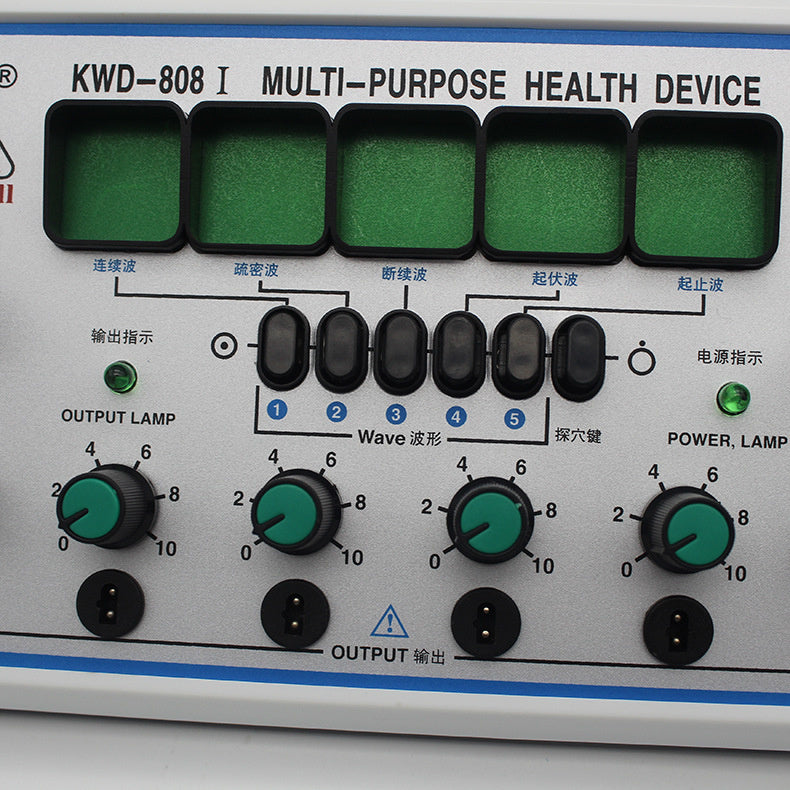

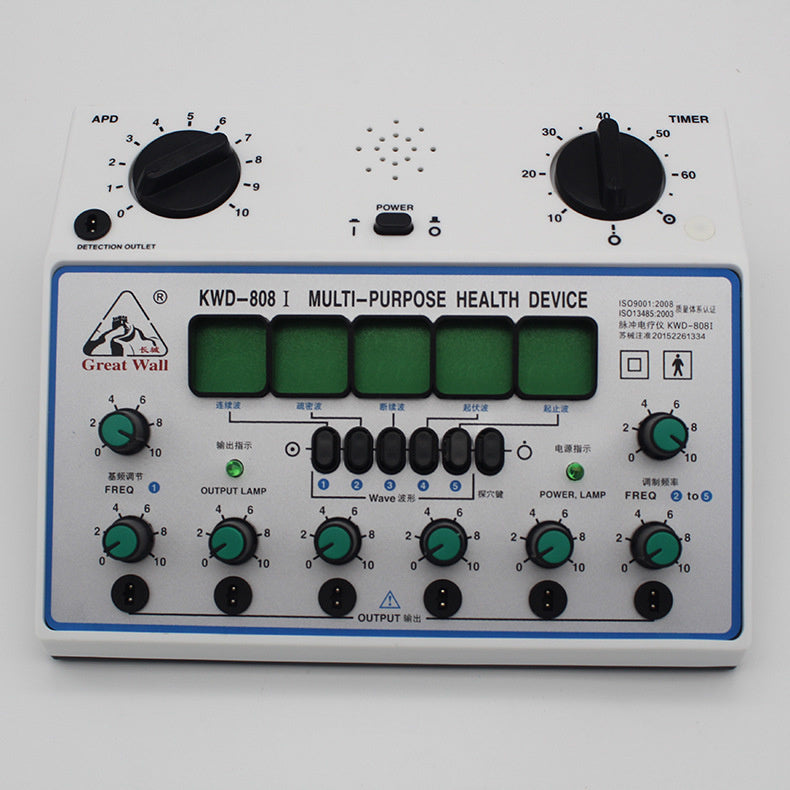

- KWD 808 I Acupuncture machine multipurpose health device is a new product that has been incorporated merits of kind both at home and abroad. This brings a new image to traditional acupuncture, the concept of no puncture, no needle with guaranteed therapeutic results.
- KWD-808 I electronic acupuncture treatment multipurpose health device with 6 channels. It can be used as a substitute for acupuncture and/or hand massage. It improves blood circulation in general, eliminate pain and spasm and strengthen the body's resistance to disease. It is also helpful on treating chronic arthritis, strain, stiff neck, lumbago headache, toothache impotence, insomnia, shoulder pain numbness of extremities trigeminal neuralgia, sciatica intercostal neuralgia, tiredness of eye and general tiredness.
Functions:
- Being an aid to detect acupoint.
- Having needle-less acupuncture pulse electric therapy.
- Having electro needle therapy.
- Replacing of hand massage.
- Music timer switch for Medical Treatment
- Operating output protection device
Features:
- The device is very safe and efficient in treatment because of its output pulse. Waves featuring low voltage, low frequency and having the same frequency range as the body.
- There are 5 types of pulse waves to be selected: Continuous wave, Dense-disperse wave, Intermittent wave, Ripple wave, Respiration wave.
Main Functions:
Replacement of hand massage
Acupuncture therapy
Six route output
Multi-pulse wave frequency LCD
Auto-timing Switch
Battery for operation
Main Specifications:
Specifications
500 ohm test load
Output channels
6 channels
Pulse shape
asymmetric biphasic triangular pulse wave
Pulse width
0.175 ms ± 30%
Voltage, max
less than 80 volts
Pulse Frequency
Continuous
1 to 100 Hz
Intermittent
1 to 100 Hz, interval time between groups is 5 sec
Dense
5 to 100 Hz
Distant-dense
One-fifth of the Dense Wave frequency, duration of distant
Duration of wave
Distant-dense
5 seconds
Dense
10 seconds
Continuous
15 seconds
Power source
6 standard 1.5 volt C batteries, AC adapter
Size, color, weight
10.25" x 7" x 2.5", beige, 1.9 lbs.
Main Features:
Six (6) output channels
New IC circuitry, no cross over, no interference.
Continuous, intermittent, and dense-disperse (modulated) wave forms
Adjustable frequency : 1 ~ 100 Hz
Durable alligator clip wires
Timer 0 ~ 60 minutes
Output safety alert - all outputs must be turned off before power on the unit.
Technical Specifications:
Output Pulse Road:6 Channels outputs
Output Pulse Wave:un-symmetry two-direction pulse wave
Output Pulse frequency: 1 ~ 100 Hz continuously adjustable
Output Current: 50 mA(Load 500)
Output Pulse width:0.20ms
Input Power:5.0VA(including AC Adapter)
Power Source : DC 9V (CR14, UM2), or AC adaptor
Intermittent wave : continuous wave
Frequency adjustable in 1~100 Hz, break-wave time is 5 seconds, continuous
machine Dimensions :260 x 190 x 110 (mm)
One pc Weight :1 kg.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
