Product Specification:

  [Product name]: Motorcycle multi-function LCD instrument

 【Product Model】: CS-1089A1

 【Product Net Weight】: 476G

 [Product gross weight]: 555G

 [Product material]: ABS material

 [Input voltage]: DC12V

 [Packing size]: 18.8*13.7*8.5CM

 [Product line length]: 58CM

 [Packing method]: Kraft paper box

 [Speedometer]: tire circumference is 1.85 meters, 4 magnets in a circle, liquid crystal display: 36Hz=63KM/H; when there is a speed, the speed light starts to flow;

 [Tachometer]: LCD display: 166Hz to 10×1000r/min

 [Undervoltage alarm]: None

 【Key Function】:

                      A. Short press the button to switch between total (ODO) and subtotal (TRIP).

                      B. In the total (ODO) interface, press and hold the button for 8 seconds to switch between metric and inch systems. The default is in metric system. After switching, it can be saved even if the power is completely cut off;

                      C. In the subtotal (TRIP) interface, press and hold the button for 4 seconds to clear the subtotal

                      D. In the total (ODO) interface, press and hold the button for 4 seconds to release, enter the clock setting, the hour flashes, the second does not flash, short press the button to increase 1, long press the button for 3 seconds to switch to minutes flashing seconds, seconds If the point does not flash, press and hold the button for 3 seconds to save and exit or automatically save and exit without operation for 10 seconds.

                      E. Oil alarm: When the oil alarm light is on, switch to the total (ODO) interface, press and hold the button for 8 seconds, the oil light will go out, and the next round of counting will begin.

 [Clock adjustment]: 12-hour system, cold boot at AM10:00, in the total (ODO) interface, long press the button for 4 seconds to release, enter the clock setting, the hour flashes, the second does not flash, short press the button to increase 1, Press and hold the button for 3 seconds to switch to the minute second flashing, the second point does not flash, and then hold down the button for 3 seconds to save and exit or automatically save and exit without operation for 10 seconds.

 [Backlight]: LCD backlight: white; when the high beam is turned on, the backlight brightness is reduced from 100% to 38%

 [LCD screen]: 6 o'clock

 [Sensor]: sensor, 4 magnets

 [Φ4 round head]: gray: 6 gears, 12 negative control, liquid crystal display; green and white: water temperature signal

 [Background parameter setting]:

 【1】. Press and hold the button first, then open the electric door lock, 5S enter the back door setting, divided into 6 interfaces

 【2】. Interface 1: Tire circumference value setting

 The first digit of 188 of the vehicle speed display shows 1, the total display is C-1850, 1850 means that the default tire circumference is 1850mm, thousands of flashes, short press the button to modify, 5s no operation, hundreds of flashes, cycle to the ones, ( Then jump to thousands of flashes). The perimeter can be set from 500-2600mm, press and hold the button for 3 seconds to save and enter the magnet number setting interface

 【3】. Interface 2: Magnet number setting

 The first digit of 188 of the vehicle speed display shows 2, the total cumulative display is C---02, 02 means the number of magnets, 1-12 can be set, short press the button to modify, long press the button 3S to save and enter the speed setting interface.

 【4】Interface 3: Speed setting interface

 The first 8-character of 188 of the vehicle speed display shows 3, and the total cumulative display shows C---2. 2 means that the engine is 2 cylinders. Short press the button to switch between 2 cylinders and 4 cylinders. Press and hold the button for 3 seconds to save and enter the two-line three-line fuel setting interface.

 [5] Interface 4: Two-line and three-line fuel setting (two-line and three-line should be set in the general items of the host computer)

 The first 8-character of 188 of the vehicle speed display shows 4, the total cumulative display is E-2, 2 means the second-line fuel gauge, set to 3-line display E--3, set to 2-line display E--2, short press the button to switch 3 lines/2 lines. Long press the button 3S to save and enter the cumulative reset interface.

 [6] Interface 5: Metric and British system settings (this point must be included in the general settings on the host computer)

 The first 8-character of 188 of the vehicle speed display displays 5, and the lower right corner displays km/h. Short press km/h and mph to switch. Long press the button 3S save to enter the mileage clear interface, the default value is km/h.

 [7] Total reset

 The first 8-character of 188 of the vehicle speed display shows 6, short press the button to clear, once to clear 200km, it can be cleared three times (into the back door setting and clear once), long press or power down to exit the back door setting

 feature:

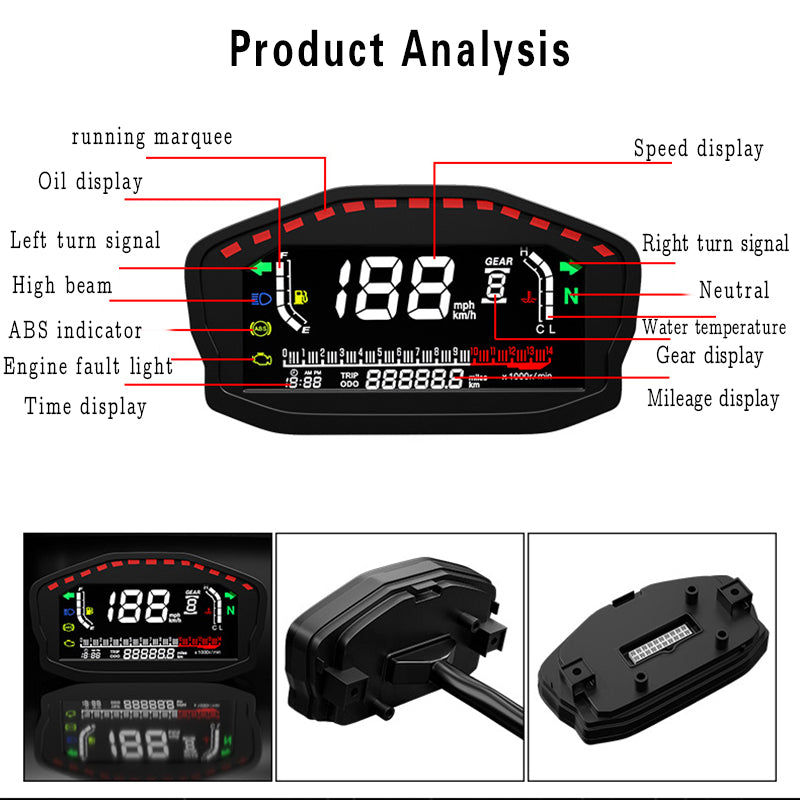

 1. Complete functions: functions include (speedometer, tachometer, fuel gauge, water temperature gauge), clear LCD screen, large viewing angle, soft vision, and relieve eye fatigue.

 2. Left and right turn signals: display the position of the vehicle's turn signals. Usually in the off state, when the owner lights the turn signal, the indicator light will light up in the corresponding direction.

 three. Gear (N, 1-6 gear display function, no need to add a gear locator)

 Product Name: Motorcycle Multifunction LCD Instrument Product model: CS-1089A1 Product material: ABS environmental protection material Input voltage: DC12V Product line length: 58CM Power supply voltage: DC 8-12V Case color: black Speed display: km/h, mph Speed display range: 0-199km/h (mile) Inside the display: <0.5 seconds Odometer display: 0~999999km (mile) Odometer display unit: 0.1km Itinerary display range: 999.9km (miles) Itinerary display unit: 0.1km Speed range: 0~14000r/min Time: 12H

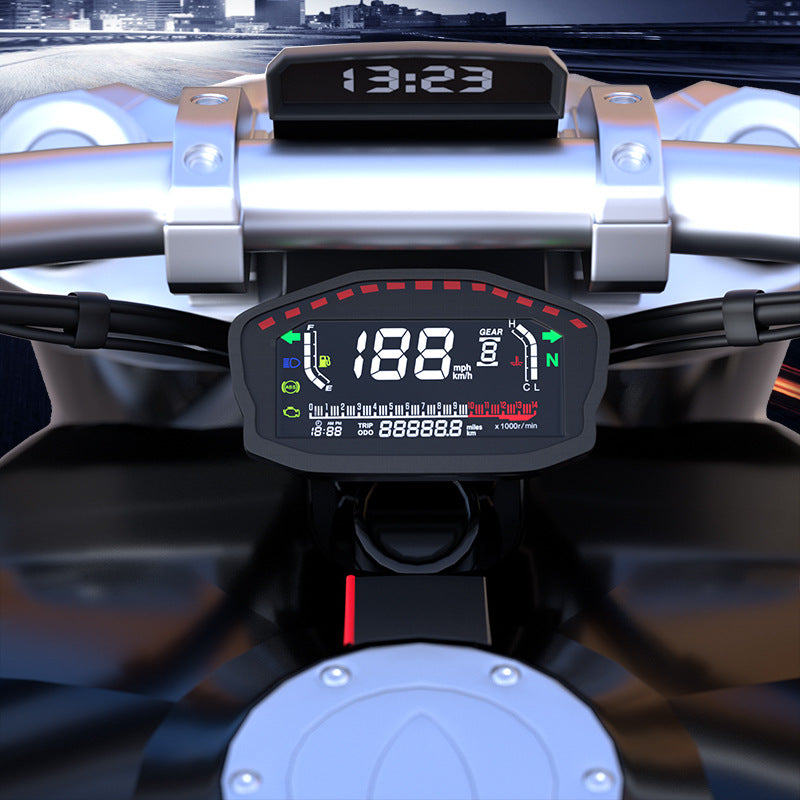

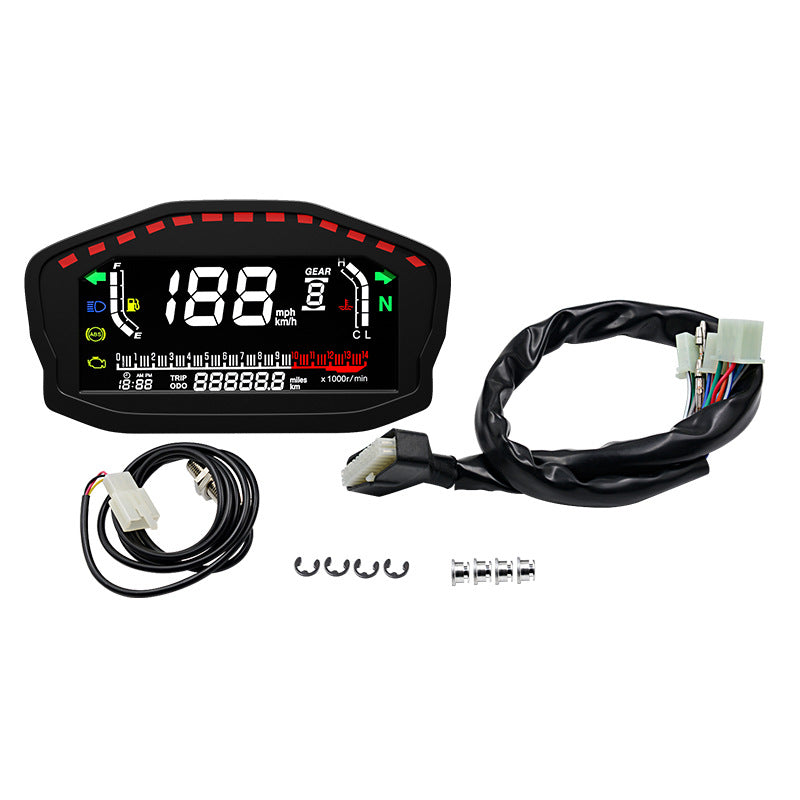

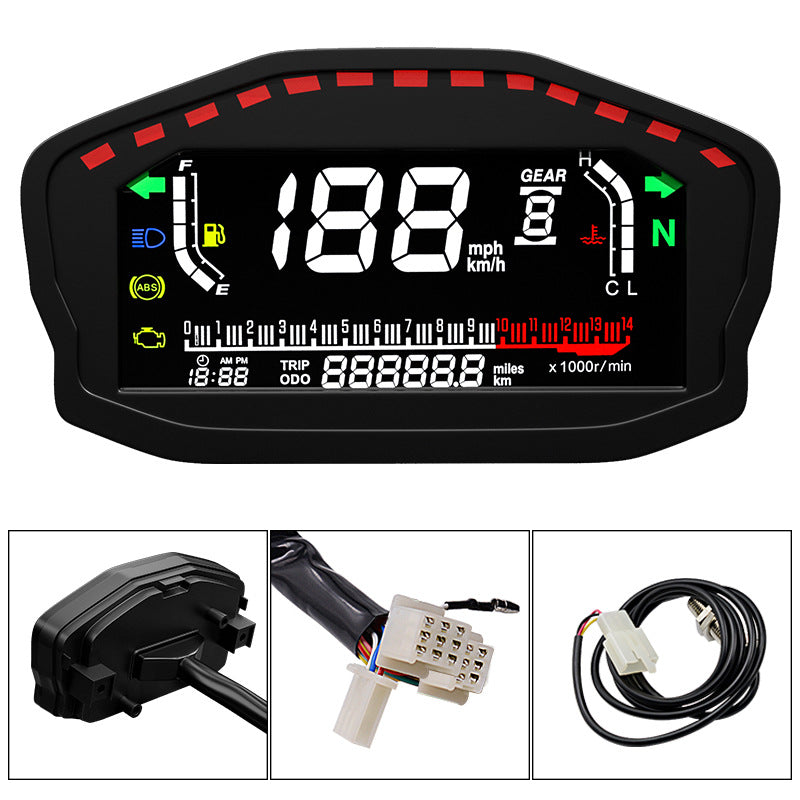

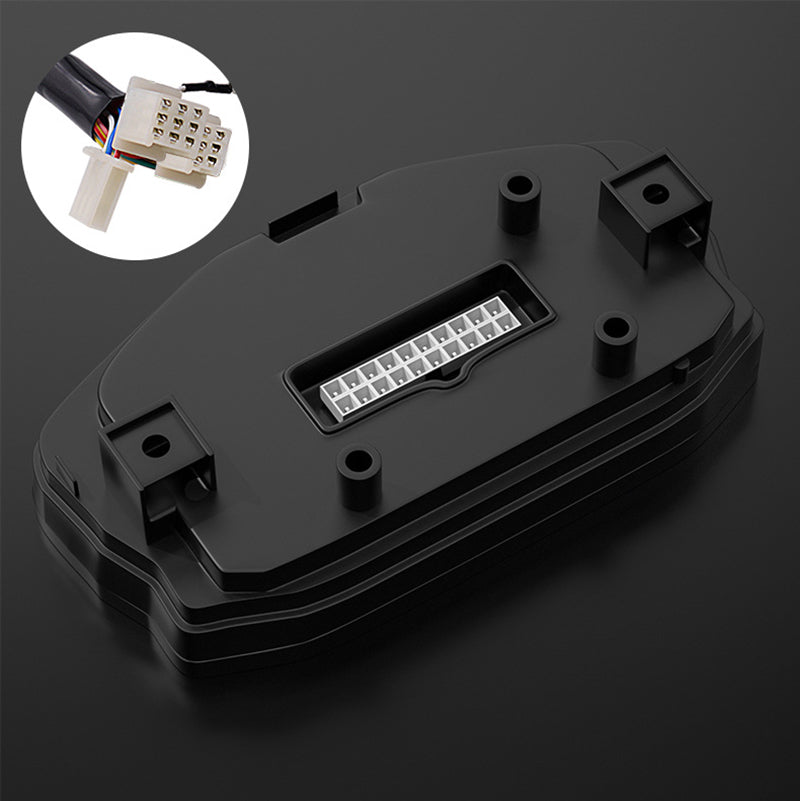

   Product Show
