Combustible Gas monitor adopts high-quality gas sensors, which displays safety and reliability with accurate measurement and stable performance. It has excellent sensitivity and repeatability, easy to use and maintain, and meets the requirements by safety monitoring in industrial site for high reliability of the equipment. The shell is made of highstrength engineering plastics and compound non-slip rubber, dust and explosion-proof, with high strength and smooth handfeel.

 Features:

 Using high performance electrochemical sensor, with excellent sensitivity and excellent repeatability.The instrument adopts embedded micro control technology, simple operation, complete functions, high reliability.

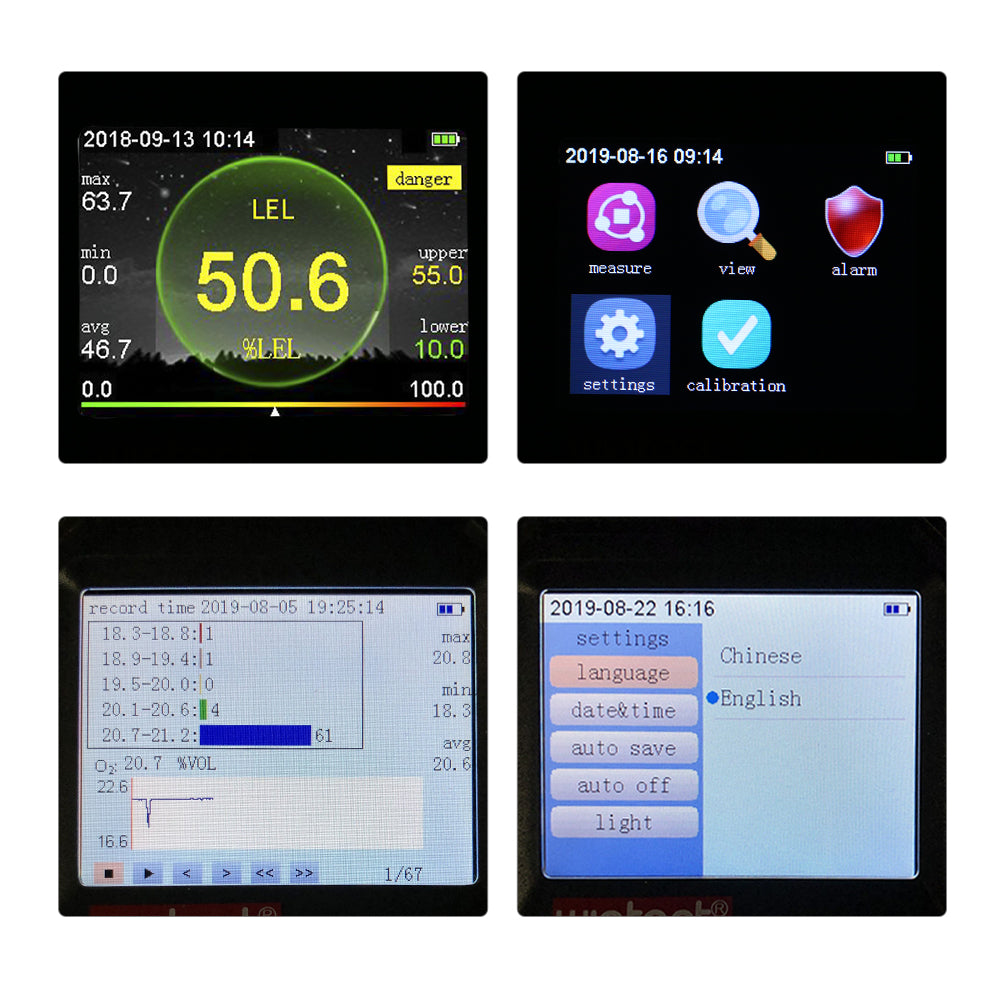

 Color-screen display, user-friendly interface. There are five icon options in the main menu, namely, real-time measuremnet, checking record, alarm setting, system setting, and calibration.

 Data recording and review function, continuously record 12,000 data. Review function display bar graph and waveform easy to view data.

 Bilingual Choices: Chinese and English.

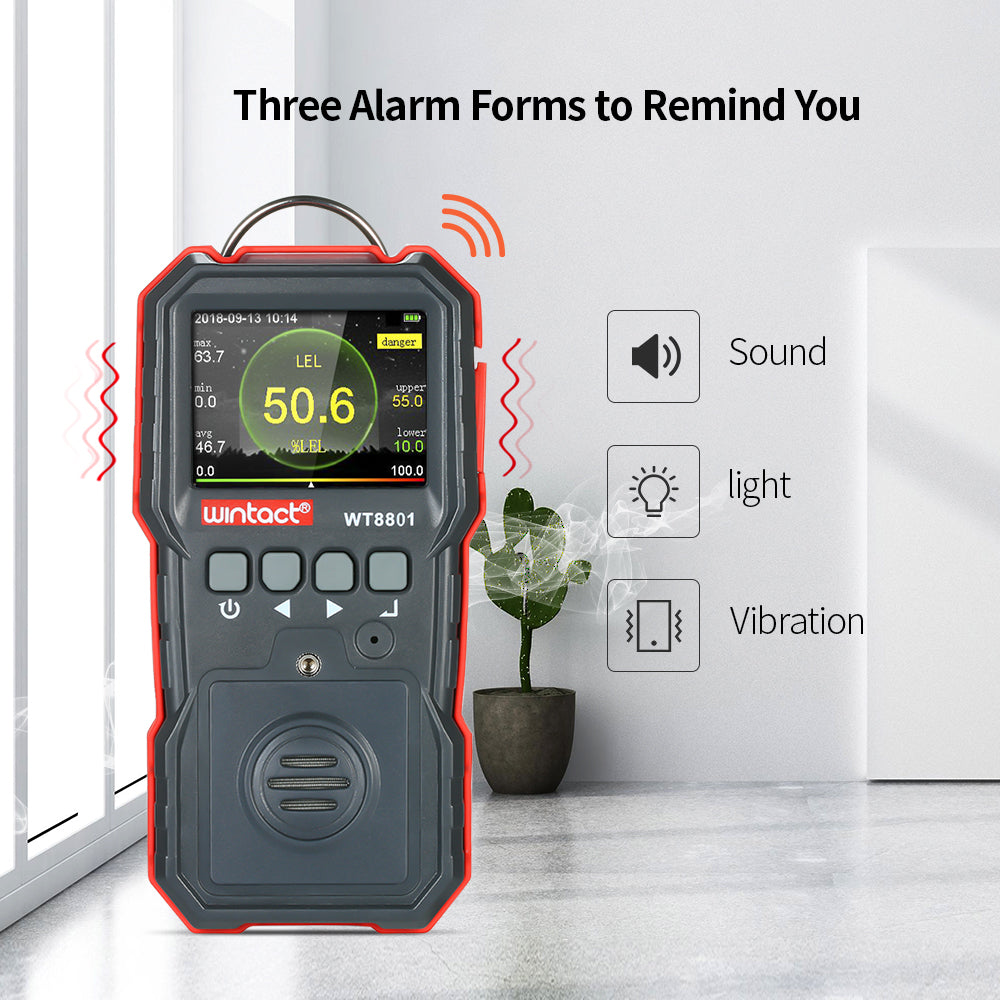

 Three alarm forms: Sound, light and vibration.

 Battery power real time display.

 Can be widely used in petroleum, chemical, environmental protection, metallurgy, refining, gas transmission and distribution, biochemical medicine, agricultural research, etc.Can be used to detect some hydrocarbons(ethane, natural gas, ethane, propane, propane, pentane, hexane, gas oil).

 Specification:

 Color: Black + red

 Material: ABS plastic

 Test Gases: Combustible gas (LEL)

 Display Unit: %LEL

 Measurement Range: 0~100%LEL

 Resolution: 0.1

 Accuracy: ≤ ±5%FS

 Data Recording: 12,000 data

 Response Time(90%): Less than 30 seconds

 Alarm: Sound and light vibration alarm

 Alarm Point: Adjustable

 Working Voltage: DC3.7V, 1800mAh

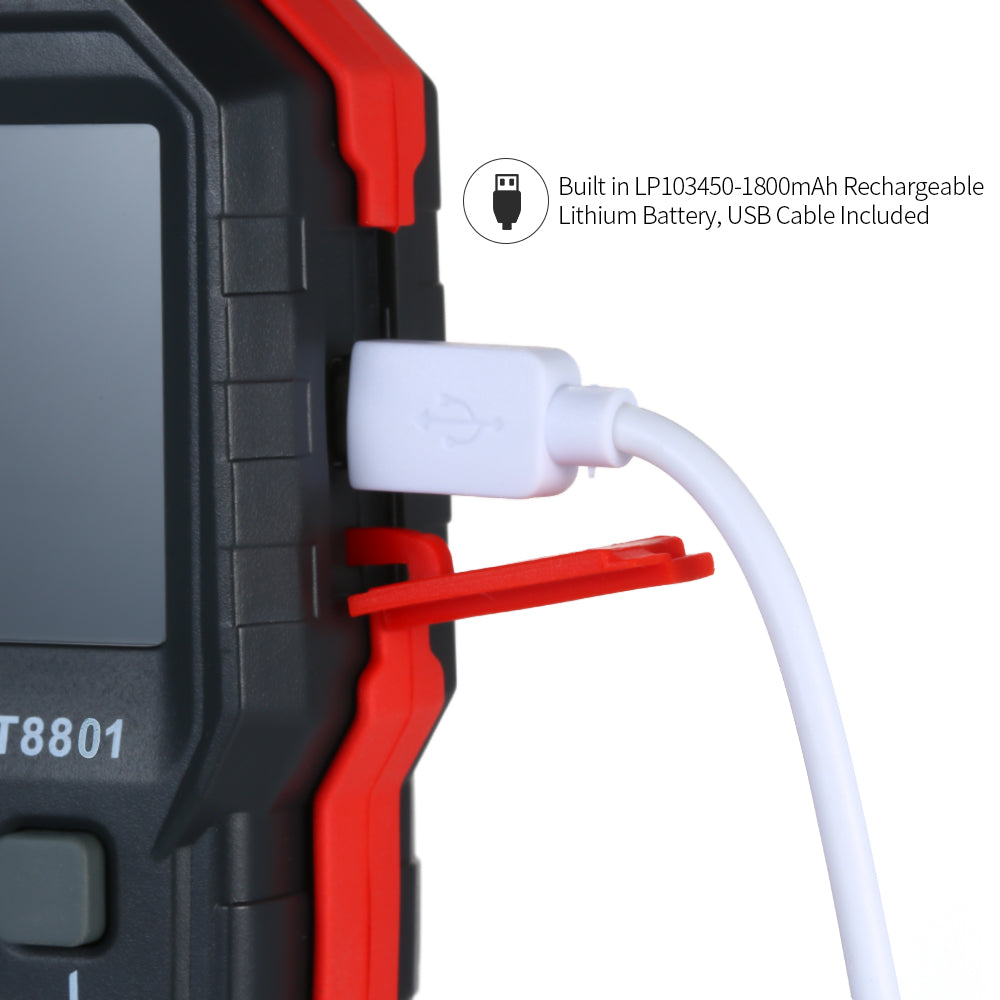

 Battery Model: LP103450-1800mAh rechargeable lithium battery

 Explosion-proof Certificate NO.: CNEx 18.5122

 Explosion-proof Mark: Ex ib IIB T3 Gb

 Operating Conditions: -20～50℃ / -4～122℉, < 95%

 Storage Conditions: -10～50℃ / 14～122℉, < 85%

 Storage Case Size: Approx. 255 * 188 * 63mm / 10.04 * 7.40 * 2.48in

 Item Size: Approx. 138 * 71 * 49mm / 5.44 * 2.80 * 1.93in

 Item Weight: Approx. 229g / 8.09oz

 Package Size: Approx. 27 * 20 * 6.5cm / 10.63 * 7.88 * 2.56in

 Package Weight: Approx. 795g / 28.04oz

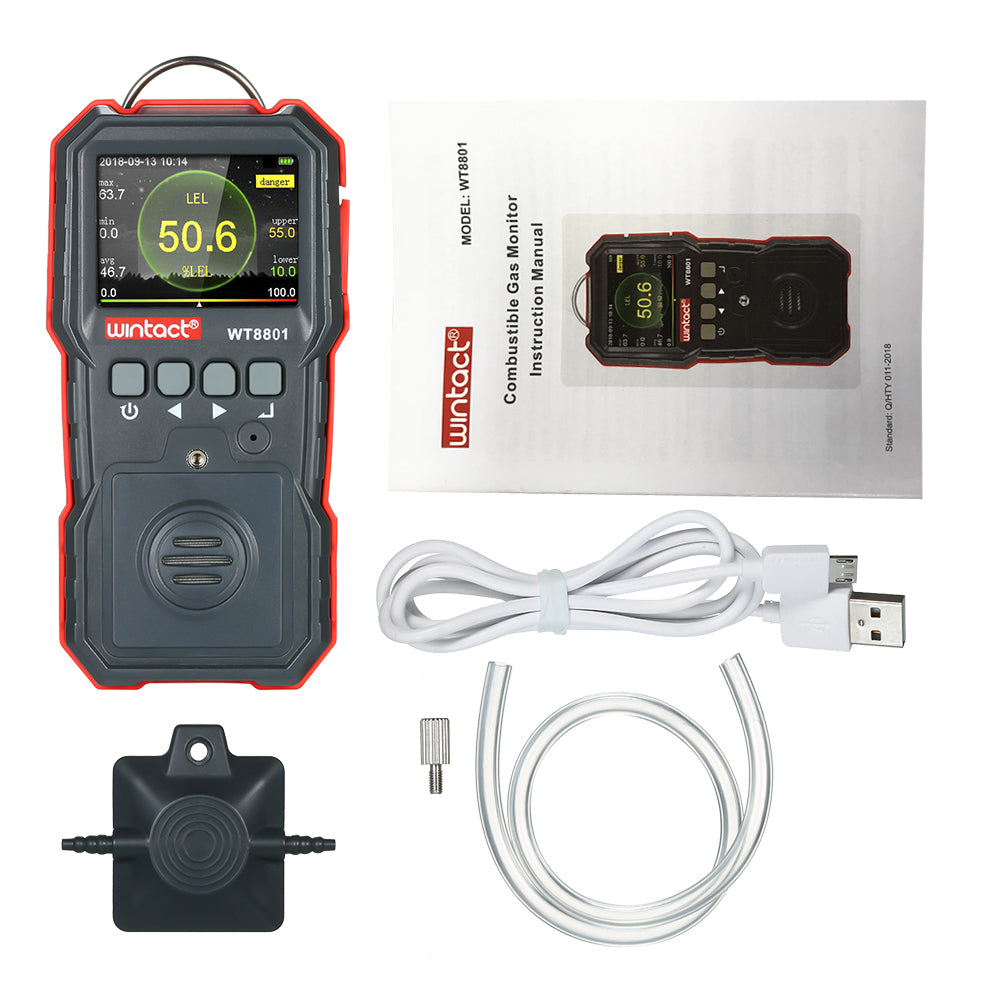

 Package List:

 1 * Combustible Gas Detector

 1 * Plastic Pipe

 1 * USB Cable

 1 * Gas Calibration Cover

 1 * Storage Box

 1 * User Manual (English)
