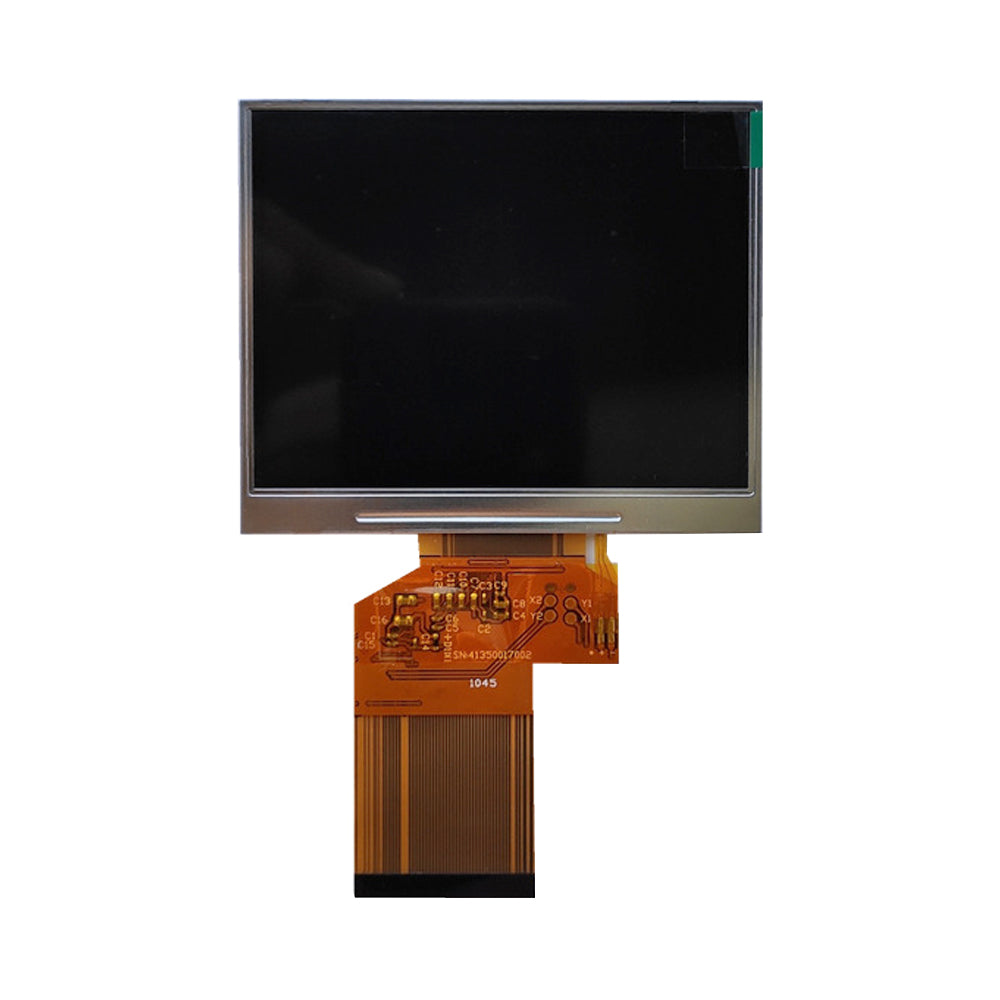

Panel type: a-Si TFT-LCD, LCM
Number of pixels: 320 (RGB) × 240, QVGA
Display area: 70.08(W)×52.56(H) mm
Moldable area: 73.03(W)*55.50(H)mm
Appearance size 76.9(W)×63.9(H)×3.46(H)mm
Panel Brightness: 300 cd/m² (Typ.)
Contrast: 400:1 (Typ.)(TM)
Viewing angle: 60/60/50/55 (Typ.) (CR≥10)
Working irrigation degree: -20~ 70 ℃
Storage temperature: -30 ~80℃

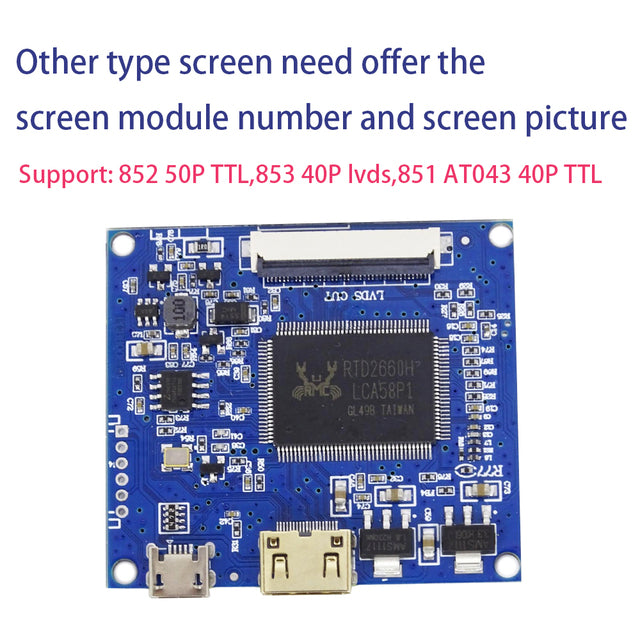

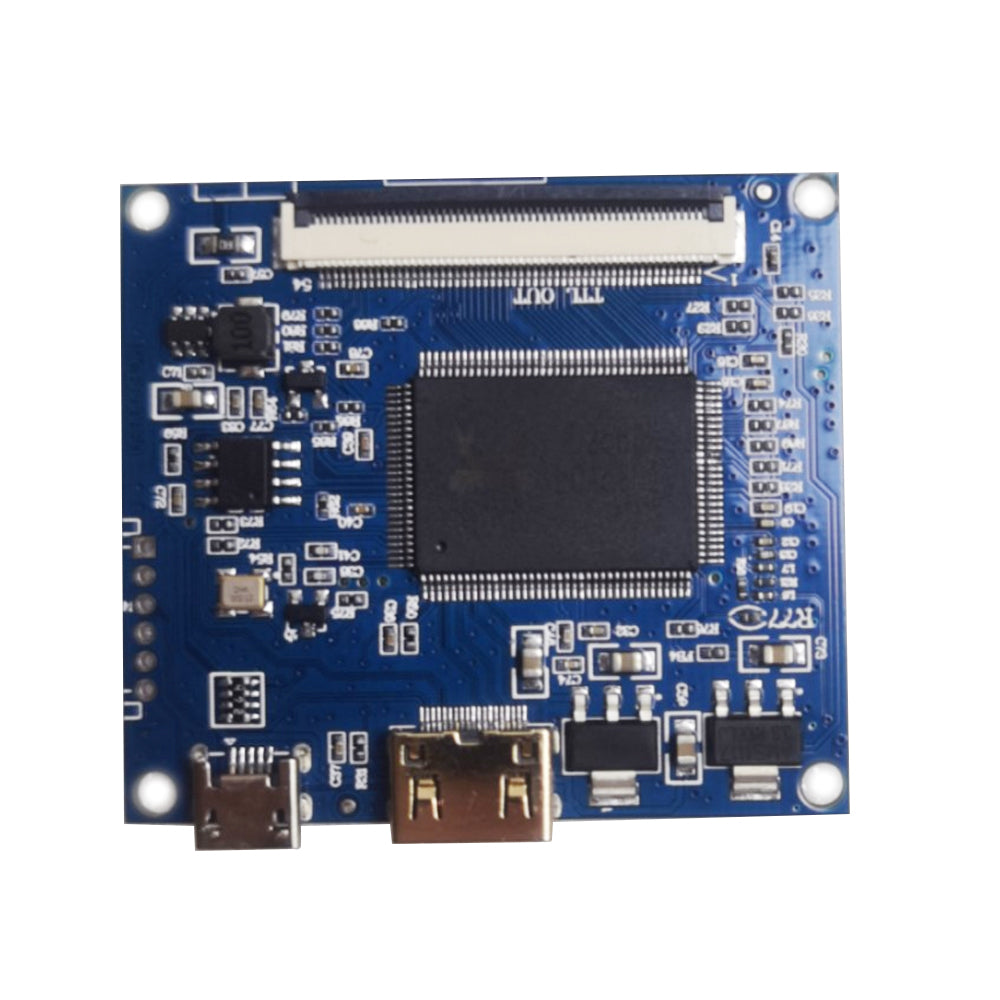

This driver board can
1, MIRCO USB power supply interface, 5V standard power supply, need more than 1.5A2, no buttons and no remote control, automatically converted to HDMI channel 3 after plugging in HDMI, 1 HDMI signal input, and this IC supports HDMI1.2
4, HDMI is a high-quality MINI gold-plated seat

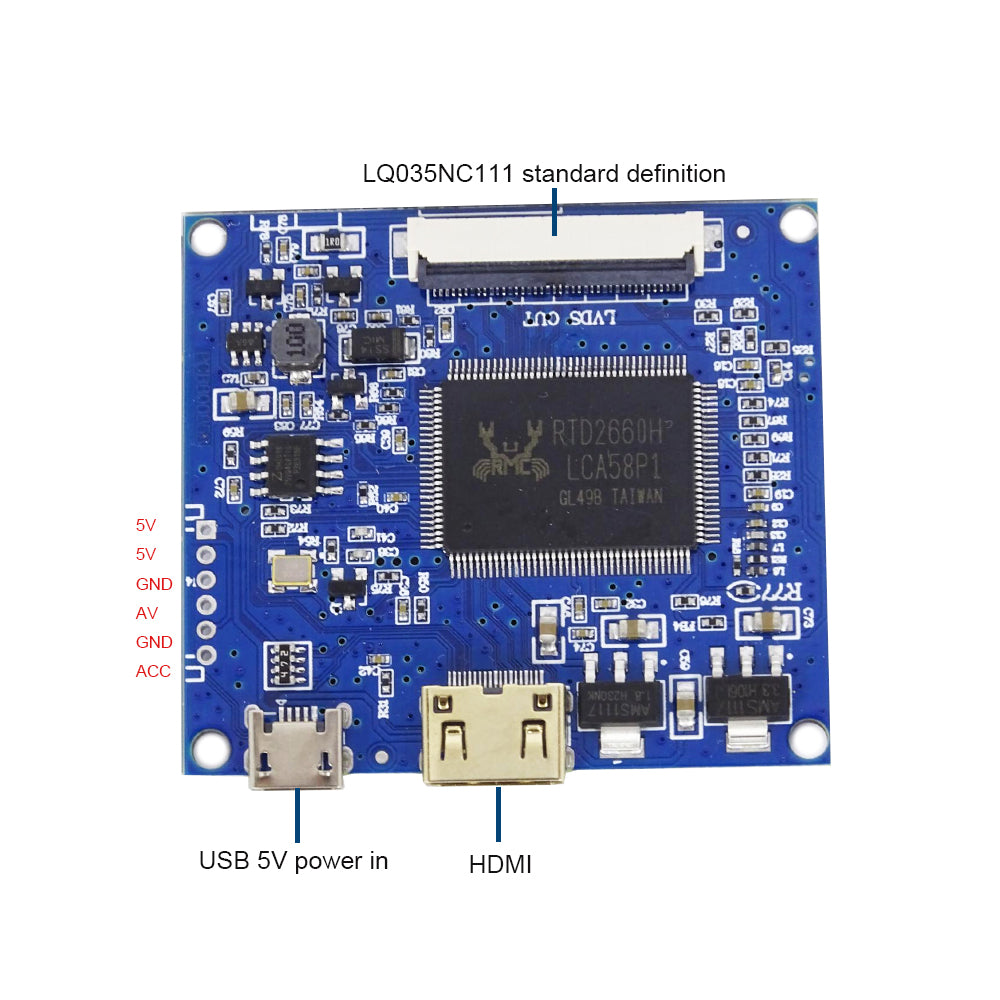

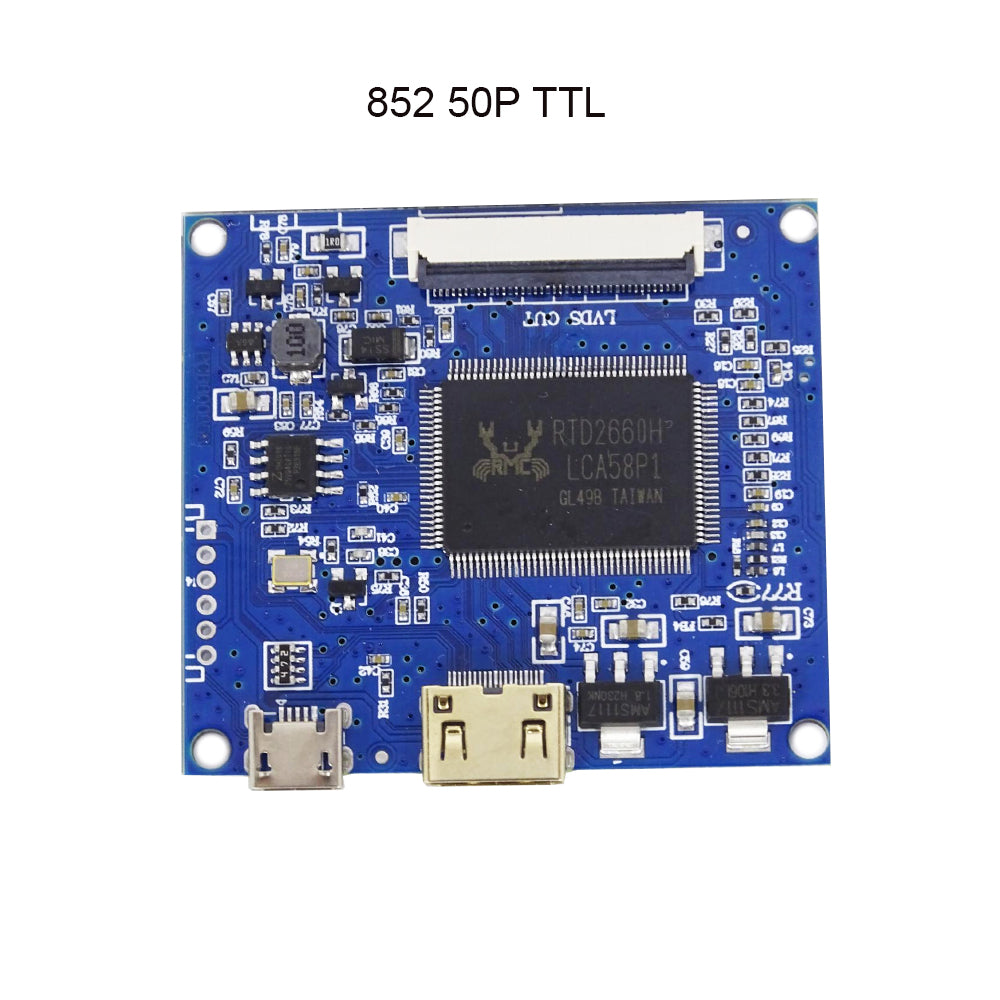

5. The screen interface adopts the LQ035NC111 standard definition of high-quality gold-plated connectors with a pitch of 54PIN-0.5. 6. The USB--DM+DP signal can be extended externally
7. The driver board adopts special circuit design, which can drive LED backlight within 10V, and supports maximum current output of 18OMA. 9. Only supports TTL signal output.

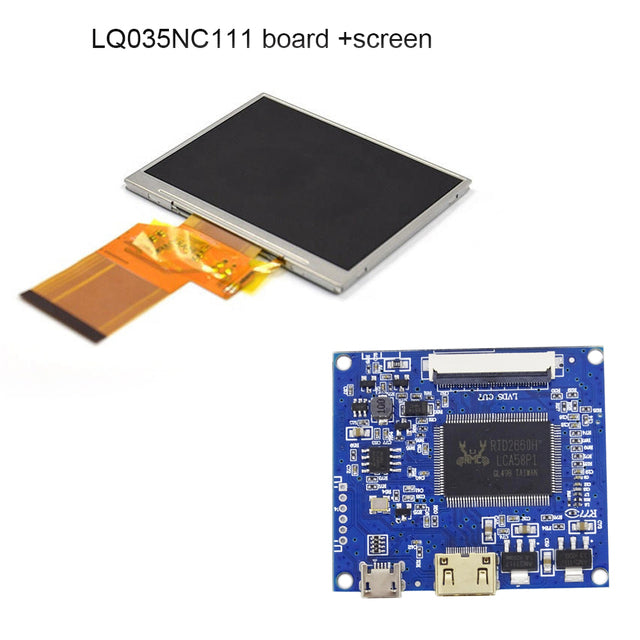

It can support general 54PIN LCD screen such as LQ035NC111, the screen resolution is 320x240
This driver board adopts the full patch process, the relevant parameters are designed according to the industrial standard, and the shipping standard is according to the civil standard, but the relevant test will not be carried out. If necessary, please test it yourself
10. This driver board adopts the FPC seat on one side. Because the FPC seat is too long, during use, please open or press down on both sides at the same time to avoid the pressure service breaking.
2. Interface function description Bit number function description remarks
HDMI HDMI input HDMI standard is 1.2USB1 power input 5V
J4 power input 5V
CON8 touch output port screen angle pass-through
CON6 TTL-4OPIN signal output see AT043TN24V.1 definition
