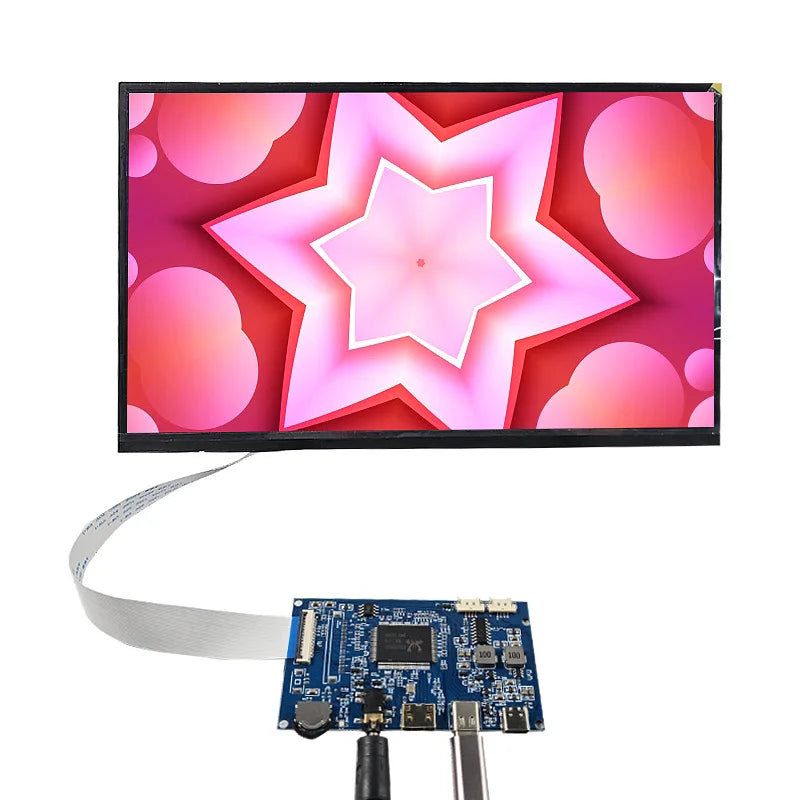

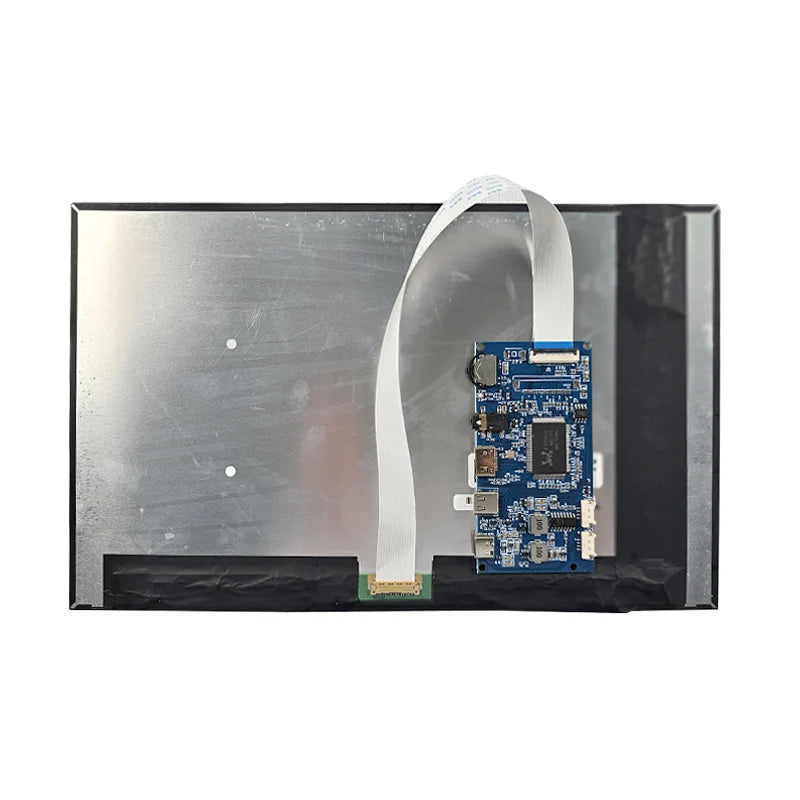

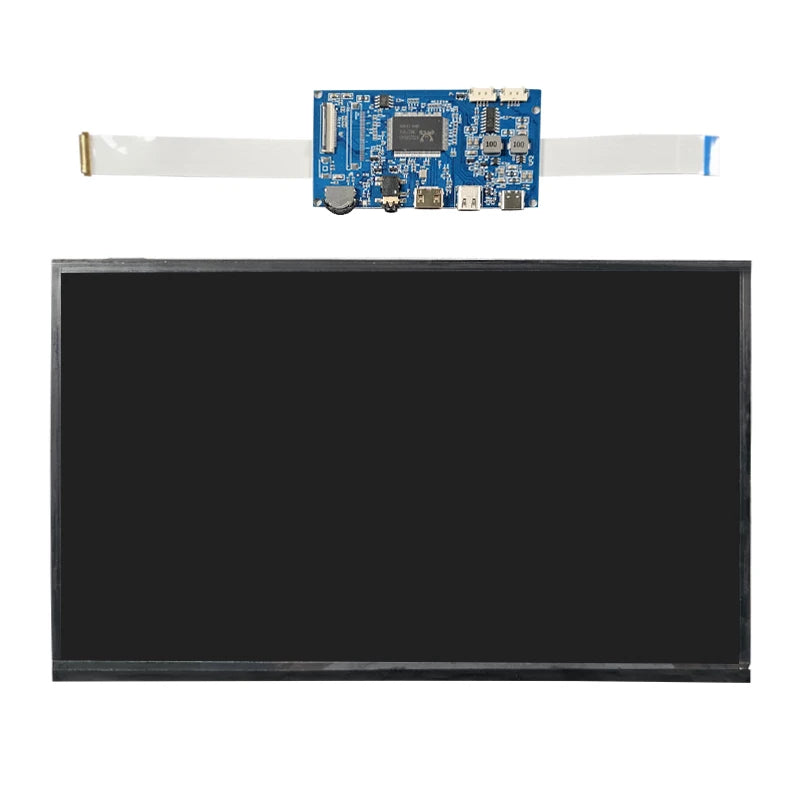

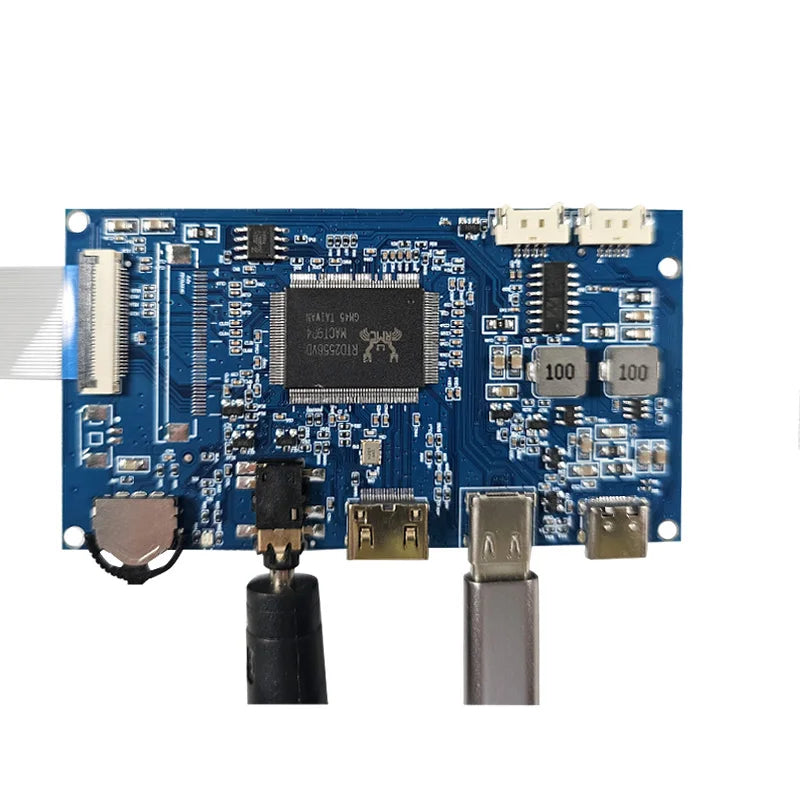

LCD Controller Board:
Type C Control Board Work for 30Pin EDP LCD Screen
Input Power Adapter: Type-C 5V 1.5A
HDR: Support
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Input: Type-C-
Audio Output: Speaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski
Nederlands Korean Japanese
Board Size: 90mm x 53mm x 5mm
11.6" LQ116M1JX 1920x1080 LCD Screen:
Display Mode N, ADS, Normally Black, Transmissive
Resolution 1920（RGB)×1080
Outline Size 270.62 × 159.76 × 2.59(H×V×D)
Display Area 256.32 × 144.18 (H×V)
Brightness 300 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (2 Lanes) , Connector , 30 pins
Backlight WLED
Input Voltage 3.3V (Typ.)
