Enhance your car audio experience with this LED music spectrum display, perfect for monitoring audio levels with precision. This device offers multiple modes for different visual effects and is powered by DC 12V, making it ideal for use in cars. The VU meter and analyzer utilize DSP technology for accurate audio analysis, ensuring a vibrant and dynamic light show that synchronizes with your music.
Input voltage:USB 5V/DC 7-24v
Input power:1W
Frequency response:50Hz - 20kHz
Electrical Parameters:
Spectrum display:
Sensitivity:Greater than 40db (@ 1kHz)
Weight:160g
Channel:dual/mono switchable
Resolution of 20 segments and 15 levels
DSP:
Input gain adjustment range - 6 - +42db
Output gain adjustment range - 52 - +12db
AGC adjustment rate:- 3db - 27db
Modulation range:± 8 degrees
EQ frequency point:logarithmic 15 segments
EQ data group:6 groups of presets+10 groups of personal settings
The device has a built-in silicon monitor, which can be used without microphone.
Paddle operation switches display mode, encoder operation controls DSP sound effect
Type:With DSP
Colour:Black & Transparent & White
Material:PCB+electronic components+acrylic

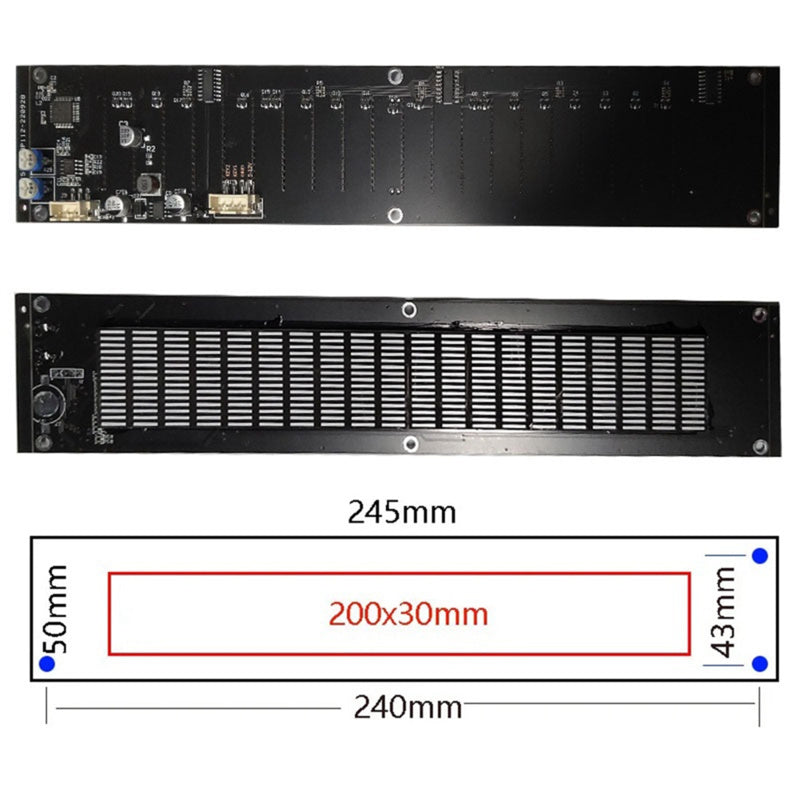

Size:250x50x20mm
Package Contents:
1 * main unit with acrylic shell
1 * USB to Type-C data cable
1 * 3.5mm to RCA lotus head audio cable
1 * Instructions in Chinese and English
Only the above package content, other products are not included.

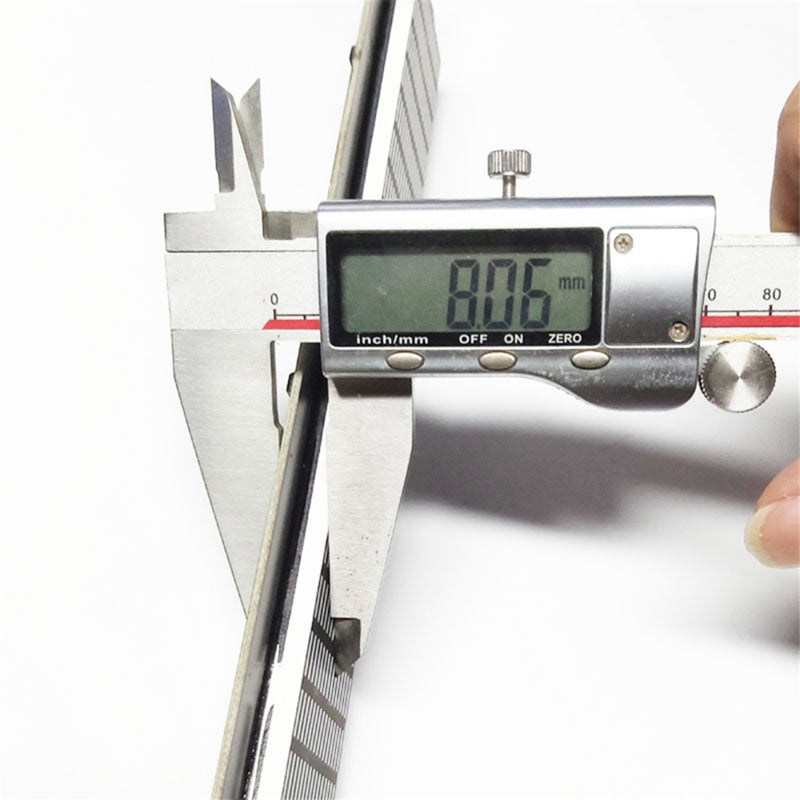

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
