Features:
*High quality metal sheel.
*Automatically identify 7 types of Impact devices for special application
*Freely switch to hardness scales HRB, HRC, HV, HB, HS,HL
*Direct calibration on HL,HRC,HB.
*Test at any angle, even upside down
*Large LCD screen with back-light, showing all functions and parameters
*Conversion to tensile strength (U.T.S)
Application Fields:
*The bearings and other parts, heavy workpieces, metal material, pressure vessel, failure analysis of turbine generator unit and equipment.
*Mechanical or permanent assembly components have been installed, the test space is very narrow, requires the original record regular test results.
*Large workpiece within a wide range of more rapid test measurement site
Measuring Materials:
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel
Specification:

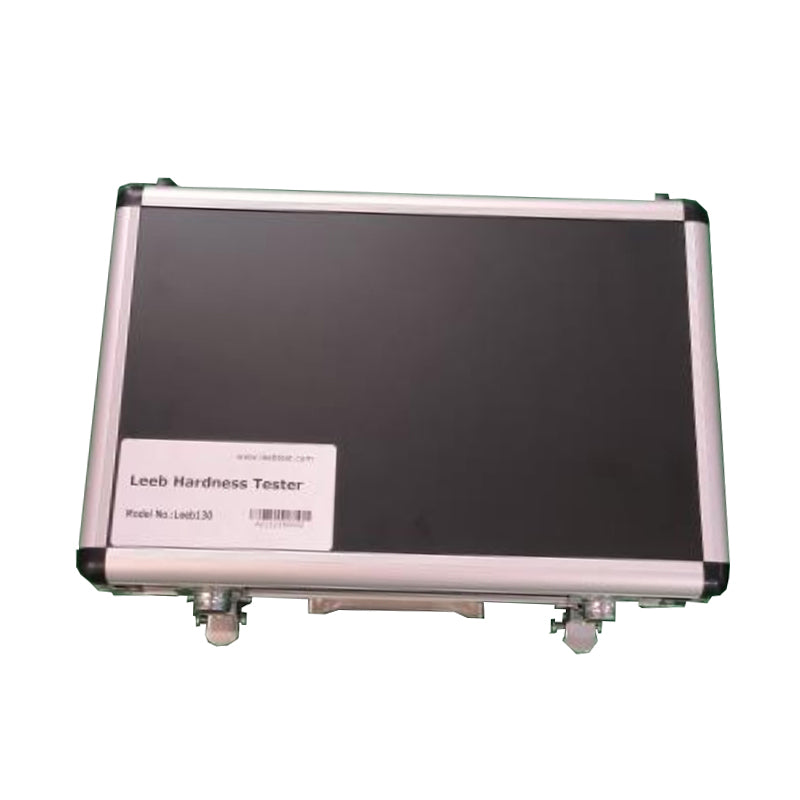

Leeb130
Measuring Range
(170-960)HLD, (17.9-69.5)HRC, (19-683)HB, (80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB
Hardness parameter
HL, HRC,HRB, HS,HB,HV
Accuracy
Within±0.5%(HLD=760)
Display
LCD with backlight
Memory
1250 groups
Battery type
2AAA
Operating temperature
-20 to +60 degree
Dimensions
130×70×25mm
Impact Device Type
D,DC,DL,D+15,G,C,E
Weight
450g
Standard Delivery
Main unit,Impact Device type D,Operation manual,Power adapter,Small supporting ring,Cleaning brush,High block and Certificate,Batteries,Test block with calibration certificate
Optional Accessories
Impact DC,D+15,DL,G,C,E,Shaped support ring,Paper for printer
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
