Linear Stage Actuator 100mm Stroke Ballscrew Double Optical Axes Rail Guide Manual Slide Stage

Name: Linear Stage Actuator 100mm Stroke Ballscrew Double Optical Axes Rail Guide Manual Slide Stage
Brand: mickcara
SKU: 8606473943930
Price: 359.00 USD
Availability: InStock

2 sold in last 8 hours

Brand: mickcara

Product Code: 8606473943930

Availability: In stock

🔥BUY 3 GET 4th 50% OFF 🔥 CODE:MK50
🔥BUY 2 GET 3rd 35% OFF🔥 CODE: MK35
🔥BUY 1 GET 2nd 35% OFF🔥 CODE: MK20

$359.00

Quantity:

Subtotal: $359.00

283 customers are viewing this product

Tags:

Description

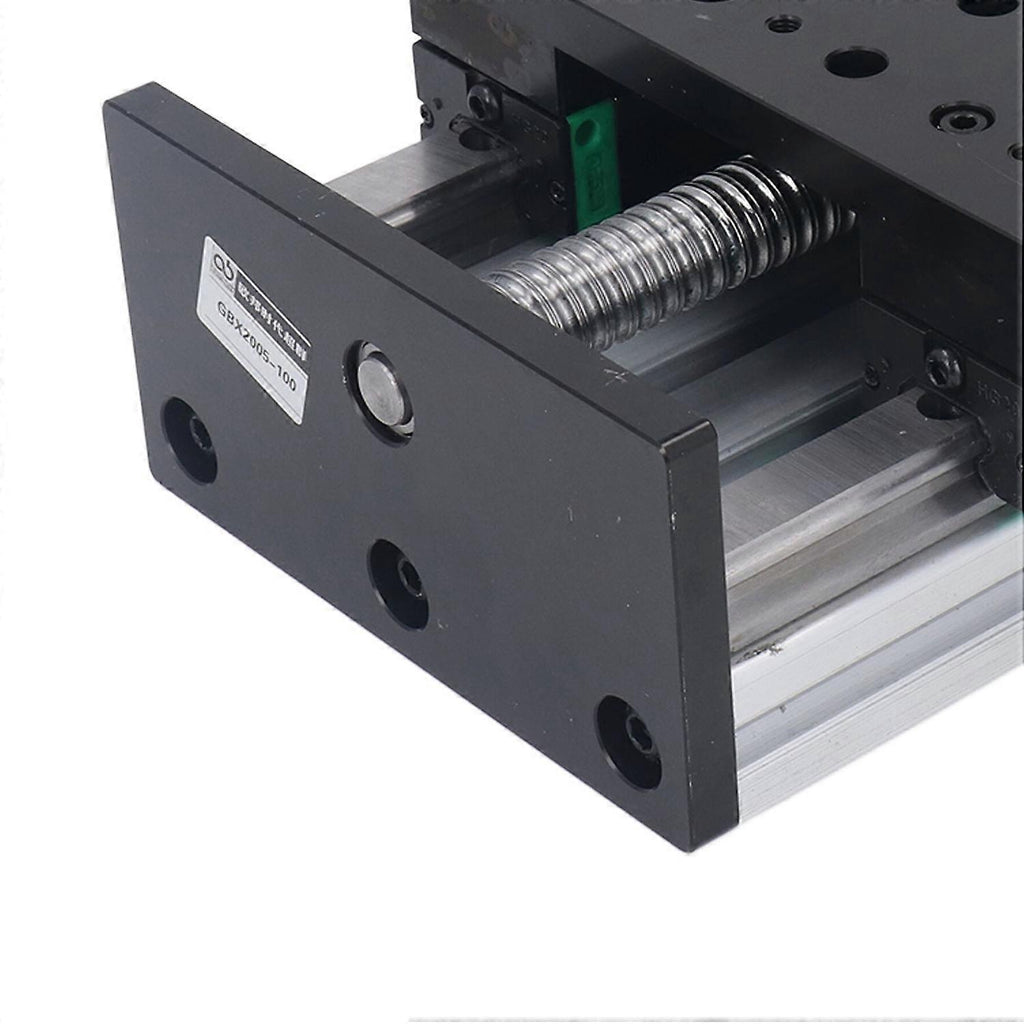

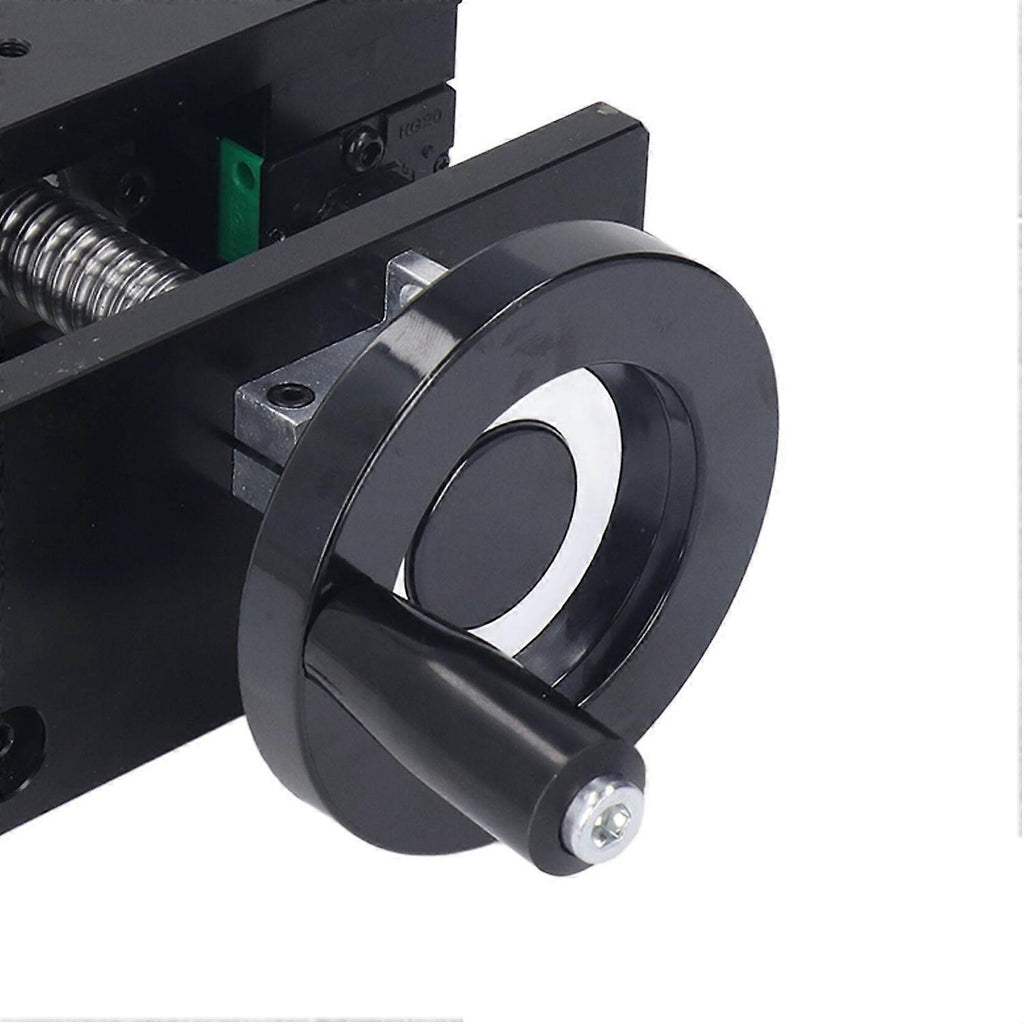

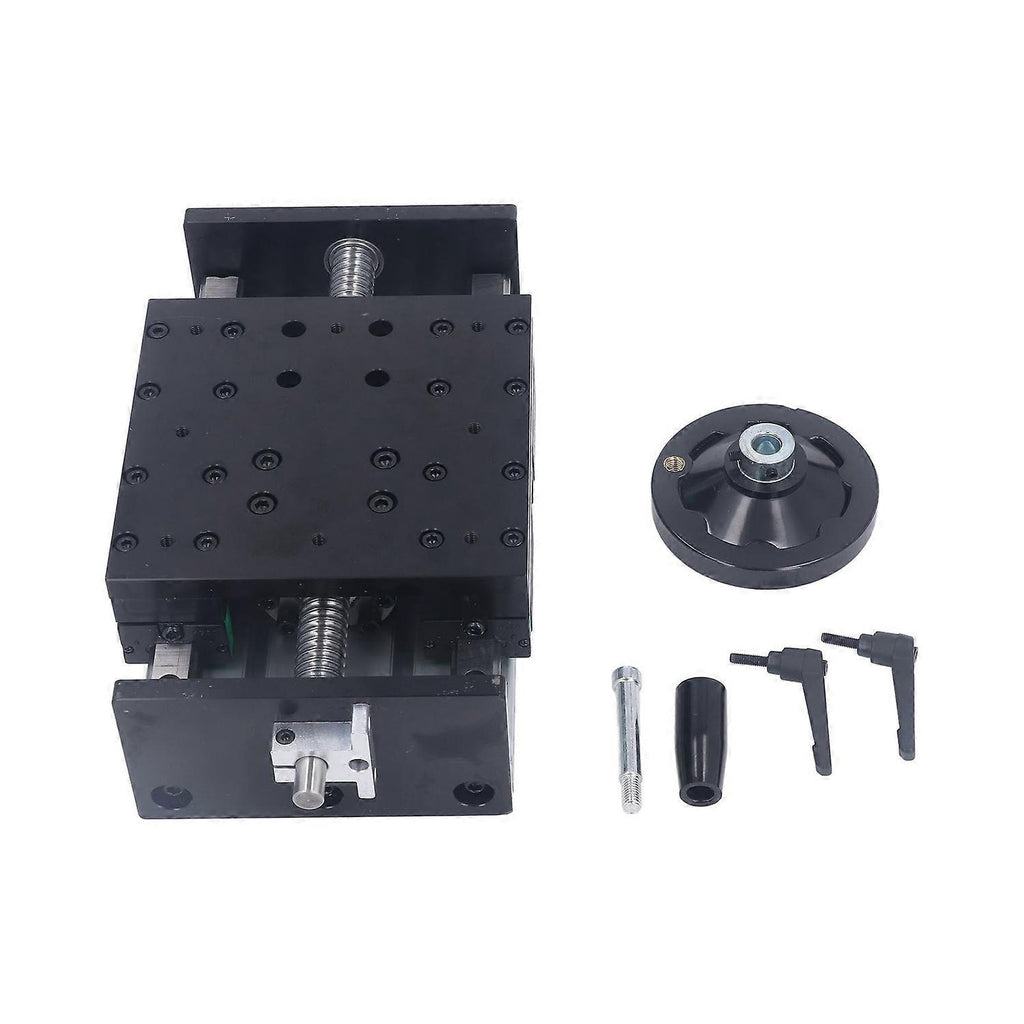

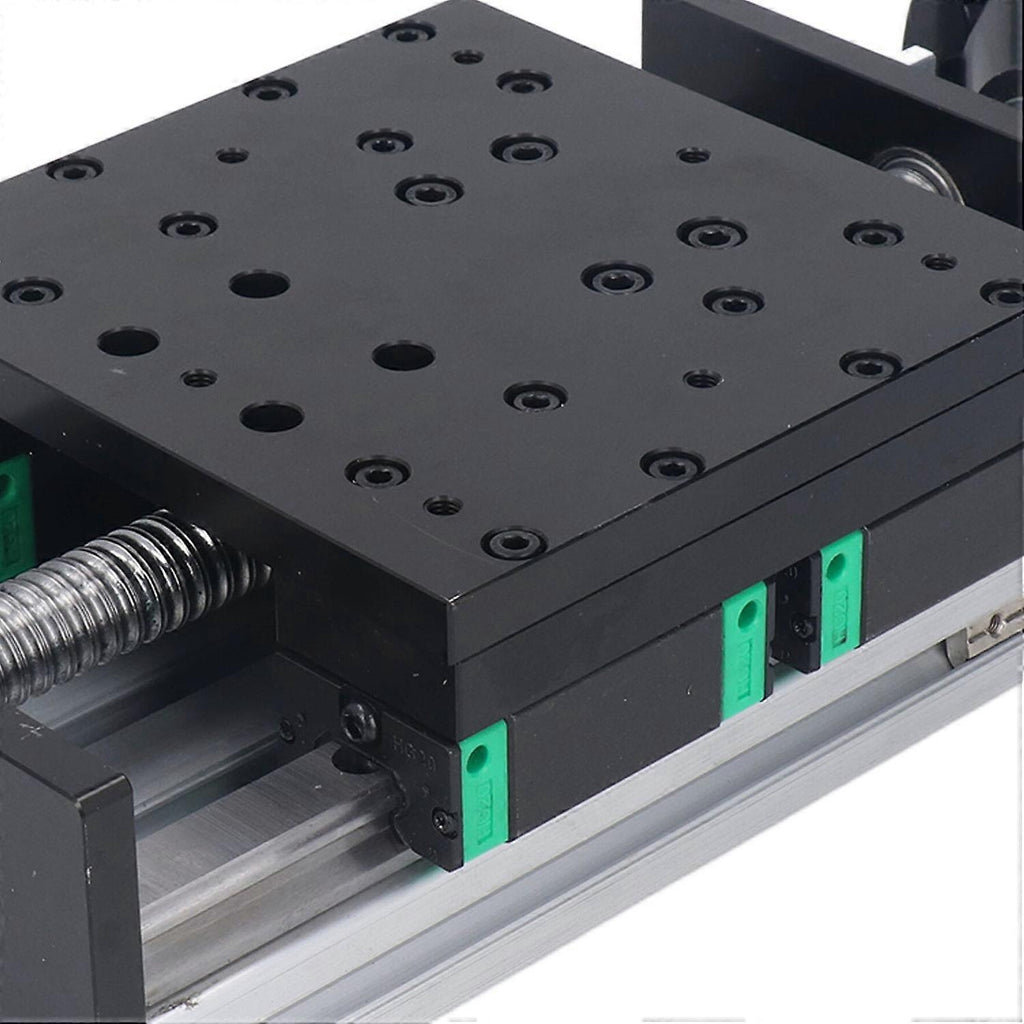

Feature: 1. TECHNICAL PARAMETERS: Linear stage actuator is made of aluminum alloy with effective stroke of 100mm, maximum horizontal load capacity of 100kg and maximum vertical load of 80kg 2. STABLE AND LOW NOISE: The use of 20mm diameter ball screw, greatly increase the load capacity of the product, equipped with double track, possess high stability, not easy to shake. Easy to use, smooth operation, fast speed with low noise 3. STANDARD M5 MOUNTING HOLES: M5 movable nuts on the sides and bottom make the installation of the sliding table more flexible 4. BEAUTIFUL AND PRACTICAL: Standard aluminum alloy profile structure slide stage, surface sandblasting, beautiful and rust prevention, bring accurate hole CNC machining 5. FLEXIBLE AND LOCKABLE: Manual control of the direction of the slide, support simple operation, the use of adjustable handle rotation lock, so that the slide is not easy to loose 6. APPLICABLE SCENARIO: Manual slide stage is widely used in industrial machine tools, such as milling machines, lathes, grinding machines and so on Specification: Item Type: Linear Stage Actuator Maximum Load: Horizontal: ??100KG; Vertical: ??80KG Highest Accuracy: Positioning Accuracy: ??0.03mm Width: Approx. 150mm / 5.91in Maximum Stroke: 100mm / 3.94in Screw Diameter:20mm / 0.79in Main Function: Convert rotational motion into linear motion, or convert torsion into axial repeated force Use With: Cross type, T type, I type, gantry type, double axes, three axes, four axes combination. Package List: 1 x Slide Table1 x Hand Wheel2 x Rocker Arm2 x Fastener

Logistics information

Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
