Linshang Window Film Transmission Meter LS163 for Measuring VLT, Infrared and UV

Transmittance of Automotive Windshield, Glass

I. LS163 Transmission Meter Introduction

Linshang LS163 is both a transmission meter and a portable transmittance meter. The instrument can test three parameters of visible light, infrared and ultraviolet. This solar film transmission meter has three different display modes, which are light transmittance display, rejection rate display and light transmission display. It is a versatile portable test instrument. The following is a video introduction of the LS163 solar film tester (Note: LS163 and LS163A have the same characteristics. The video uses LS163A as an example to explain)

II. LS163 Transmission Meter Application

LS163 solar film transmission meter is widely used in solar film, glass industry, automobile 4S shops, beauty shops, etc. It is suitable for display, production, quality inspection, inspection and other occasions. It can test optical properties of solar film, stick-film glass, PC material and window glass.

          LS163 window tint detector test different materials

      III. LS163 Transmission Meter Parameters

                                                    UV Peak wavelength

          365nm

                            IR Peak wavelength

          940nm

                            Visible light

          380-760nm, conform to the CIE photopic luminosity function

                            Accuracy

          ±2% (Colorless and transparent material)

                            Resolution

          0.1%

                            Test Slot

          6mm * 58mm (W*D)

                            Dimension

          146 mm ×73 mm ×24 mm (L*W*H)

                            Display

          128*128 Dot matrix LCD

                            Weight

          187g (Include batteries)

                            Power supply

          4*AAA alkaline batteries

                  IV. LS163 Transmission Meter Characteristics

      1. The solar film transmission meter has simple operation and fast measurement. The three test results will be displayed on the interface immediately after putting the materials into the test slot.

     LS163 window tint meter test stick-film glass

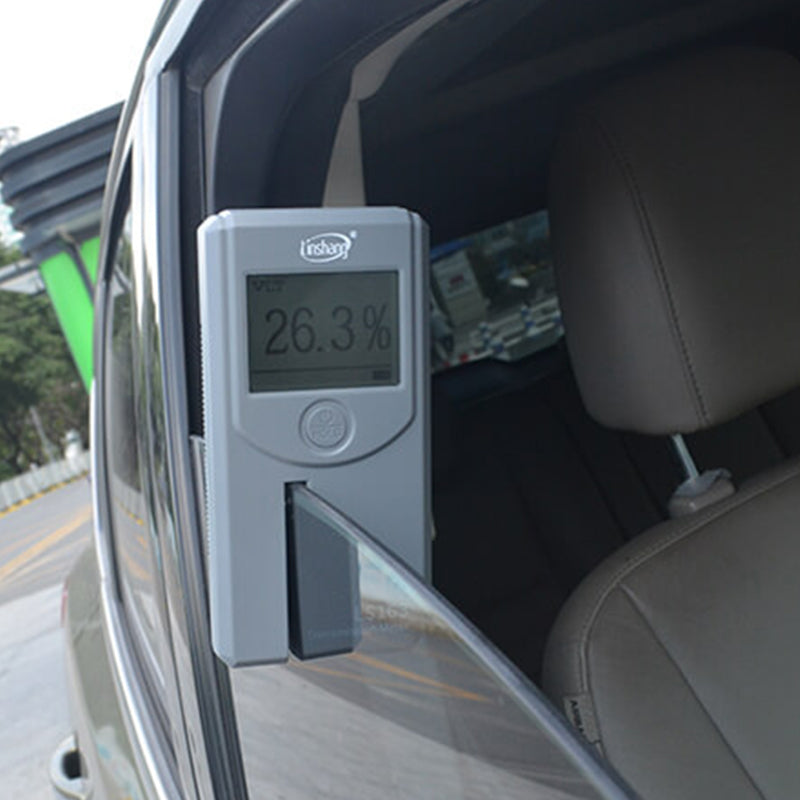

      2. The LS163transmission meter adopt parallel light path design, the test slot width can be 6mm. The instrument can also test car side windshield.

       LS163 transmission meter test the car side windshield

      3. The display interface can be rotated 360 ° adaptively, which is convenient for reading data when testing at different angles.

          LS163 window tint meter rotative interface

      4. The LS163 solar film transmission meter has real time dynamic calibration function , the meter will make self-calibration after power on.

       LS163 window tint meter pass self-calibration

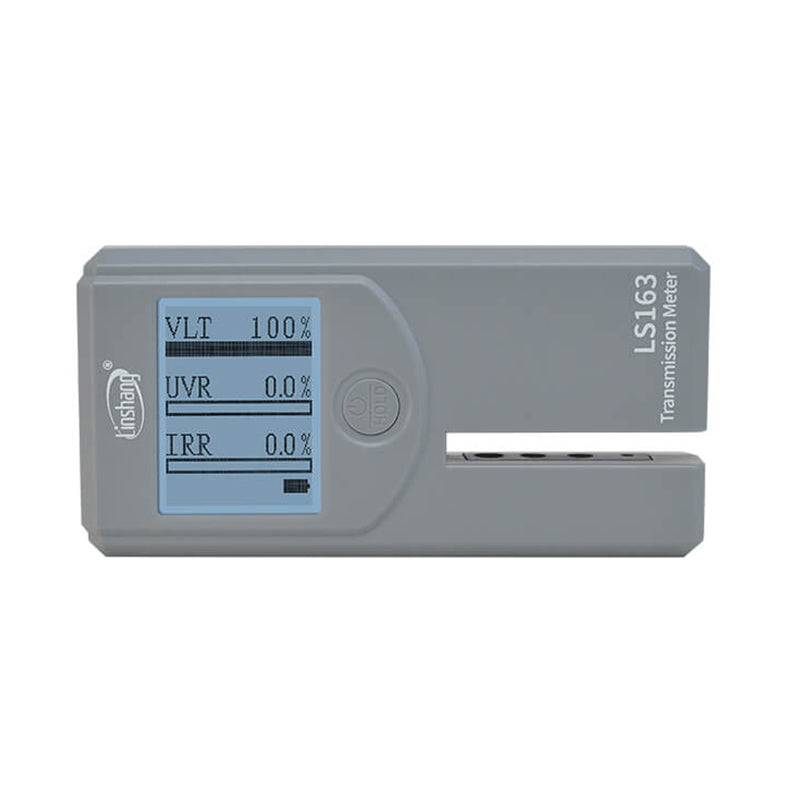

      5. We can set the display data as rejection rate or light transmittance. The instrument can also only display the visible light transmittance.

       LS163 window tint meter three measurement interfaces

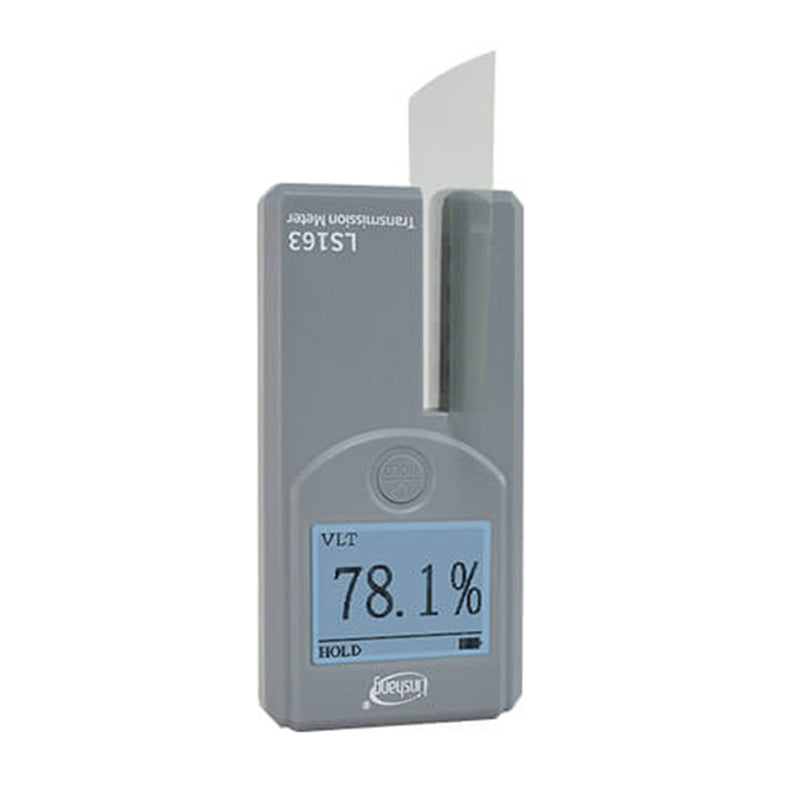

      6. The window tint detector has data lock function. Press the hold button after testing, the data will remain on the interface after taking away the tested materials.

          LS163 tint tester data lock function

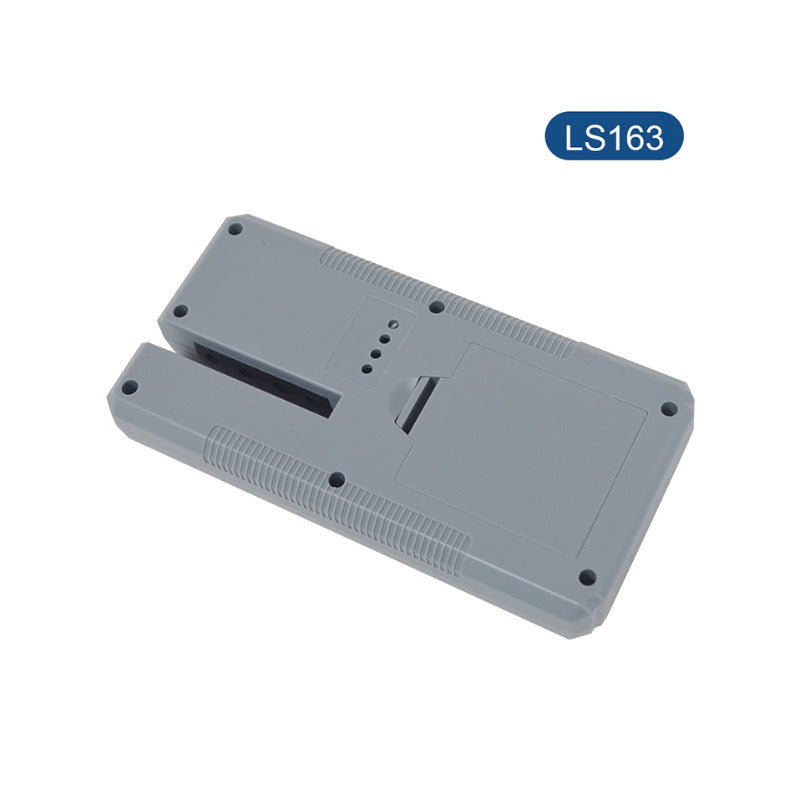

      7. The window film transmission meter has small size with anti-slip design. The anti-slip design is convenient for holding or carrying out.

       small size LS163 transmittance meter

      8. The instrument adopts LCD dot matrix screen with backlight, which can be used in dark environment.

   9. The tint tester is powered by 4 AAA alkaline dry batteries with low power consumption. It can continuously measure for more than 100 hours. The meter will automatically shutdown without operation after 3 minutes.

      V. LS163 Transmission Meter Qualification

          solar film tester patent certificate

      VI. LS163 Transmission Meter Operation Video

VII. LS163 Transmission Meter Packaging Details

          No.

    Description

    Quantity

    Unit

          1

    LS163 Transmission Meter

    1

    set

          2

    User Manual

    1

    pcs

          3

    AAA Battery

    4

    pcs

          4

    Certificate / Warranty Card

    1

    pcs

          5

    Drawstring Bag

    1

    pcs

          6

    Packing box dimension 18*13*5 cm（L*W*H）

    1

    pcs
