Model/Name

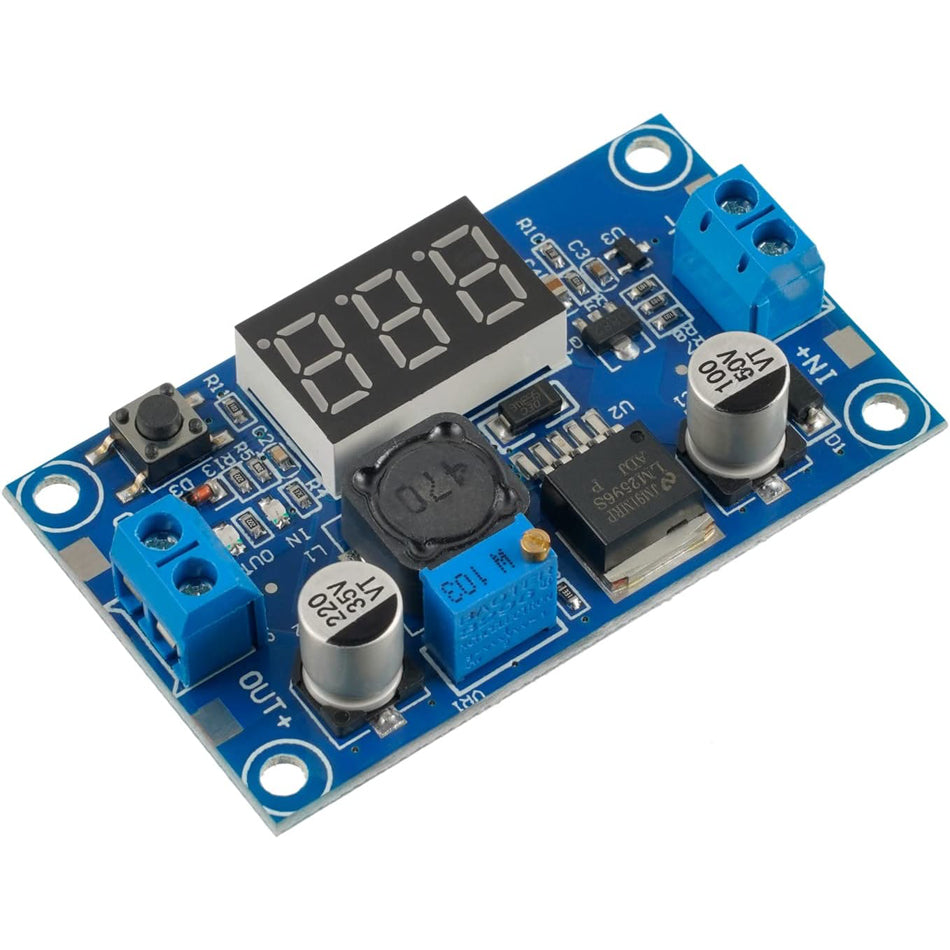

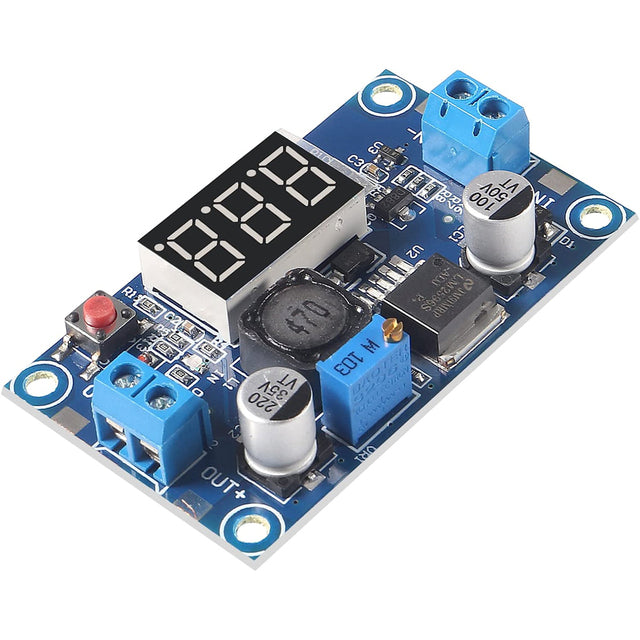

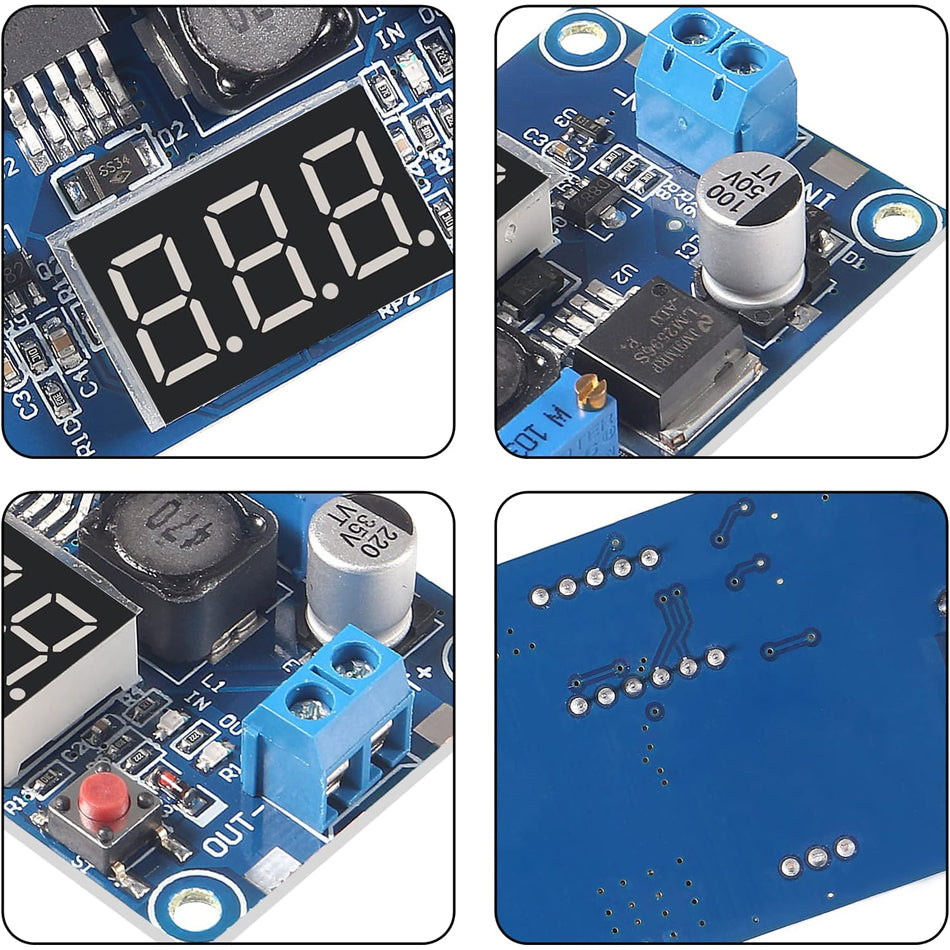

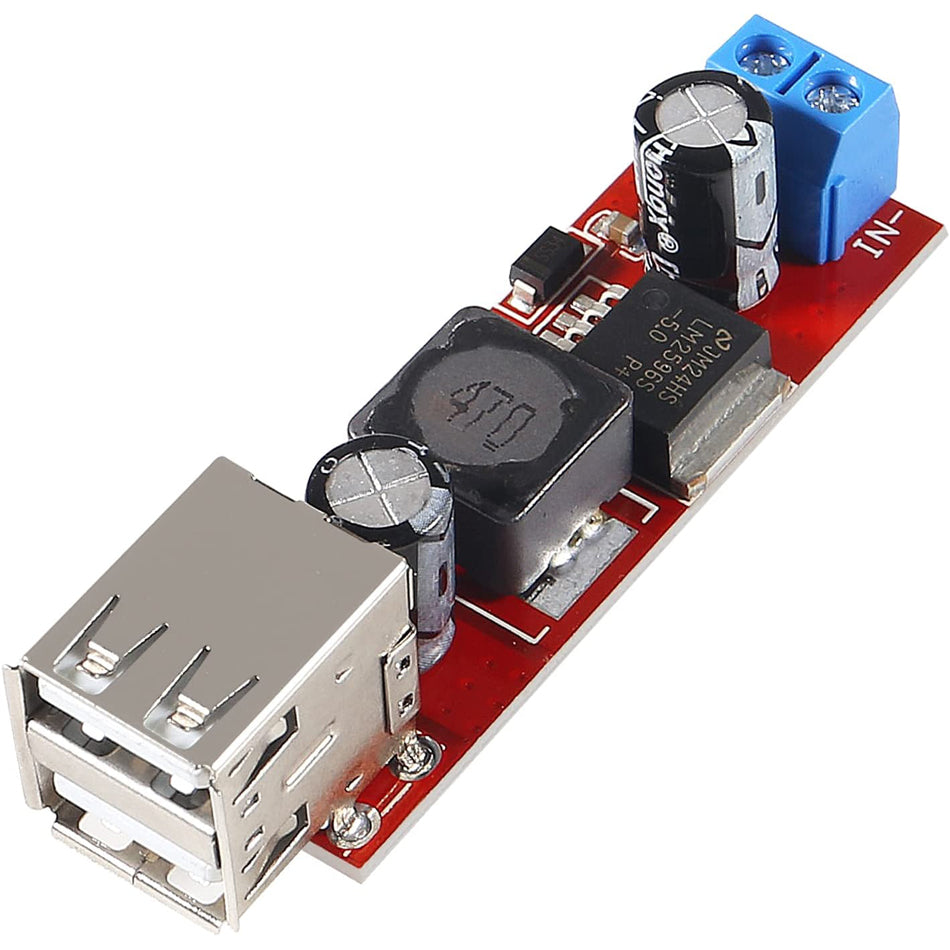

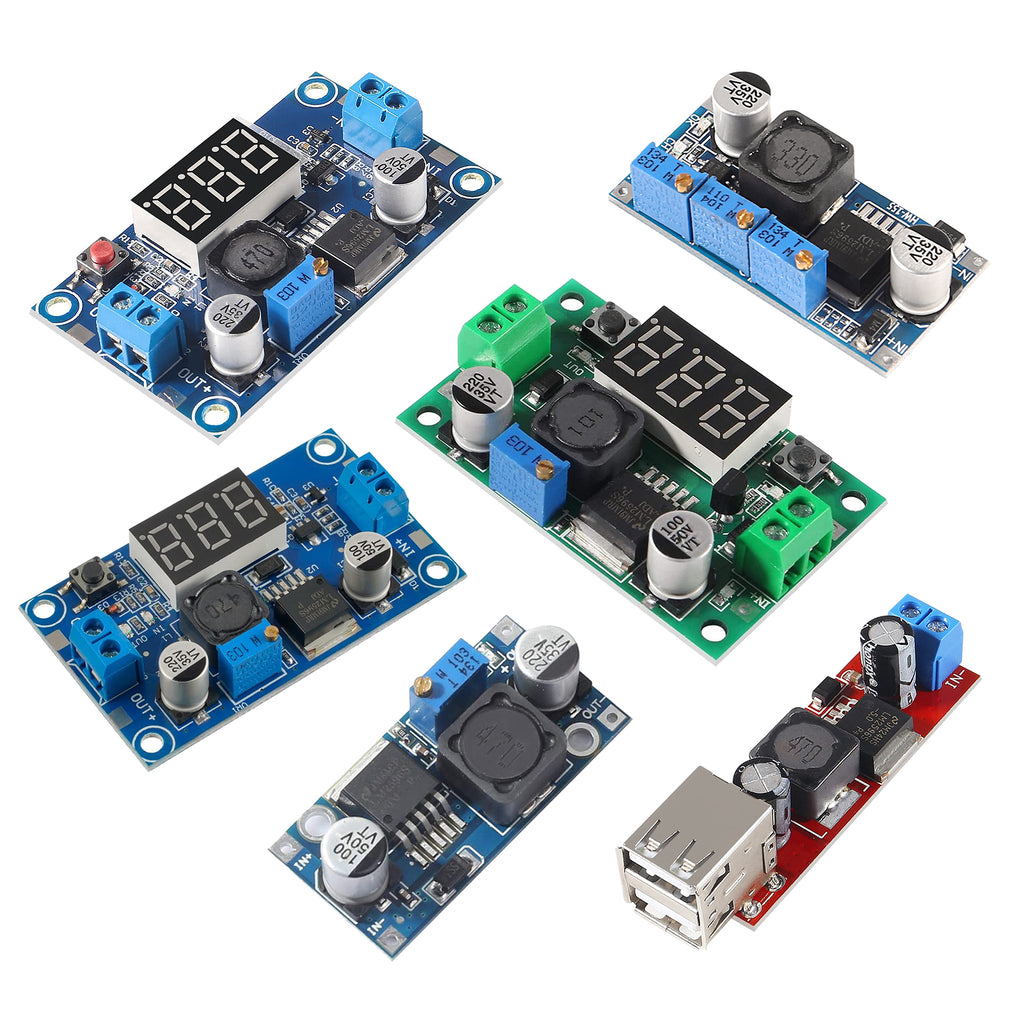

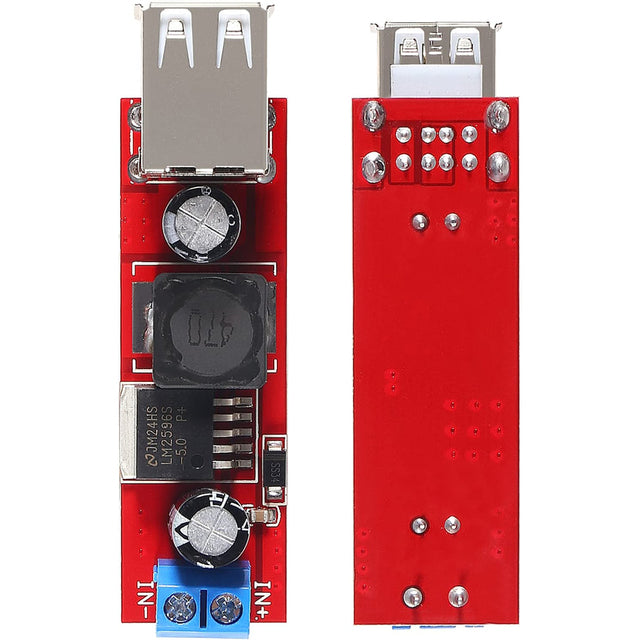

LM2596S DC-DCstep-down module
Input voltage
3.2V to 40V
Output voltage
1.25V to 35V
Output current
3A(max)
Conversion efficiency
92%(the highest)
Output ripple
<30mV
Switching frequency
65KHz
Operating Temperature
-45to +85

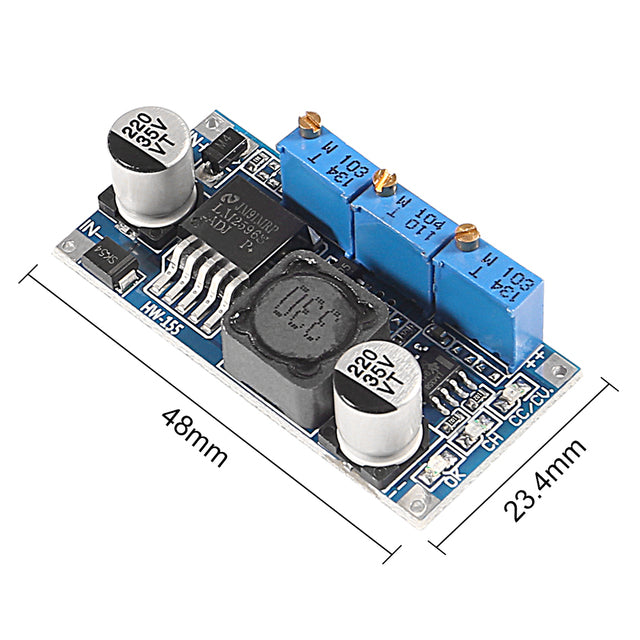

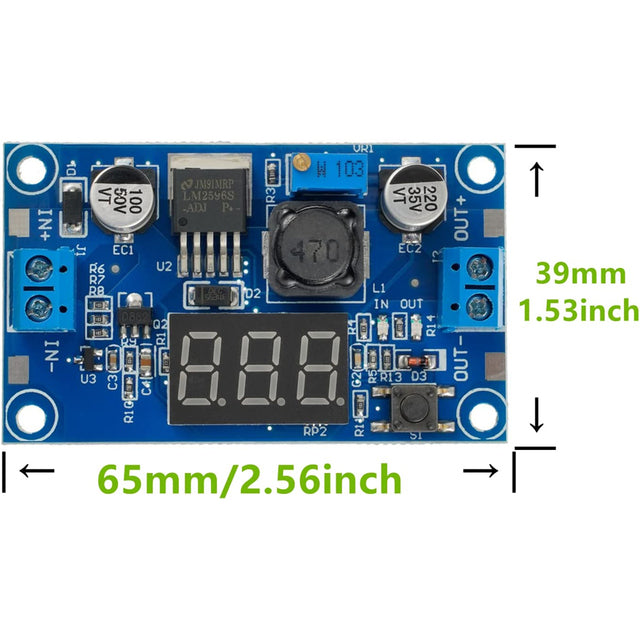

Size size
43mm * 21mm * 14mm(L*W*H)
Input voltage range:
DC 3V to 40V (input voltage must be more than 1.5V above the output voltage is high. Can not boost).

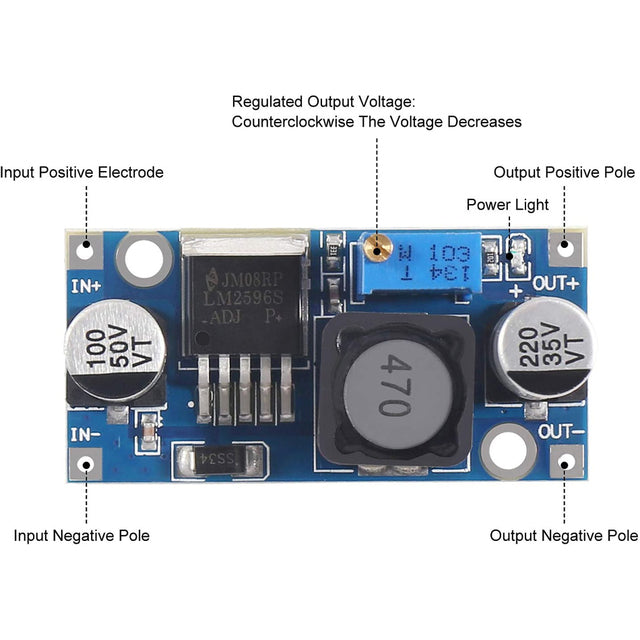

Input + --- IN +.
Enter negative --- IN-.
Output Voltage Range:
Output + --- OUT.
Output negative --- OUT.
1.5 to 35V DC voltage is continuously adjustable, the maximum output current of 3A.
ProductDescription:
Advantages:
All use of imported SMD aluminum electrolytic capacitors, high-power high-Q inductors. Additionally, each a plate have been strictly technical tests, all testing has been completed using a separate anti-static protection bags package. Specially designed two screw holes. Four input and output pads are provided with a pin fixing hole spacing 100mil are integer multiples, convenient volume applications in the product;
Note:
working long hours is recommended for use in less than 2.5A of current, and coupled with the heat sink (10W output above); Since the step-down module, in order to ensure stable output, keep a minimum 1.5V differential.
Voltage Regulator:

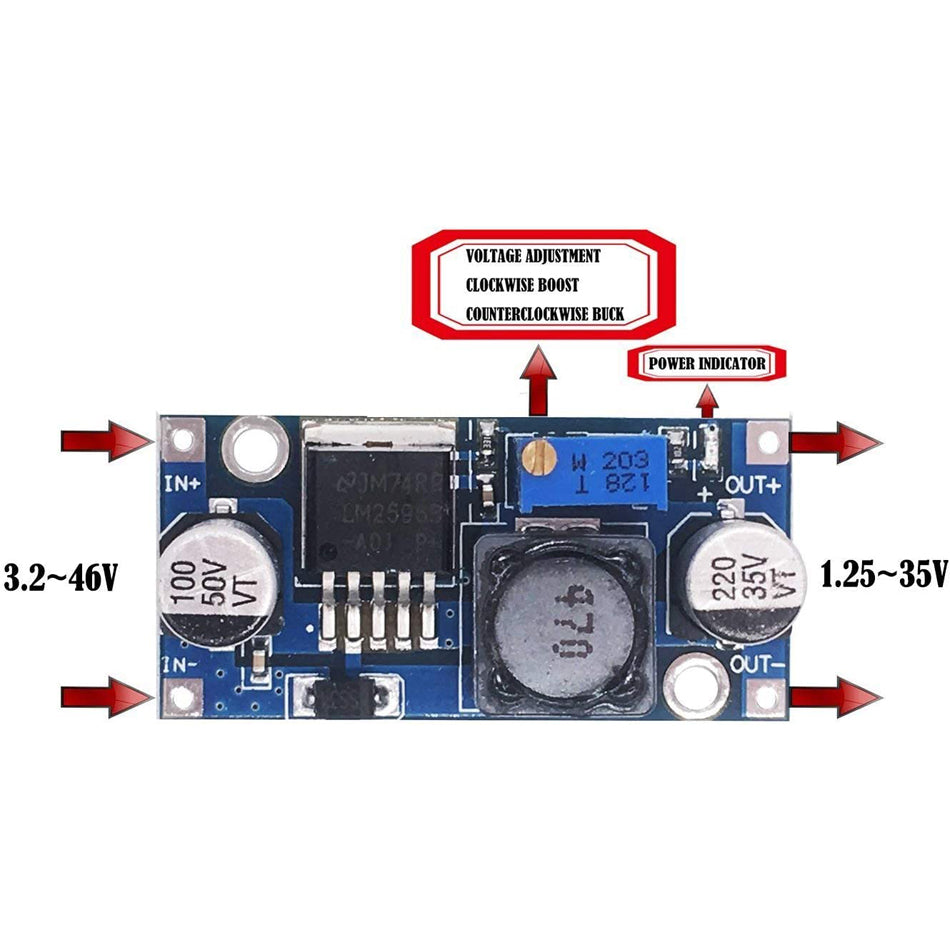

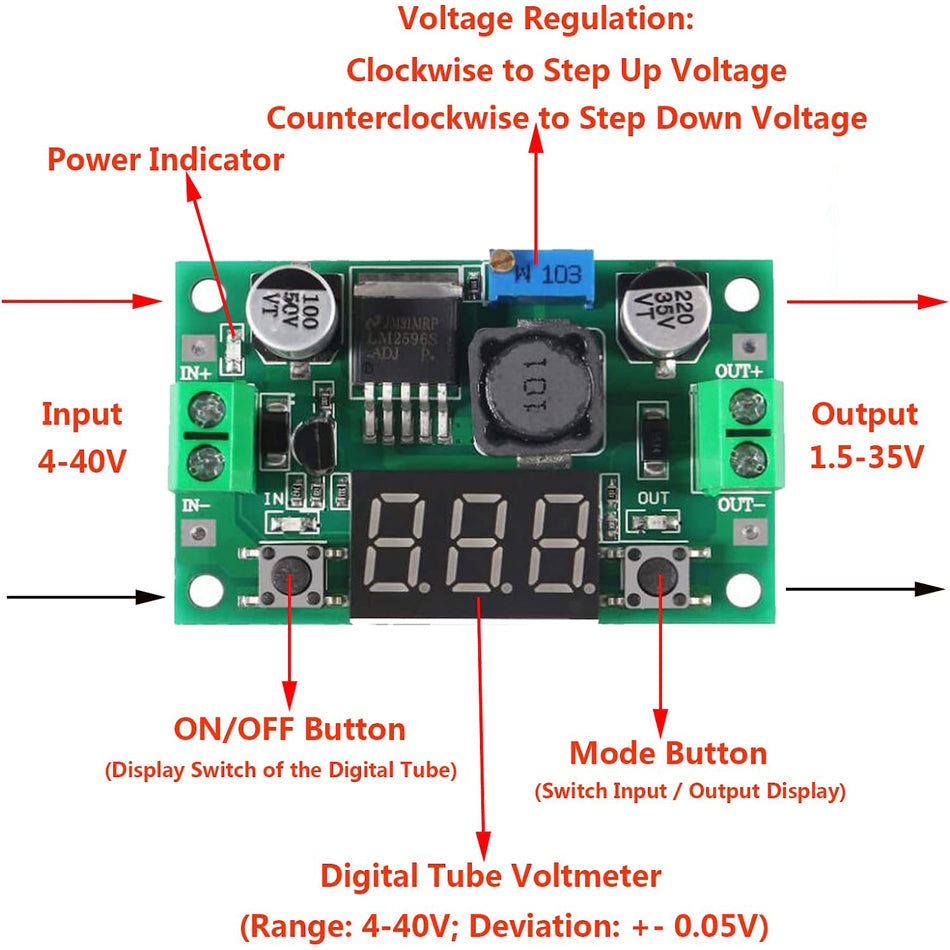

Access to power (3-40V), adjust the blue potentiometer knob (clockwise rotation generally boost, buck counterclockwise rotation) and with a multimeter to monitor the output voltage reaches the required voltage.
Wiring:
1. welding, welded directly to the power line input (output) port;
2. solder pins, or pins can be inserted through the lead insertion use in tunnel plate; soldered directly to the PCB after another or add pins.
