Features:
1.This is a LED display digital DC voltage meter.
2.Portable and lightweight,easy to carry.
3.Many colors display optional.
4.It has reverse connection protection,reverse connection does not burn.
4.LED display,easy to read at night.
Descriptions:
This is a digital display DC voltage meter for car,motorcycle,battery cart,ship etc.
Specification:
Display color: (optional)

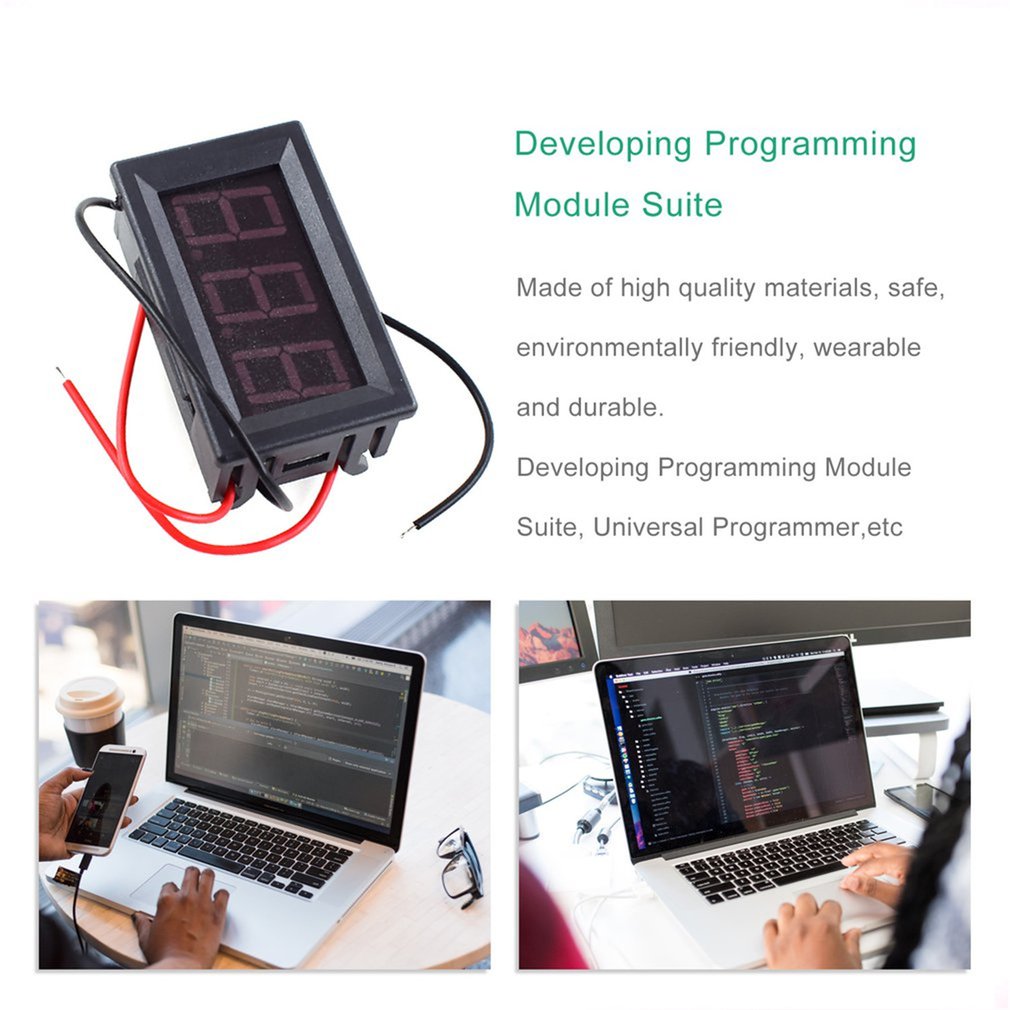

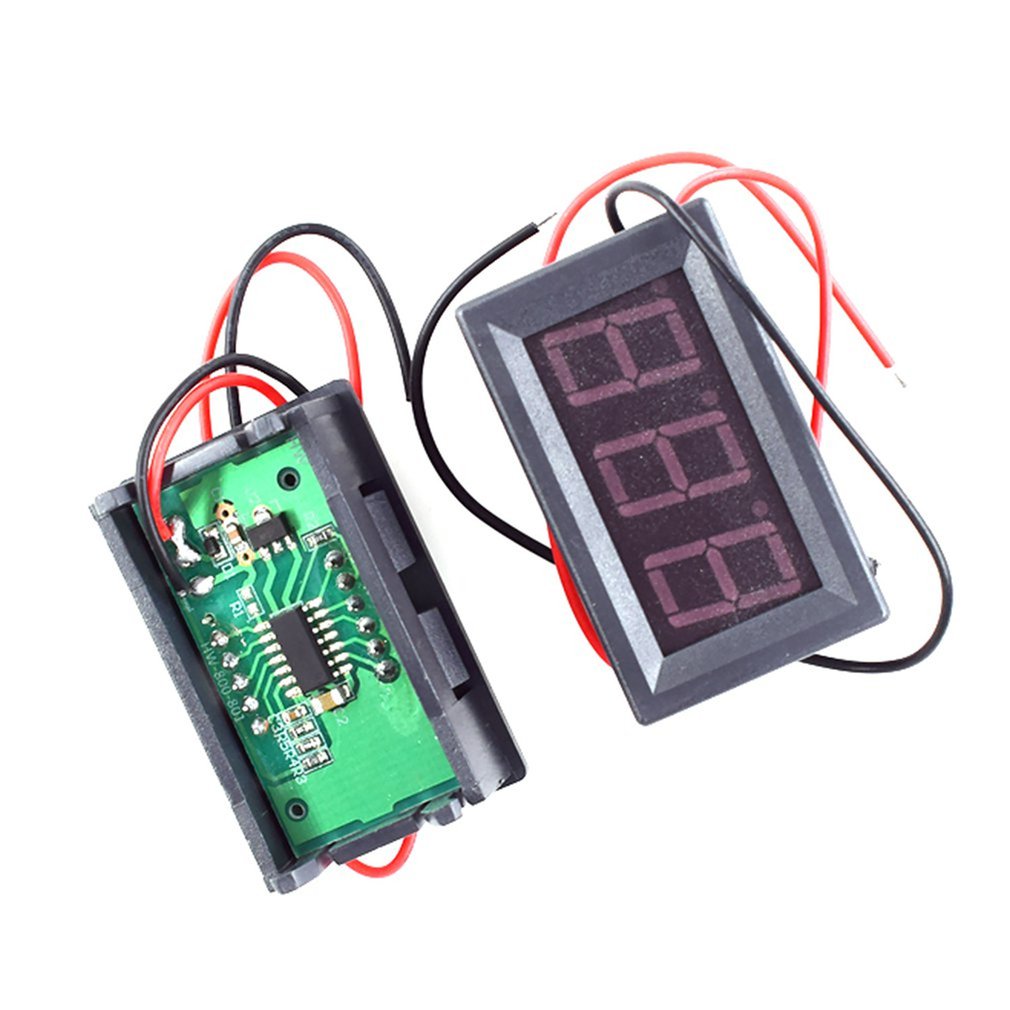

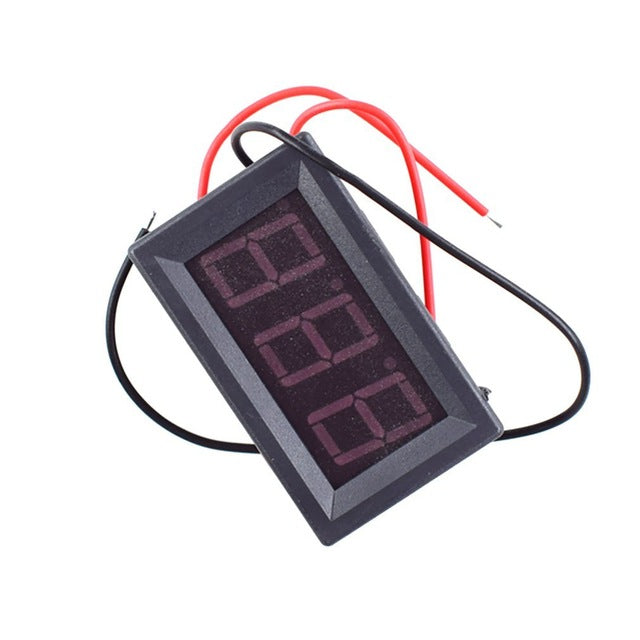

2 Wire:red light

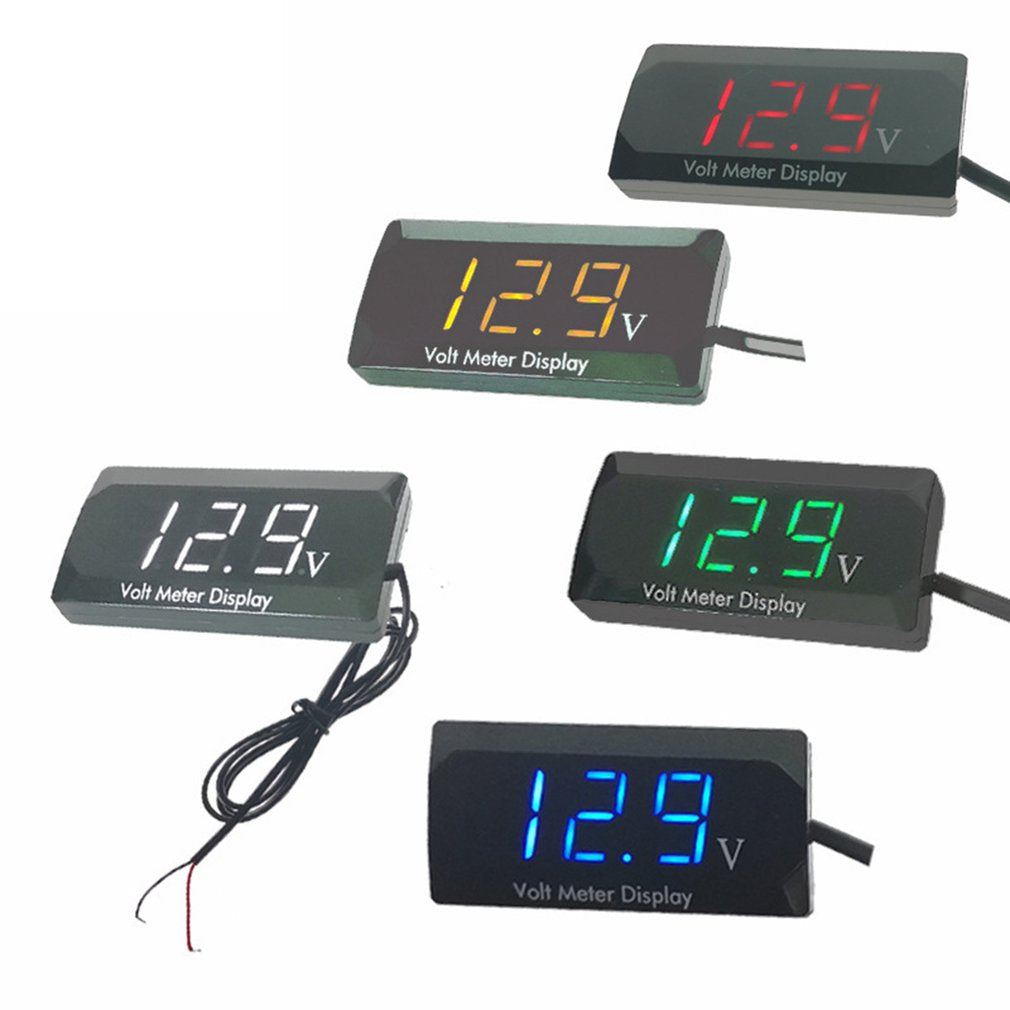

12V Voltage meter:Red light, Yellow light, blue light, green light, white light
2 Wire-red light
Measuring voltage:DC4.5V-30.0V
Maximum input: DC30.0V. Note: if the input voltage is higher than 30V, permanent damage may occur.
Allowable error: ± 1%; when it is greater than or equal to 10V, the error is ± 0.3V; when it is less than 10V, the error is ± 0.10
Input impedance: > 100k Ω
Working current: Red < 23mA, green < 18mA, blue < 13mA
Refresh speed: about 300ms / time
Display mode: three digit 0.56 LED digital tube display
Lead length: 20cm
Working temperature: - 10 ℃ - 65 ℃
Size:48mm/1.87in x 29mm/1.13in x 22mm/0.86in
Opening size :46mm/1.79in x 27mm/1.05in

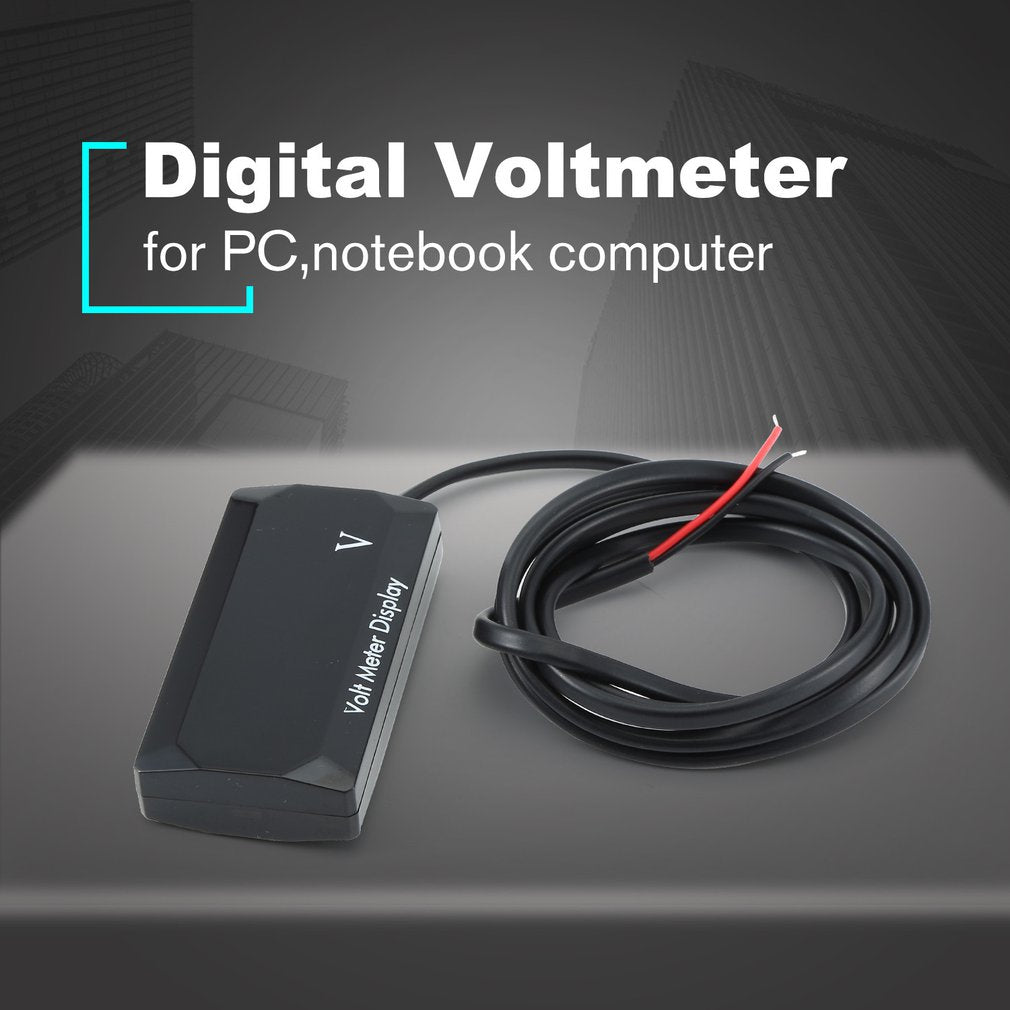

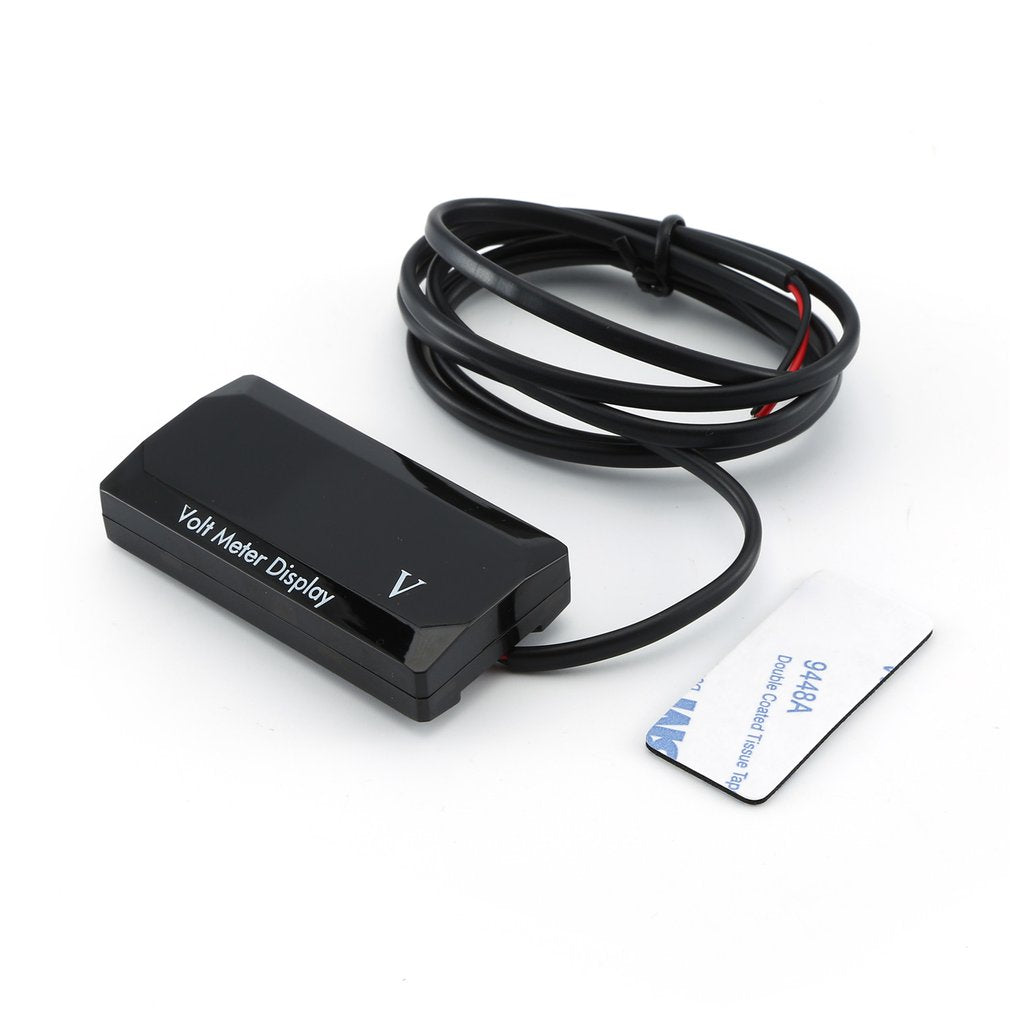

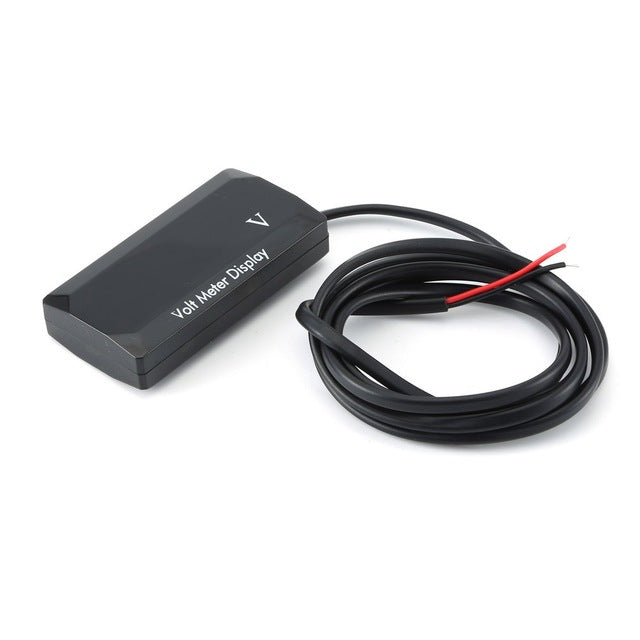

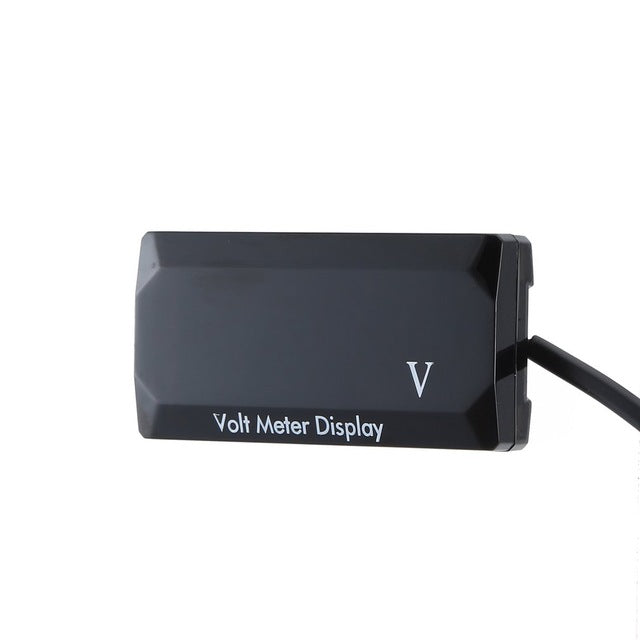

12V Voltage meter
Test accuracy: ± 0.2
Measurement speed: about 2 times per second
Wiring mode: two wires can be connected with positive and negative poles.
Conductor length: 1m
Input voltage: 5-30V
Limit voltage: 30V
Measuring voltage: 5-20V
Product certification: CE / RoHS
Product weight: 30g
Size:57.2mm/2.23in x 29.3mm/1.14in x 11.8mm/0.46in
Package Information:
Package Size:90x40x20mm/3.51x1.56x0.78in
Package weight:29g/1.02oz
Polybag Package
Package included:
1 x Digital Voltmeter
Noted:
1.Please allow 1-2mm errors due to manual measurement.
2.Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
Note: if the input voltage is higher than 30V, permanent damage may occur.
Package Information:
Package Size:90x40x20mm/3.51x1.56x0.78in
Package weight:29g/1.02oz
Polybag Package
Package included:
1 x Digital Voltmeter
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
