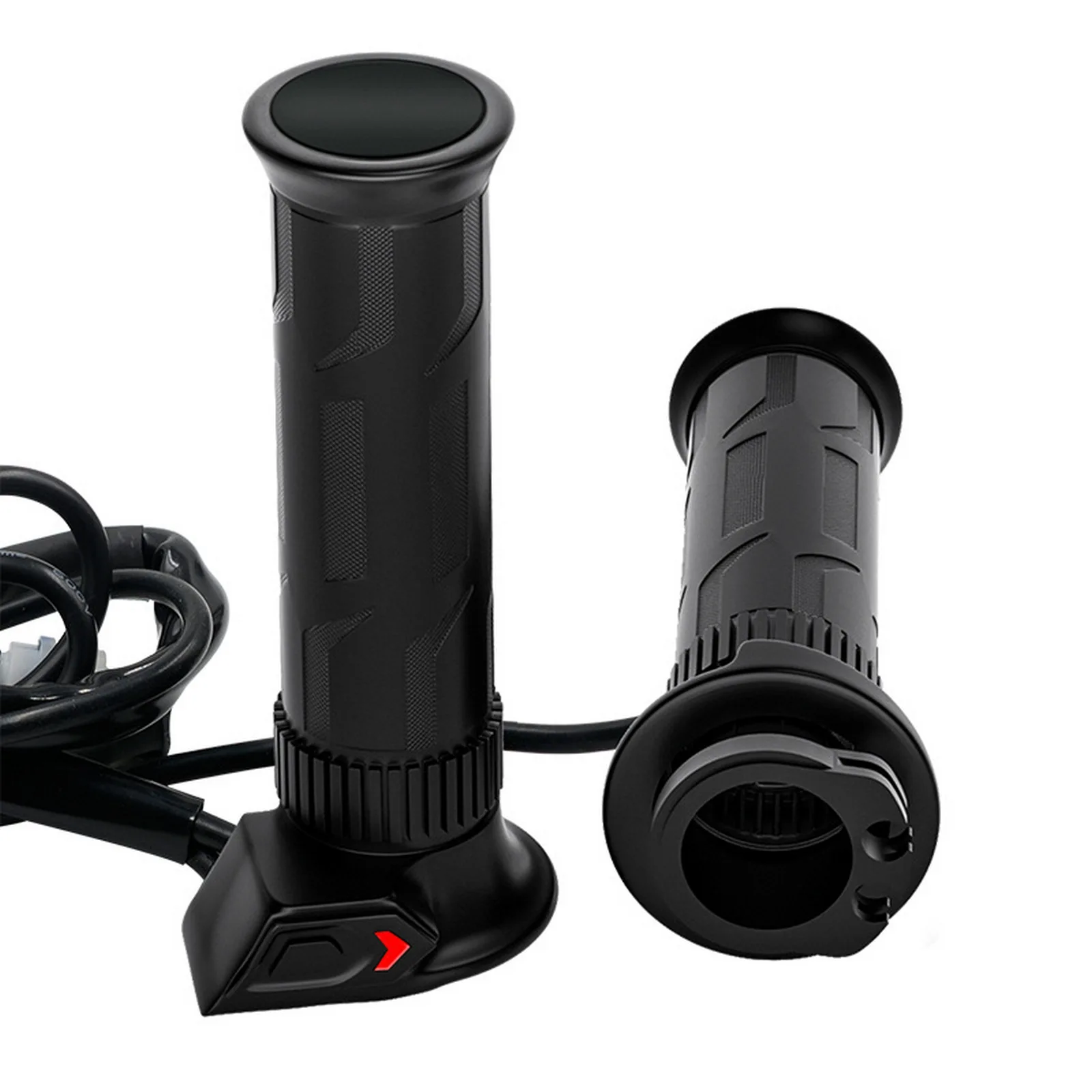

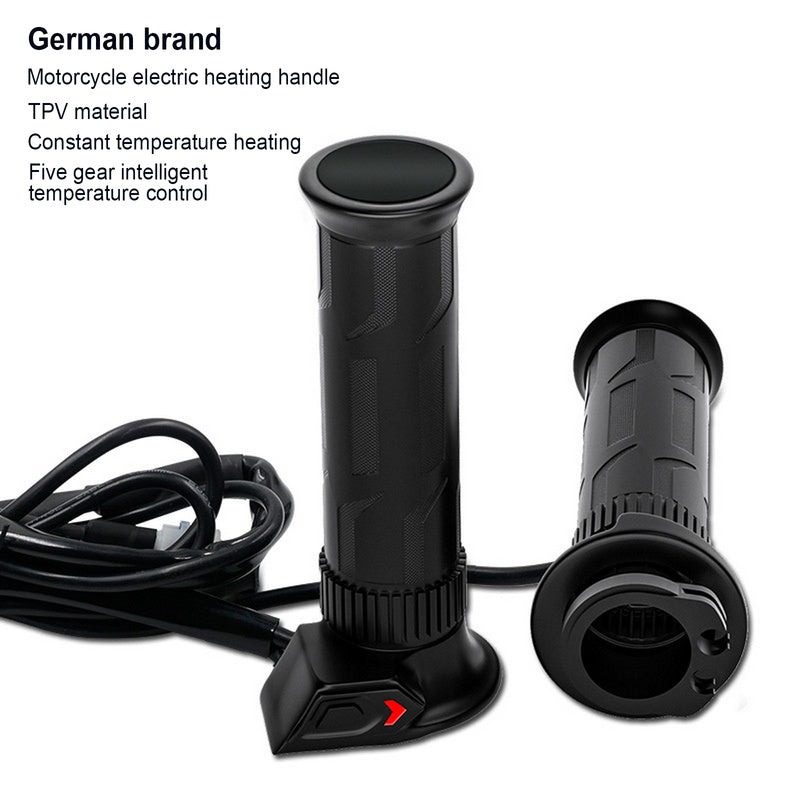

1 Pair Motorcycle Heated Hand Grips 7/8 Inch Motorbike Handlebar Heated Grips Warmer Electric Hot Heated Warm Hand Grips

Product advantages:

2 The product is equipped with a five-stage adjustment switch, the temperature can be adjusted at will, warm hands in winter, bid farewell to frostbite

3 Built-in smart chip, when the voltage is too high or too low, it will automatically cut off the power and enter the standby state, which is safer to use

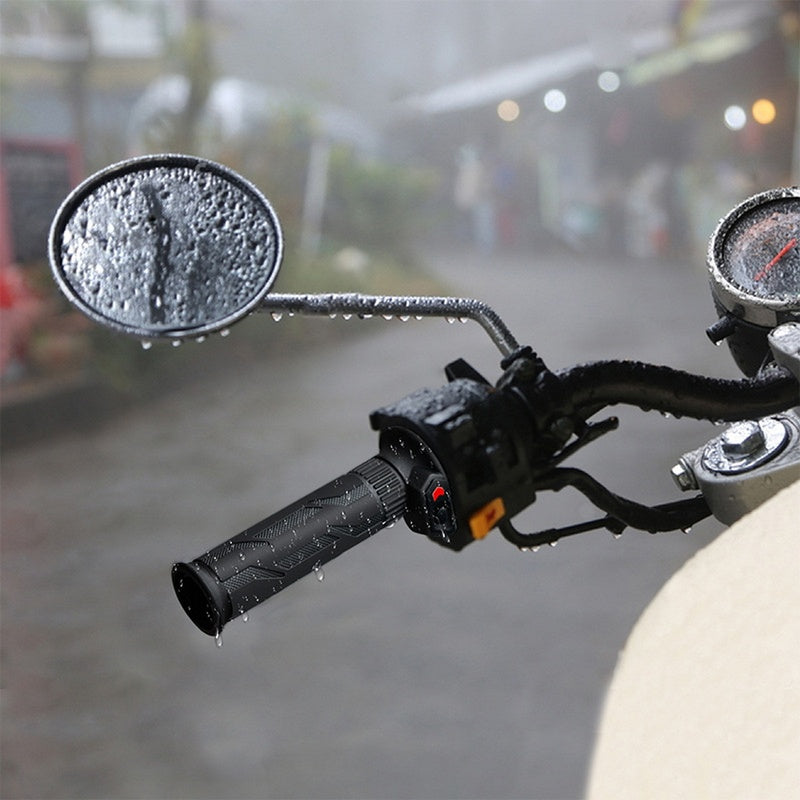

4 High-strength waterproof design, not afraid of wind and rain, rain and snow can also be used normally

5 The handle at the end of the plug is detachable and can be sealed or vented, which is more convenient to use

Product name: high-end indicator light 5-speed electric handle

Product net weight: 307G

Product size: 13.3*3.7CM

Product material: TPV

Working voltage: 12.4v-15v

Output power: 20-40W

Working temperature: -15°C-50°C

Applicable pipe diameter: 2.2CM in diameter

1 The red wire is the positive pole and the black wire is the negative pole. Please do not connect it wrong, otherwise it will easily cause damage to the product

2 Power on the controller, the indicator light flashes 3 times and enters the standby state. Note: The flashing color of the indicator light is green to indicate normal, and the color is blue to indicate that the protection function is not working (controller failure), but it can be heated normally

3 In the standby state, press the button on the handle. If the power supply voltage is lower than the starting voltage of the electric heating at this time, the red indicator light flashes a few times and enters the standby state.

4 In the standby mode, press the button on the handle cover. If the power supply voltage is higher than the starting voltage of the electric heating at this time, the system will enter rapid heating, so that the handle cover will heat up quickly. After a period of time, it enters a stable heating state.

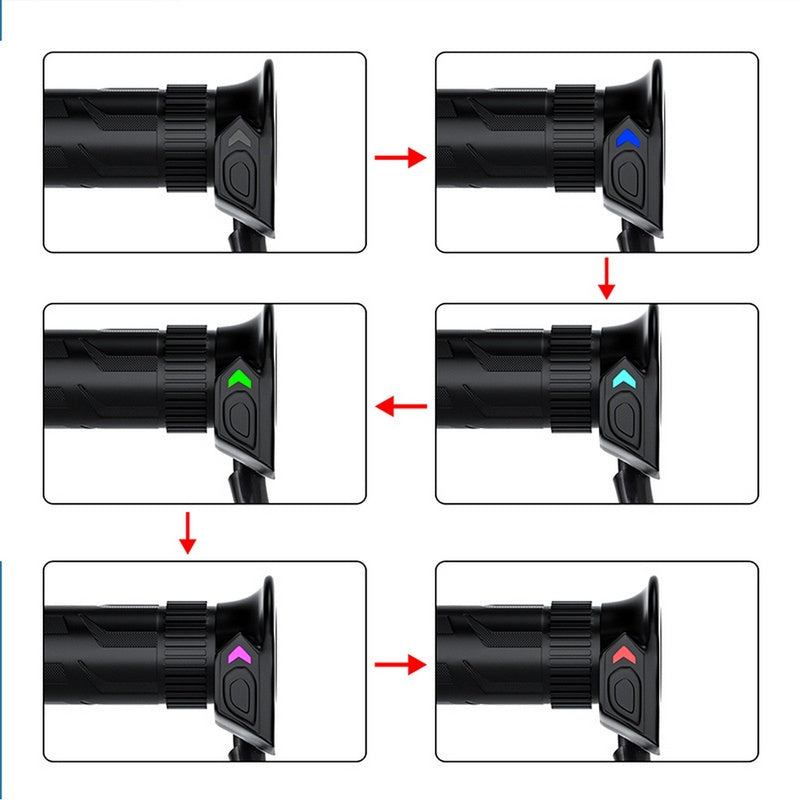

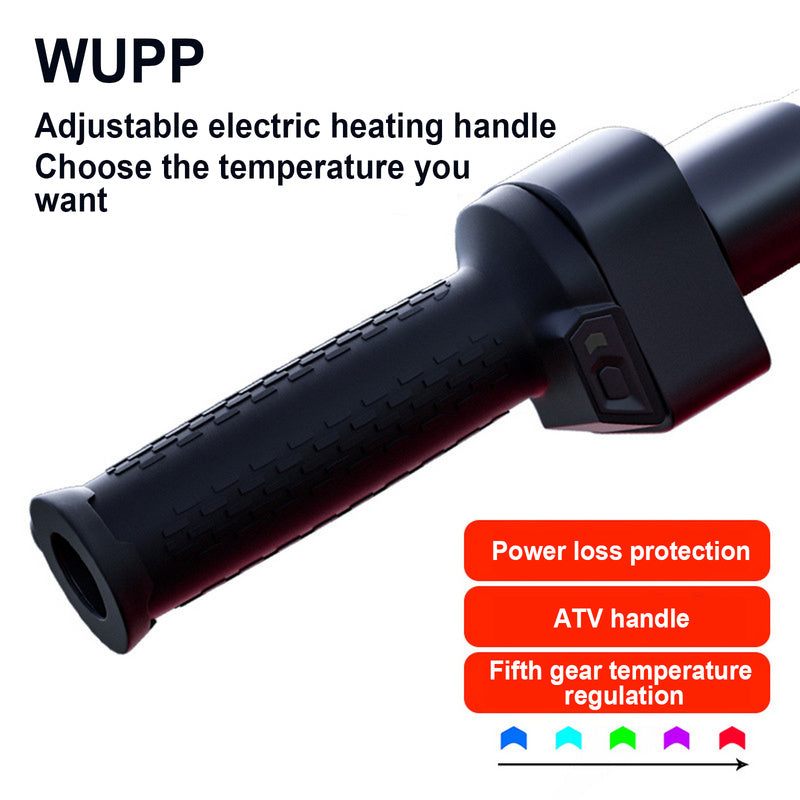

5 In the working state, each time you press the button, the electric heating power increases by 20%. There are 5 levels in total. The color of the indicator light is: blue-cyan-green-purple-red.

6 In the working state, when the power supply voltage is lower than the starting voltage of the electric heating, the corresponding gear indicator flashes. If the voltage remains lower than this voltage within 7 seconds, the controller will cut off the electric heating output and enter the standby state. If the normal voltage is restored within 7 seconds, the indicator light will light up and normal operation will begin.

Protection voltage: when the voltage is lower than (12.5±0.2) volts, the heating handle turns off the output, and the controller enters the dormant state

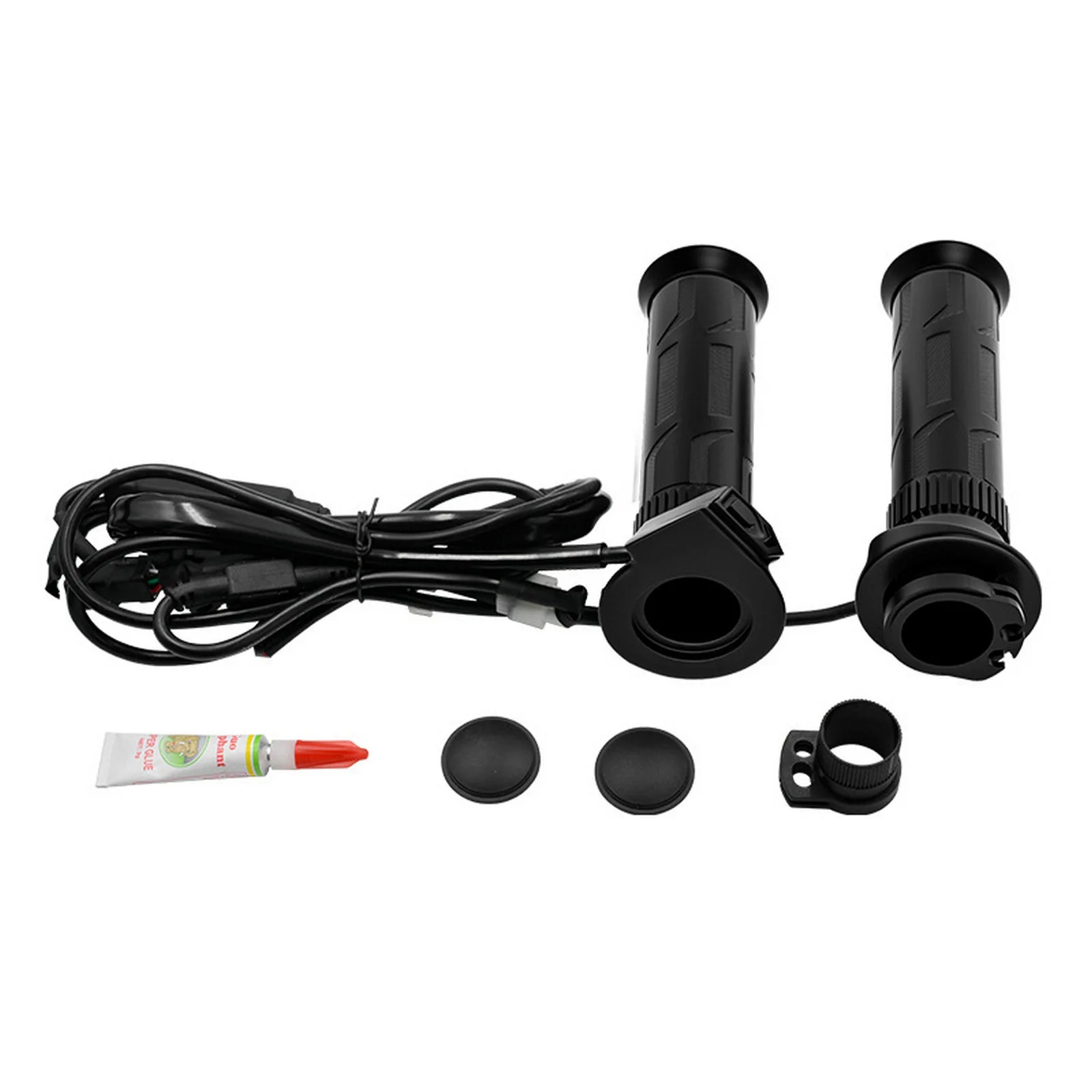

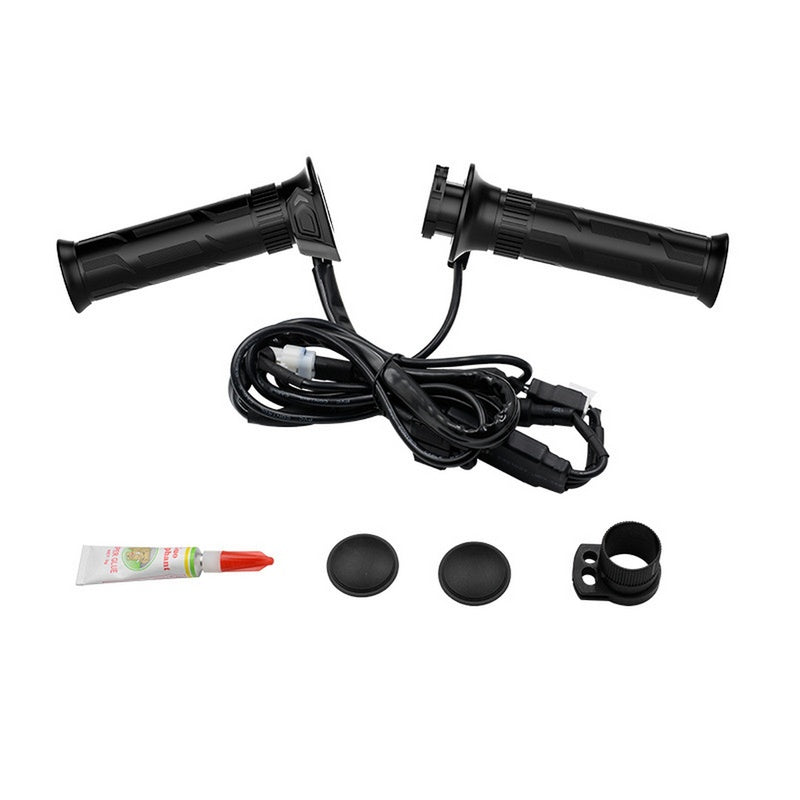

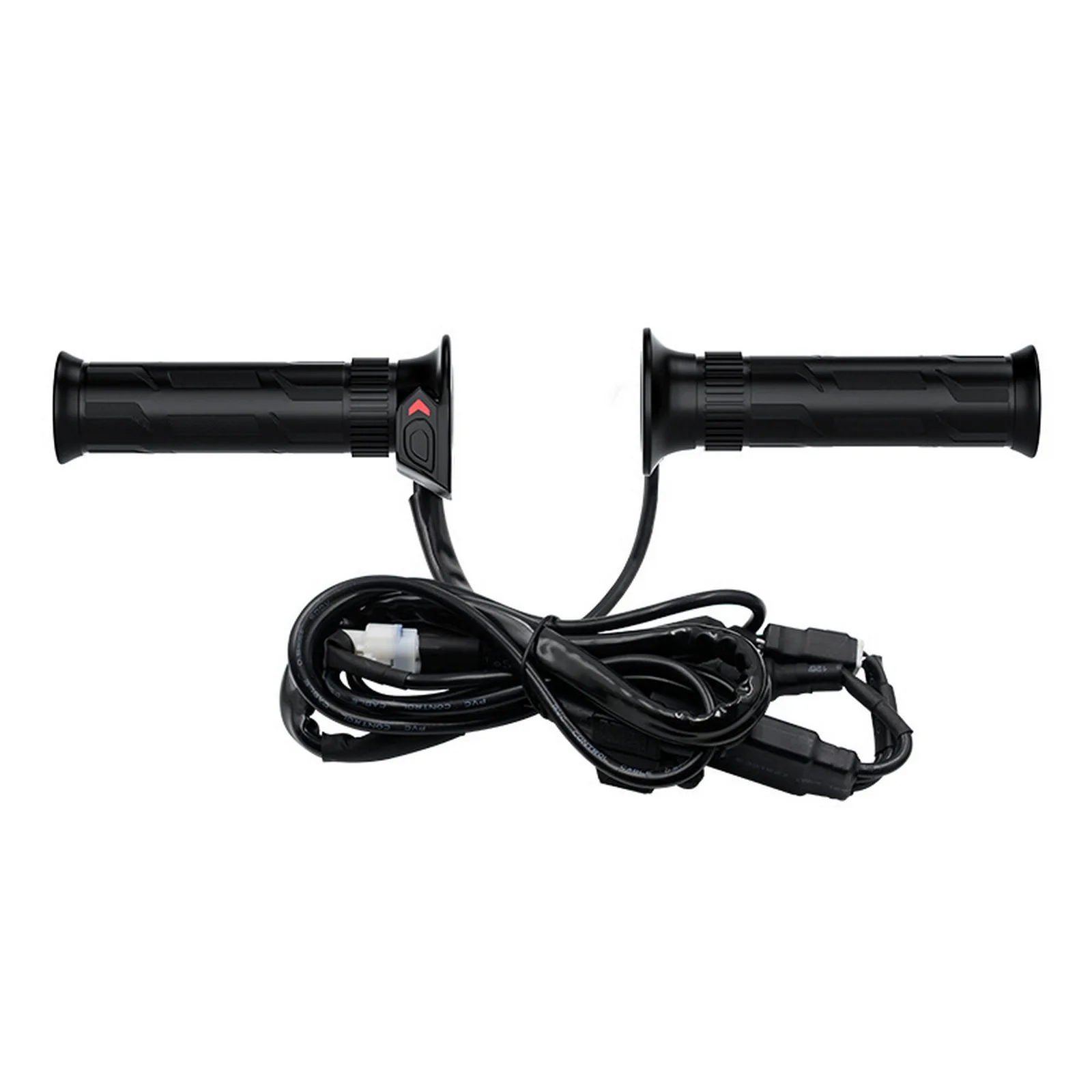

Product list: glue×1, throttle core×1, handle block*2
